Elysium Max Exoskeleton

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

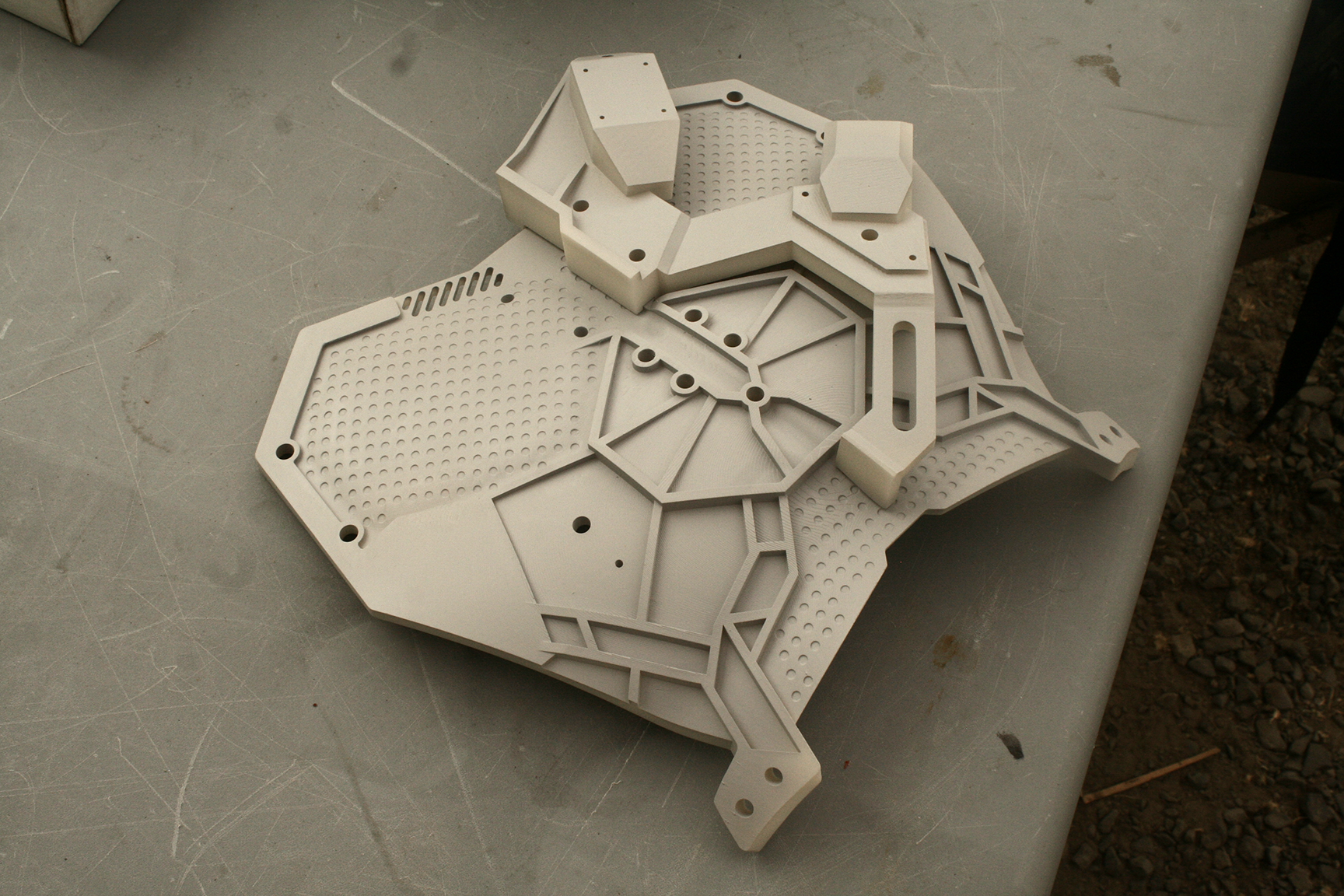

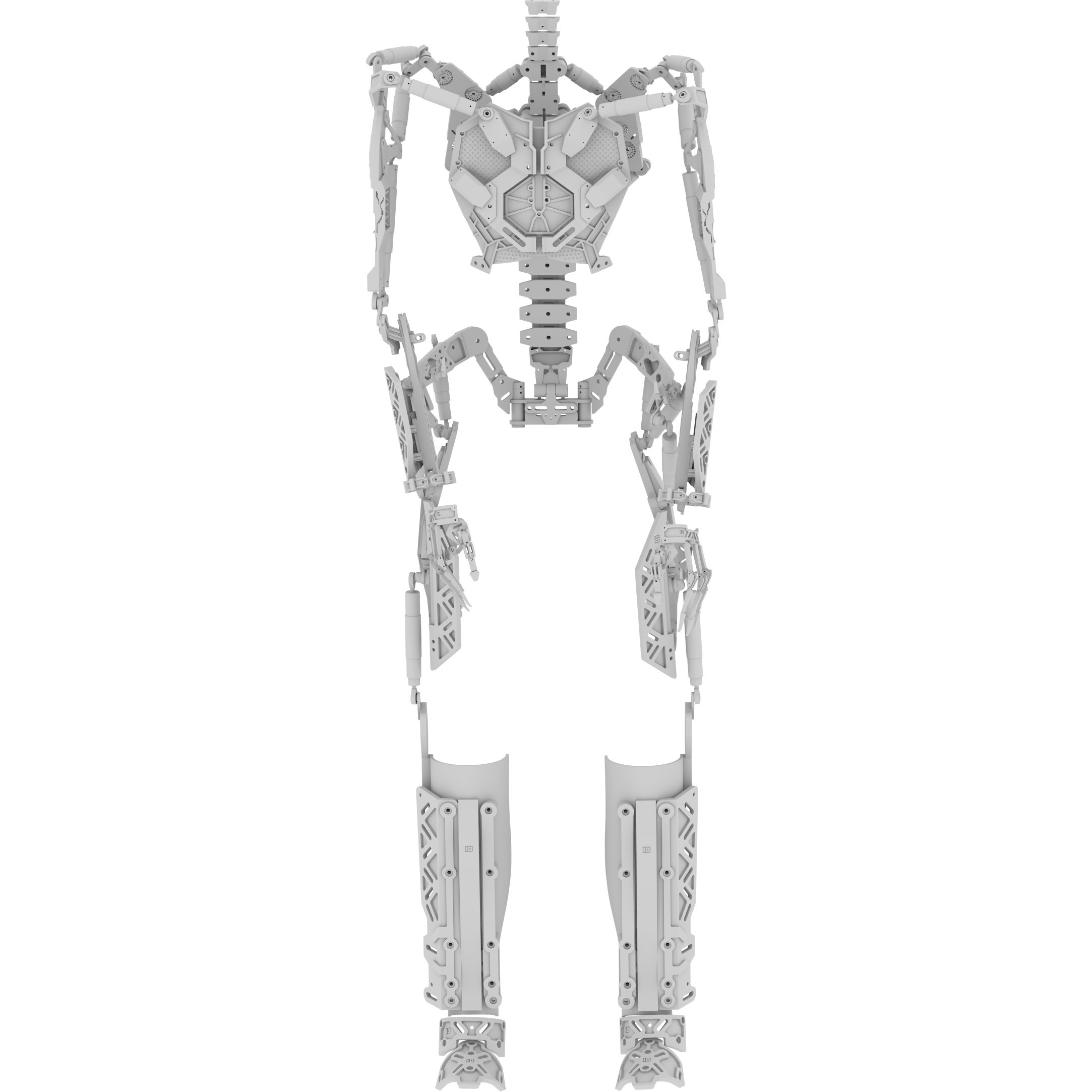

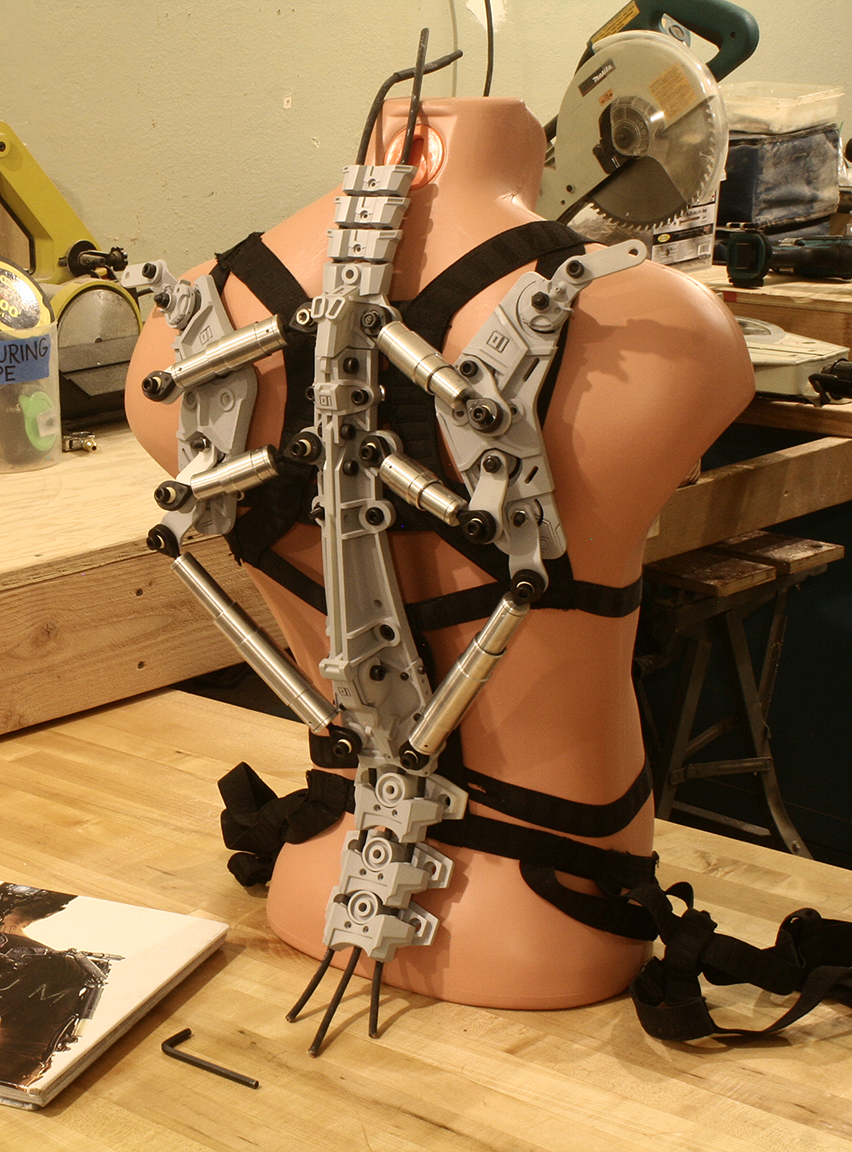

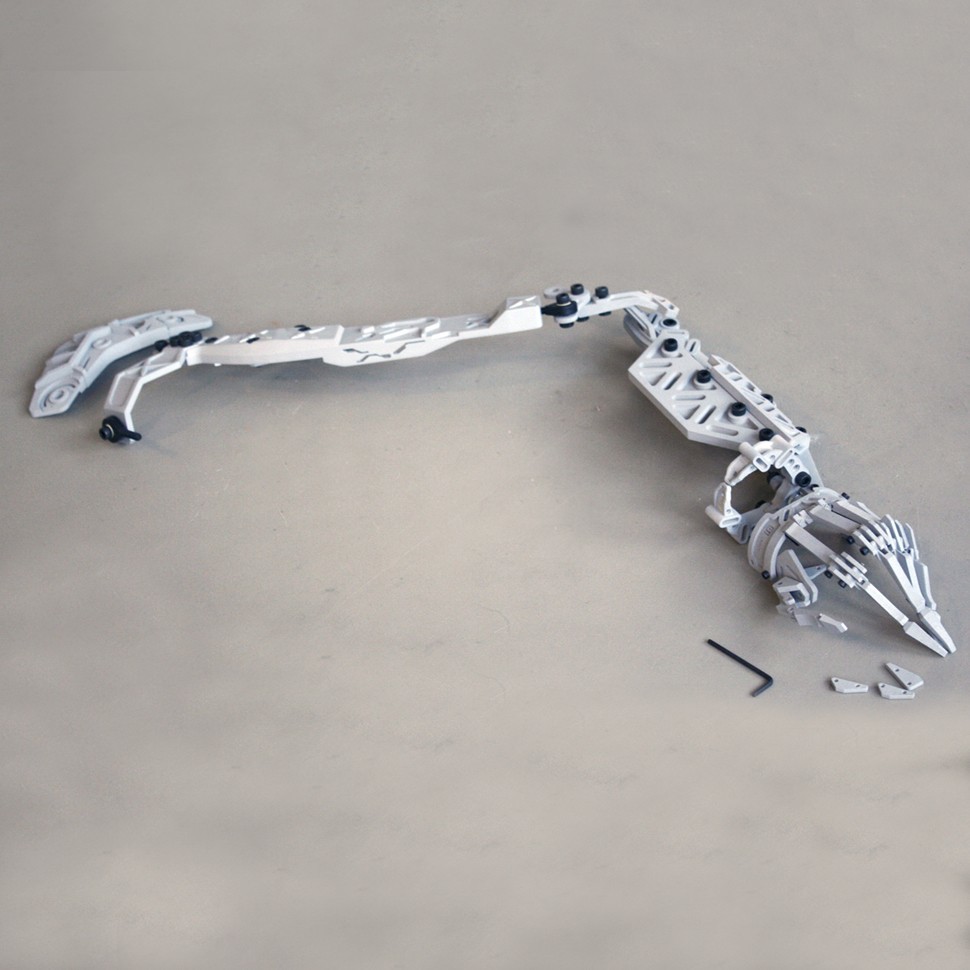

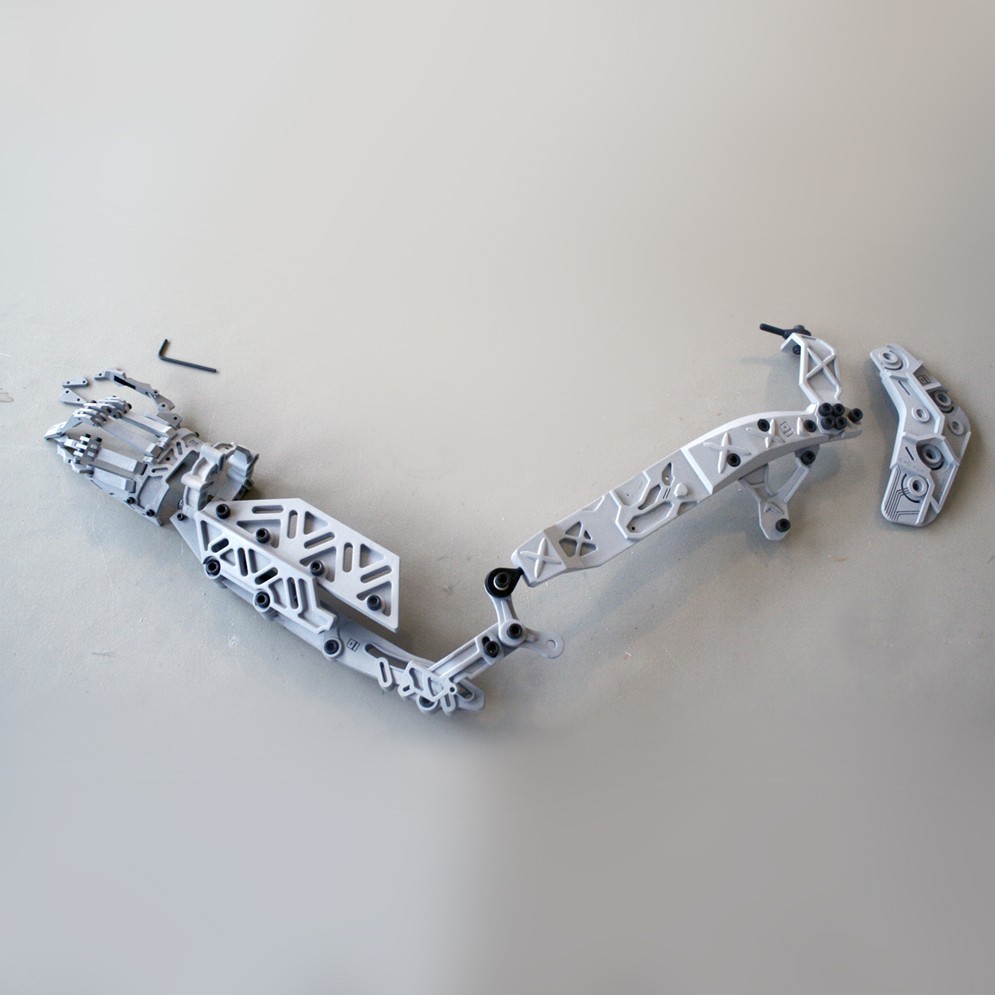

A full-scale replica of the exoskeleton frame worn in the movie Elysium (2013) by Max Da Costa.

Created in Autodesk Inventor using prop auction photographs and screen captures. A few parts differ from screen appearance and others have added detail. Original design by Aaron Beck, prop by Weta Workshop, likeness copyright by Sony Pictures Entertainment (SPE).

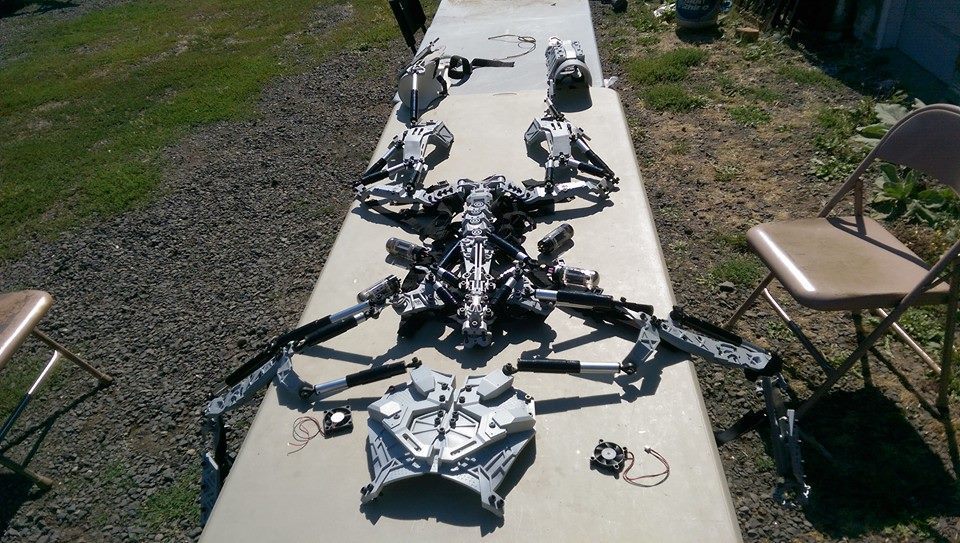

Exoskeleton.stl contains the fully assembled model for reference, all other files are separate parts of same model.

Assembly Instructions:

Hackaday (Dark) - https://github.com/01binary/elysium-max-exoskeleton/raw/hackadayinstructions/instructions/assembly%20instructions.pdf

Default (Light) - https://github.com/01binary/elysium-max-exoskeleton/raw/master/instructions/assembly%20instructions.pdf

Source Files (Autodesk Inventor):

https://github.com/01binary/elysium-max-exoskeleton


3D printing settings

All units are millimeters. Build volume is 5,592,770 mm^3. Some parts are large, and will have to be sliced into halfs or quarters in your 3D printing software, to be glued together before finishing and assembly.
