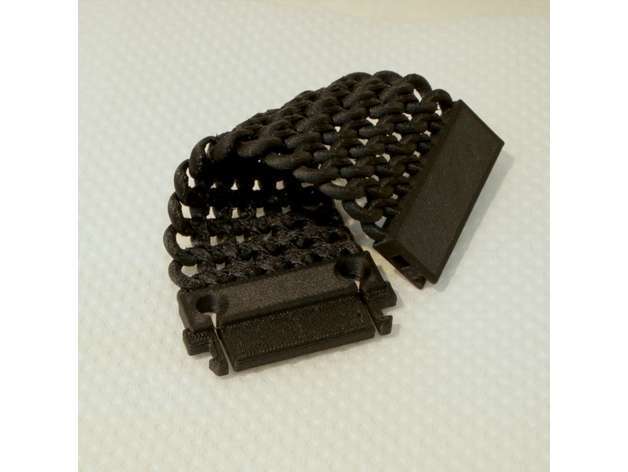

chain bracelet

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 15 likes
  • 125 downloads

3D model description

This is a remix of "Chainmail bracelet" by gpvillamil. This may be good challenge that how you understand 3D printing.
Since original model was not so tough, I redesigned it in CINEMA 4D.
http://www.11moon.com/m200/bracelet/VR_photo.html

This is an ObjectVR, so you can rotate it by dragging mouse(swipe) in the picture.
Also, you can zoom by mouse wheel(pinch), and enter to full screen by double click.

3D printing settings

Printer:

m200 (hand made)

Rafts:

No

Supports:

Yes

Resolution:

width 0.28 mm, thickness 0.14 mm

Infill:

30%

Notes:
Print conditions.

Printer name: hand made, m200
Slicer: Simplify3D
Firmware: Repetier

Filament: 3DXTech CFR-PETG
Nozzle: 0.25mm stainless
Print width: 0.28mm
Layer height: 0.14mm
Injection ratio: normal
Retraction length: 0.60mm

Layers: top 5, bottom 4, side 3
Infill: 30%
Skirt: 5 turns, 0.5mm gap
Support: 20%, 85% top 3 layers
Raft: none

Temprature: 265 C

Speed: 1800mm/min, 80% at outline, infill, support, 25% in small area
Jerk: 15
Acceleration: 1600mm/sec^2

Print size: I used short version in this test.
Print time: 2 hours

  • 3D file format: STL
  • Publication date: 2018/04/16 at 12:17
