Magnetic spectacle box

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 10 likes
  • 75 downloads

3D model description

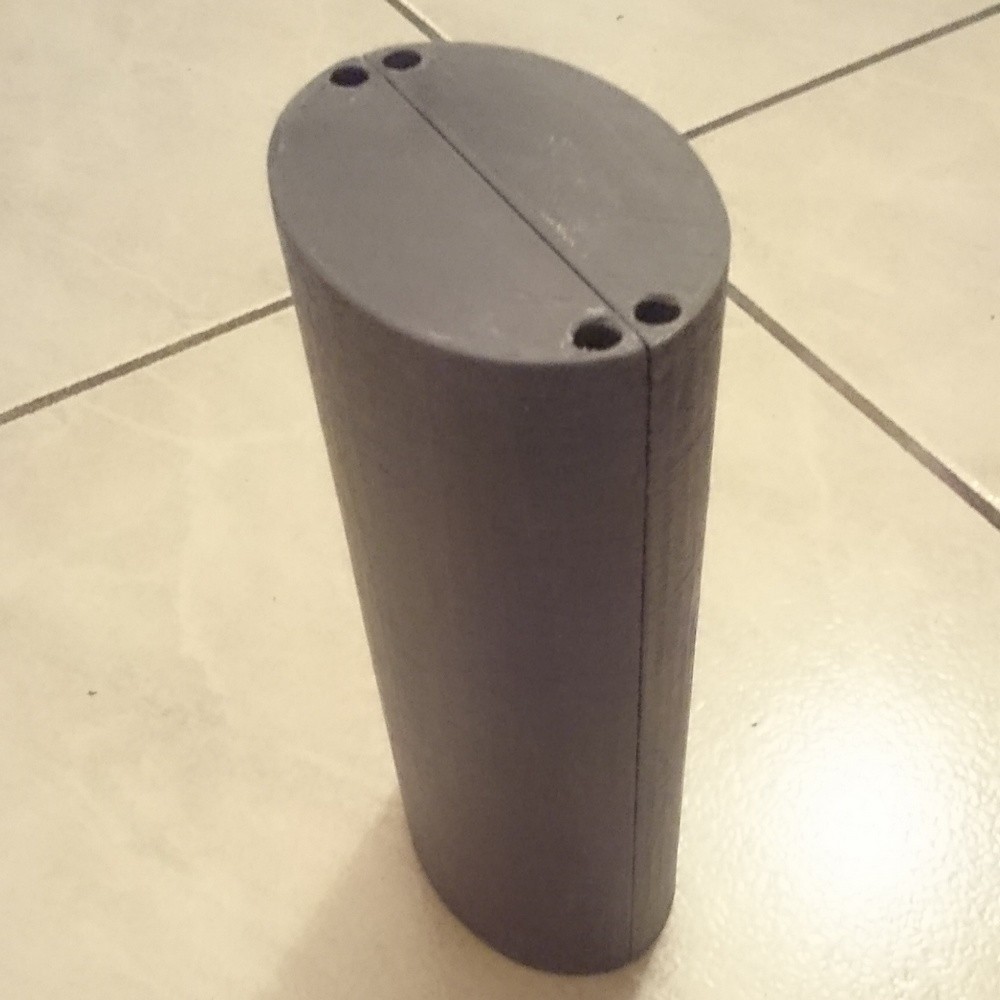

Magnetic spectacle box

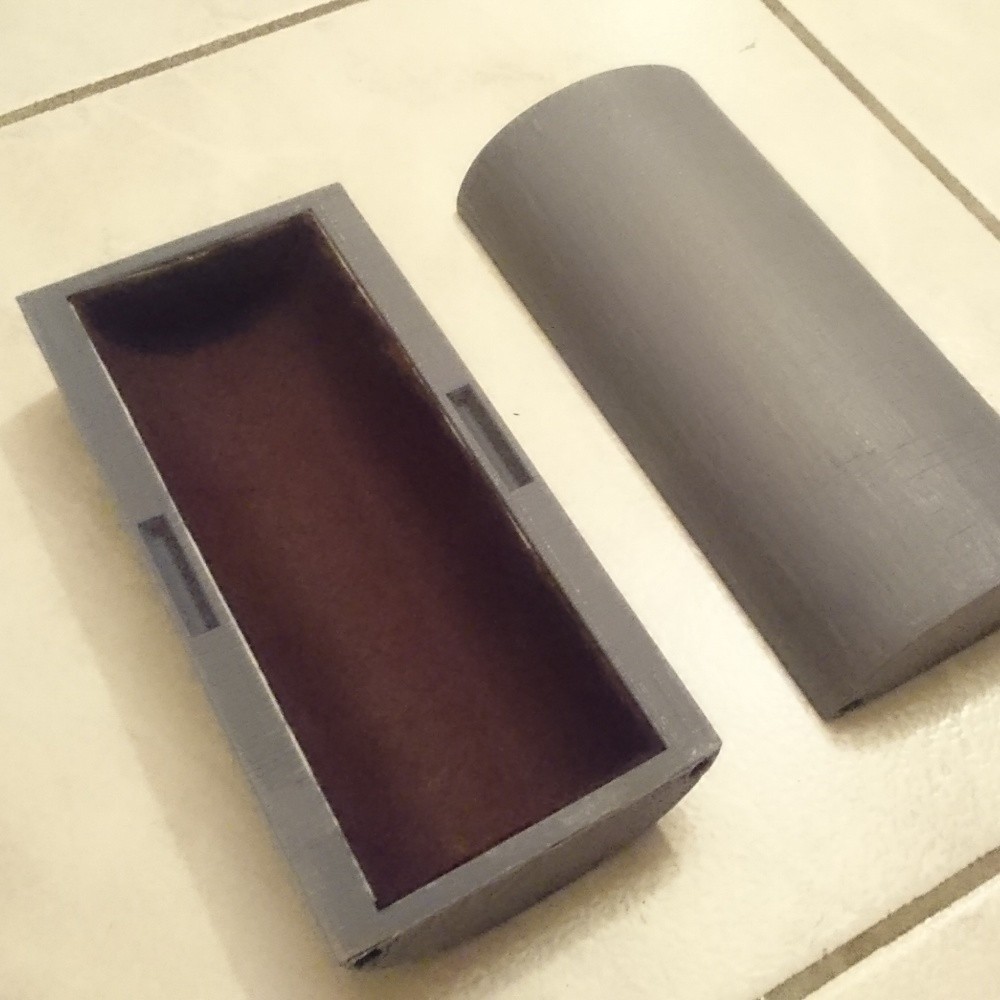

Model to be printed twice: height 170mm, width 80mm, height 27mm.
4 holes for magnets of diameter 6mm, length 20mm
Examples of neodymium magnets: http://www.creavea.com/aimant-neodyme-allonge-15-x-6-mm-5-pcs_boutique-acheter-loisirs-creatifs_15867.html

  • Push the magnets into the holes in each part, pay attention to their polarity.

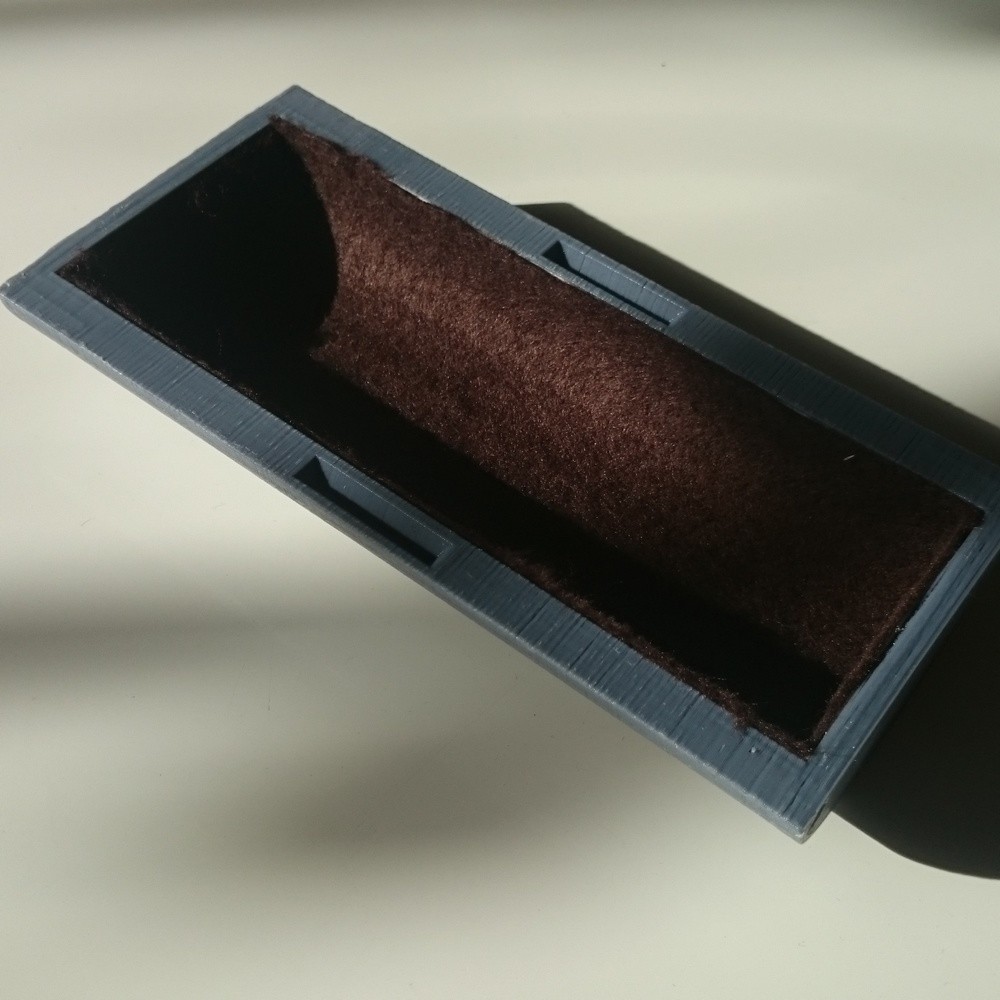

  • Glue the felt inside each part with double-sided tape
  • Your magnetic goggle housing is ready!

Printed on a Prusa I3 Mendel with PLA.

https://blog.tfrichet.fr/modele-3d-boite-a-lunettes-aimantee/


3D printing settings

Layer Thickness: 0.3mm
Hull Thickness: 0.6mm
Filling level: 20%

Printing time: 03h30

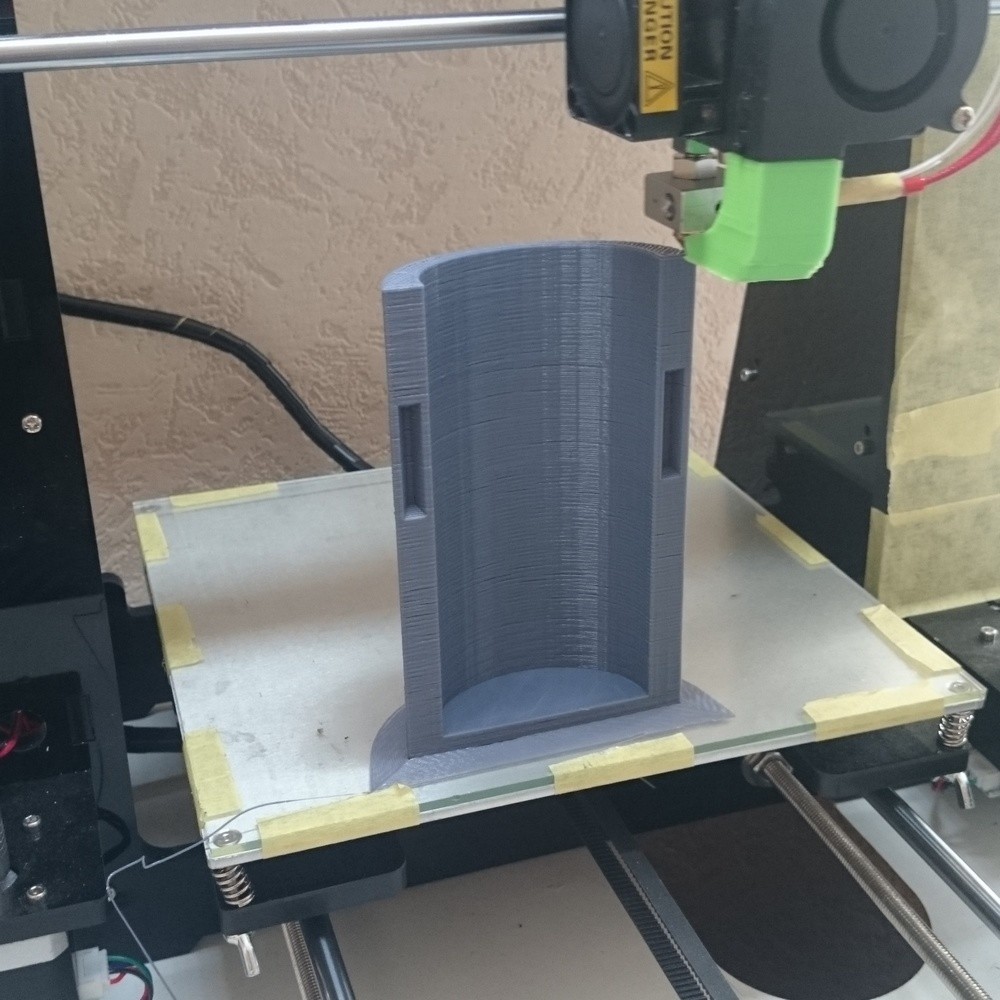

To be printed standing up to avoid peeling!

3D printer file information

  • 3D design format: STL Folder details Close
    • Boite Lunettes TFRICHET.STL
  • Last update: 2017/03/13 at 10:38
  • Publication date: 2017/03/11 at 18:34

License

CC BY NC SA
