3D model description

Ricktu has got a great idea to design a single line with contiuous cross section 3D fractal. It prints well when sliced with cura, but is not perfect when sliced with slic3r.

I then designed my own under openscad. It's a quite simple very small code using a recursive module.

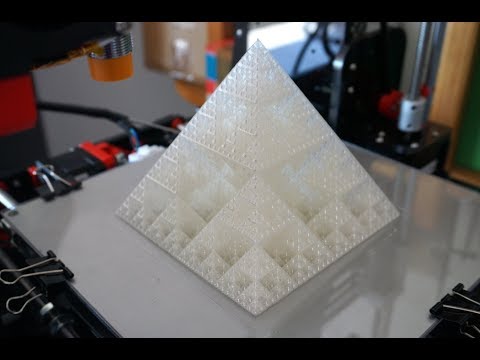

Please, watch the video to see it printed and you'll get the idea of this fractal spiral mode object ! https://youtu.be/ihfkdBEPOOo

As it is designed with Openscad it becomes a customizable object where you can parametrize the width of the smallest pyramid and the fractal order.
- size parameter is the radius of the smallest pyramid in the fractal
- order defines the number of recursive iterations

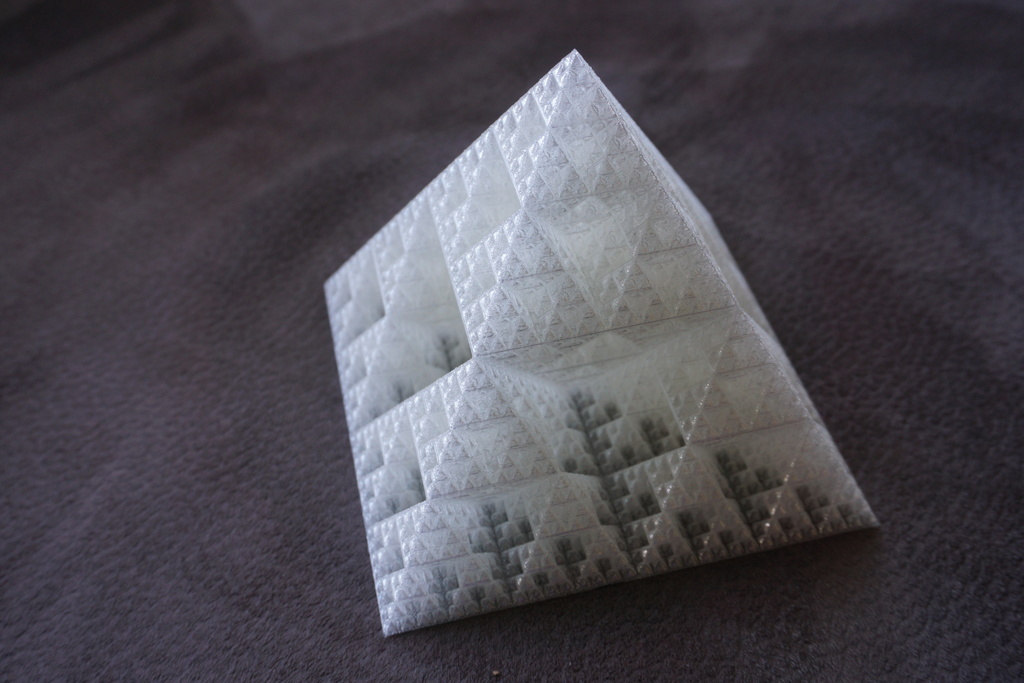

The one you see in the first picture has been printed with a 3mm radius and a fractal order of 5. It's already a big object of 135mm which printed during 9 hours and 30 minutes.
[size = 3 order = 5] will buid a pyramid = 2^5 x 1.414 x 3mm = 135 mm of side lenght

EDIT 171117 : fixed a bug, now slices perfectly at size = 2

3D printing settings

-

3D printer file information

  • Design number: 627363
  • 3D design format: SCAD and STL Folder details Close
    • fractal_sierpinski_spiral.scad
    • fractal_sierpinski_spiral_order3.stl
    • fractal_sierpinski_spiral_order4.stl
    • fractal_sierpinski_spiral_order5.stl

    Learn more about the formats

  • Publication date: 2022-02-02 at 20:29
    ?
    Published to Thingiverse on: 2017-10-08 at 18:33

License

CC BY - Attribution
