3D model description

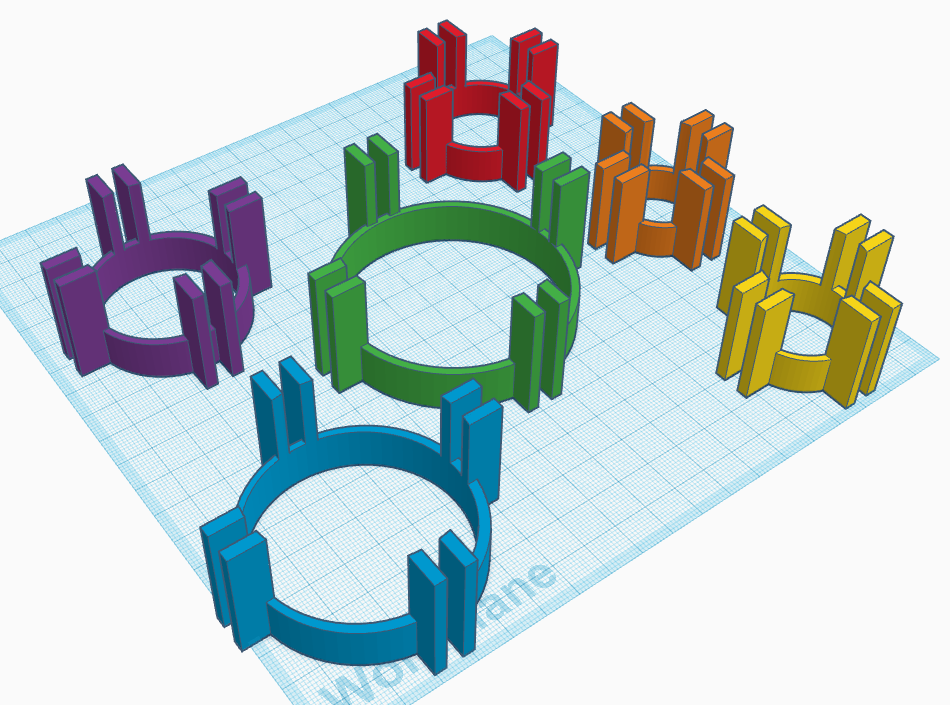

I decided to make some new low profile fin jigs. I have another bundle of jigs located here: https://www.thingiverse.com/thing:5103241

But those jigs only work on the bottom of a rocket. I decided to make some jigs that you can put at any location on the body tube by simply sliding the jig up or down to your desired location.

The inside opening is 1mm larger than their respective Tube sizes, so depending on how you're printer is setup, these will be snug. I prefer this as i can easily file away to get the guide to slide (or not slide) around. You could test by expanding this to 101% or 102% if you are over exposing your resin to reduce the amount of filing.

Openings for fins 5mm (0.19685")eee


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

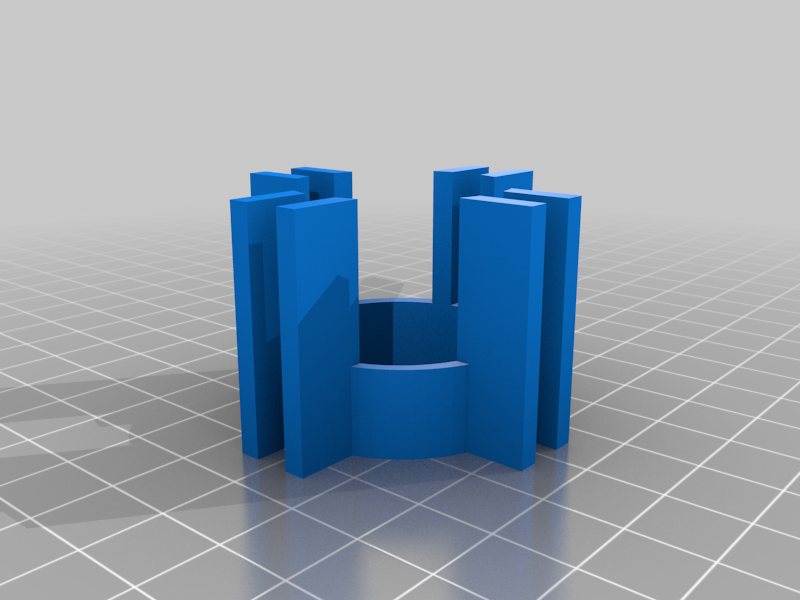

    • 29mm_-_4-Fin-Jigs.stl
    • BT-50_-_4_Fin_Jig.stl
    • BT-55_-_4_Fin_Jig.stl
    • BT-60_-_4_Fin_Jig.stl
    • BT-70_-_4_Fin_Jig.stl
    • BT-80_-_4_Fin_Jig.stl

    Learn more about the formats

  • Publication date: 2021-11-16 at 01:03
    ?
    Published to Thingiverse on: 2021-11-15 at 20:57
