Orbit Pen Mount for Huion Kamvas

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.


3D model description

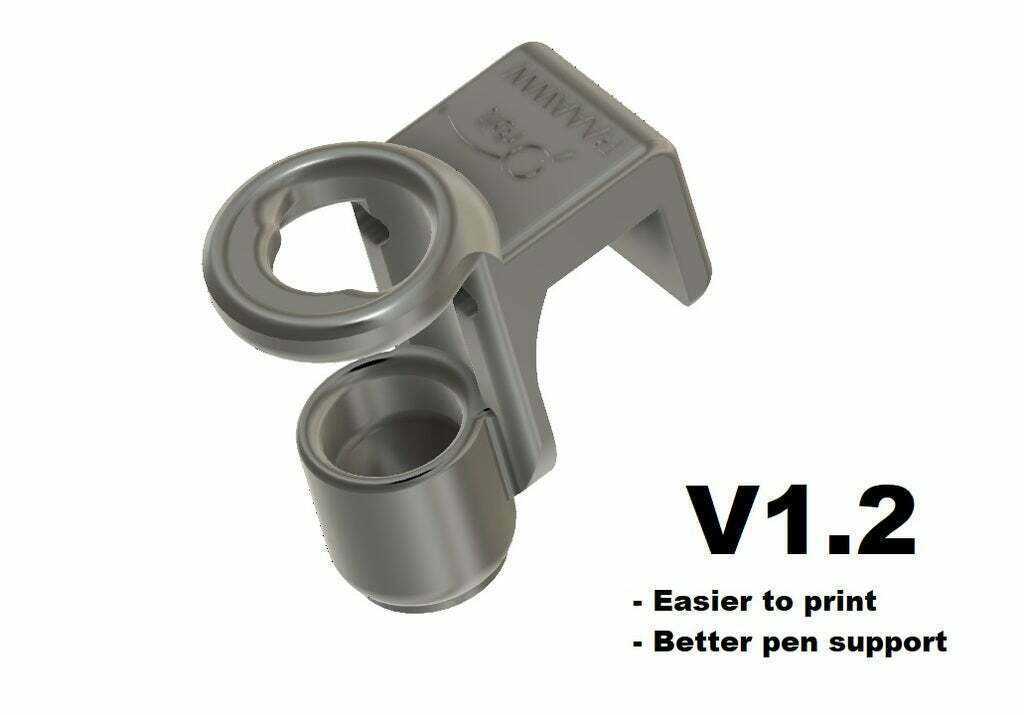

Update version 1.2: More surfacearea at the bottom to make it easier to print and also has additional support for pen while monitor is tilted.

This is a pen holder for the Huion Kamvas series. It fits the Kamvas pro and kamvas pro 22 and most likely all other Huion monitors in the pro series.

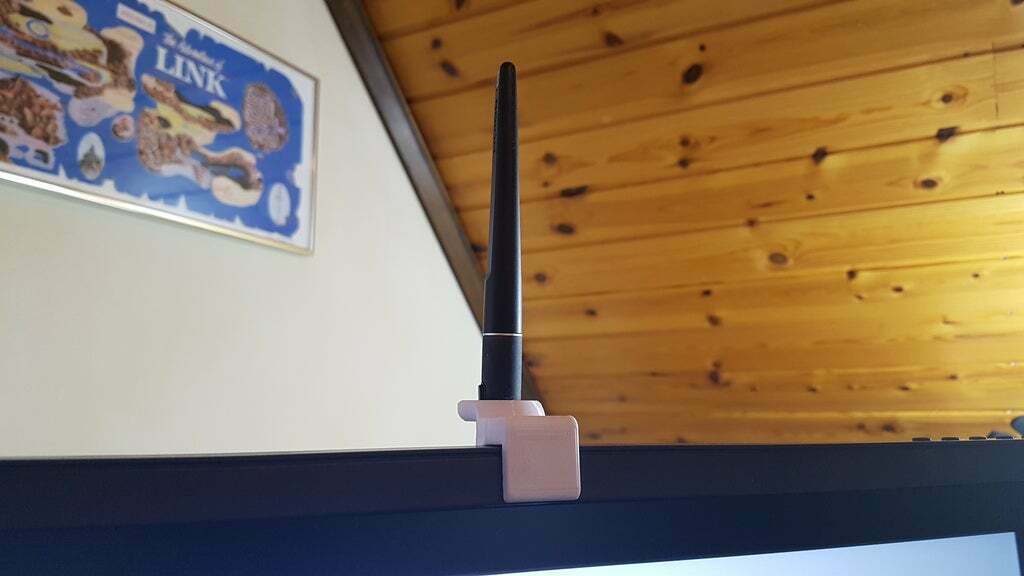

It locks into one of the screwholes on the back of the monitor and goes over the edge to the front.
It allows you to have the pen on the monitor instead of in the pen case, on the table or the pro 22 pen stand..

Please read installation.

You need:

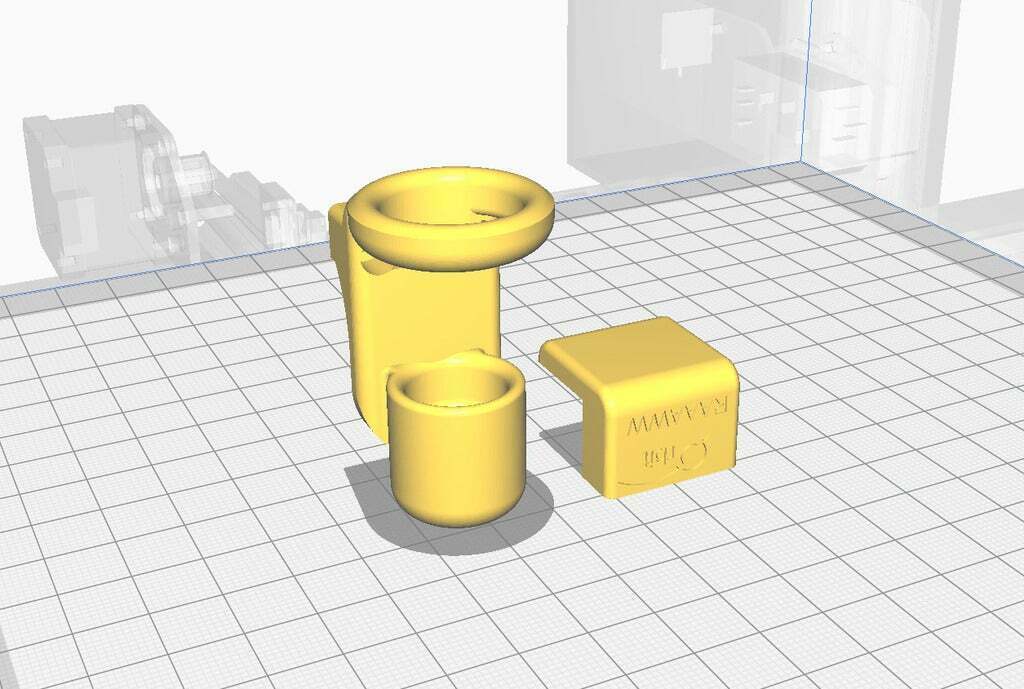

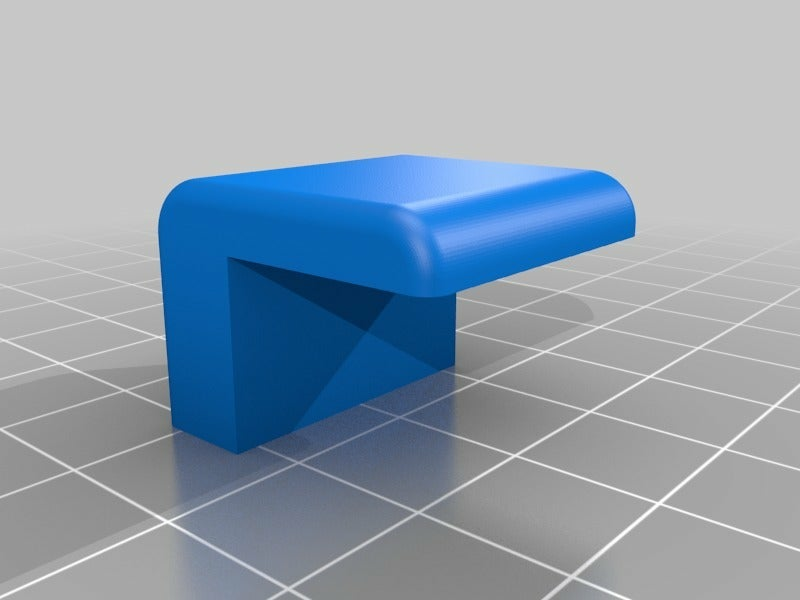

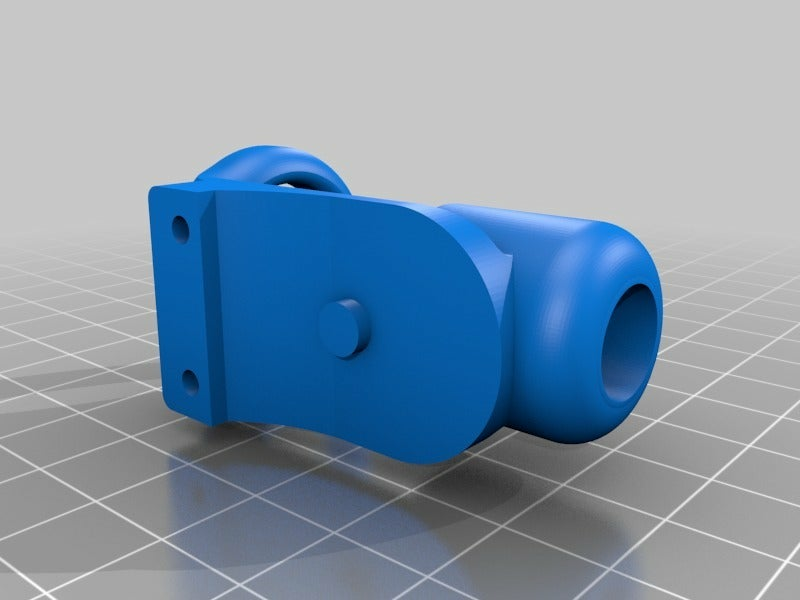

Orbit front and back plate printed out(backplate is actually front plate!).
2 m3 screws (8-20mm long),
Cable tape(used for wires) or similar soft tape.

Pre-tapping the screwholes makes it a lot easier to attach to the monitor. It self taps with the screws, so just screw them in once before putting it on the monitor.

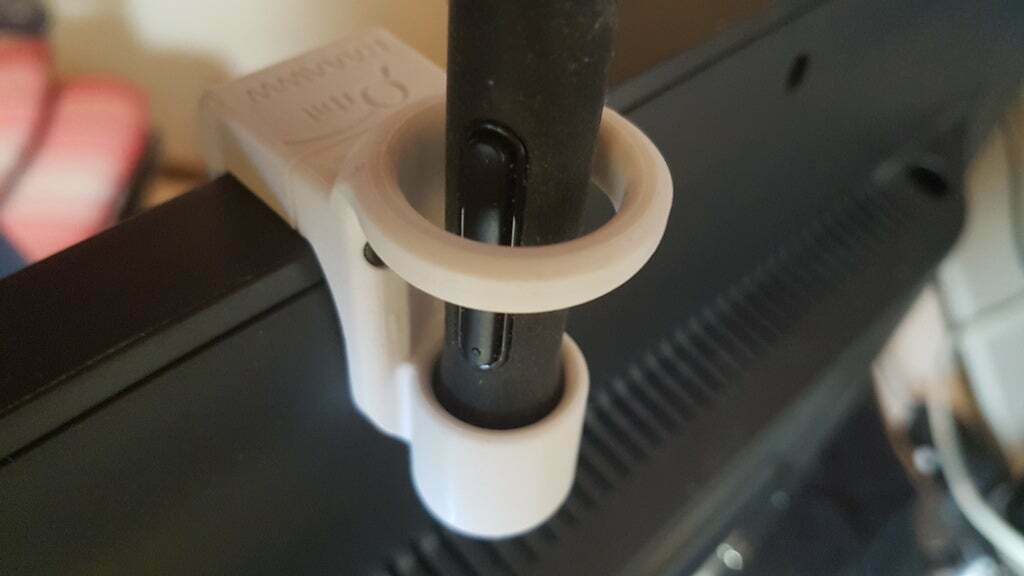

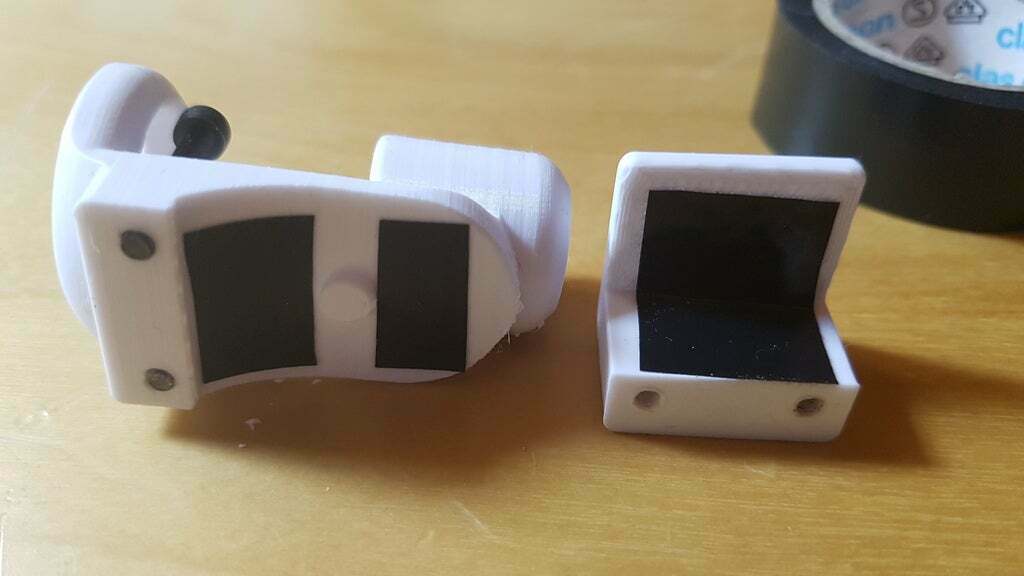

Put the tape where it touches the monitor like picture 3. This is to prevent scratches to the monitor.
Push both pieces together while screwing it together to ensure a tight connect.

It took a few cups of coffee to make, if you like it feel free to send me a tip for a cup of coffee or two :)

3D printing settings


3D printer file information

  • 3D design format: STL Folder details Close
    • Orbit_v1.2.stl
    • Orbit_v1.stl
    • Orbit_v1_backplate.stl

    Learn more about the formats

  • Publication date: 2021-03-17 at 03:02
    Published to Thingiverse on: 2019-07-07 at 22:53


CC BY - Attribution
