Morphing Y: a one-DOF six-bar developable mechanism

Did you 3D print this model?

3D model description

This is a one-DOF (degree of freedom) six-bar rigid-body mechanism. Traditional engineering kinematics states that the mechanism will have the same motion regardless of the shapes of the rigid links. This makes for interesting motion as the links all move with respect to each other.

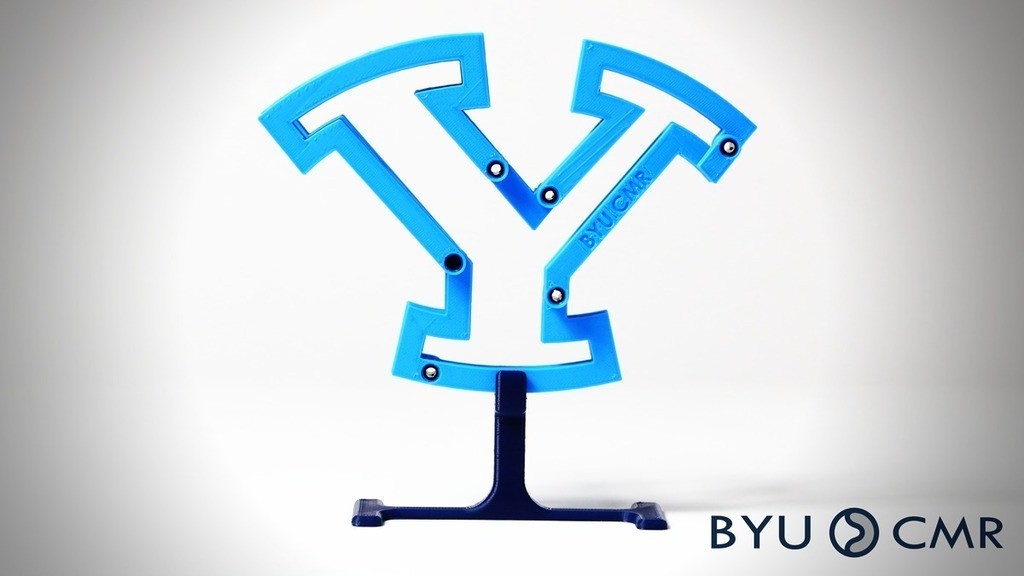

Because the links for this mechanism are shaped such that, in one of the mechanism's positions, the links conform to the BYU "Y" logo shape, this is a developable mechanism.

  • 3D model format: STL
