Modular Futomaki Sushi

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 470 views
  • 2 likes
  • 1 download

3D model description

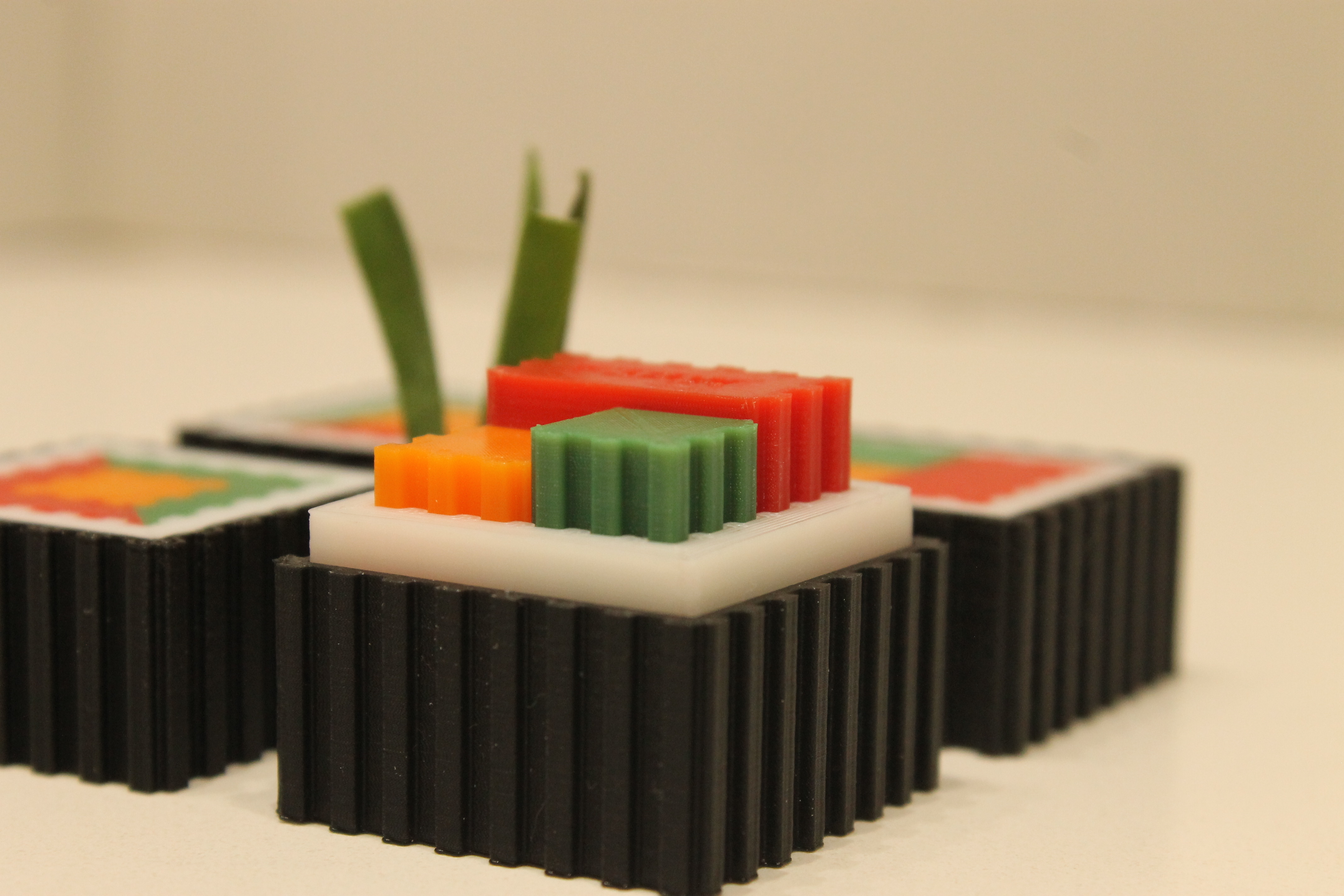

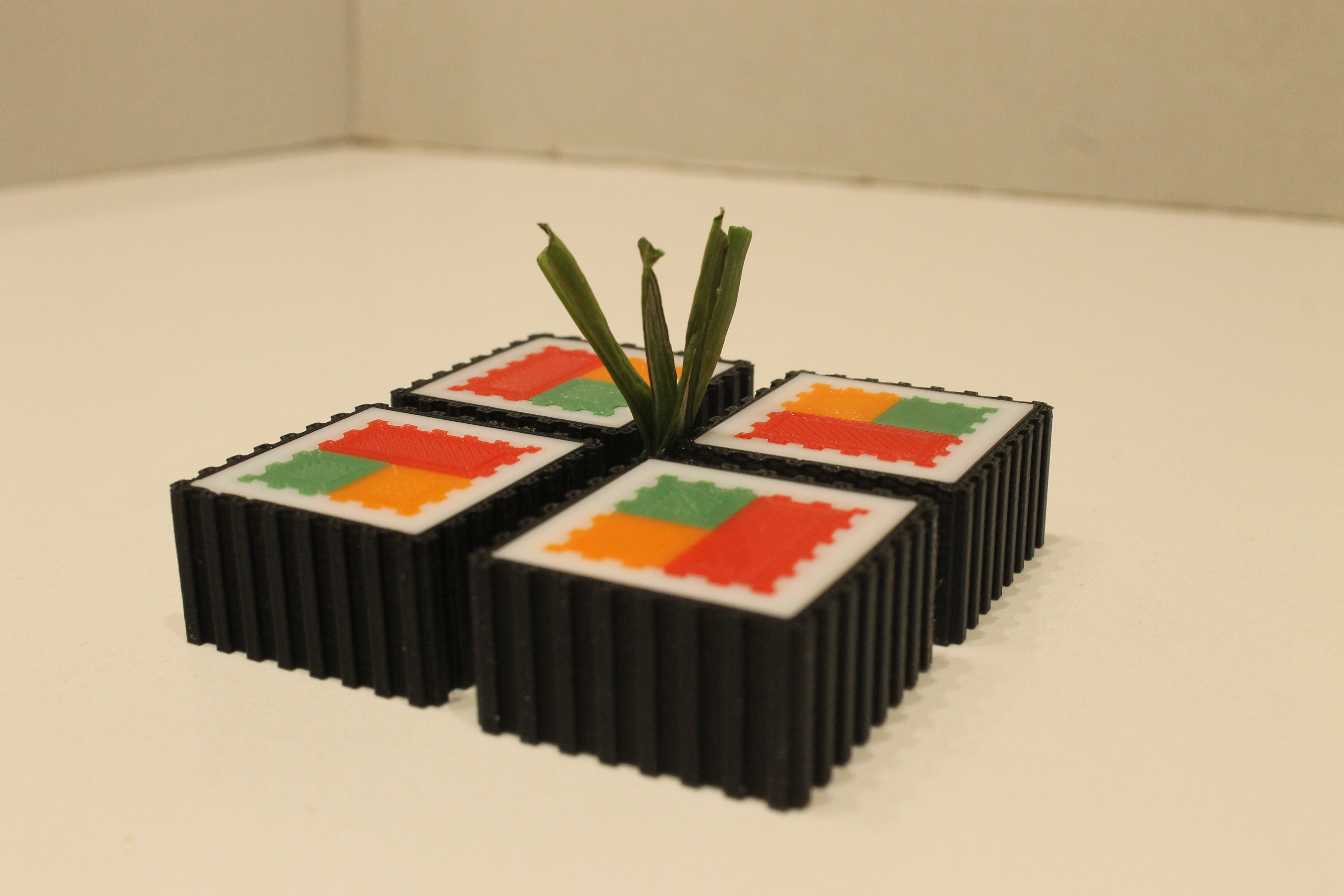

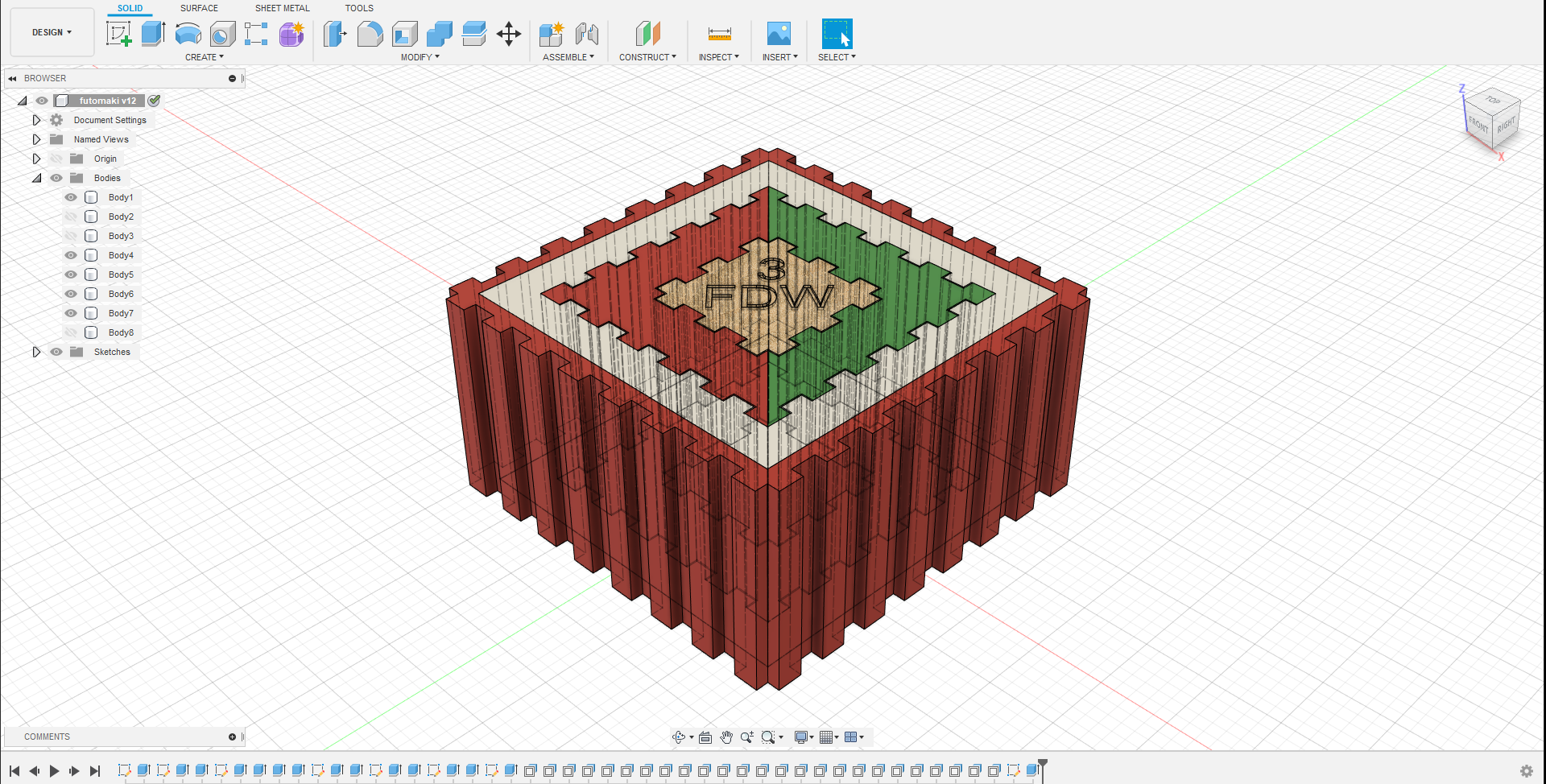

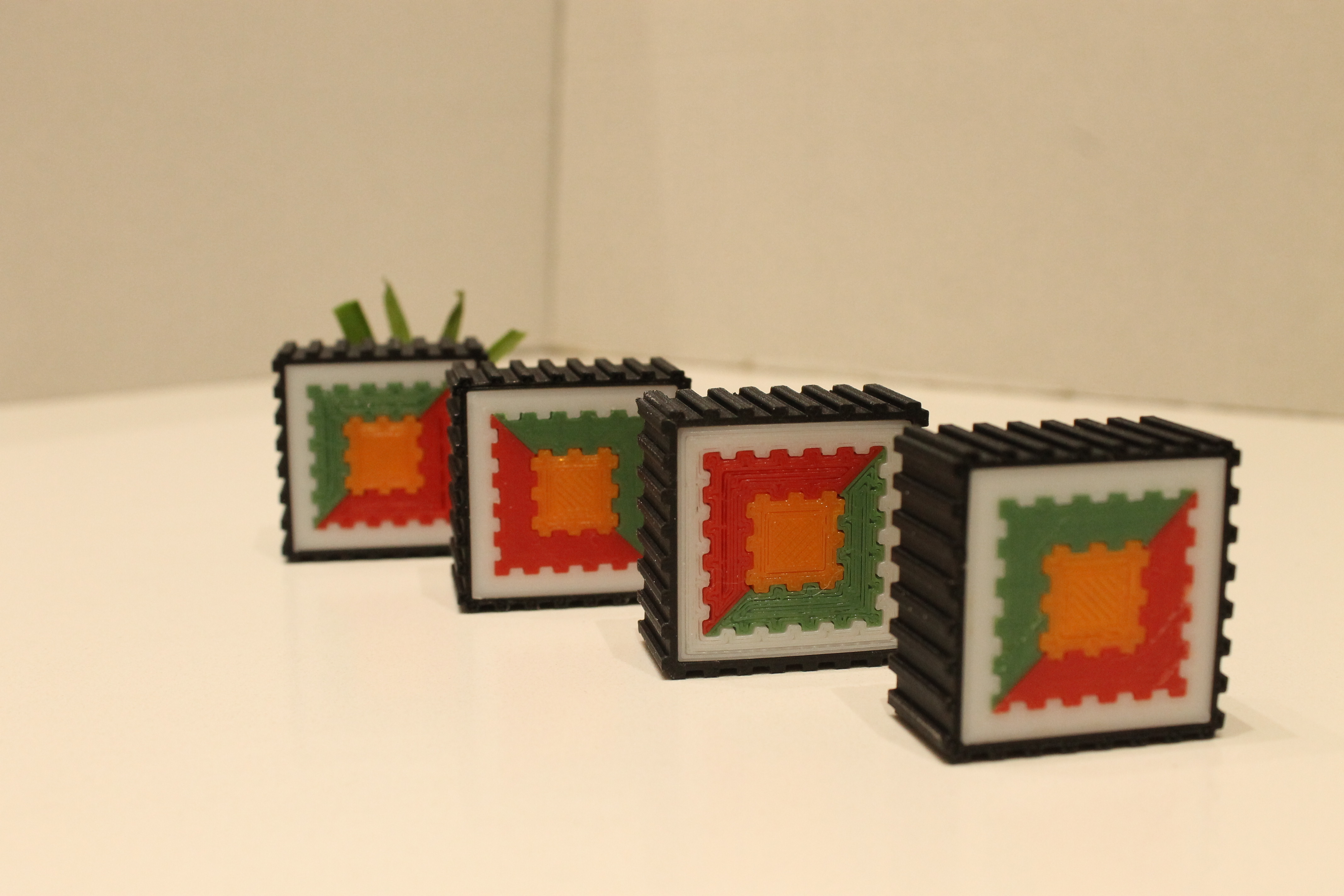

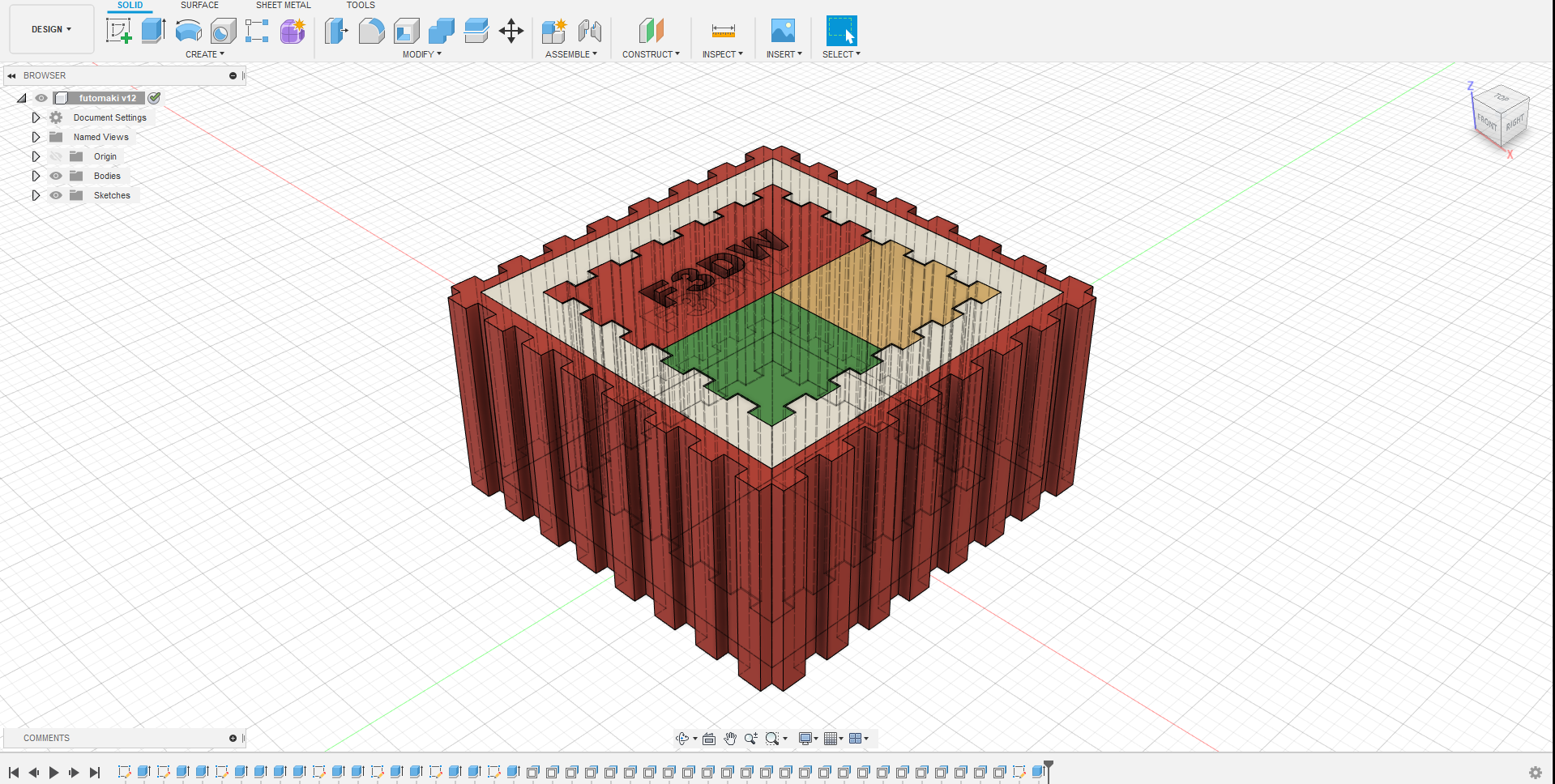

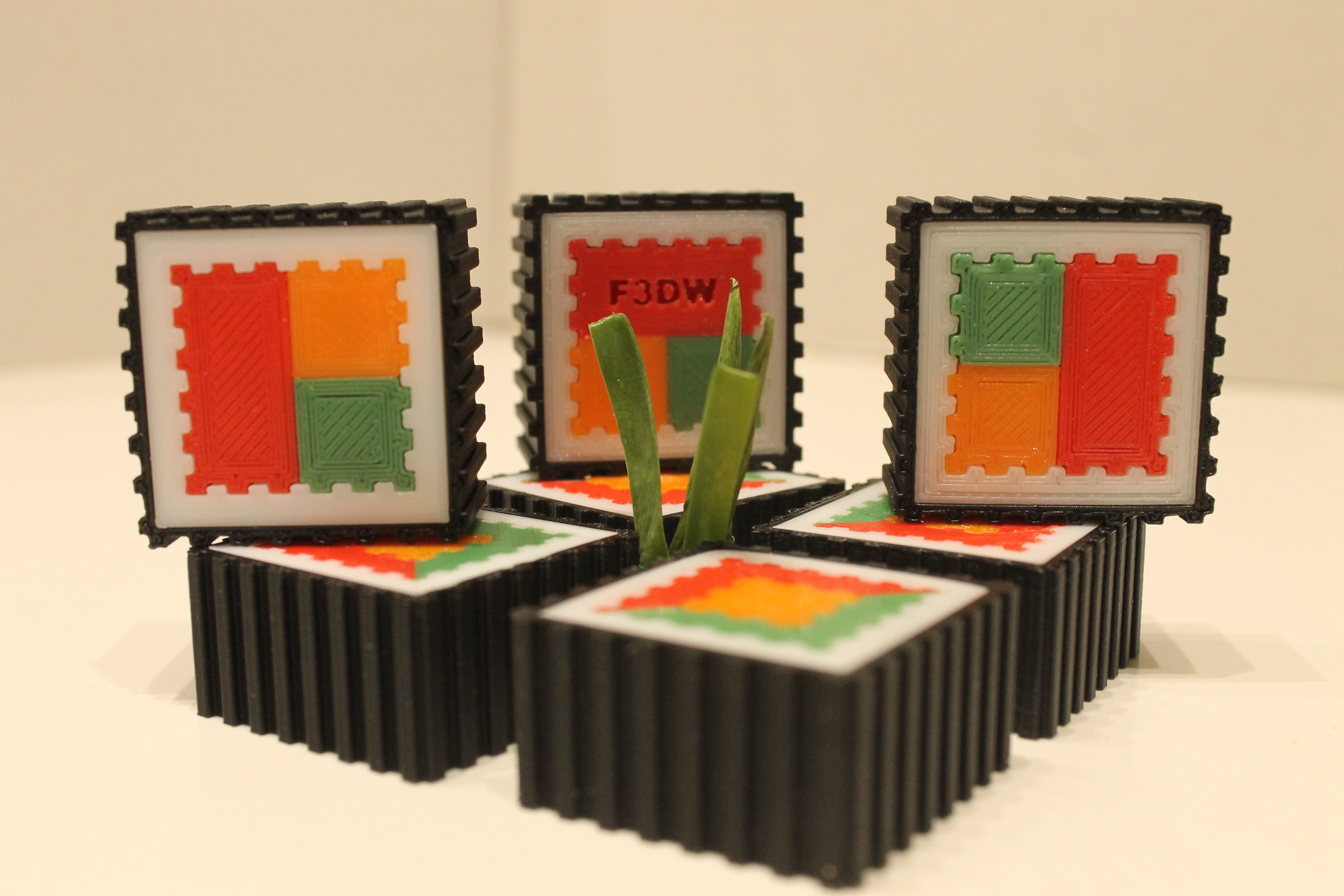

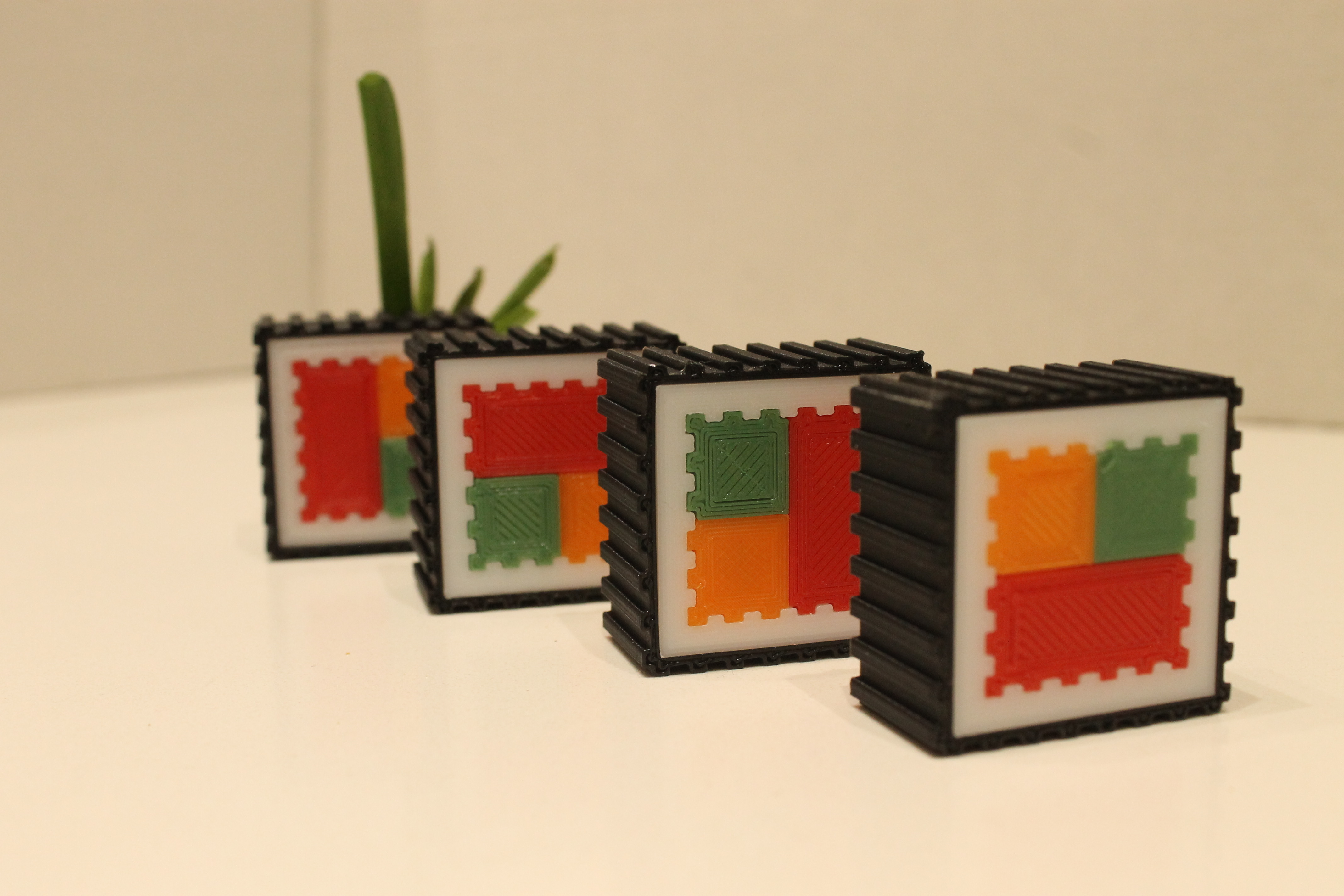

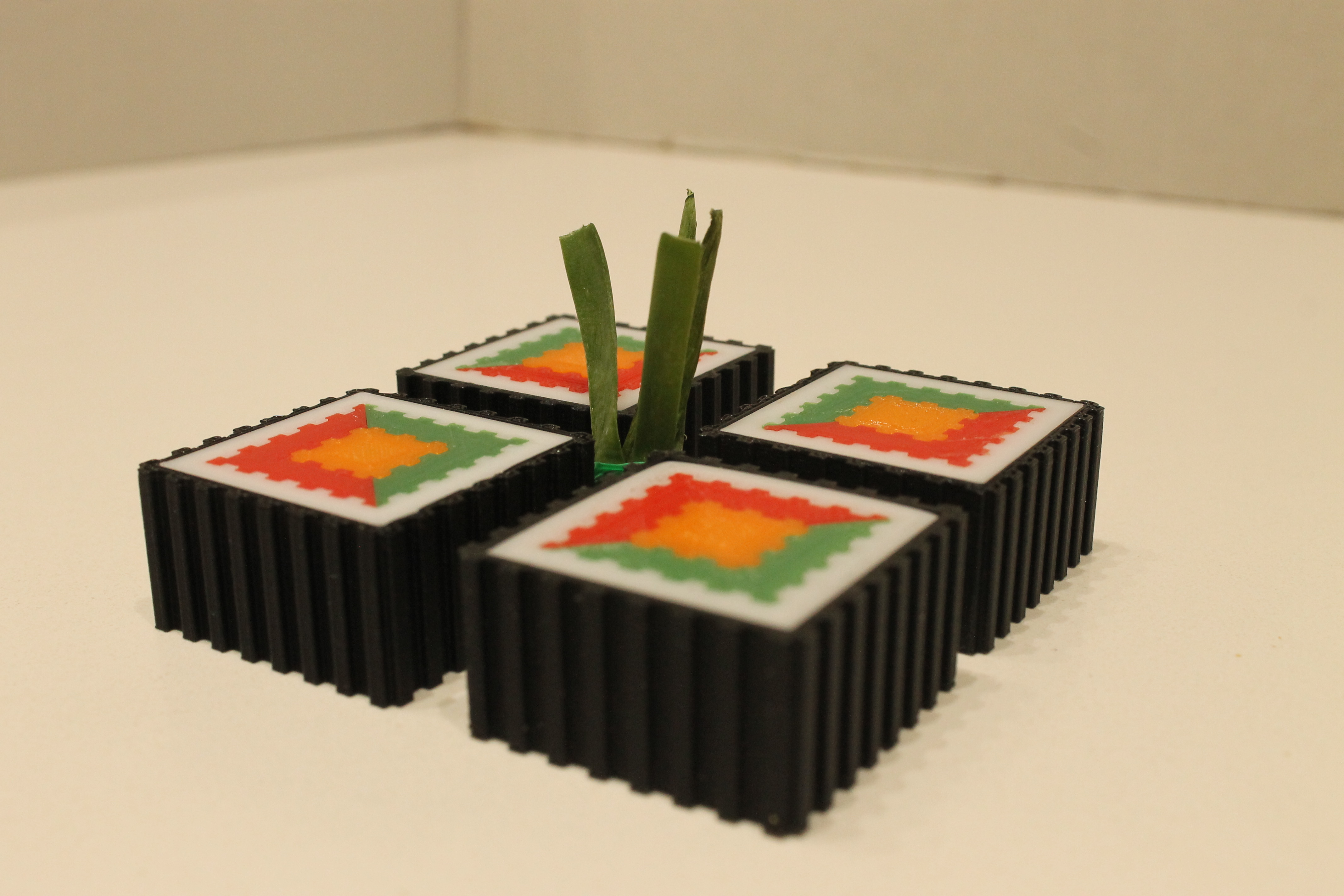

Modular Futomaki Sushi consisting of 5 interlocking parts.
Modularity allows you to print separate pieces in different colors thus limiting post-production work related to unique, non-modular models.
Inside the .zip file you will find two different settings depending on the relative tolerance of your printer, to ensure the best printing of the piece.
If you have an inaccurate printer, I recommend printing the files inside the "tolerance-0.2" folder, if you have a very precise printer, you can print the files inside the "tolerance-0.1" folder.
They do not require supports.
I recommend a layer quality of 0.1 mm or 0.2 mm.

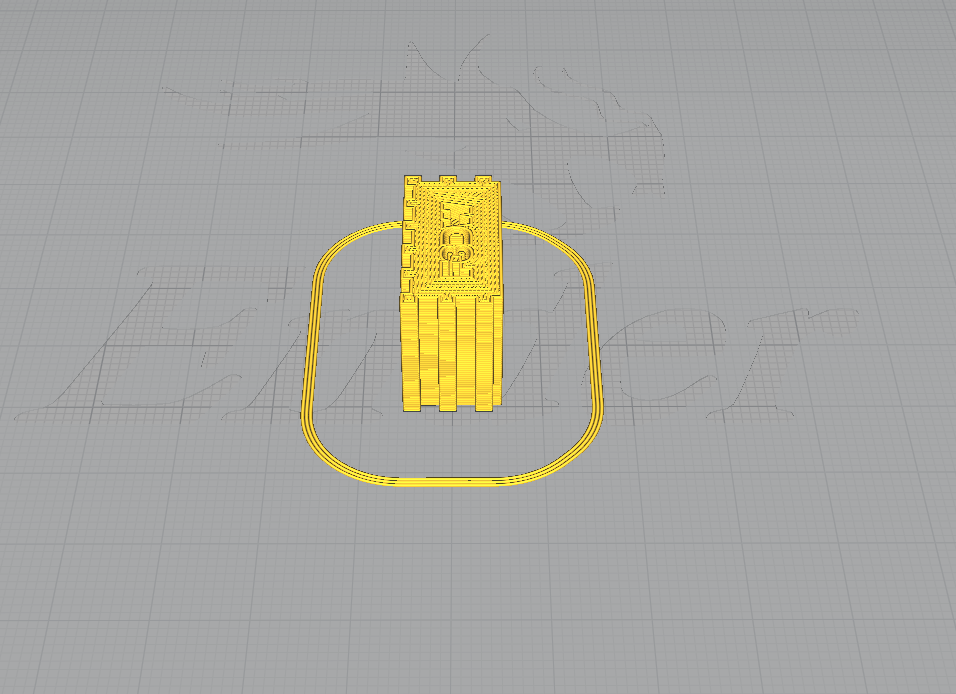

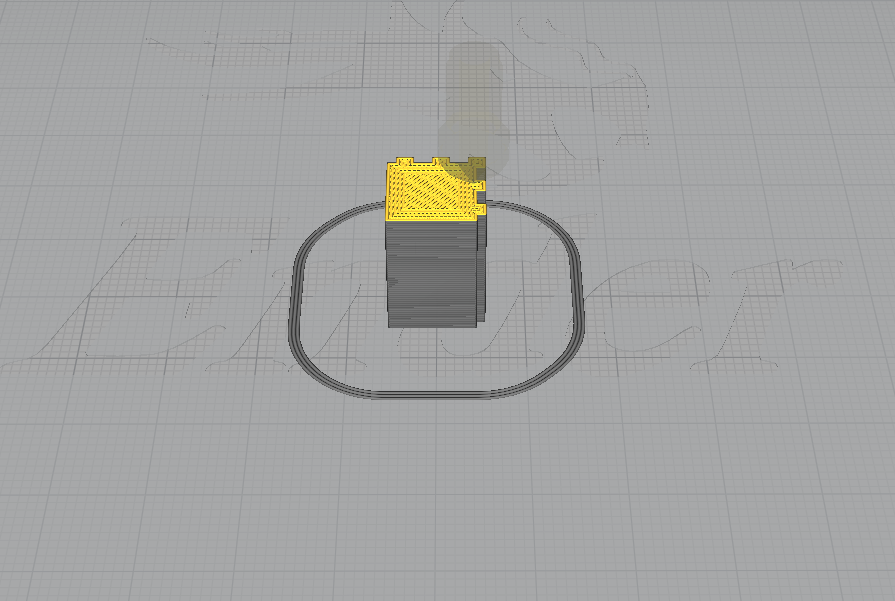

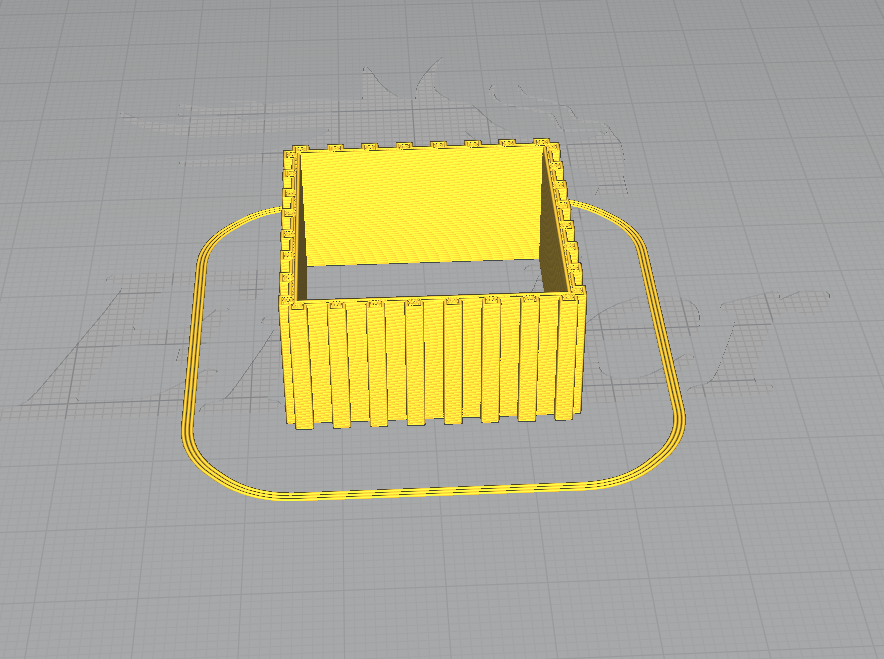

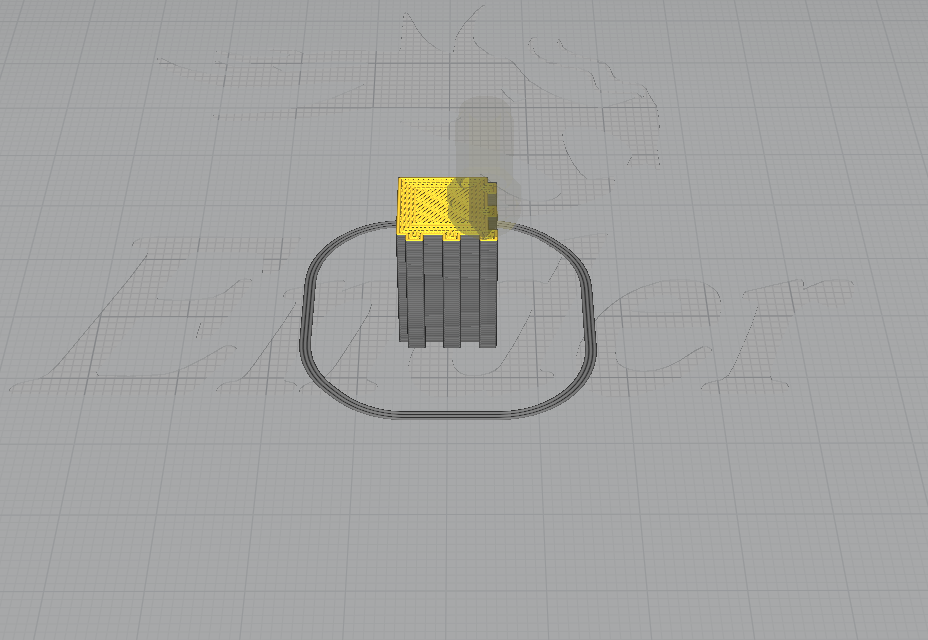

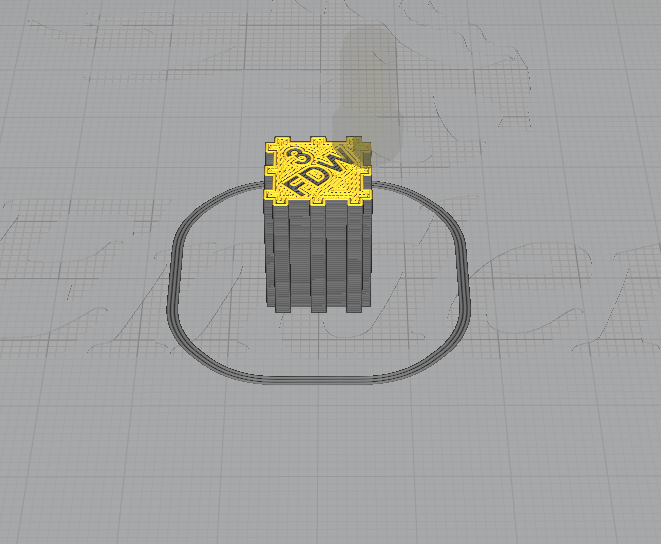

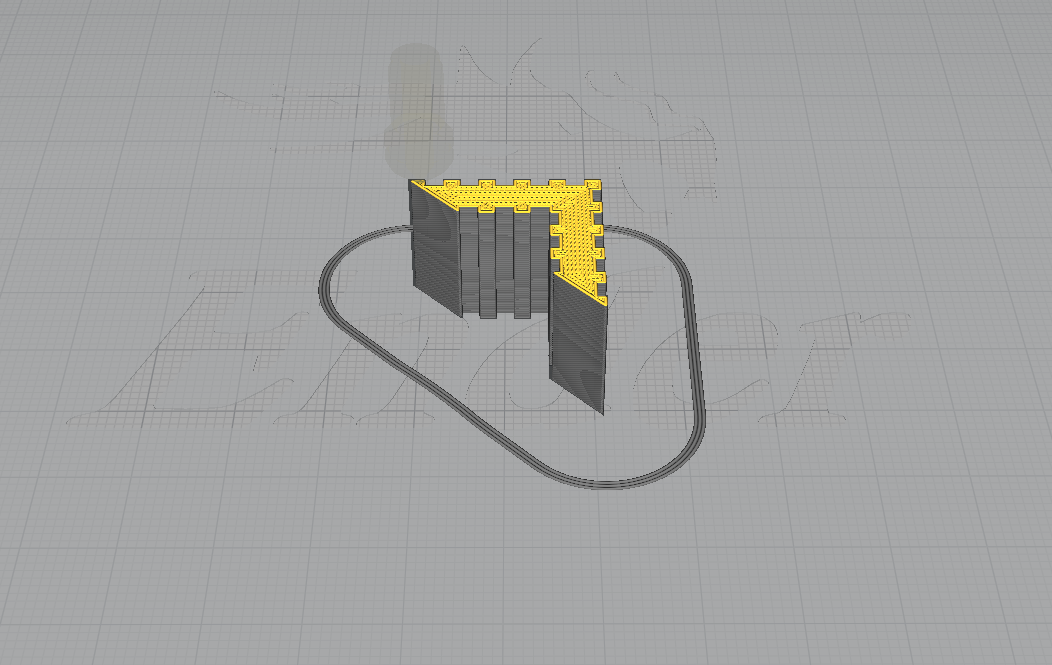

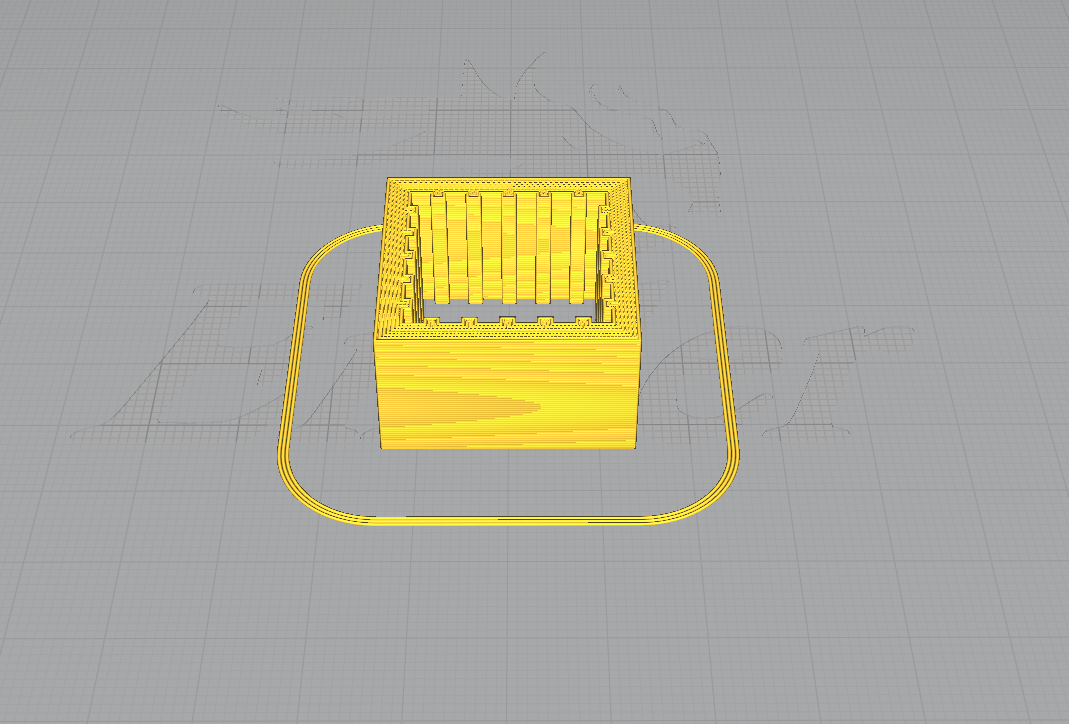

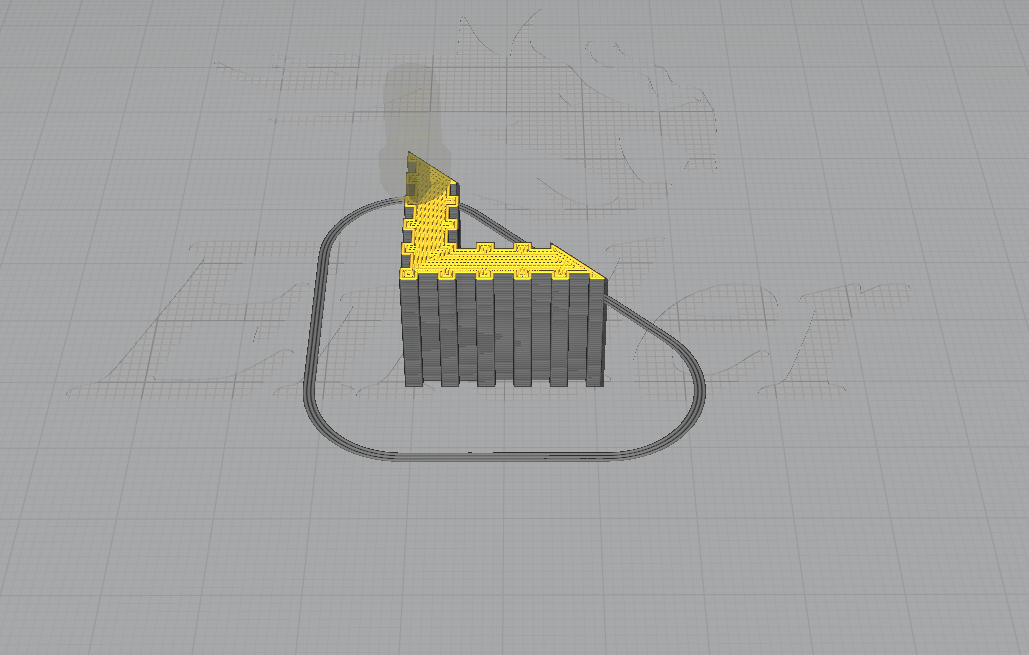

I recommend slicing according to the guidelines shown in the photo, so that you can print the parts as simply as possible.
In summary, a good print setting could be the following:

(Files "tolerance-0.1")
layer quality / height 0.1mm
supports no

(Files "tolerance-0.2")
layer quality / height 0.2mm
supports no

3D printing settings

Print settings for Ender 3 and Ender 3 Pro:

(Quality 0.1mm)
Layer height 0.1
Initial layer height 0.2
Line width 0.44
Initial layer line width 100%
Shell
Wall thickness 1.76
Top / bottom layer thickness 0.8
Filling the gaps between the walls "in all possible points"
Filling
Density 20%
Cube filling configuration
Material (PLA SUNLU)
Printing temperature 190
Initial layer printing temperature 215
Initial print temperature 190
Final printing temperature 190
Print bed temperature 60
Speed
Print speed 50
Travel speed 150
Printing speed of the initial layer 20
Shifts
Enabling retraction yes
Retraction distance 5
Retraction speed 50
Combing everything mode
Cooling down
100%
Support no
Print plan adhesion
skirt

(Quality 0.2mm)
Layer height 0.2
Initial layer height 0.2
Line width 0.44
Initial layer line width 100%
Shell
Wall thickness 1.76
Top / bottom layer thickness 0.8
Filling the gaps between the walls "in all possible points"
Filling
Density 20%
Cube filling configuration
Material (PLA SUNLU)
Printing temperature 190
Initial layer printing temperature 215
Initial print temperature 190
Final printing temperature 190
Print bed temperature 60
Speed
Print speed 50
Travel speed 150
Printing speed of the initial layer 20
Shifts
Enable retraction yes
Retraction distance 5
Retraction speed 50
Combing everything mode
Cooling down
100%
Support no
Print plan adhesion
skirt

  • 3D file format: ZIP
  • Last update: 2020/05/16 at 11:44
  • Publication date: 2020/05/07 at 18:49
