Marvel Logo Lithophane - The Ladies

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

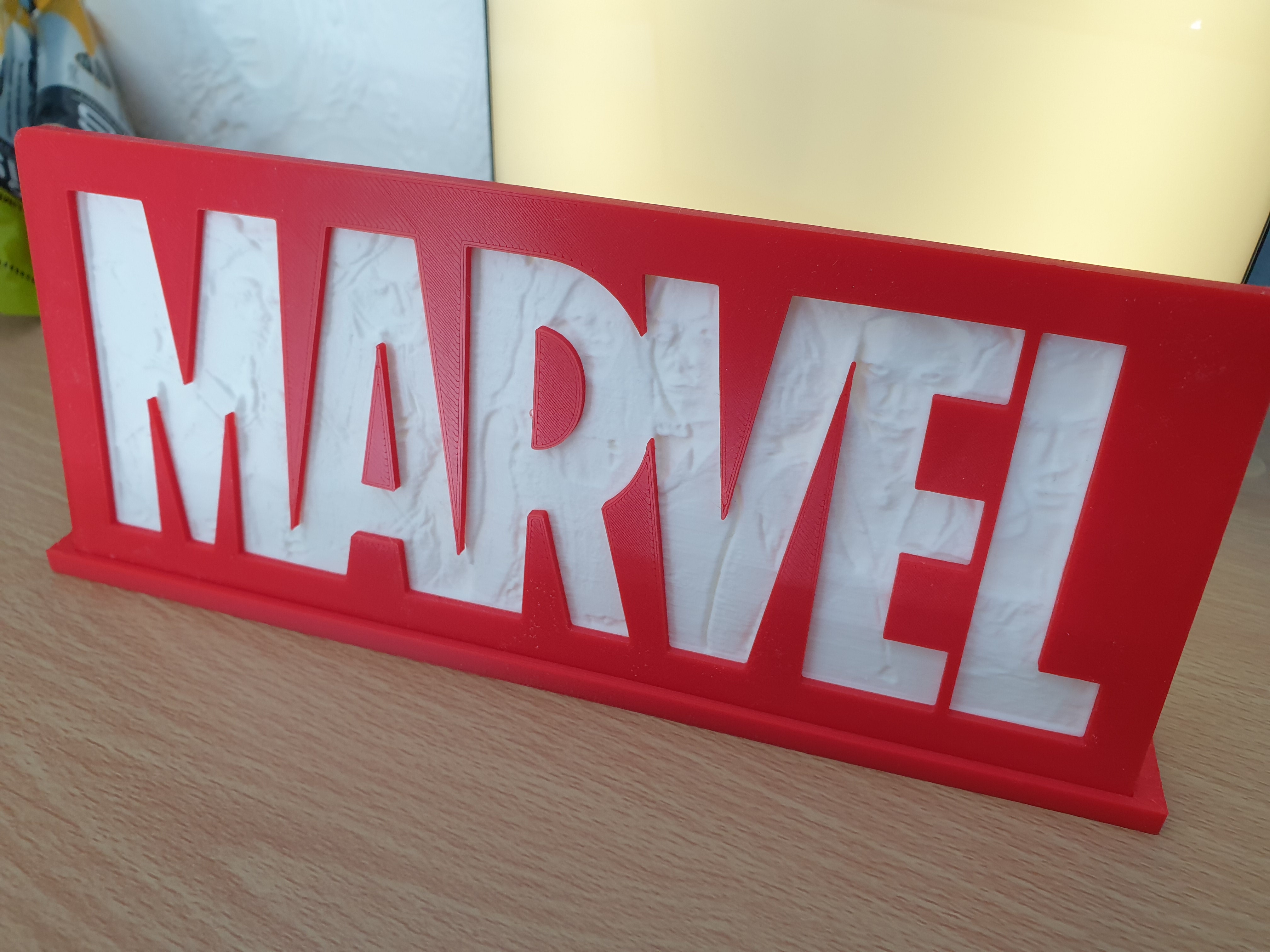

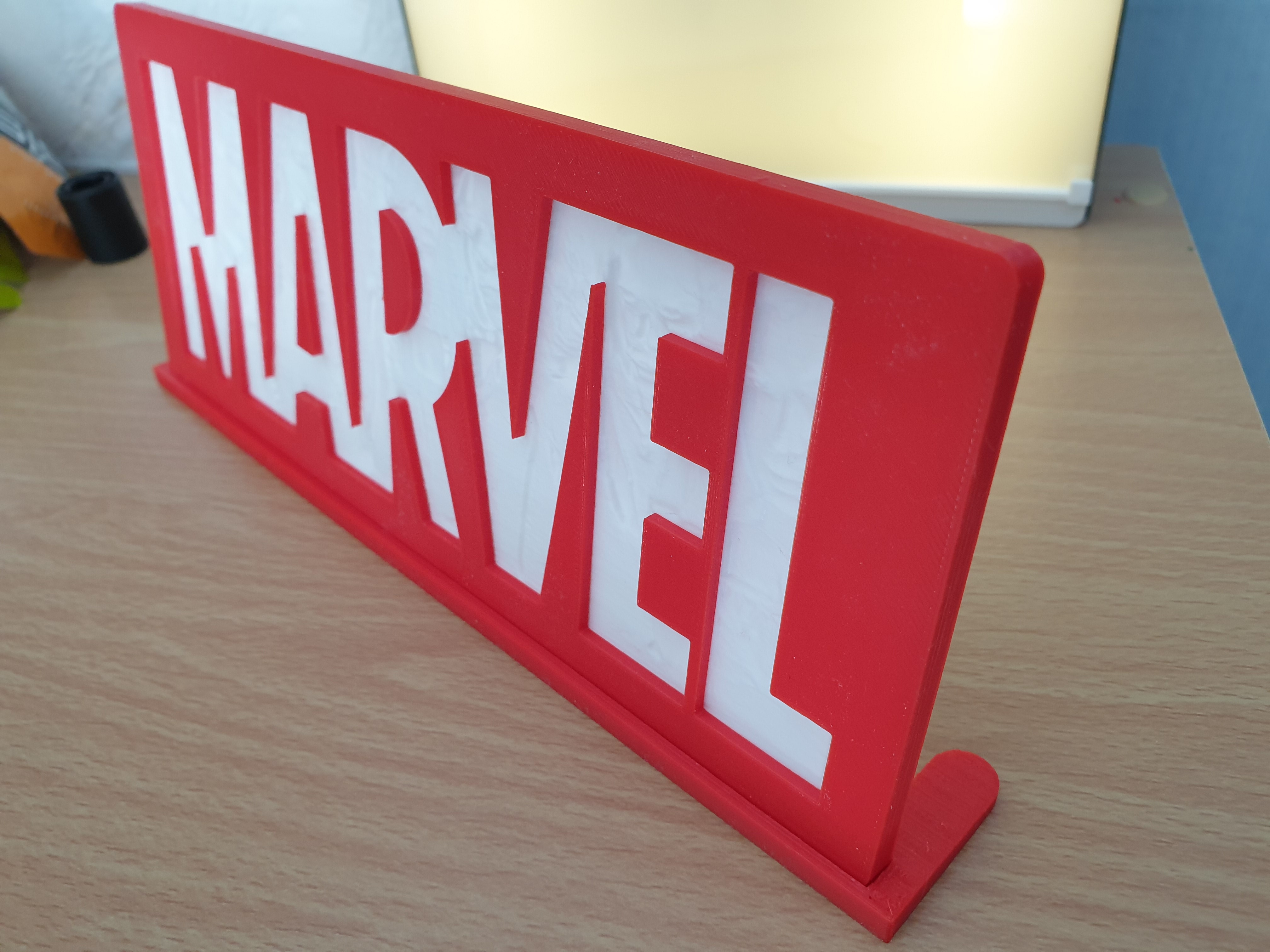

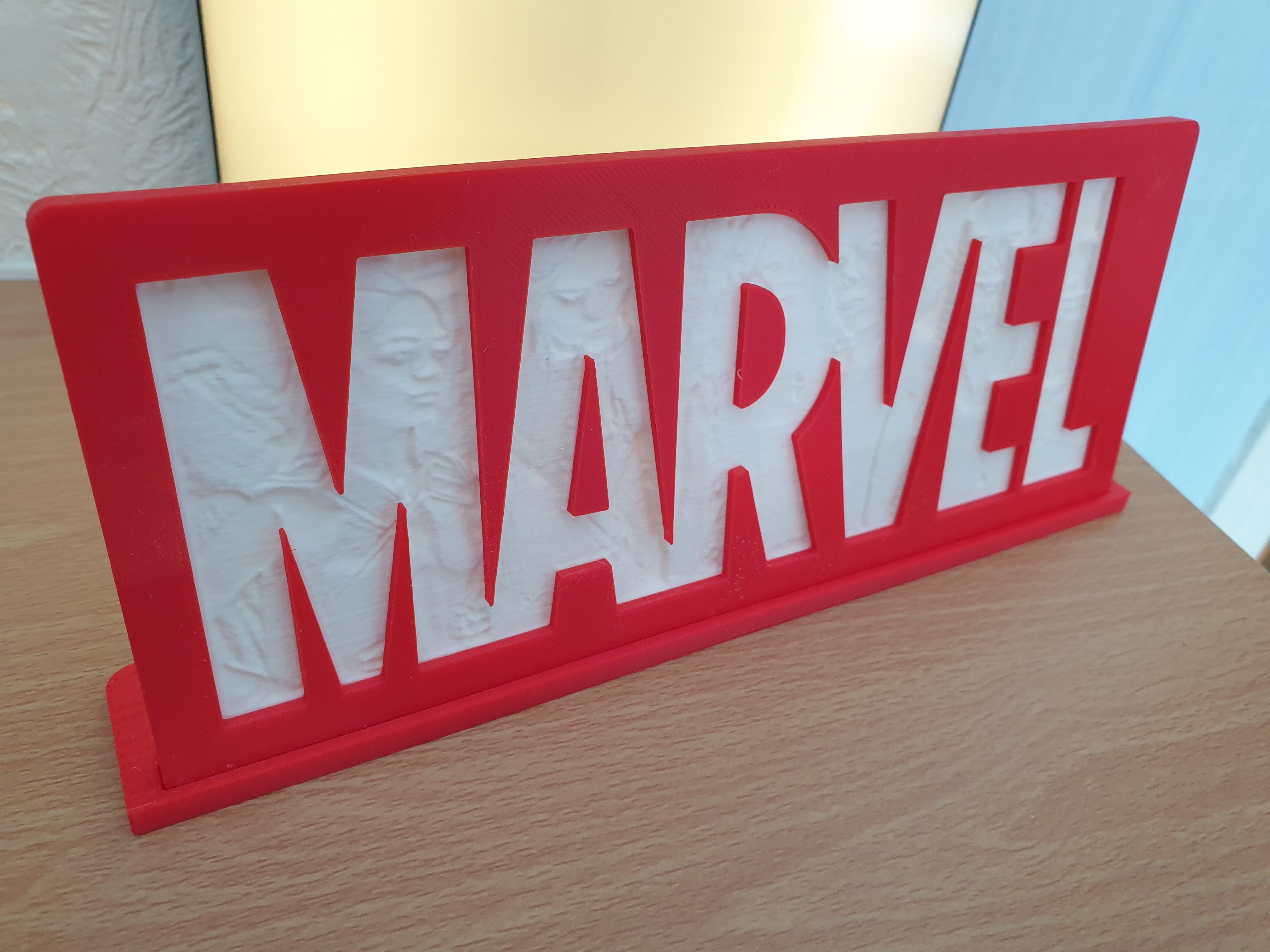

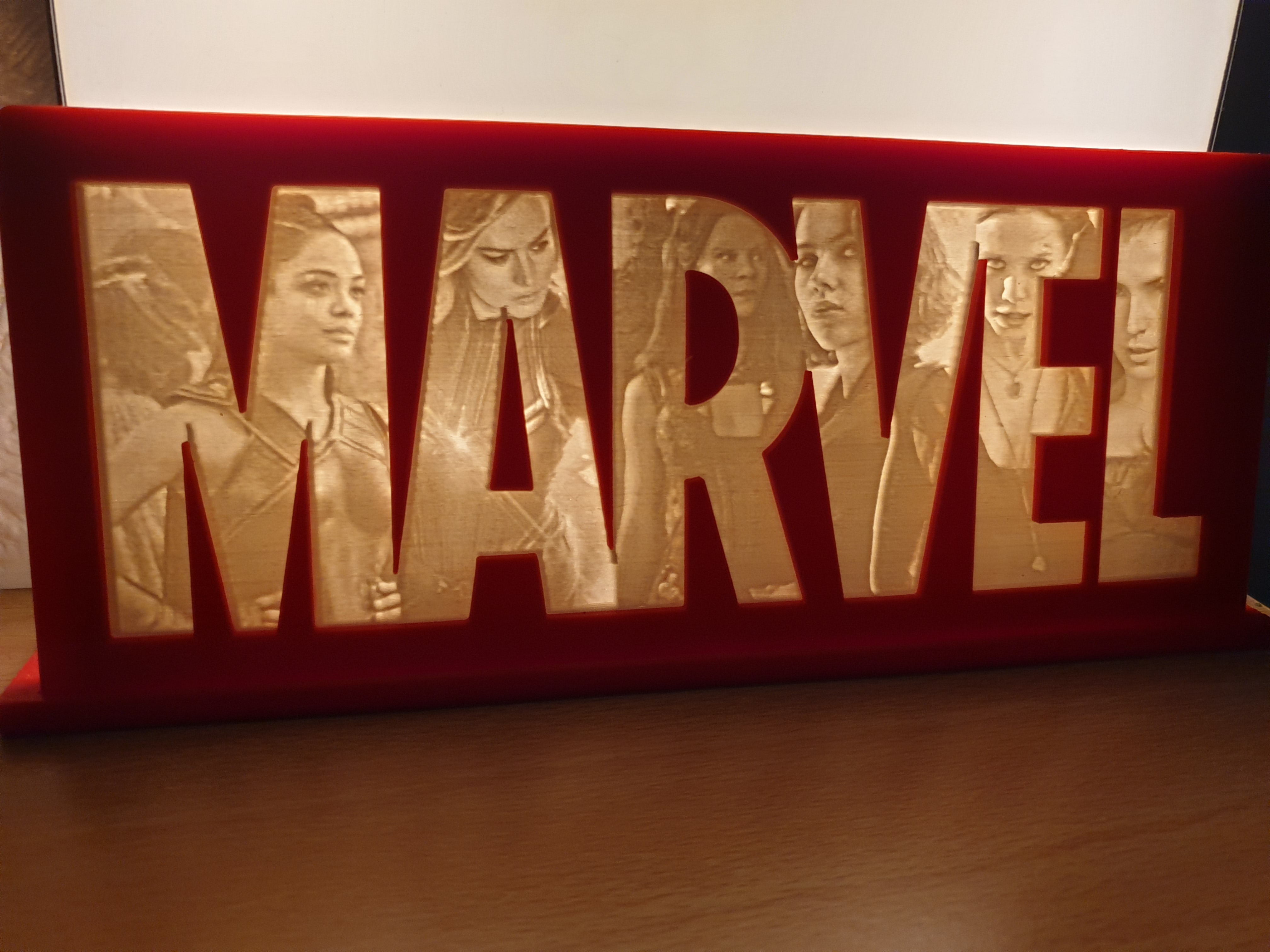

Marvel logo with inset lithophane as the letters plus stand. The print comes in three parts. The logo is approx. 195mm long.

Part 1 'panel' print which incorporates the lithophane is best printed vertically at a small layer height to achieve the highest image quality.

Part 2 & 3 'marvel logo' & 'Base' can be printed flat without issues.

The three prints can then be simply glued together to get a unique marvel logo lithophane. (base works without glueing)


Lithophane Panel:

Print vertically (ideally aligned along the y-axis) 0.1 layer height, 100% infill, 6 bottom, top and perimeters.

Marvel Logo & Base:

Print flat on bed, 0.2 layer height, 5 bottom / top layers, infill 20 % (although doesn't matter as no infill layers)

CHECK OUT if your interested in all the designs.

Marvel - The Originals

Marvel - Original Design (290mm version but old front plate design for 290mm version. Just a stick on plate without stand. 190mm version has the new from plate and stand)

3D printer file information

  • 3D design format: STL Folder details Close
    • Base.stl
    • Marvel 190mm With Edge.stl
    • Marvel Ladies 2.stl

    Learn more about the formats

  • Last update: 2020/12/14 at 18:39
  • Publication date: 2019/06/08 at 19:04
