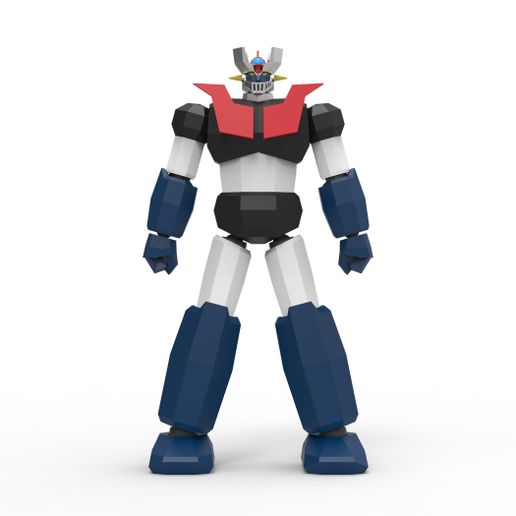

Low Poly Mazinger Z V2

Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Low Poly Mazinger Z V2:

3D Printers: Ultimaker 2 and Makerbot Replicator 2.

Filament: ColorFabb nGen and Makerbot PLA

Number of Parts: 62

Articulation: 14 Points

Paint: Acrylic

Improvements from original Low Poly Mazinger:
- Increased overall height from 9.6" to 10".
- More points of articulation.
- Added more depth on the body and waist (refer to images).
- Many parts have been remodeled so no raft and support are needed.
- Refined the 3D model (low poly surfaces and proportions)

All the parts needed to assemble this super robot are included in this download. Please share your Low Poly Mazinger Z print on Instagram and hashtag #biglildesign .

Thank you and happy 3D printing!

Wesley (Instagram @biglildesign)

3D printing settings

When importing the parts into your slicer program, they should come in at the optimized print orientation.

The list below includes part names and raft/support settings:

Arm_Lower_2x / no raft / no support
Arm_Upper_2x / no raft / no support
Ball LRG_7x / no raft / no support
Ball SML_5x / no raft / no support
Body Mid / no raft / no support
Body Upper L / no raft / no support
Body Upper R / no raft / no support
Chest Plate L / no raft / no support
Chest Plate R / no raft / no support
Foot_2x / no raft / no support
Hand L / no raft / no support
Hand R / no raft / no support
Head / yes raft / yes support
Horn_2x / no raft / no support
Hover Pilder / yes raft / yes support
Hover Pilder Disc_2x / no raft / no support
Hover Pilder Wing / no raft / no support
Knee Lower_4x / no raft / no support
Knee Upper_2x / no raft / no support
Leg Lower A_2x / no raft / no support
Leg Lower B_2x/ no raft / no support
Leg Lower_2x / no raft / no support
Leg Upper_2x / no raft / no support
Neck Opt1 / yes raft / yes support
Neck Opt2 / yes raft / yes support
Shoulder_2x / no raft / no support
Socket LRG_7x / no raft / no support
Socket Neck / no raft / no support
Socket SML / no raft / no support
Waist / no raft / no support

- There are two necks: Neck Opt1 and Neck Opt2. They are the same part so only one needs to be printed. The only difference is its orientation on the build plate. It's up to you which one you prefer.
- Small and detailed parts like the Head, Head Spikes, Hover Pilder, Hover Pilder Discs, Hover Pilder Wing, Hands, and the Ball & Socket joints were printed in high quality.

3D printer file information

  • 3D design format: STL Folder details Close
    • Arm Lower_2x.STL
    • Arm Upper_2x.STL
    • Ball LRG_7x.STL
    • Ball SML_5x.STL
    • Body Mid.STL
    • Body Upper L.STL
    • Body Upper R.STL
    • Chest Plate L.STL
    • Chest Plate R.STL
    • Foot_2x.STL
    • Hand L.STL
    • Hand R.STL
    • Head Spike_2x.STL
    • Head.STL
    • Hover Pilder Disc_2x.STL
    • Hover Pilder Wing.STL
    • Hover Pilder.STL
    • Knee Lower_4x.STL
    • Knee Upper_2x.STL
    • Leg Lower A_2x.STL
    • Leg Lower B_2x.STL
    • Leg Lower_2x.STL
    • Leg Upper_2x.STL
    • Neck Opt1.STL
    • Neck Opt2.STL
    • Shoulder_2x.STL
    • Socket LRG_7x.STL
    • Socket Neck.STL
    • Socket SML_4x.STL
    • Waist.STL
  • Last update: 2018/06/23 at 17:50
  • Publication date: 2017/04/27 at 02:50





Designs 36
Downloads 12.9k
Sales US$6,039
Followers 510

3D printing BIG ideas into LiL things.
Follow me on Instagram

Issue with this design? Report a problem

Collection associated with this 3D model

Makes created by the community

Best sellers of the category Art

Add a comment


Is there a documentation on how to connect the parts ? Thanks.

A mí que me cuentas de dinero, no soy el creador del modelo

Hello 'HOUSERMX' and 'PITT',
I apologize but I don't understand your question/comment. I only speak English.

Noooooo.......puedes hacer el favor de solucionarme ya el problema o fevuelveme mi dinero

En la cintura no encaja una articulación de bola??

Lo que no puede ser es que des para descarcar la version 2 y digas que la manera de montarlos es con la version 1 y que las piezas sean distintas

A ver de todas las piezas que venian en la descarga del muñeco ninguna encaja en la rodilla y la pieza que encaja con la cintura, de todas las piezas que tengo ninguna encaja ahi, hazme el favor de darme una solucion

Eso es para la zona de las rodillas, es la única articulación que no es de bola (al menos en la versión 2). Cada rodilla son tres piezas

Buenas otra vez.... el montaje de este no tiene nada que ver con las piezas que yo tngo descargadas porque las piernas no tiene el agujero para introducir las bolas medias, lo que tiene es un rectangulo

Al de la descarga. Hay varios tipos de articulaciones y cada una se compone de dos e incluso tres piezas.

El que me he descargado yo vienen distantos nuneros de copias, ejemplo en la fiscripcion del v1 pone 4x y en la descarga 7x, a cual hago caso?

Hola. El 2x y 4x son las veces que hay que imprimir esa pieza y para ver el esquema hay dos versiones de Mazinger para descargar. En una de ellas aparecen las imágenes del montaje ( alguna pieza varía pero se ve bien donde van). No hace falta descargar las dos versiones del mazinger

cuando me lo he descargado, en algunas piezas viene 2x, 4x. eso significa las veces que tengo que imprimir de nuevo la misma pieza?
y para montarlo despues como seria esque no hay ningun esquema?

It changes the connection of the waist that is of ball and that the black part of the chest comes separated in two parts

You mean the assembly scheme ?? It comes in one of the photos of the v1

Hello, excellent design! I bought the v1 by mistake and then the v2, but I can not find the connection guide in v2. You could send it to me?

Queda muy chulo. Solo falta que le pongan las alas (creo que se llamaban Jet Scrander)
