Lithophane Stand Light Box LED

Download free STL file Lithophane Stand Light Box LED • Model to 3D print, HoytDesignDownload free STL file Lithophane Stand Light Box LED • Model to 3D print, HoytDesignDownload free STL file Lithophane Stand Light Box LED • Model to 3D print, HoytDesignDownload free STL file Lithophane Stand Light Box LED • Model to 3D print, HoytDesignDownload free STL file Lithophane Stand Light Box LED • Model to 3D print, HoytDesignDownload free STL file Lithophane Stand Light Box LED • Model to 3D print, HoytDesignDownload free STL file Lithophane Stand Light Box LED • Model to 3D print, HoytDesign

Did you 3D print this model?

3D model description

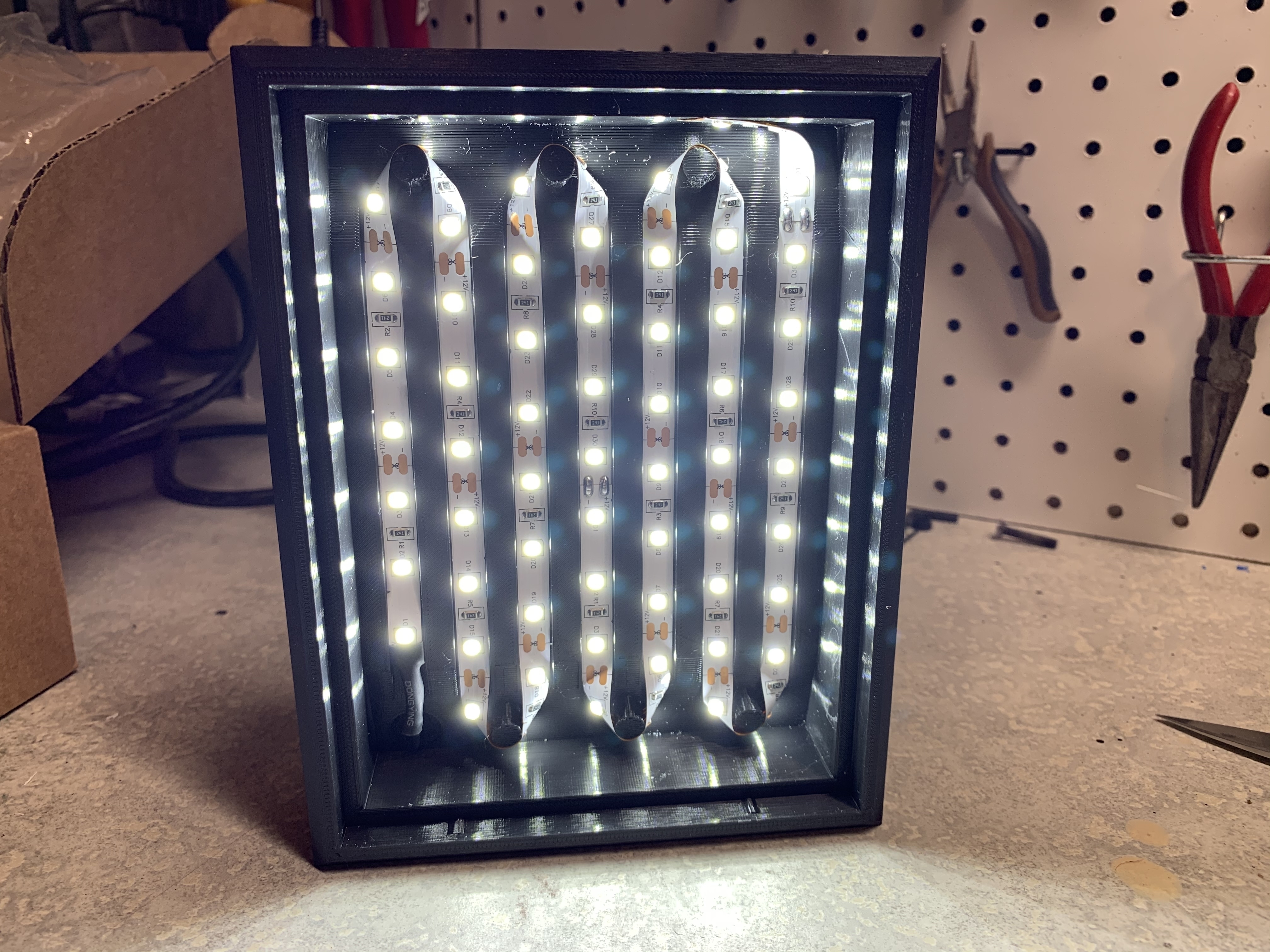

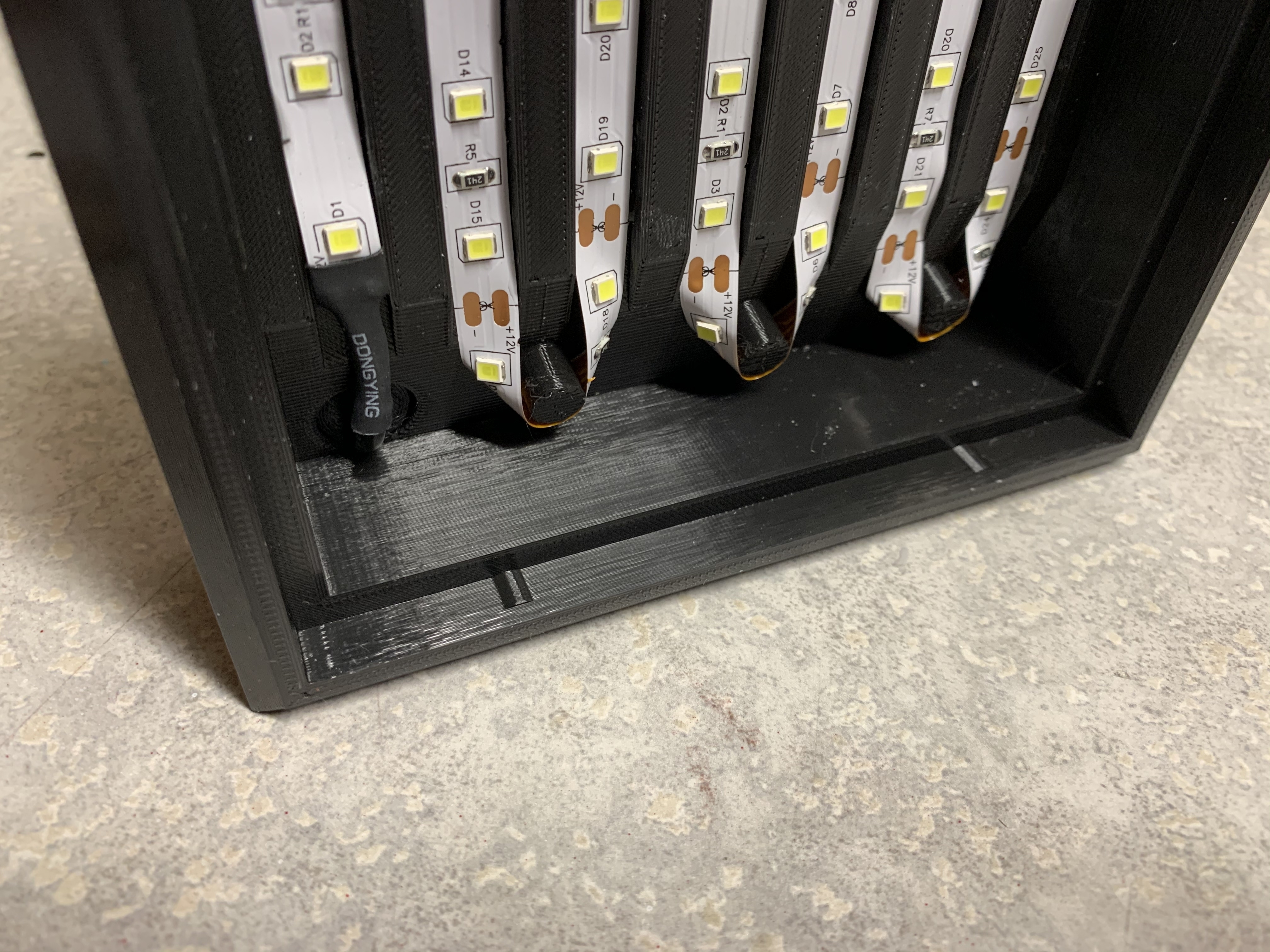

This is a lithophane light box that I designed in order to use flexible LED strip lights as the lighting source. The inside of the box has channels for routing the lights to get even back lighting on your lithophane. I add a few drops of super glue in addition to the adhesive tape on the lights to make sure they stay in place over time.

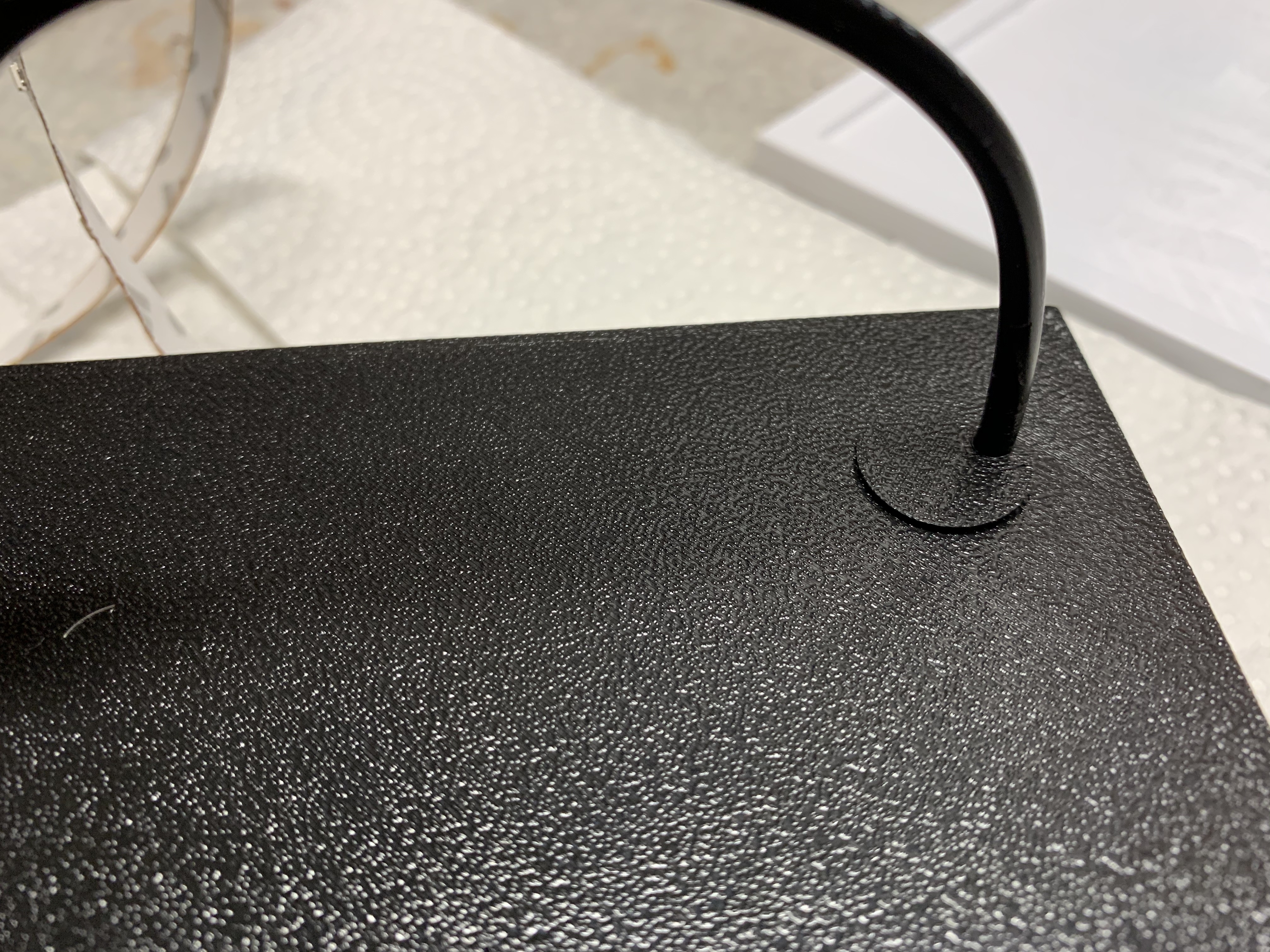

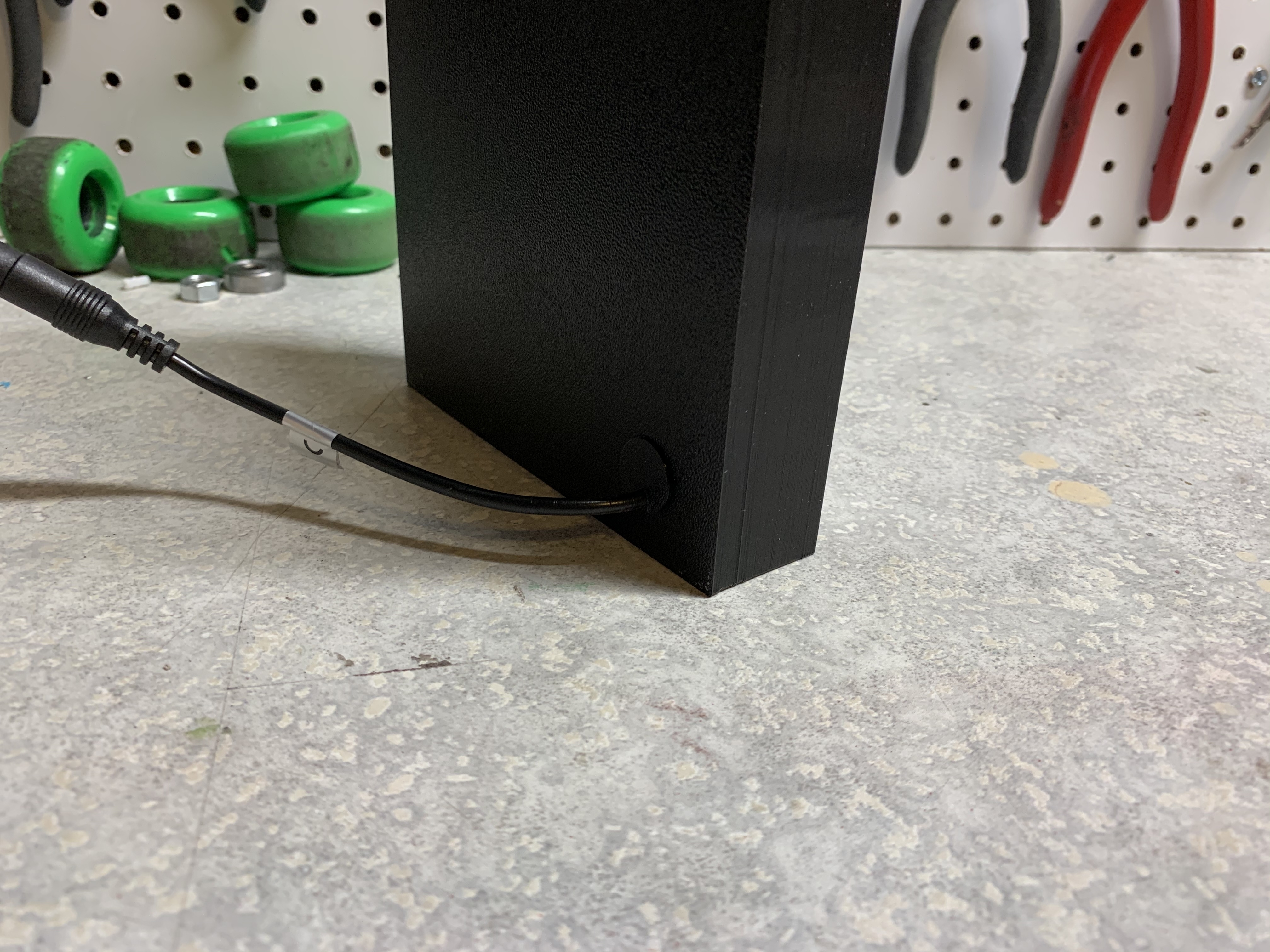

The cord relief is a press fit into the back and helps prevent the lights getting stressed if the cord is pulled on. The lithophane fits into the frame tightly as there are 2 small bumps at the bottom to hold it in place.

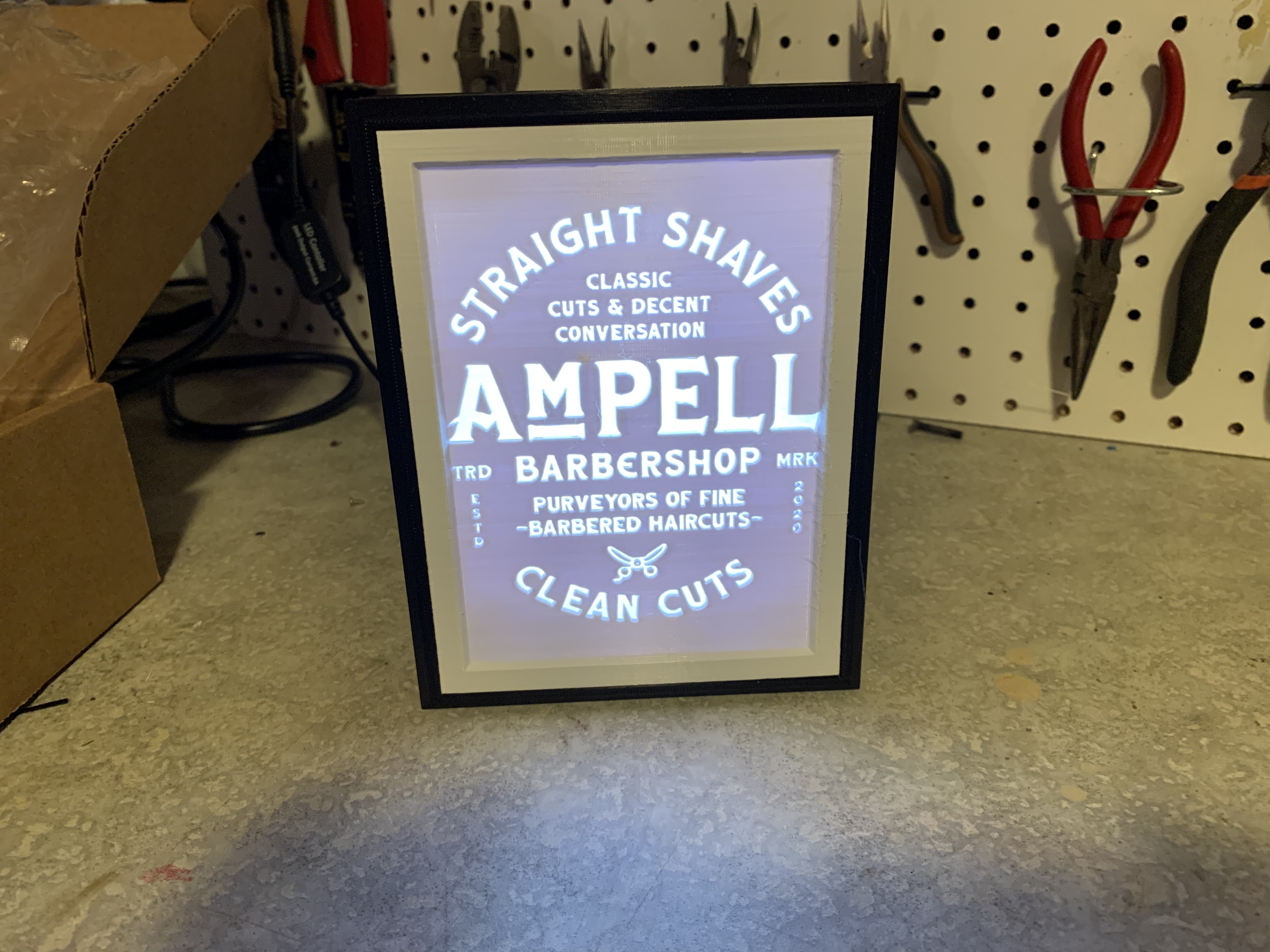

Lithophanes created using Flat Lithophane Maker
https://lithophanemaker.com/Framed%20Lithophane.html
Width=120
Height=160
Depth=7.5

A couple lights I have used:

https://www.amazon.com/gp/product/B07T489JHF/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

https://www.amazon.com/gp/product/B015JV9QJK/ref=ppx_yo_dt_b_asin_title_o03_s01?ie=UTF8&psc=1

  • 3D file format: STL

Tags

Creator

License

CC BY
