KINETIC 2

3D model description

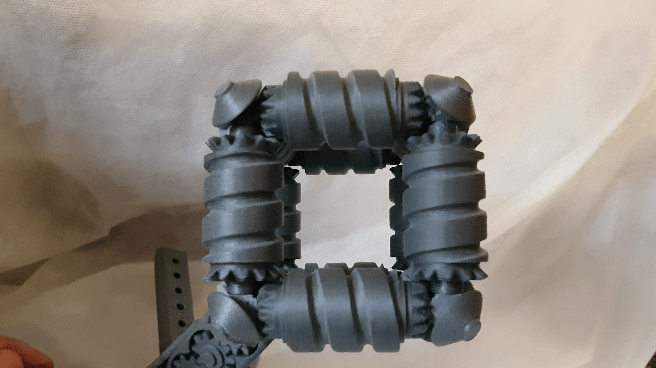

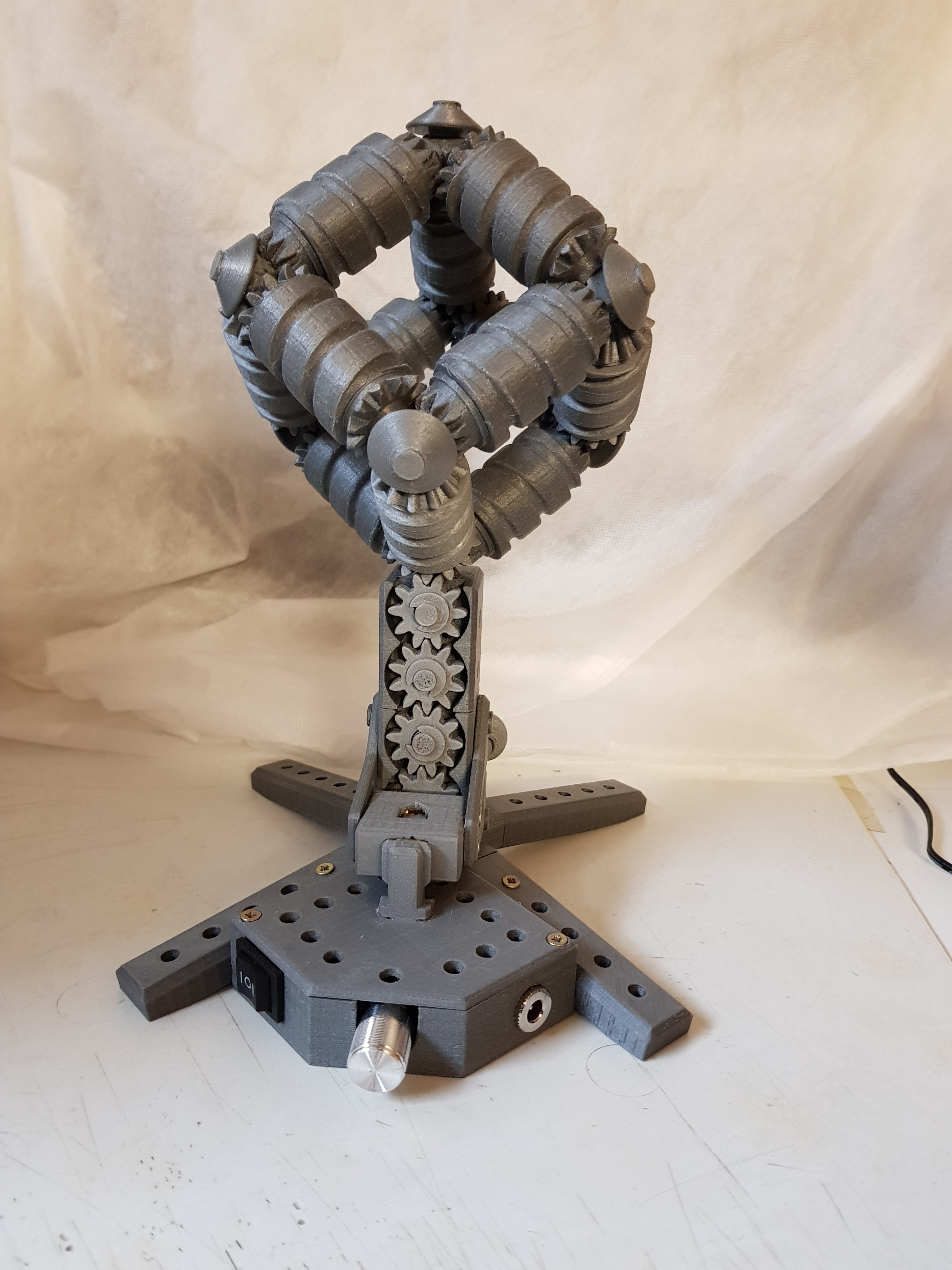

kinetic model2

"head" interchangeable with kinetic 1

with

a manual version

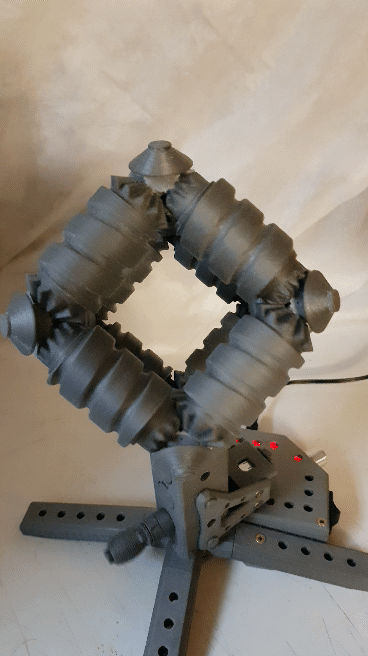

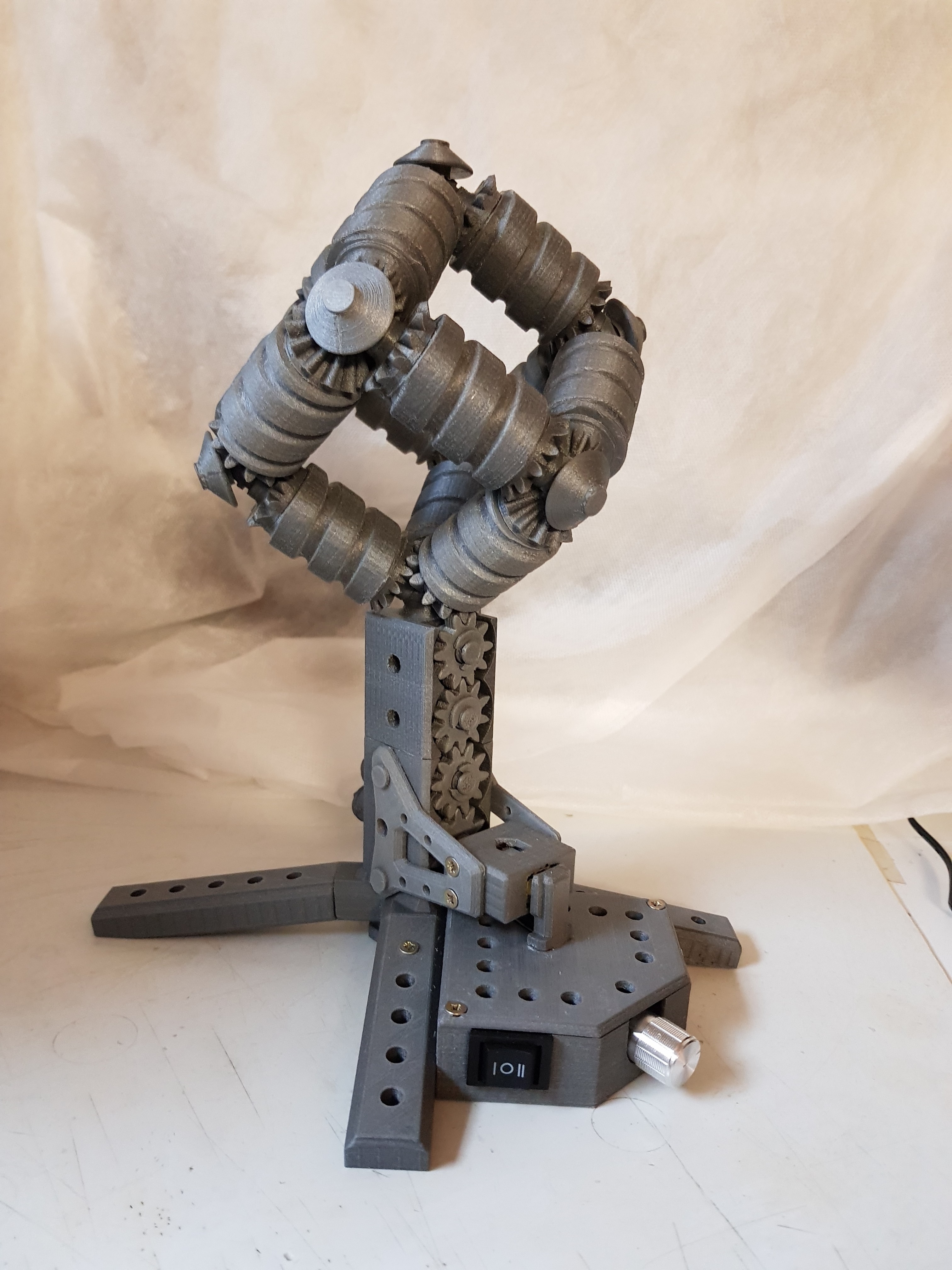

and an electric version

https://www.youtube.com/watch?v=AtPIoJC0sbw&feature=youtu.be


manual version

it is necessary to

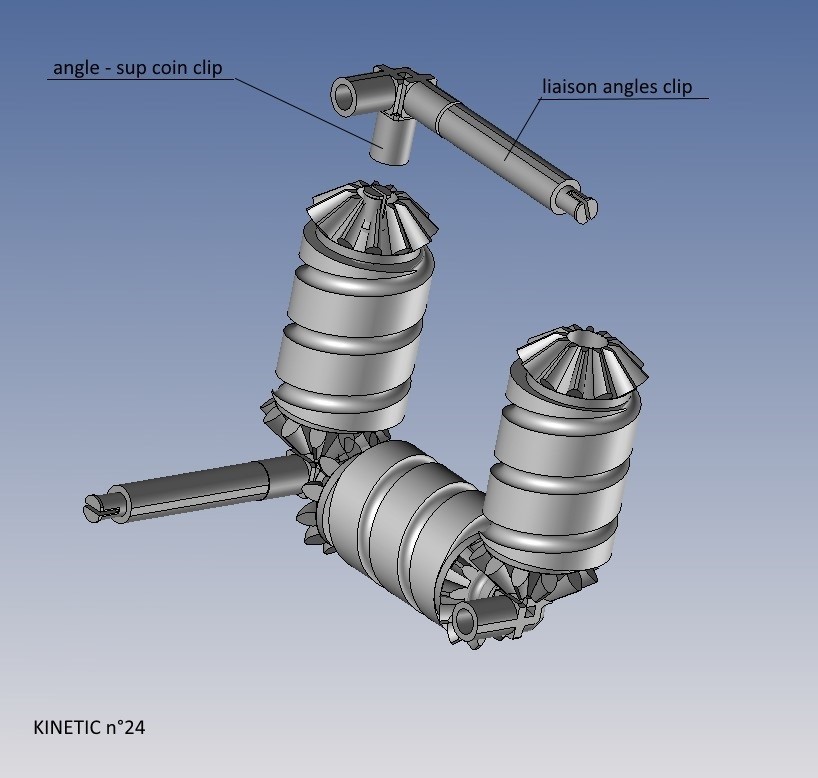

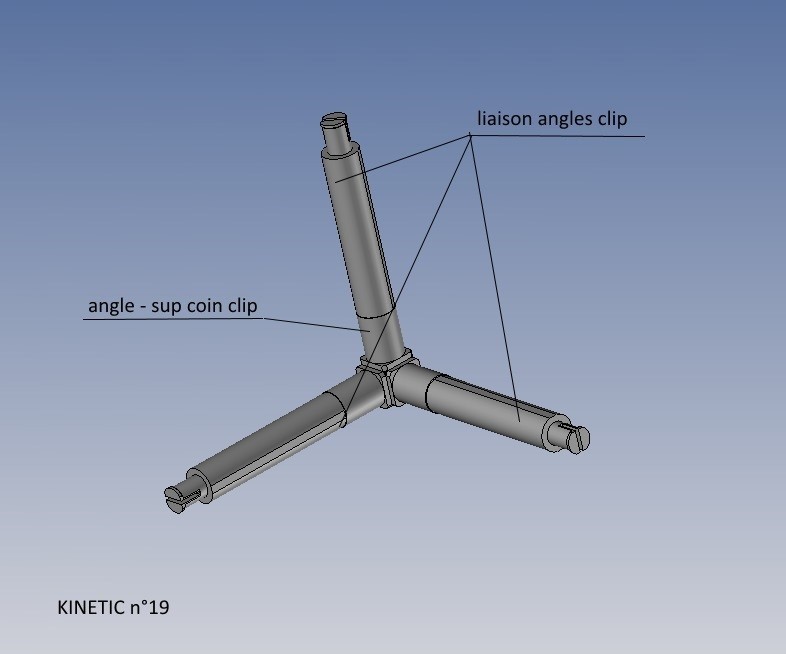

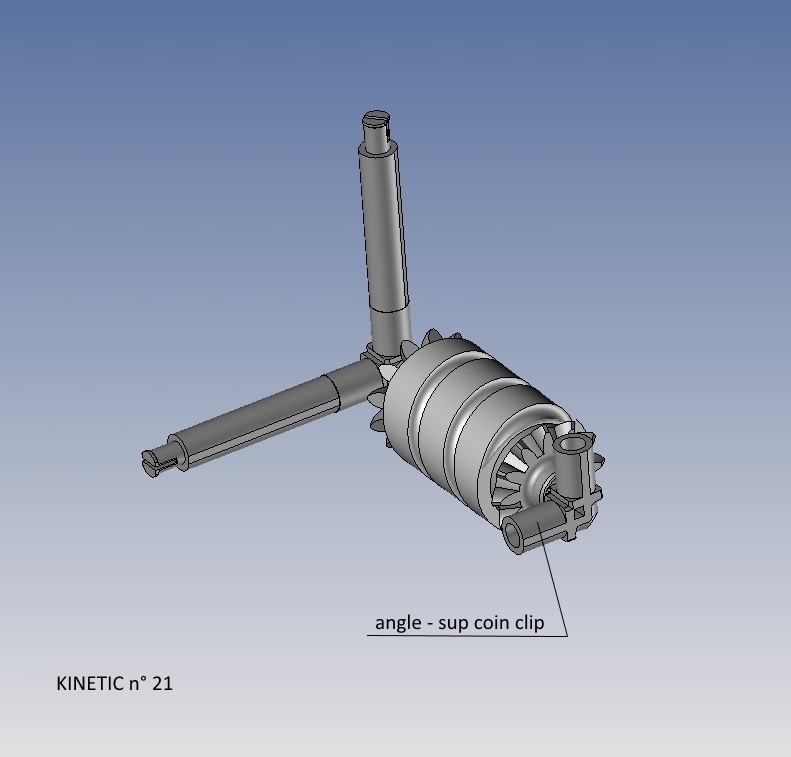

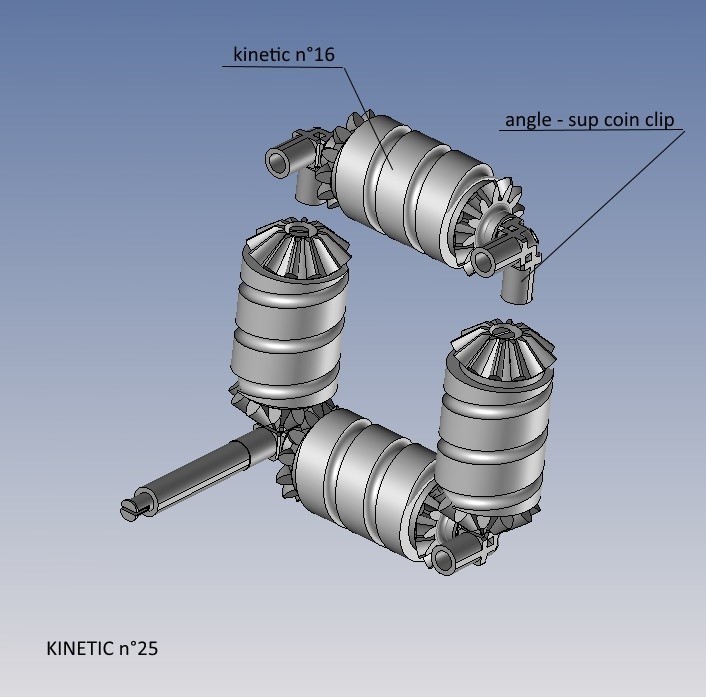

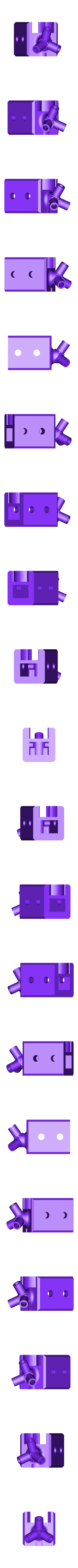

7 x angle - sup corner clip

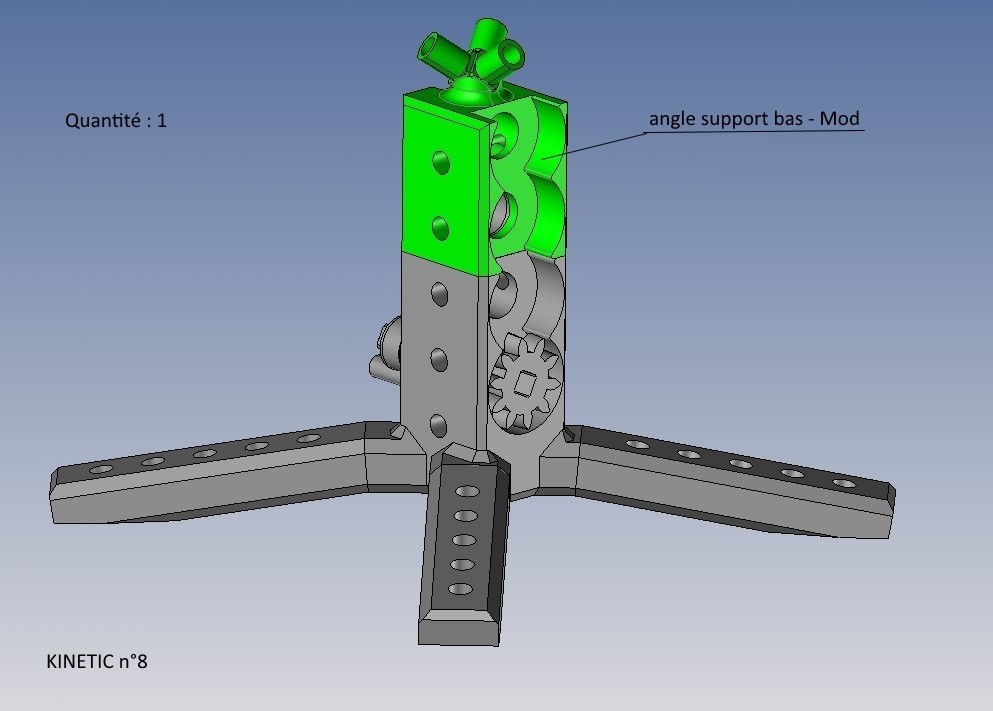

1 x angle - low support - mod

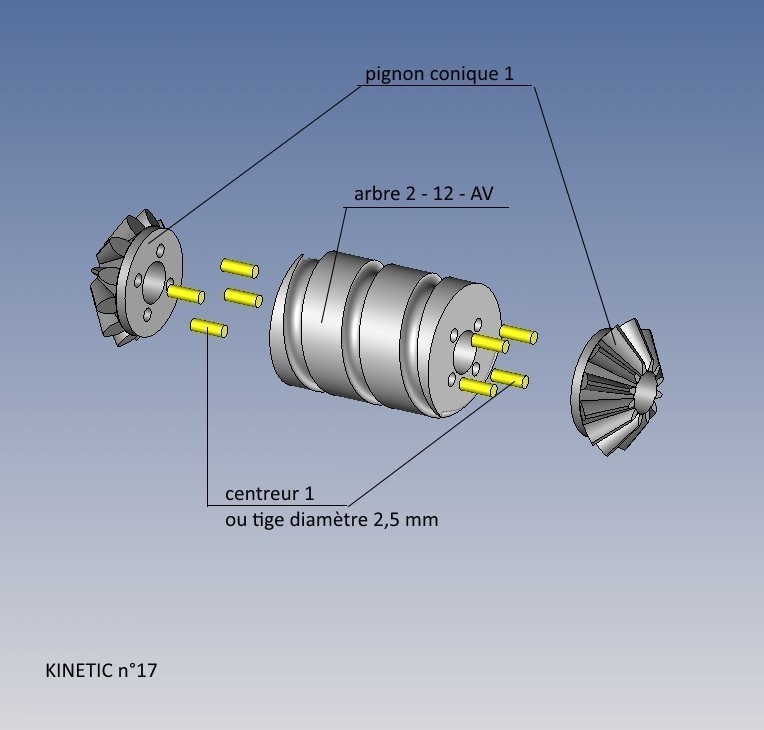

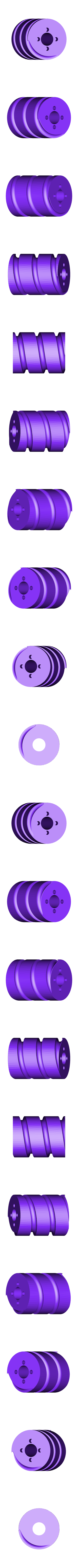

11 x shaft 2 - 12 - AV

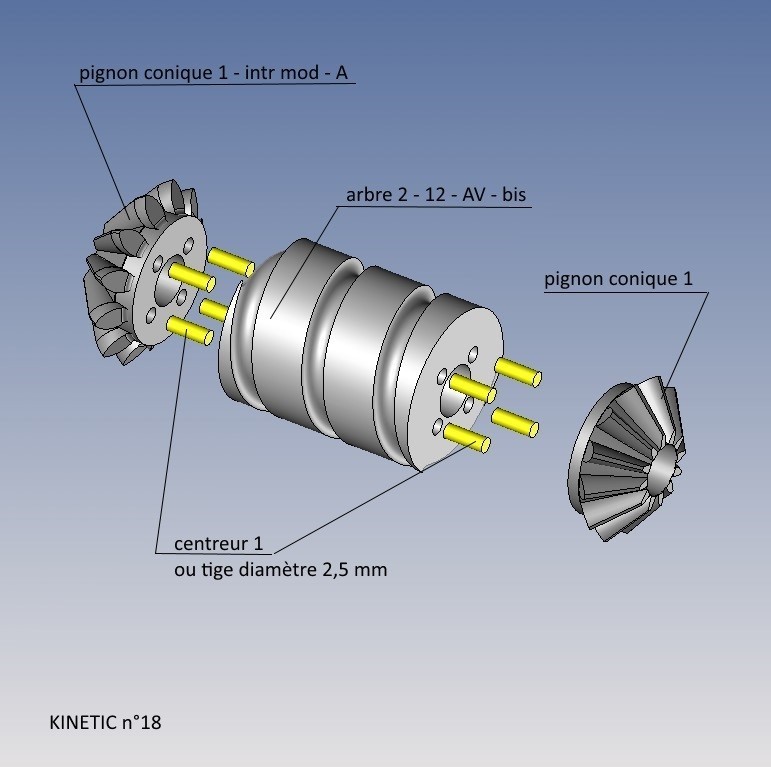

1 x shaft 2 - 12 - AV - bis

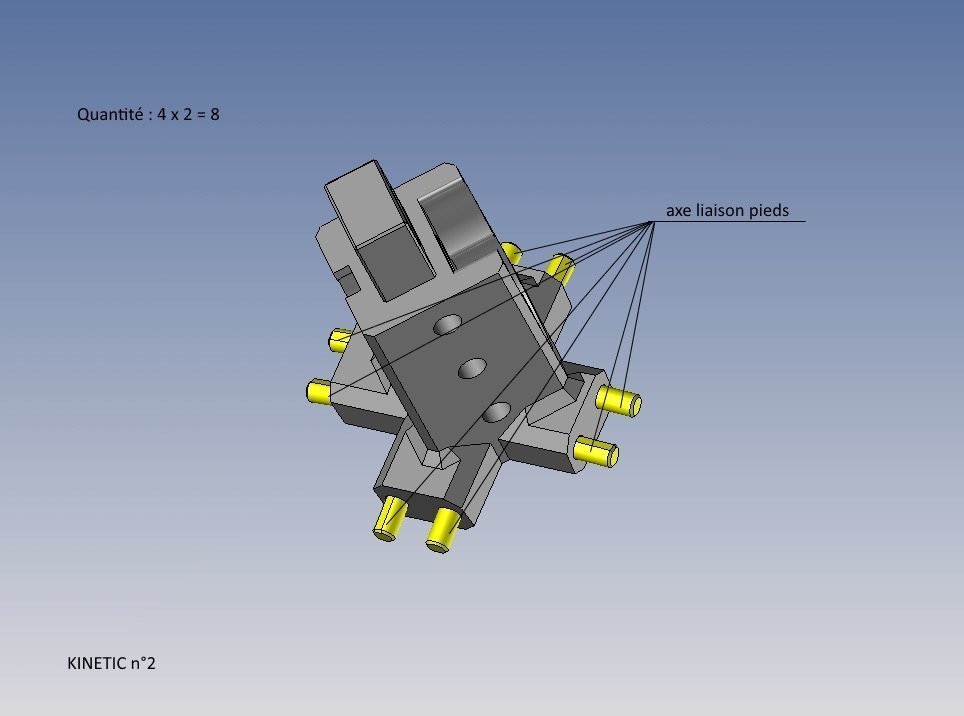

8 x foot connection axis

3 x axis1

96 x centering device 1

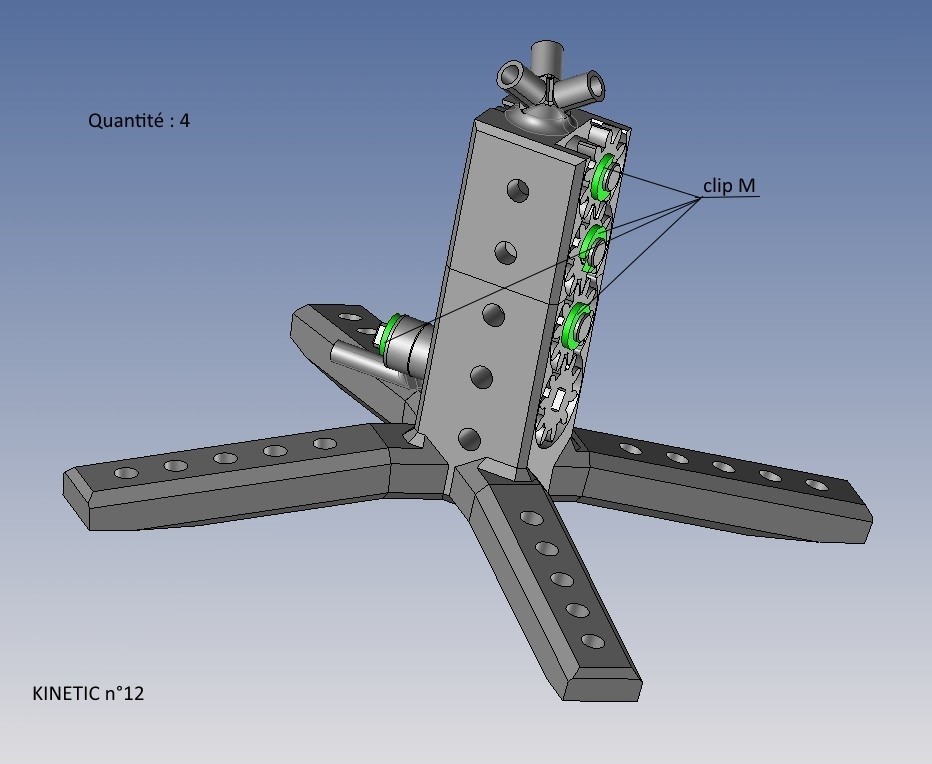

4 x clip M

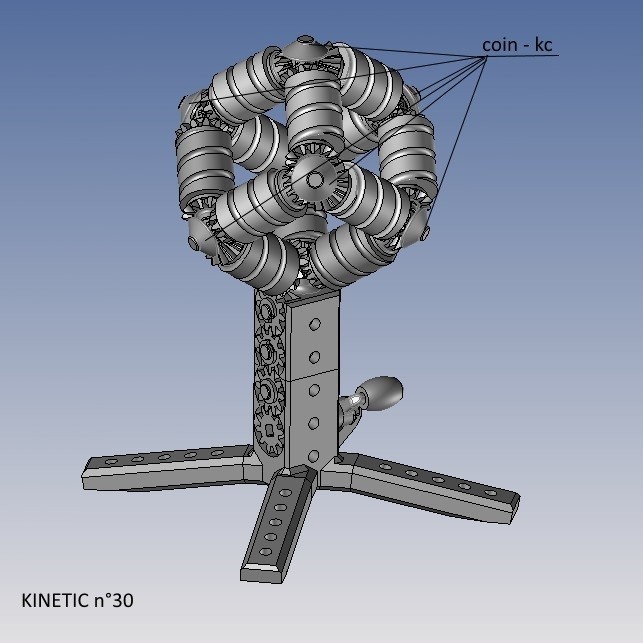

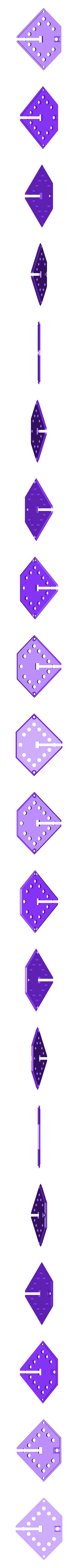

7 x corners - kc

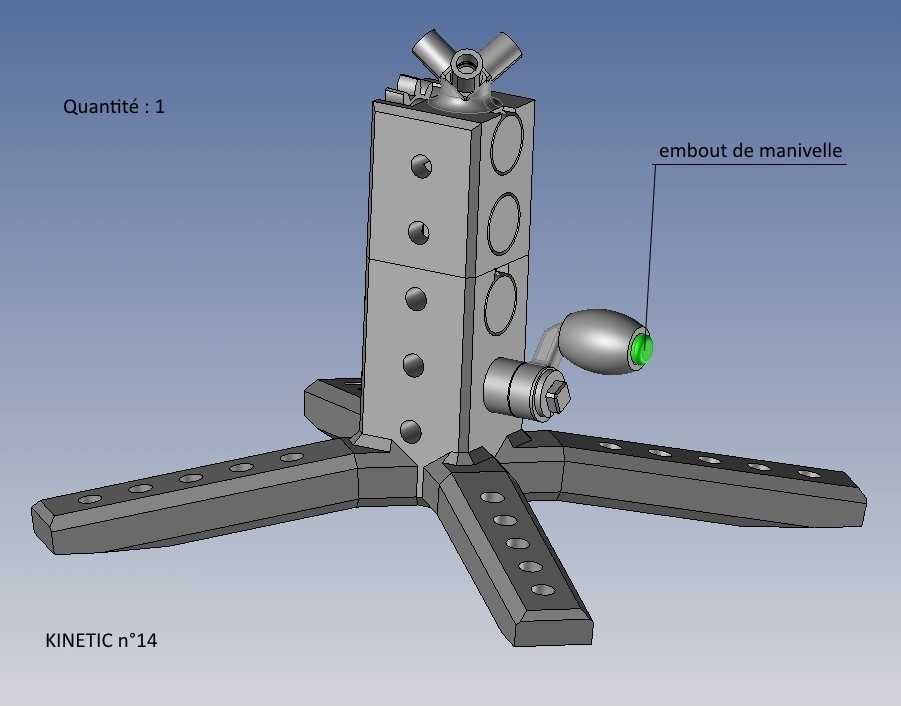

1 x crank end cap

1 x motor tip

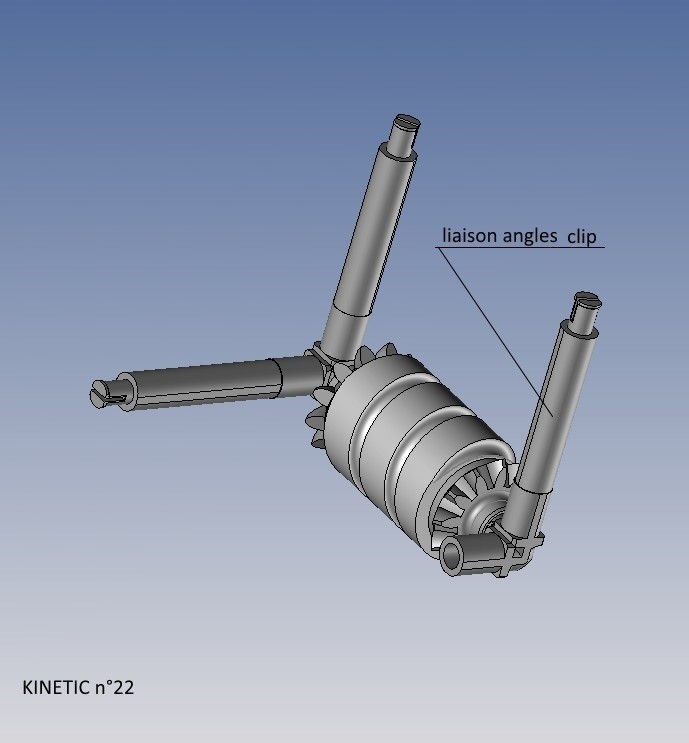

12 x clip angle connection

1 x crank handle B

24 x pattern G10

48 x G20 pattern

48 x pattern G30

48 x pattern G40

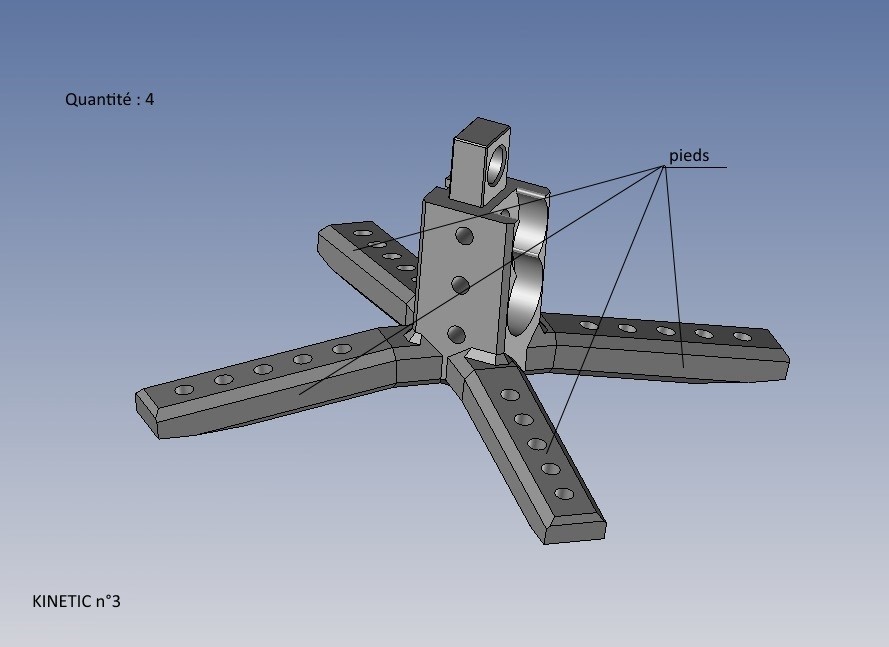

4 x feet

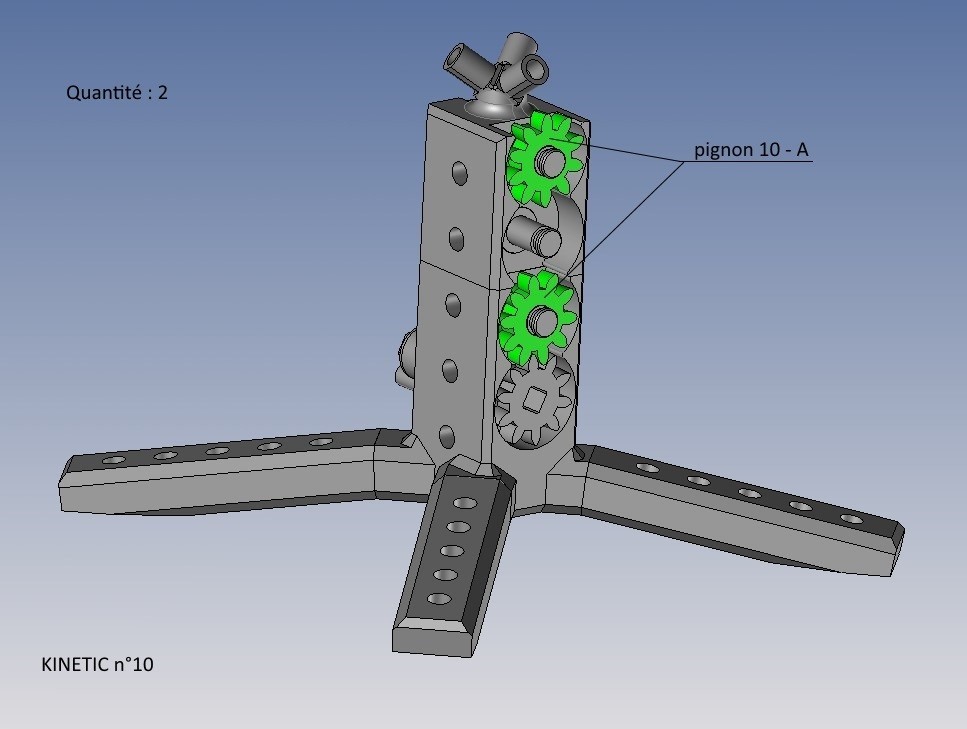

2 x pinion 10-A

1 x pinion 20-A

1 x bevel gear 1 - enter mod -A

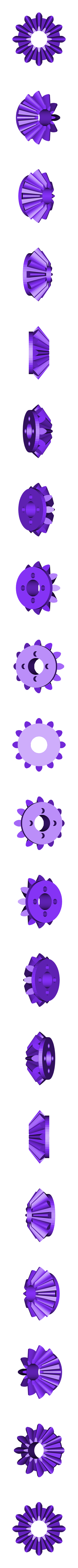

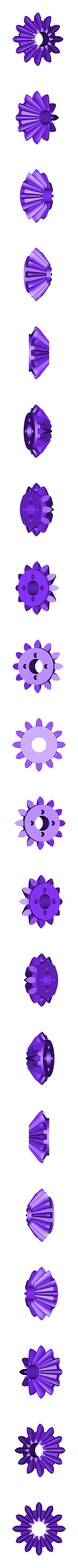

7 x bevel gear 1

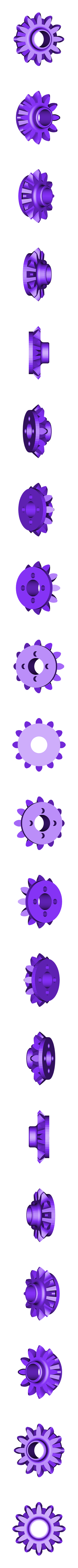

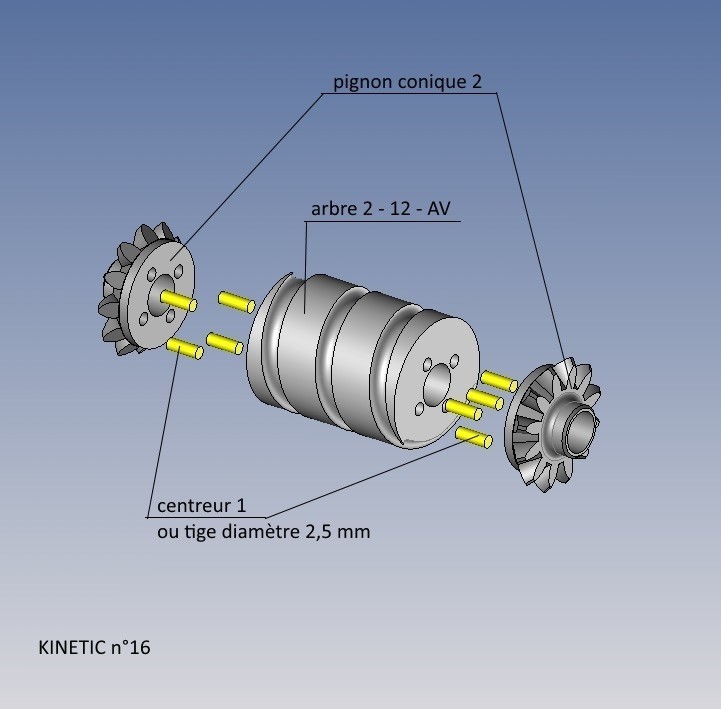

8 x bevel gear 2

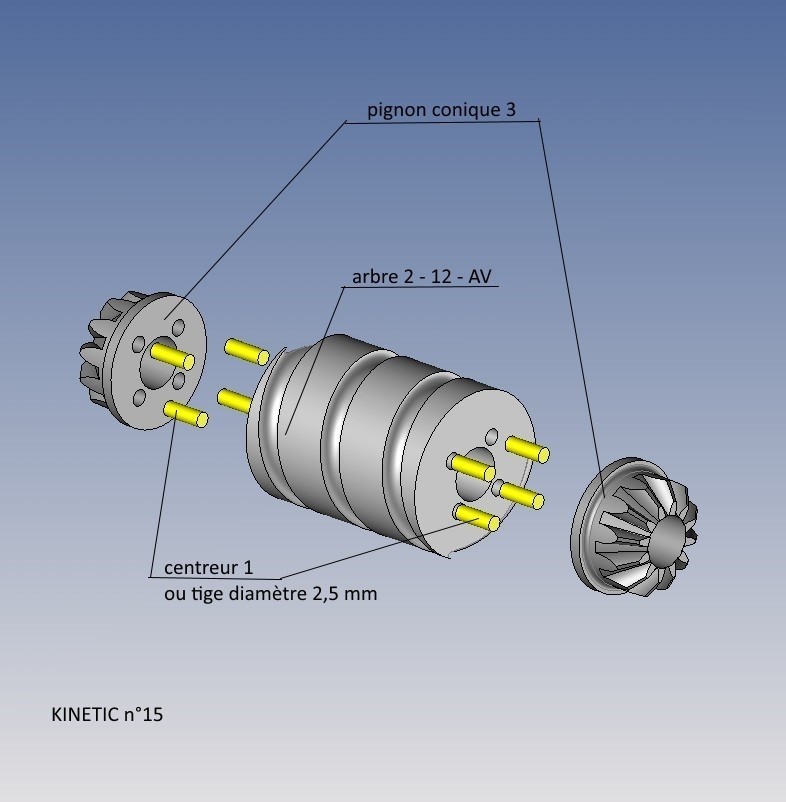

8 x bevel gear 3

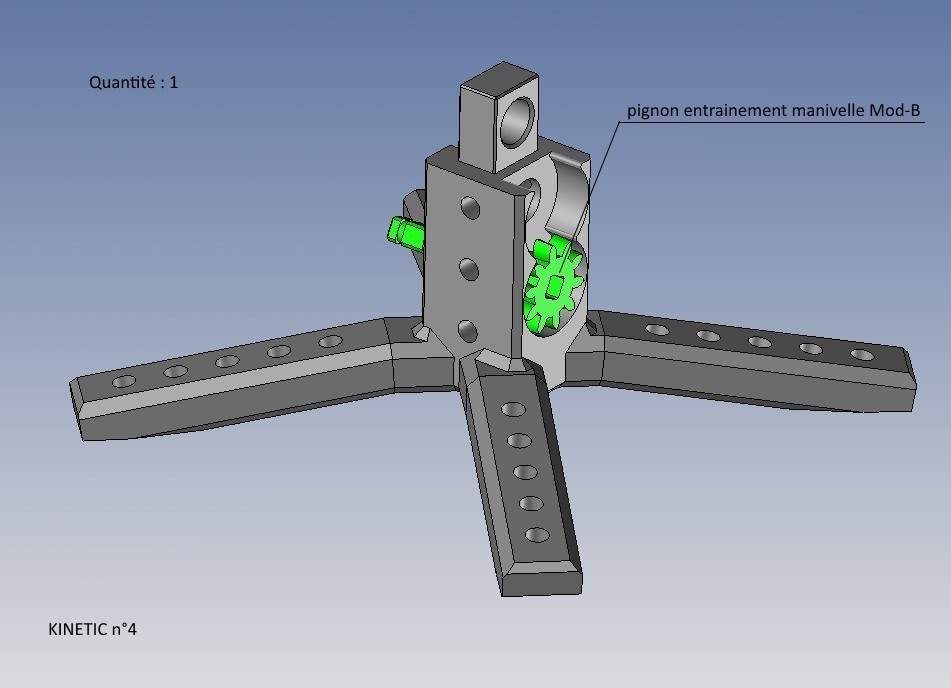

1 x crank drive pinion Mod - B

1 x crank handle

1 x crank washer - A - end cap

1 x crank washer - A

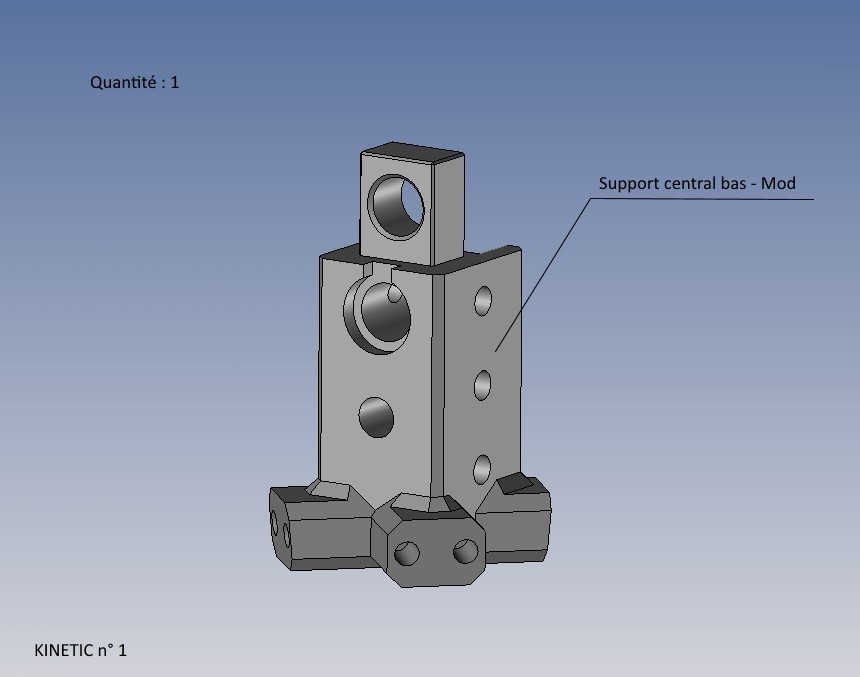

1 x low central support - Mod

for the electric version

it is necessary to

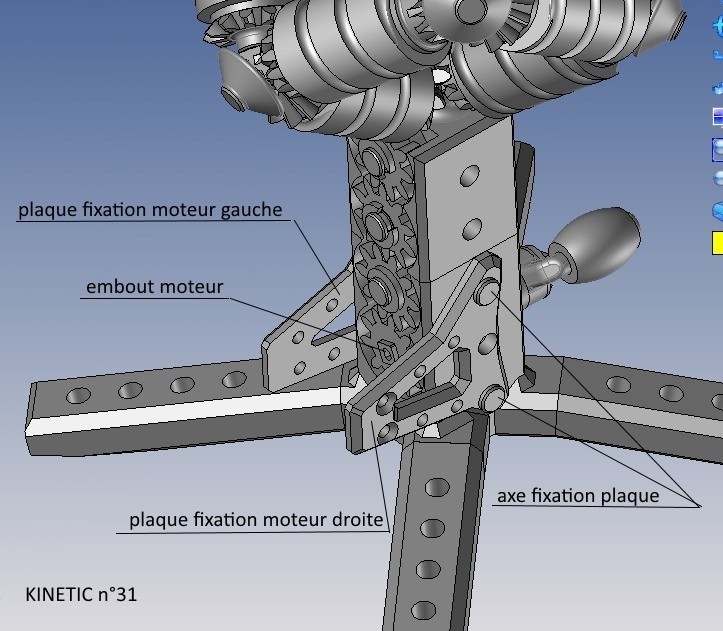

4 x plate fixing axis

1 x box reg

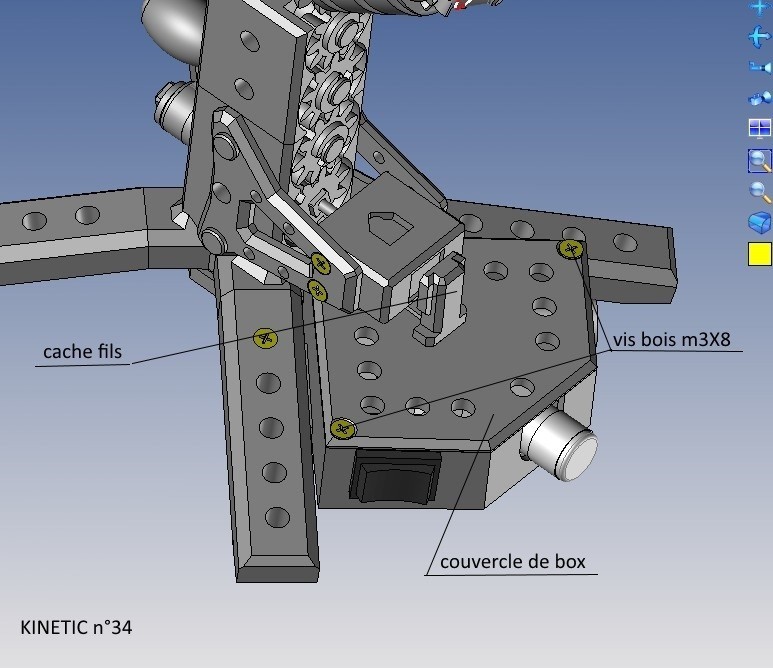

1 x wire cover

1 x box cover

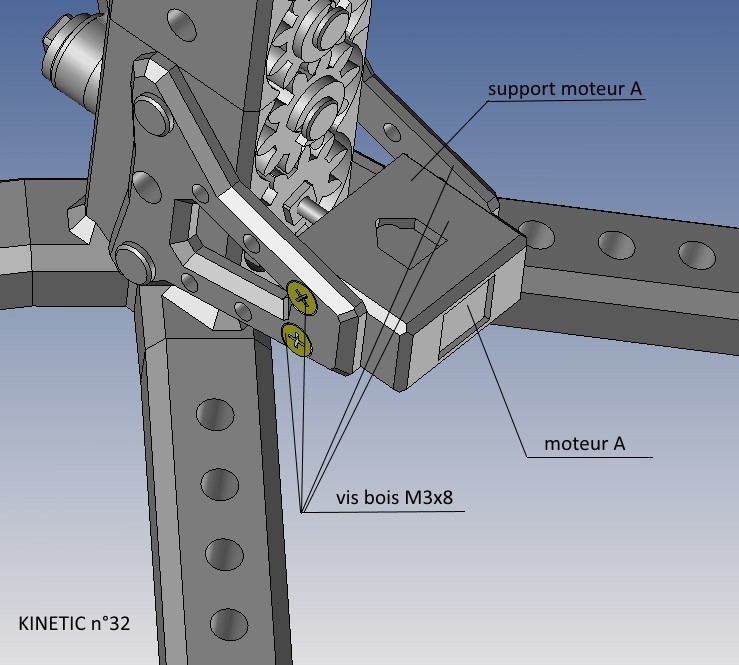

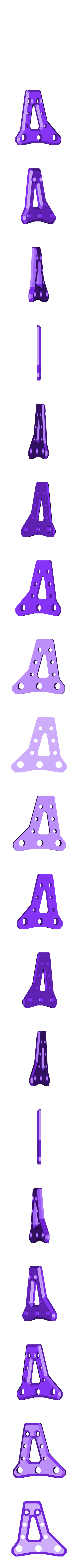

1 x motor mounting plate right

1 x motor mounting plate left

accessories

1 controller (Amazon)

https://www.amazon.fr/gp/product/B01H1WANV0/ref=oh_aui_detailpage_o05_s00?ie=UTF8&psc=1

1 socket (Amazon)

https://www.amazon.fr/gp/product/B00JR591DG/ref=oh_aui_detailpage_o06_s00?ie=UTF8&psc=1

1 micro motor (Amazon)

https://www.amazon.fr/gp/product/B01AVT2R9G/ref=oh_aui_detailpage_o07_s00?ie=UTF8&psc=1

8 wooden screws M3 x 8 (or M3 x 10)

3D printing settings

ultimaker 2

silver PLA filament

  • 3D model format: STL
