Helical Gear Pencil Holder

Download free STL file Helical Gear Pencil Holder • 3D printable object, mkellsyDownload free STL file Helical Gear Pencil Holder • 3D printable object, mkellsy

Did you 3D print this model?

3D model description

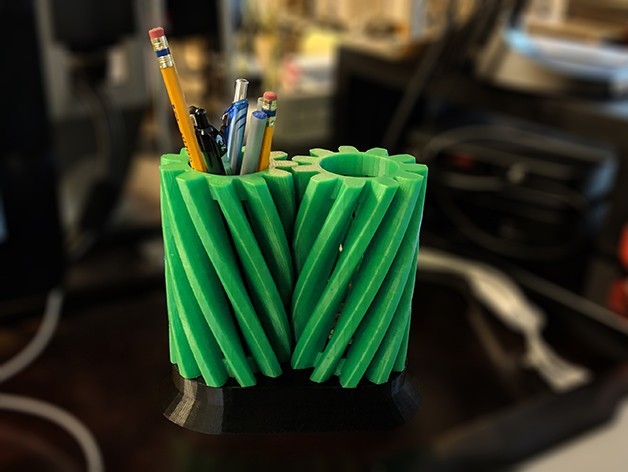

This is a helical gear pencil holder. I got the idea from AdditiveTech's Helical Gear Cups on Thingverse. However I didn't want to use bearings. I re-worked this in SolidWorks to make a more aggressive helical gear. Then I created press fit pins and bushings to hold it all together.

The pins are press fit into the bushings and the base. I used a 2 x 4 with a 1" hole drilled in it and a rubber mallet to hammer the pins into the bushings. Then I used a 1/2" dowel and a rubber mallet to hammer the pin and bushing assemblies into the base. This will create a 1mm loose running fit between the bushings and helical gears.

3D printing settings

Printer: Dremel 3D45
Rafts: No
Supports: No
Resolution: 0.1mm
Infill: 20%

  • 3D file format: STL
