Hagar the Horrible

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.0k views
  • 20 likes
  • 181 downloads

3D model description

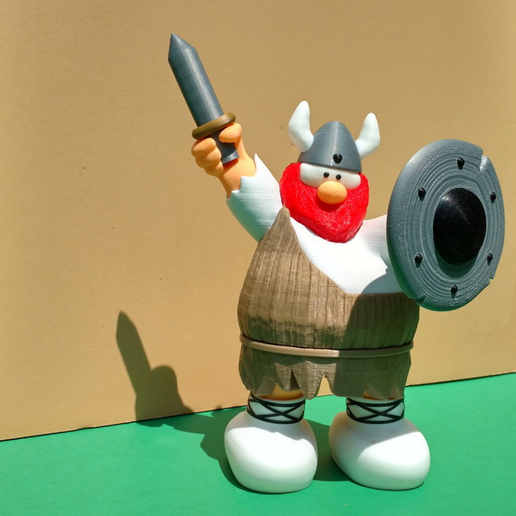

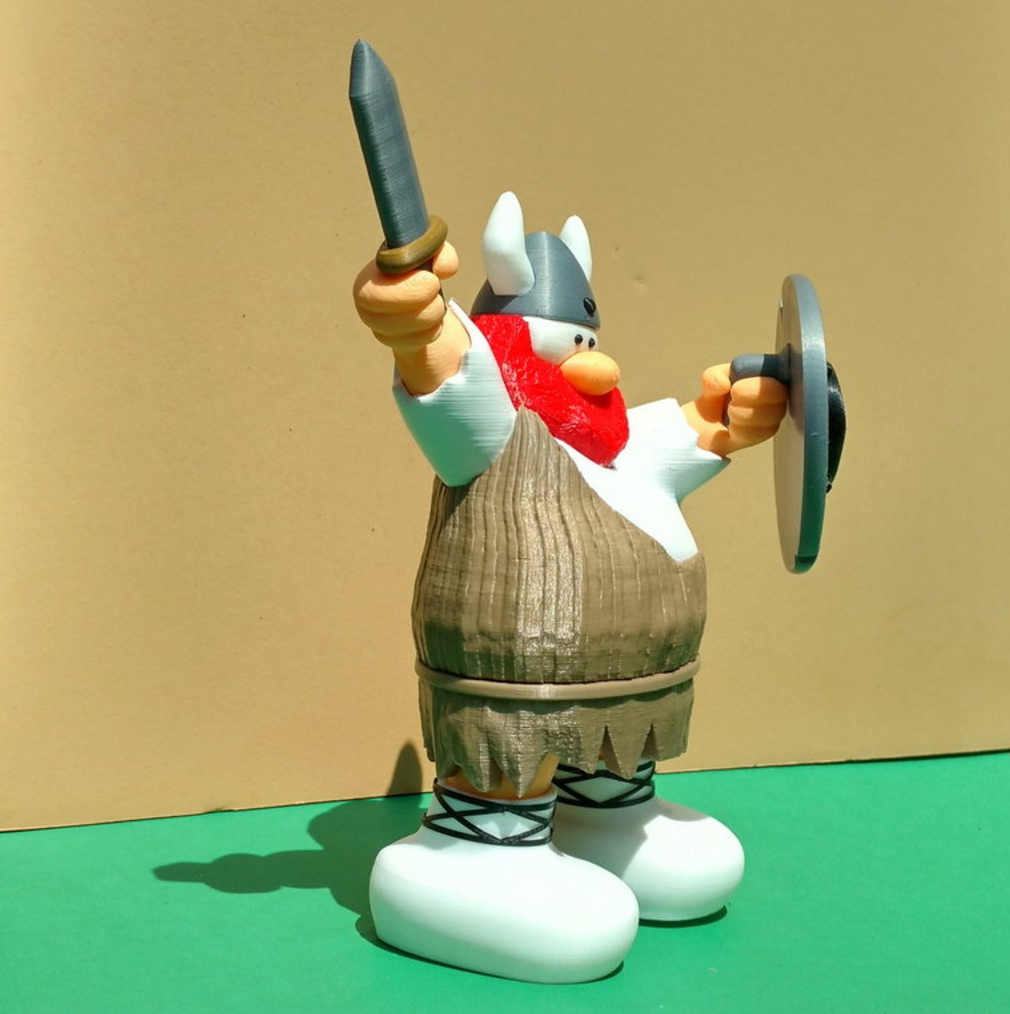

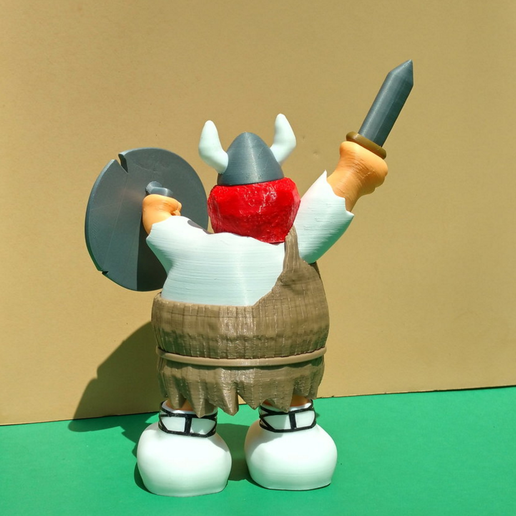

Hagar, from the comic strip 'Hagar the Horrible'.

Hagar is 27cm tall (including the sword) and does not require any painting when printing the pieces in the suggested colors. No supports are required.

Hagar may look fierce but he is really a pussycat.

Enjoy!

3D printing settings

Printer: FlashForge Creator X
Rafts: Doesn't Matter
Supports: No
Resolution: .2mm
Infill: 10%

Notes:
All pieces can be printed without a raft, however based on your own individual experience, the sword and the smaller pieces may need a brim or a raft. Personally I also print small pieces with a higher infill and two shells. I also routinely print pieces that have many curves and no flat top with 5 top layers.

Colors and multiple printed pieces
White:
horn_right
horn_left
face
shirt
boots

Grey or Silver:
helmet
sword
shield
shield_handle

Black:
eyes (2 copies)
shield_rivet (6 copies)
shield_center
helmet_rivet
bootstrap (2 copies)

Red:
beard

Yellow or Gold:
sword_guard

Brown:
tunic_top
tunic_bottom
belt
tunic_pin (2 pieces)

Flesh or Peach:
arm_right
arm_left
legs
nose

Assembly instructions

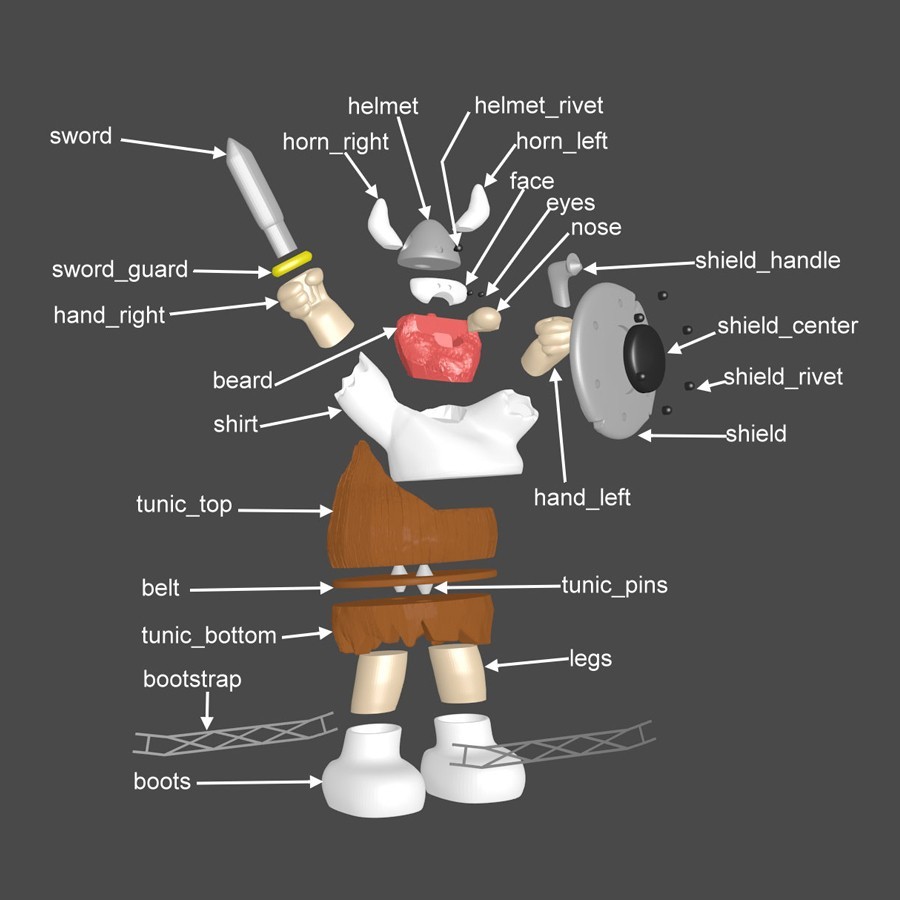

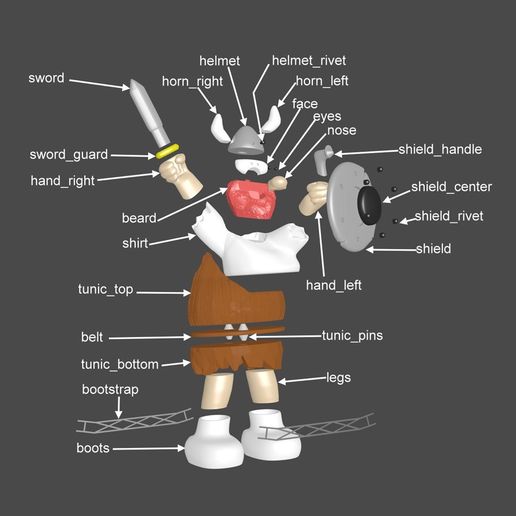

Assembly is straight forward as per the diagram below.

Of special note:
The bootstrap pieces are printed flat. Simply make a loop from each bootstrap and glue the ends together. I printed them in ABS and they were highly flexible. The bootstrap then slides over the top of the shoes, so ensure you do this before gluing the shoes to the legs.

I also suggest assembling the shield then gluing the shield_handle piece to the shield. Once this is all dry, the shield_handle slides into hand_left and can then be glued in.

  • 3D file format: STL

Creator

Designs 73
Downloads 27.0k
Followers 569

Retired software engineer, learning CAD design and 3D printing. When creating models, I strive for support free designs and fun creations.

License

CC BY
