Gator the Alligator - CT scan

Download free STL file Gator the Alligator - CT scan • Template to 3D print, ValchanovDownload free STL file Gator the Alligator - CT scan • Template to 3D print, ValchanovDownload free STL file Gator the Alligator - CT scan • Template to 3D print, ValchanovDownload free STL file Gator the Alligator - CT scan • Template to 3D print, ValchanovDownload free STL file Gator the Alligator - CT scan • Template to 3D print, Valchanov

Did you 3D print this model?

3D model description

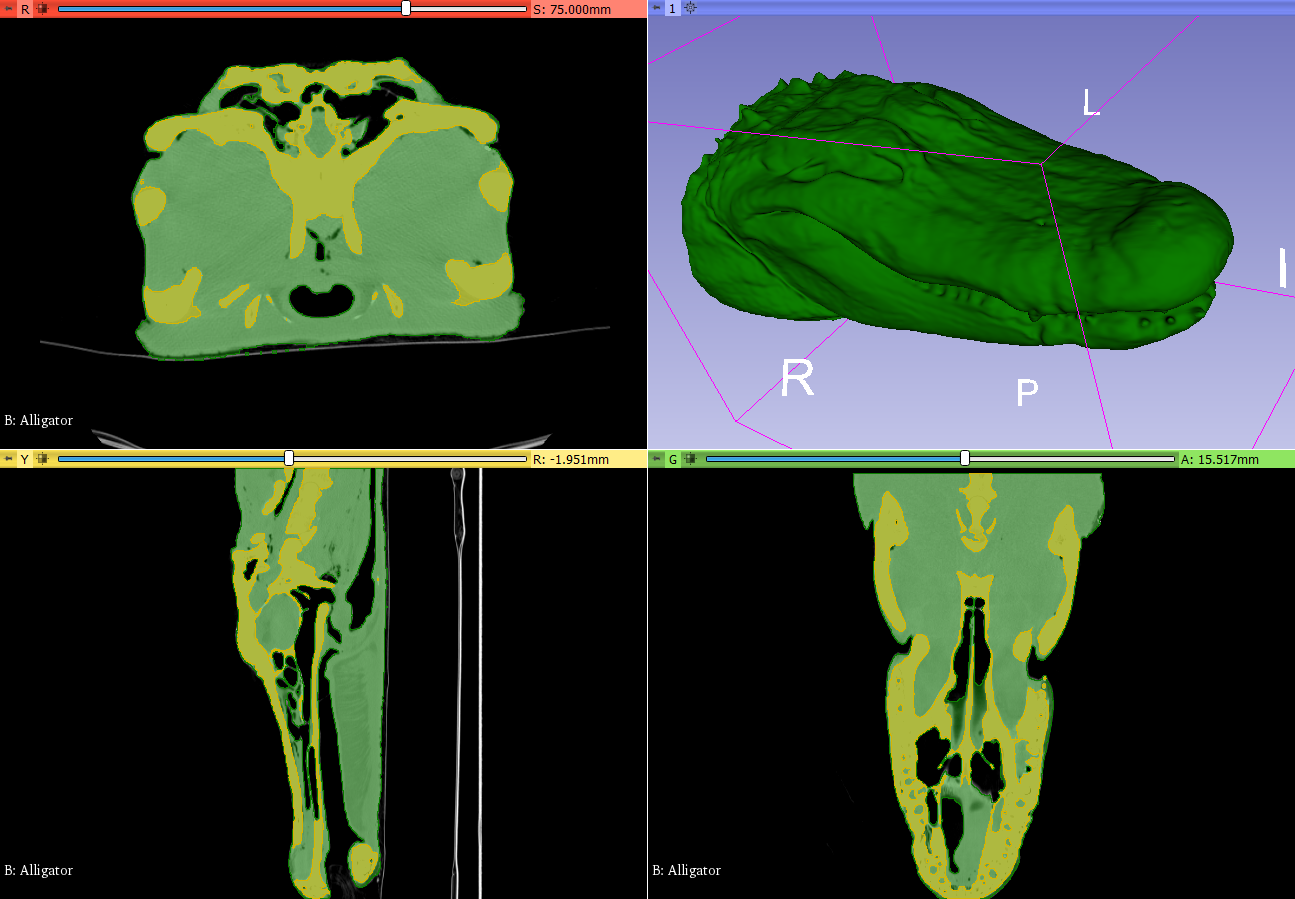

This is a model of an alligator, which was scanned with Computer Tomography. Source of the dataset: https://people.ohio.edu/witmerl/DinoSinuses_main.htm There was an Ostrich head and two dinosaur skulls in the stack, but I prefer the Gator. I segmented the soft tissues and the bones of the skull and first cervical vertebras and then converted them into two stl files, one for both. I scaled the model 1/10, because the head of the animal is too big for my printer. This is not "some art", this is real 3d reconstruction of a real animal, based on exact morphological data.
This model is for the contest of #ESUN3D

3D printing settings

3D Jake ecoPLA Glitter Silver;
0,150mm layer thickness;
2 perimeters, 30% gyroid infill;
brim, no support;
Printed on Prusa MK3S;

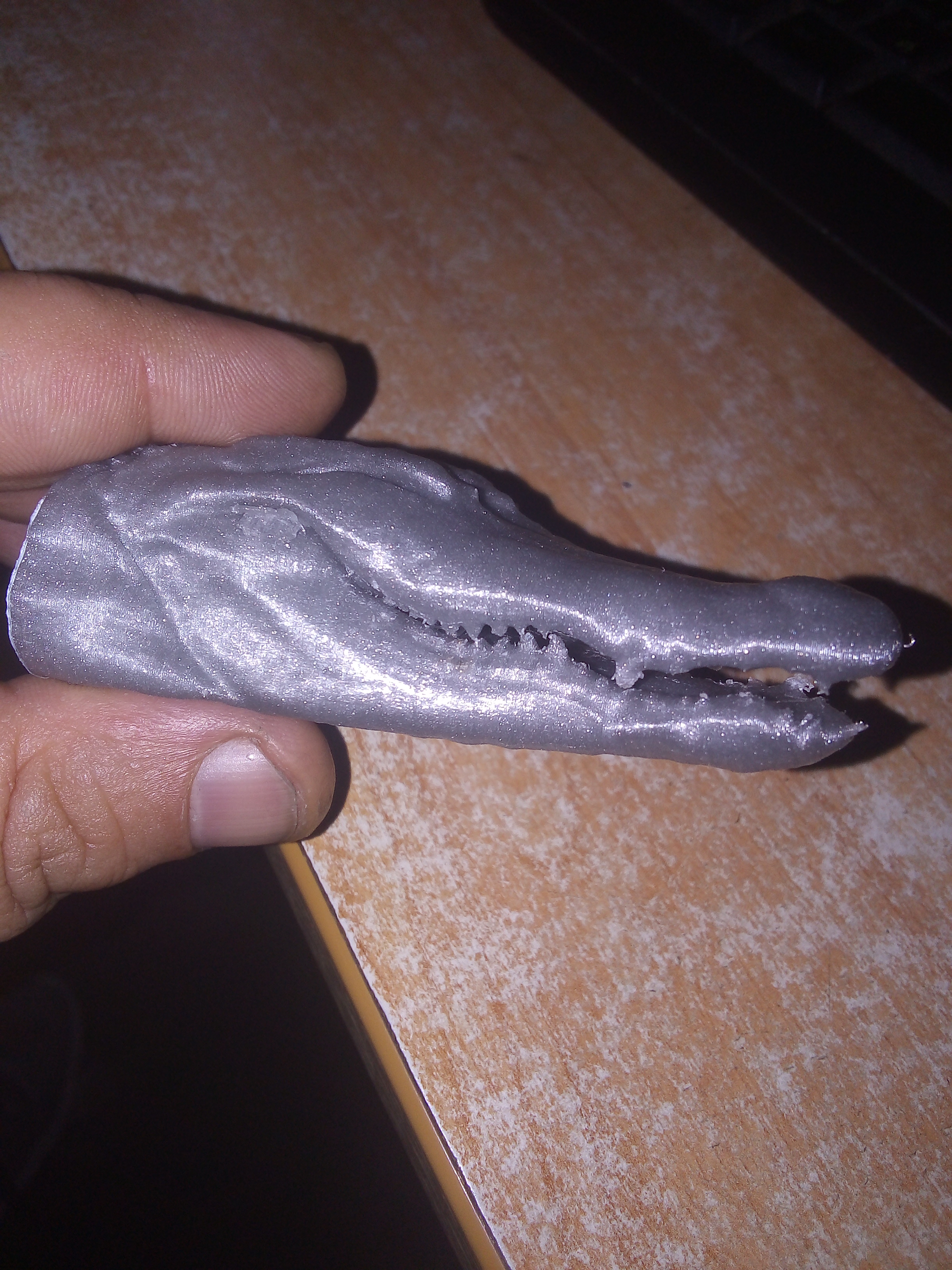

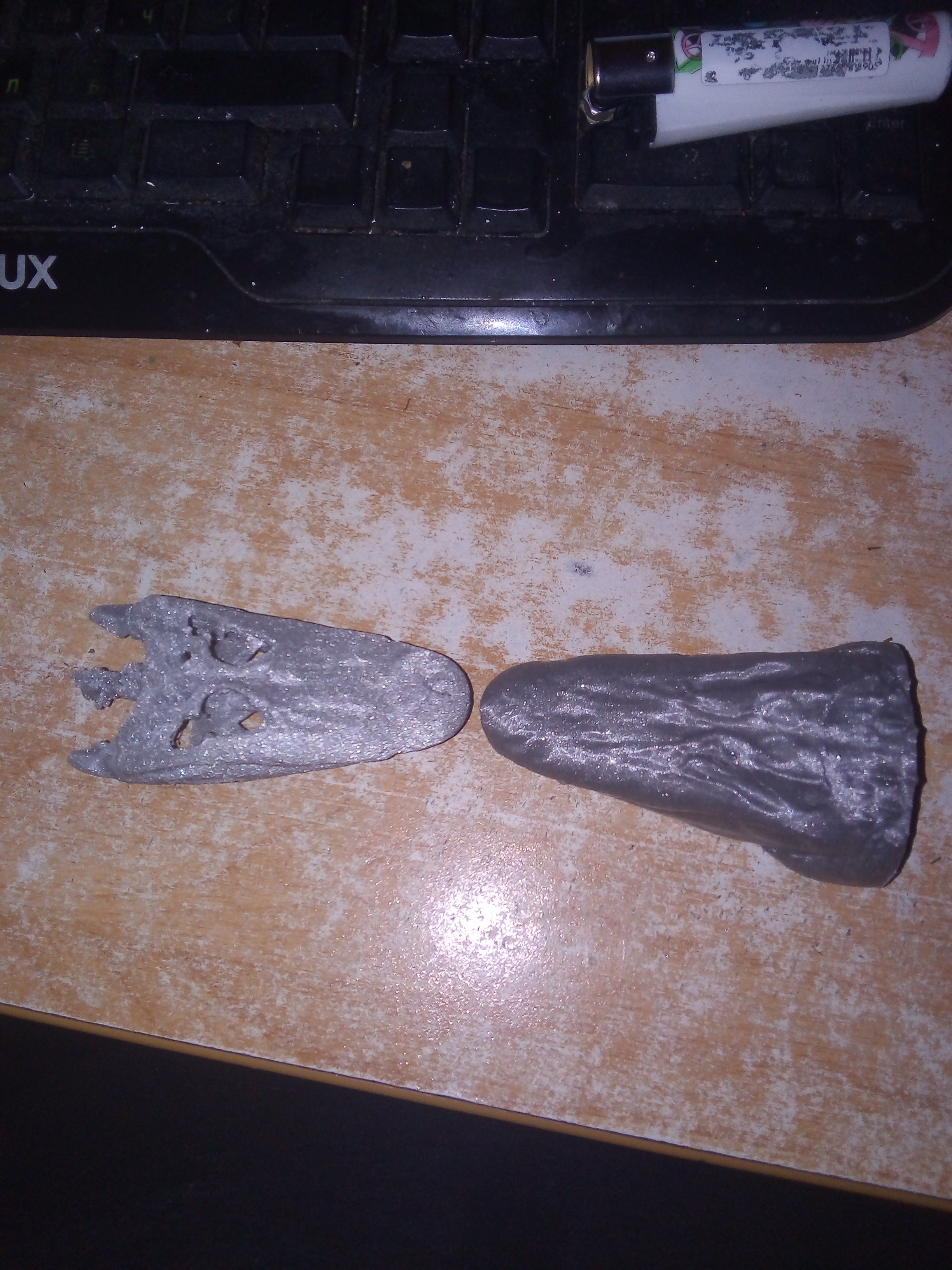

I'll post a picture of the printed skull when I'm done with it.

  • 3D file format: STL

Tags

Creator

Designs 5
Downloads 517
Followers

Dr. Petar Valchanov MD. Physician, anatomy teacher, scientist, 3D artist, medical 3d printing specialist. Creating and 3D printing human organ replicas for living, planning to print living ones soon. Proficient with sharp instruments, medical data and CAD software. Hoping to save the world one day.
