Daimler Benz P. F (1:72) - LUFT 46 - Promotional

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 754 views
  • 1 like
  • 36 downloads

3D model description

The Daimler Benz Project "F" was designed as a piloted missile to be launched from the Daimler Benz Project "C" carrier aircraft. Six of these manned missiles could be carried at one time. The wings and tailplanes were swept back sharply, and power was supplied by a single BMW 018 jet engine. 3000 kg (6600 lbs) of explosives were located in the nose of the aircraft, which were detonated on impact. Once carried aloft by the carrier aircraft, the DB Project "F" aircraft were then released near the target, with the pilot then choosing his target and then diving towards it. When the pilot was assured of a hit, he was to escape by a hatch located beneath the cockpit. Although this aircraft wasn't officially considered a suicide plane, the pilot probably had a very small chance of survival, due to the speed of the aircraft in the attack and the proximity to the target when escaping.

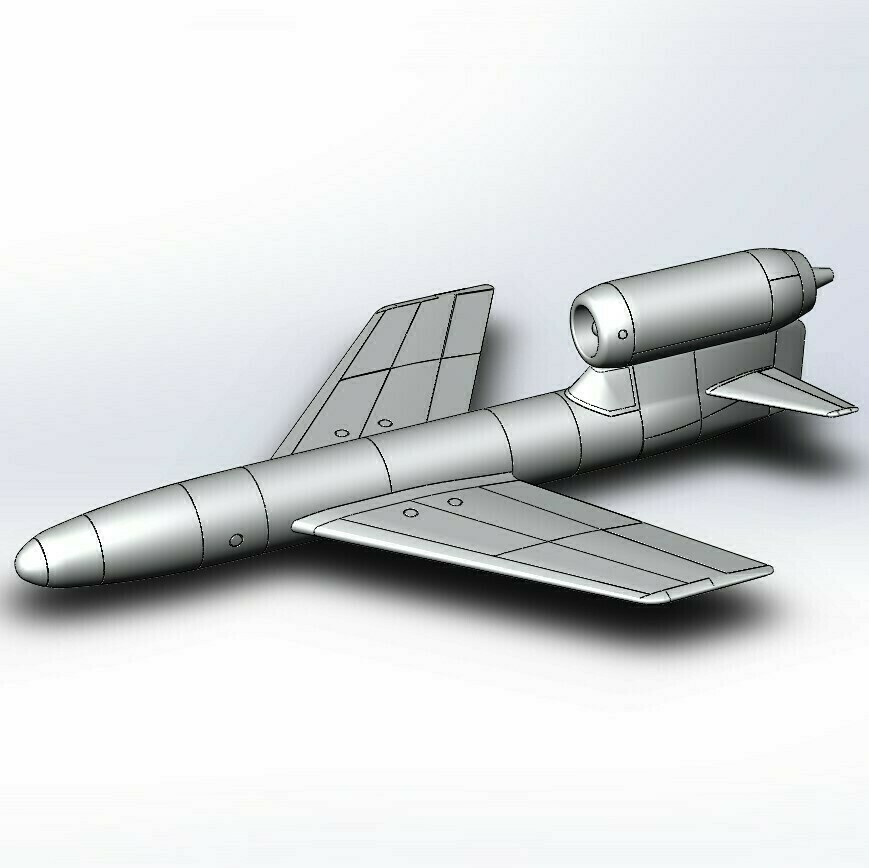

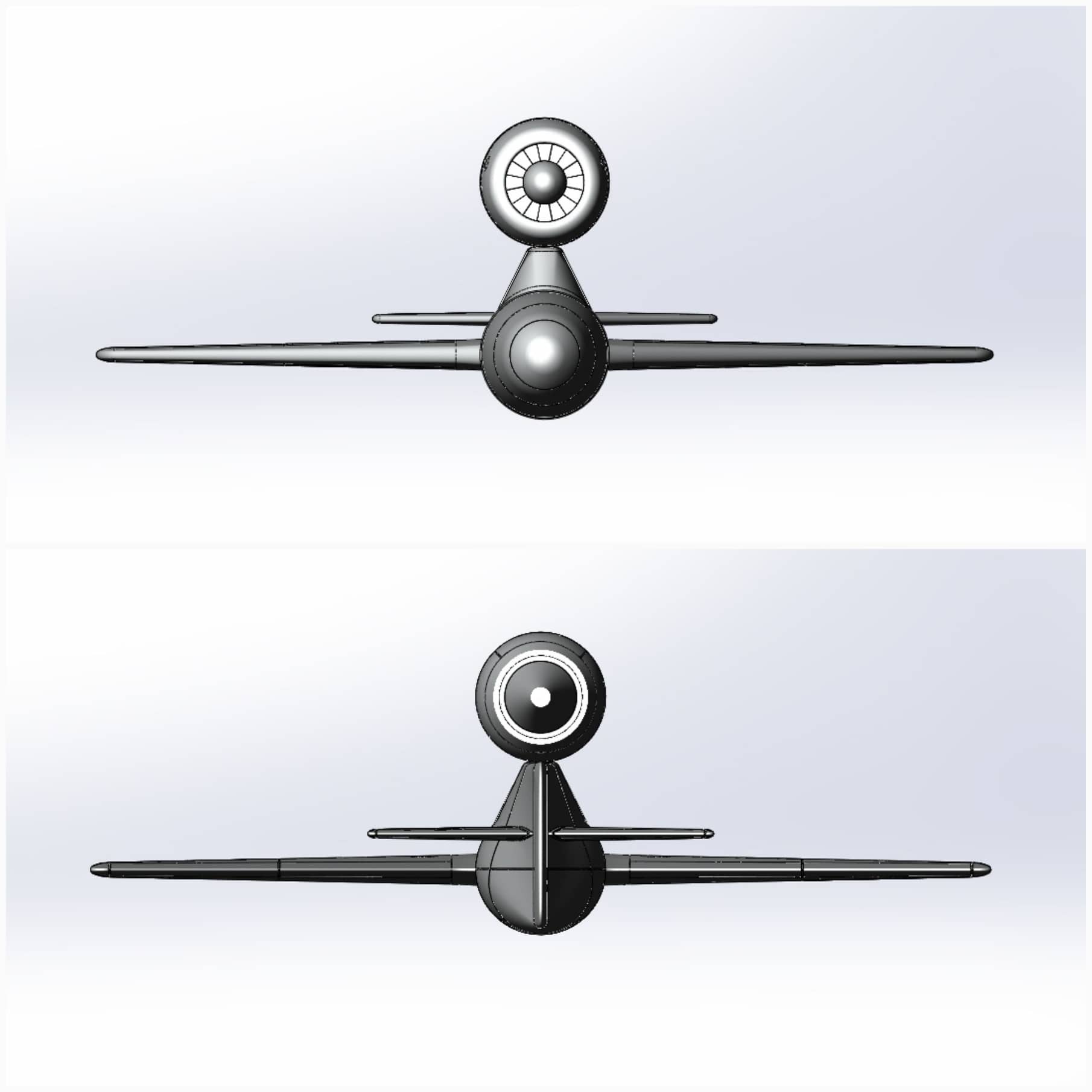

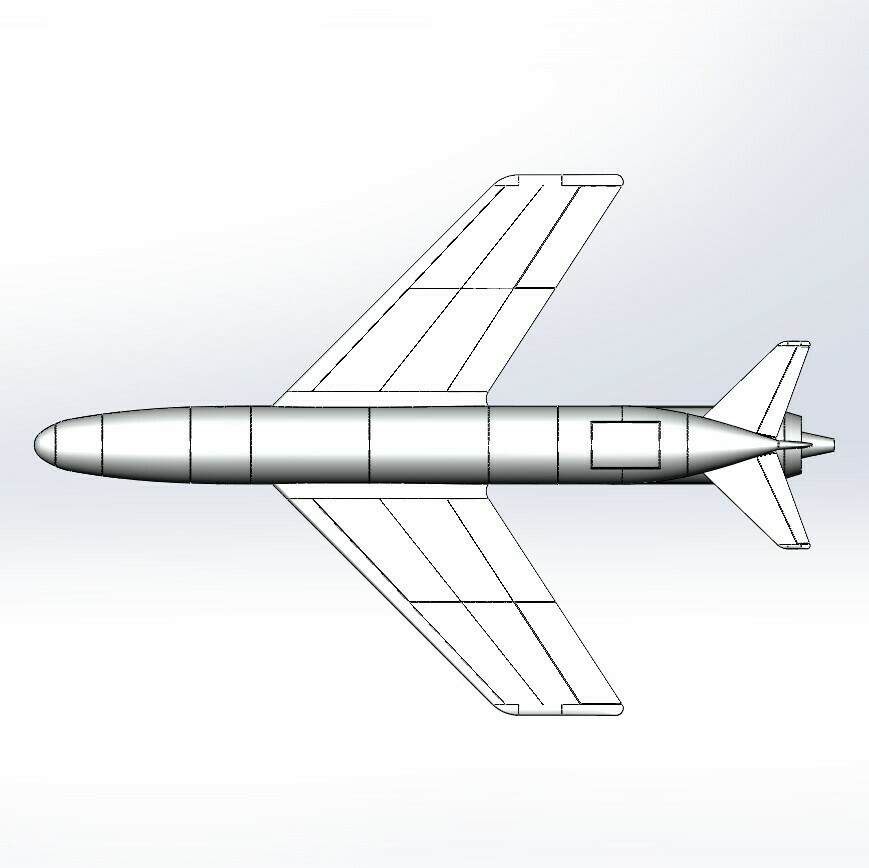

This model is on 1:72 scale and consists of 11 parts. They are all designed to be printed form both resin and FDM printers (even with stock 0.4mm nozzle) and need minimum supports that won't affect the quality of the model.

You can print the canopy at approximately 90% of its original size and use it to vacuum form a clear plastic !!!

IMPORTANT: "tail fin" must be printed twice !!!

Please consider donating a coffee to stay up later at night and make more cool designs!!!
https://paypal.me/johnboubalis?locale.x=el_GR
or 'Donate'

Please contact me if you find difficulties that need to be solved or have thoughts for improvement.

  • 3D file format: STL
  • Publication date: 2021/02/27 at 21:21

License

CC BY NC ND

Tags

Creator

Studing Mechanical Engineering at National Technical University of Athens. New to 3d printing, on my free time I am designing a wide variaty of things based on my interests and hobbies. Most of my designs are made on solidworks as it is the program I have invested hundrends of hours on learning and designing.

Follow me on instagram: https://www.instagram.com/boubamazing_creations/
