Color Lithophane Tulips

3D model description

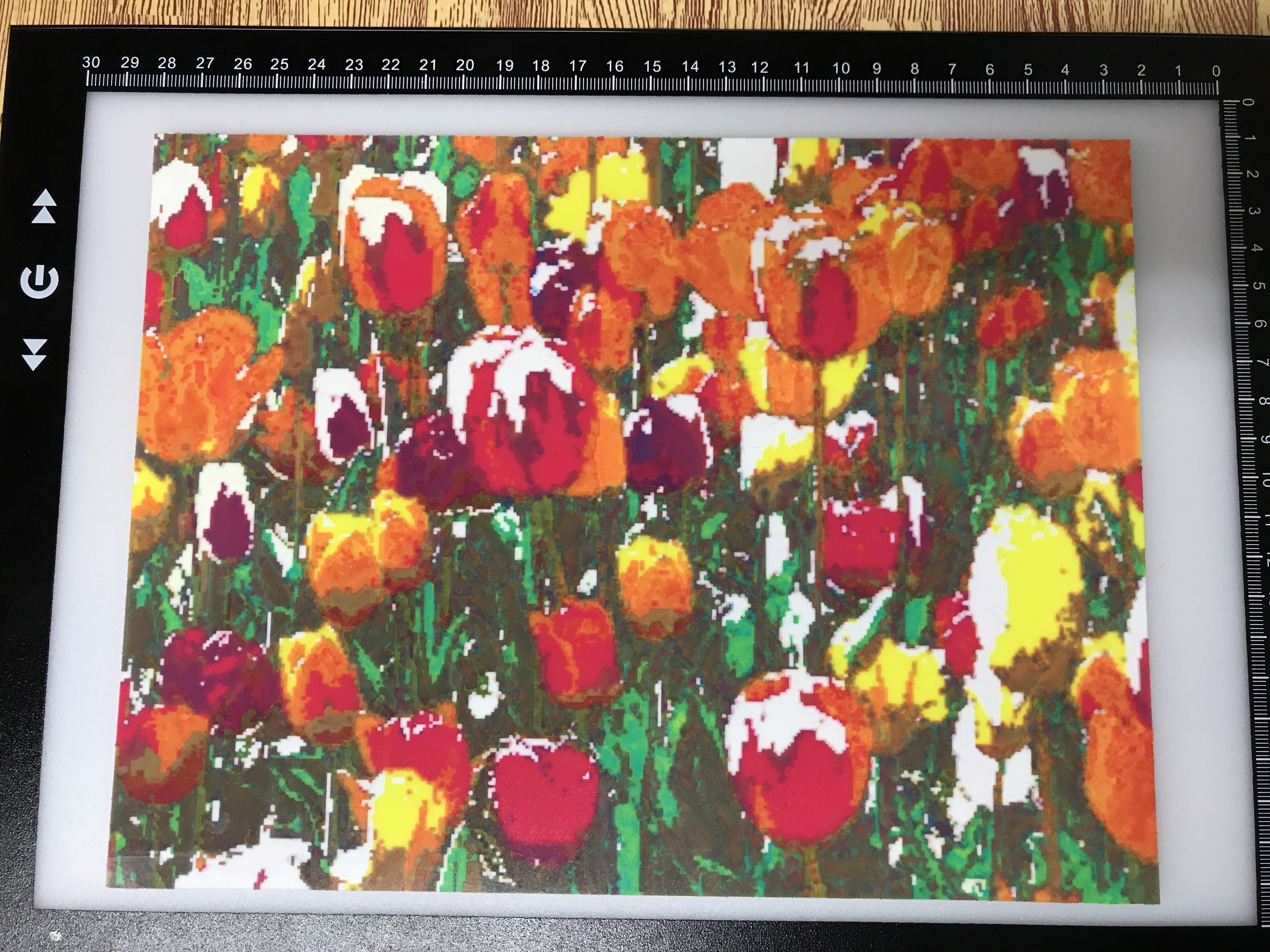

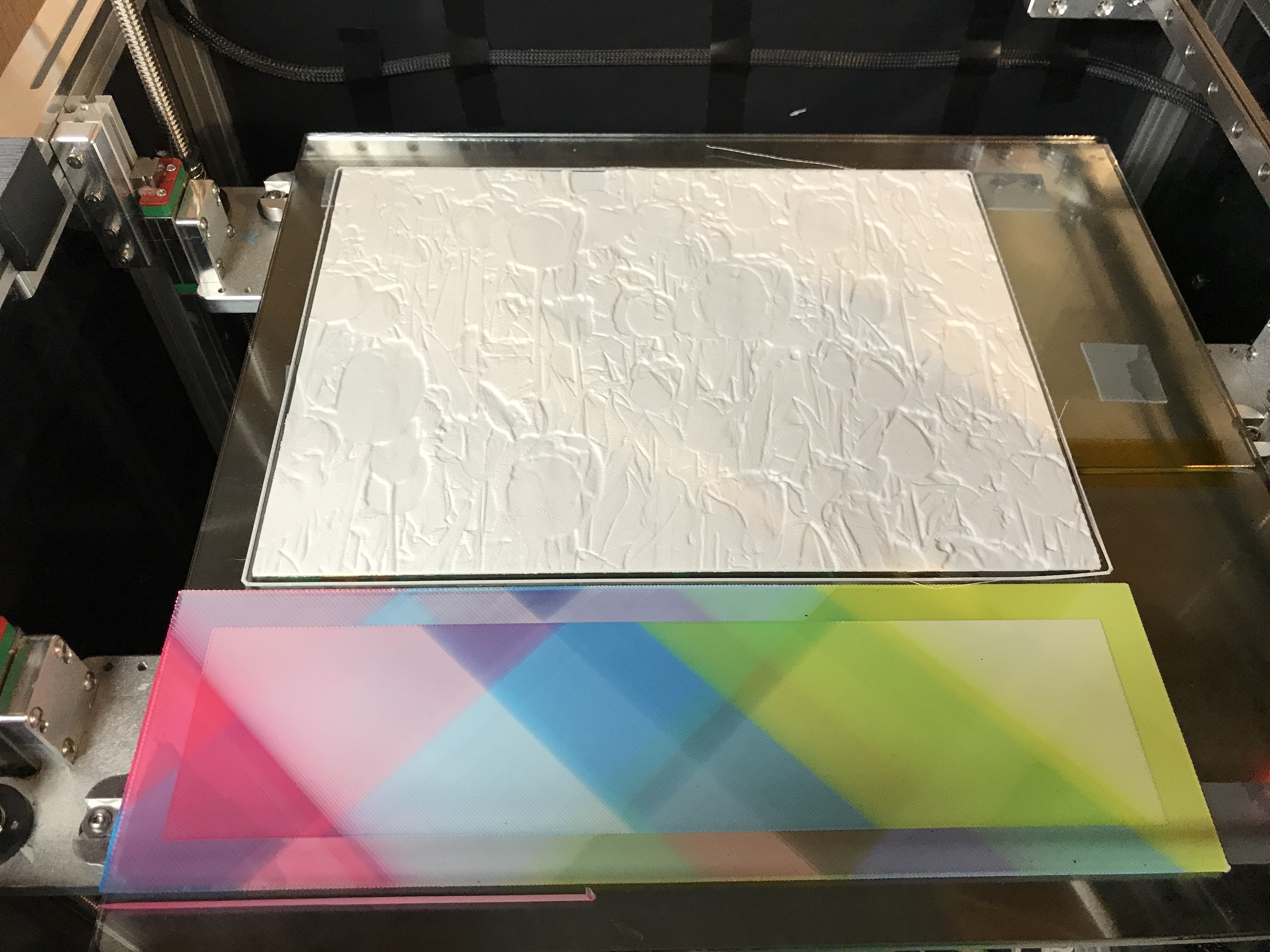

This is a full color lithophane created by using 5 thin layers of cyan, magenta, yellow, and white topped by a regular lithophane.

Featured on:
3D Printing Nerd: https://www.youtube.com/watch?v=LzCJV4UOByY&t=1s
Thomas Sanladerer: https://www.youtube.com/watch?v=XvLJEXfSl2E
3d Maker Noob: https://www.youtube.com/watch?v=M8-LuYKYmnc

This is a very challenging print that requires a multi filament solution such as the Mosaic Palette or the Prusa MMU.

3D printing settings

Print with cyan, magenta, yellow, and white, ideally with filaments used with color mixing nozzles. 100% infill.

This model is created to exactly match my printer settings. The extrusion width in the model is assumed to be 0.4mm, if your extrusion width is different you need to scale the X and Y to match (so if your extrusion width is 0.44 you need to scale the x and y by 0.44/0.4, DO NOT scale Z). The z height on the first 5 layers must be 0.08mm, the lithophane can be any thickness but the thicker the worse the resolution. Check you Gcode before you print!!! Should look like tightly packed squares on the first 5 layers with no gaps - see sample gcode screen capture.

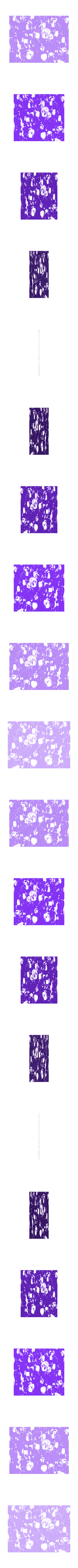

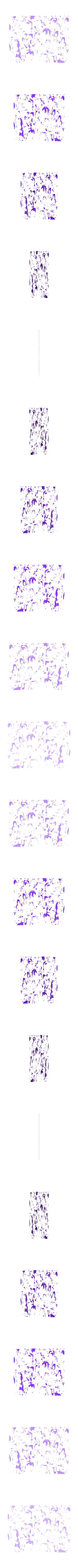

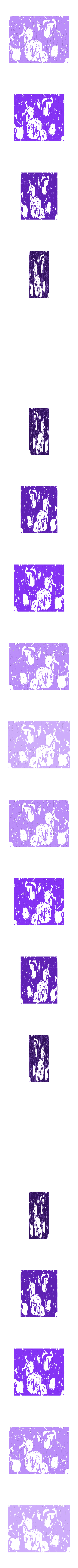

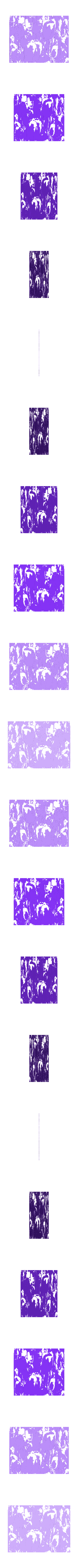

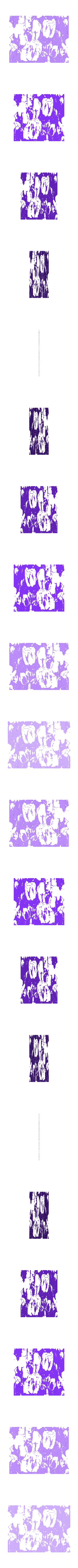

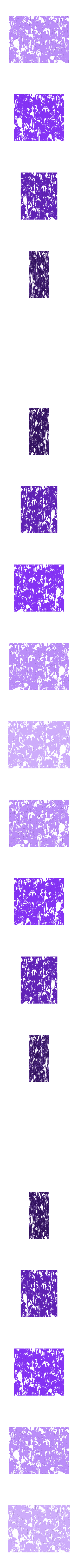

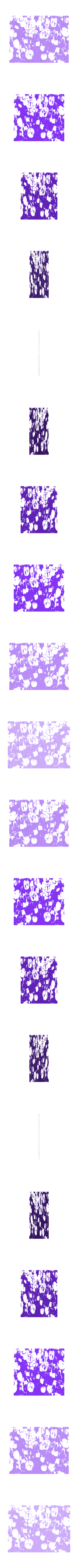

The 4 color stl files need to be aligned to origin, the lithophane stl should be raised 0.4mm in z and placed directly on top of the color stl files.

  • 3D model format: STL and ZIP

Tags

Creator

Followers Followings 0
Downloads 2294

I have been 3D printing since 2012. Many of my designs are inspired by my experience with scroll saw woodworking. Twitter:@patterntoprint Youtube:www.youtube.com/patterntoprint

License

CC BY NC
