Articulated dragon robot with moving jaws!
- 29.8k views
- 240 likes
- 464 downloads
- 0 comments
- 3 makes
3D model description
NOTE: PA1© - FOR FULL ACCESS TO ALL MY MODELS, + EXCLUSIVE STLs AND A COMMERCIAL LICENSE FOR SELLING YOUR PRINTS, YOU CAN JOIN MY PATREON HERE:
UPDATE: As requested, a straight version has been added for infinite printers. I have also included a test file, with the tail end and the last link, to make a test before you print the full one.
So let's go! Go bite the others!!! ;p
There's a lot of dragons out there these days, and i tought i would give it a try myself.

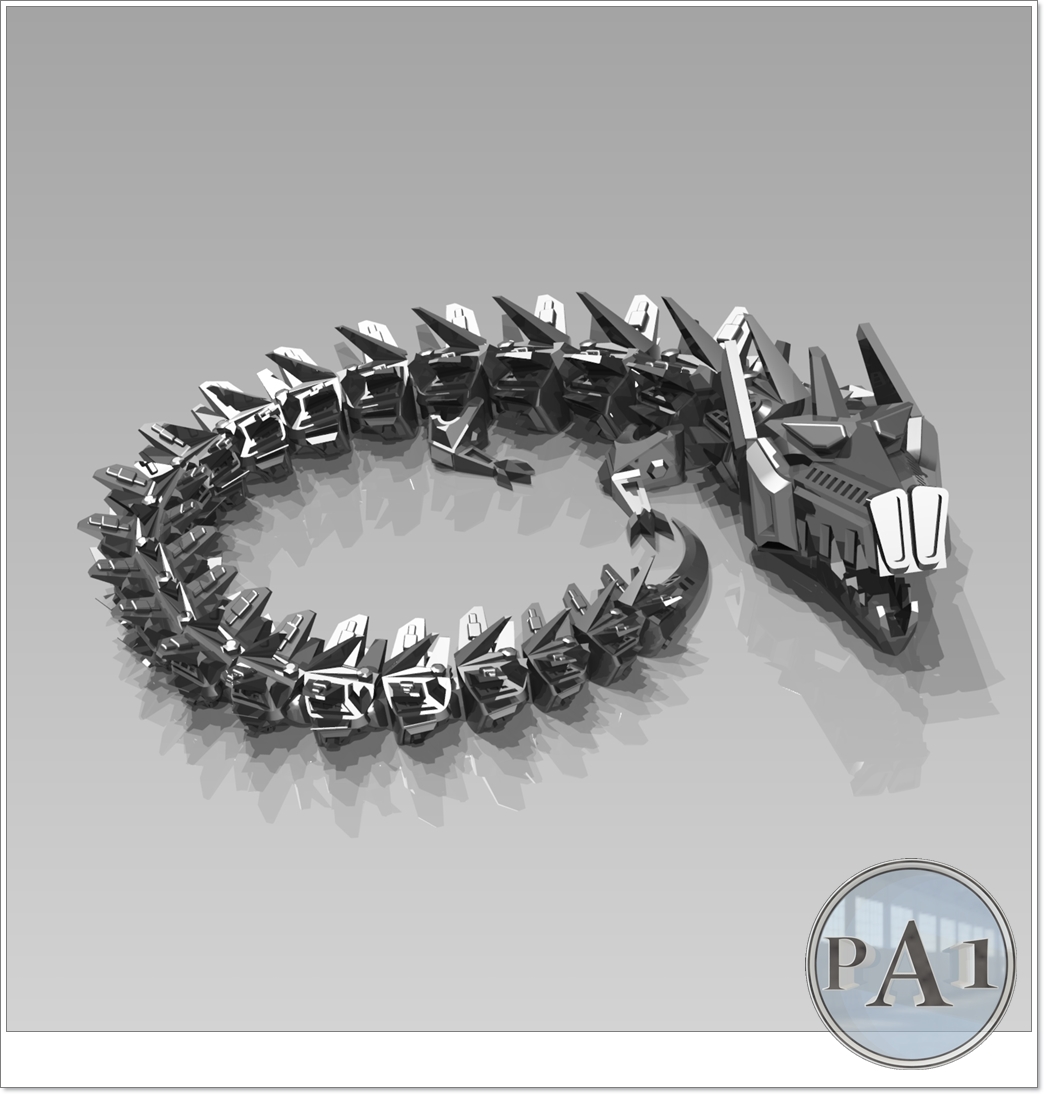

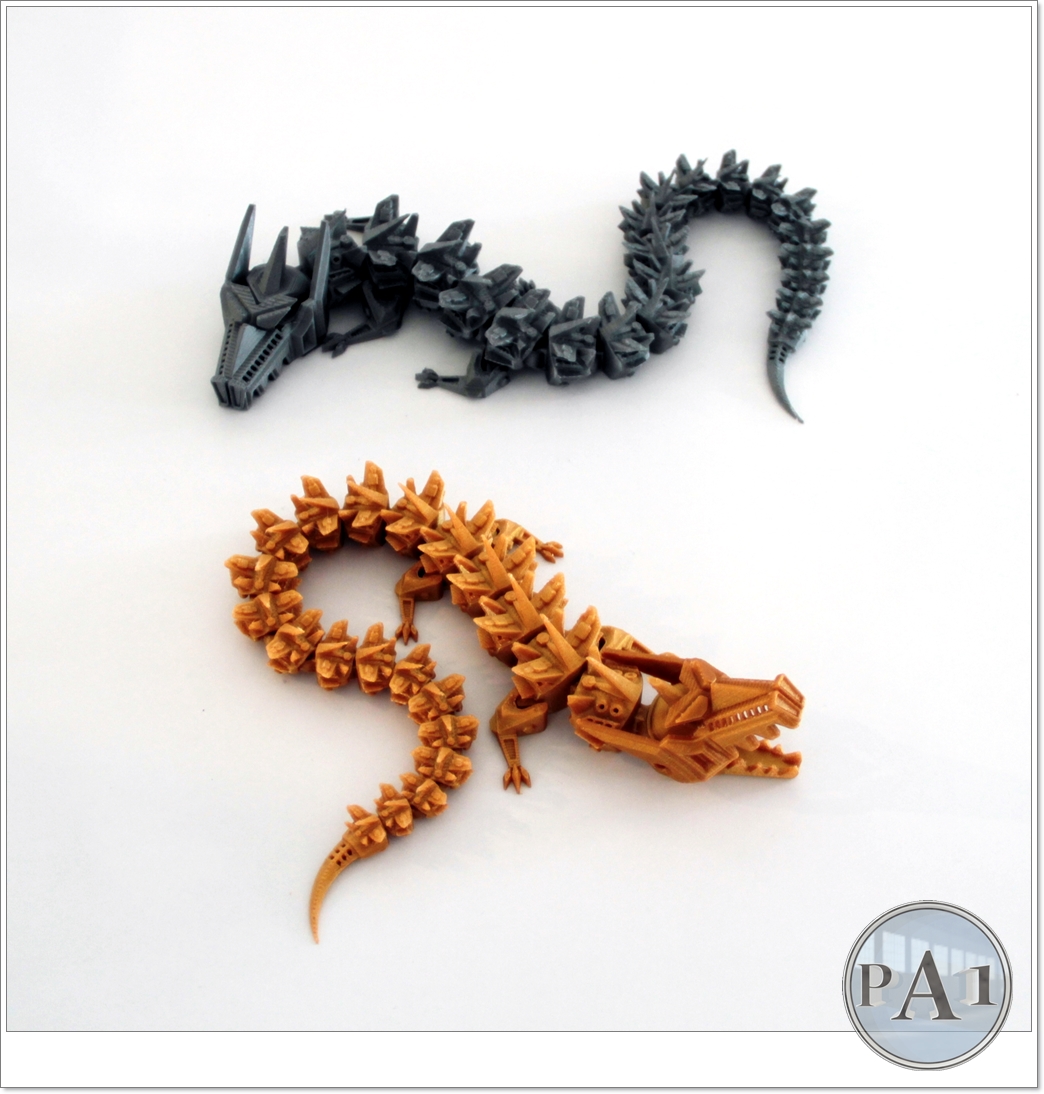

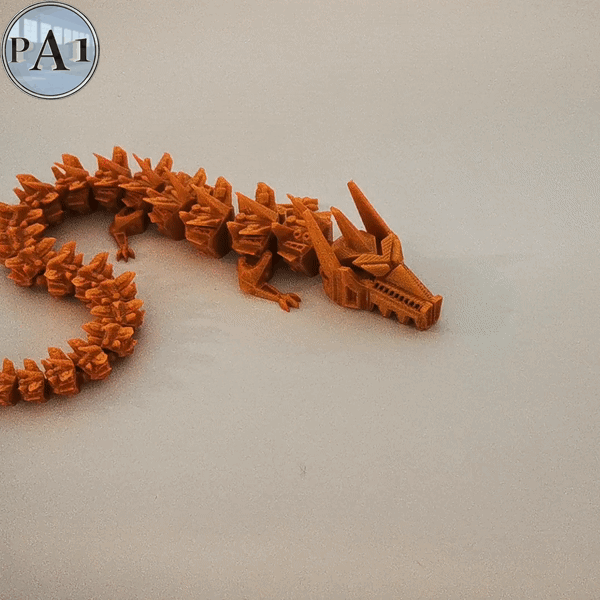

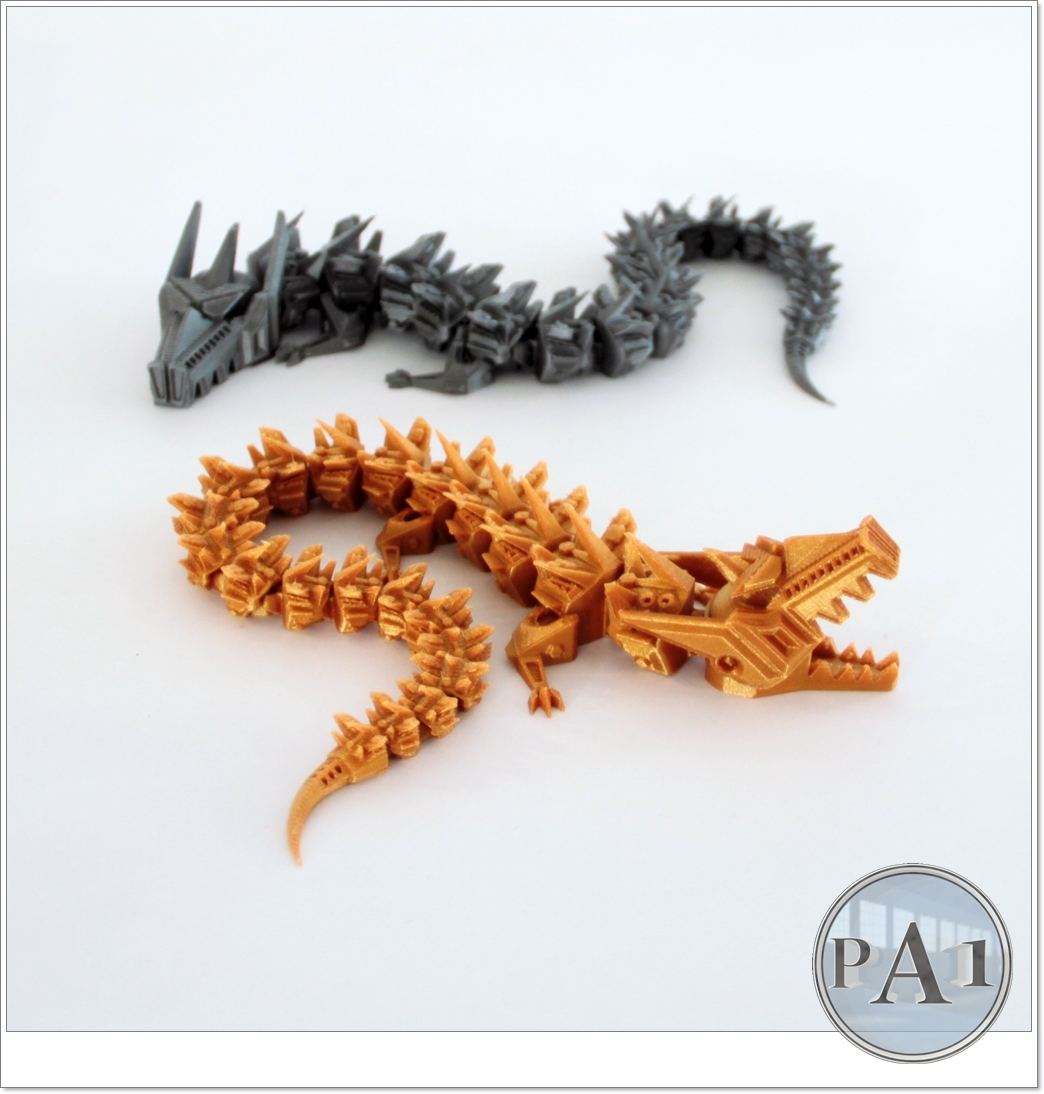

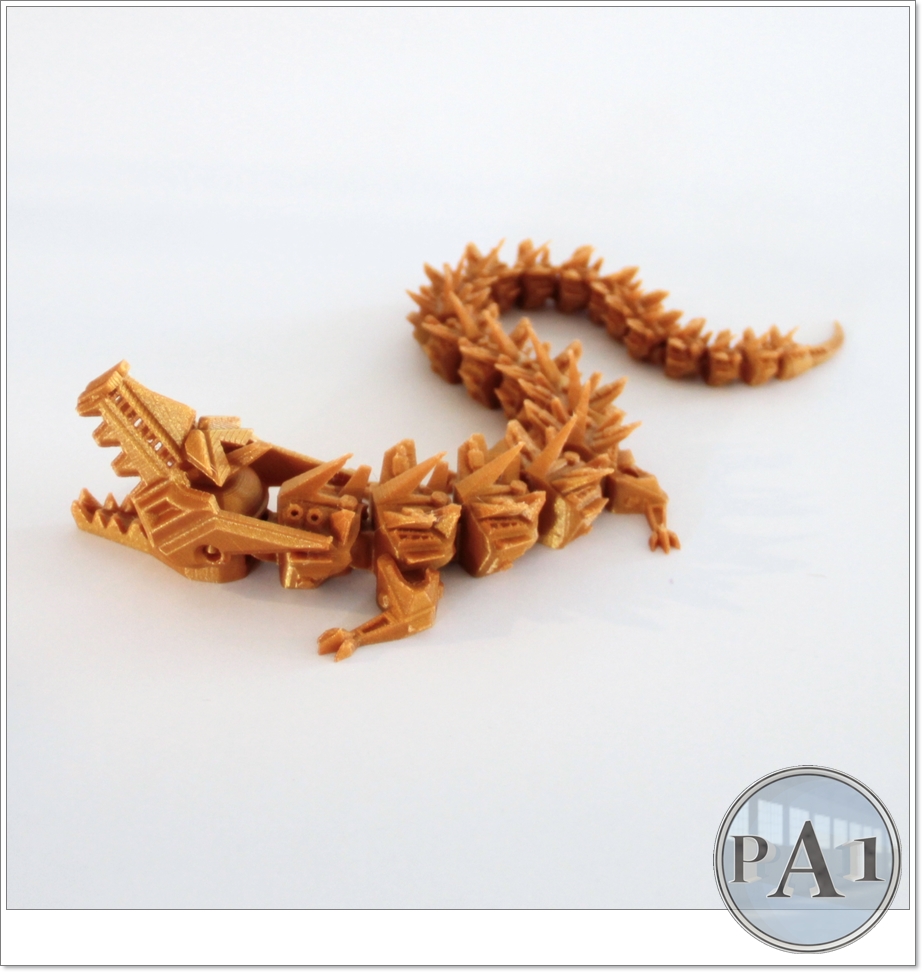

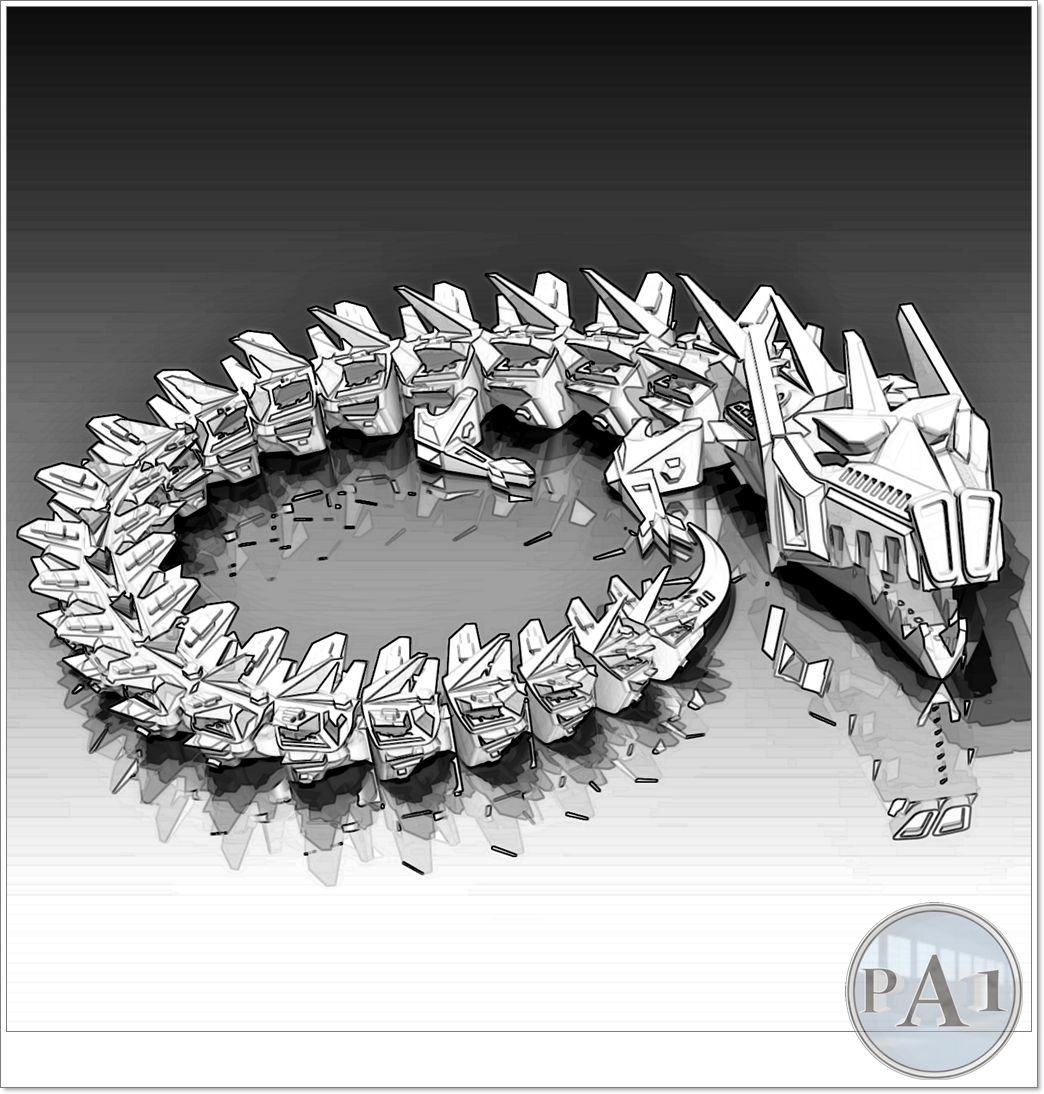

As a mechanical designer, i wanted something... mechanical of course! So here's the dragon robot with (tadaa!) moving jaws!!
Reaaaalllly flexible, strong joints, easy to print with a good surface contact with the bed.
You have two version:
-Complete, from head to tail
-Complete without the top of the head (so you can print the top alone, because its the trickiest part of the print!) They will easily snap together after the printing is done. ;)
The actual size fits and ender 3 or a prusa mk3s bed. You can scale it if you want:
Smaller: Dont go below 60%, will be to fragile.
Bigger: No limits except your machine.
I have tried 0.15, 0.2, 0.24 and 0.3 layer height, and they work all fine.
Stringing can be an issue, but the print is pretty easy to do in general.
3D printing settings
Good calibration, good bed level. Its the most essential.
Rectilinear Infill between 10 and 15%
3 walls at least. I suggest 4.
3D printer file information
- Design number: 618788
3D design format: STL Folder details Close
- Last update: 2022-01-26 at 16:03
- Publication date: 2022-01-25 at 14:08
