Airbrush Spray Booth Air Filter version 2

Download free STL Airbrush Spray Booth Air Filter version 2, rebeltazDownload free STL Airbrush Spray Booth Air Filter version 2, rebeltaz

Did you 3D print this model?

3D model description

So... Airbrush Spray Booth Air Filter was a bust. Neither fan, even when stacked together had enough power to pull air through either a coffee filter element or a small engine pre-filter, much less paint particles. So....

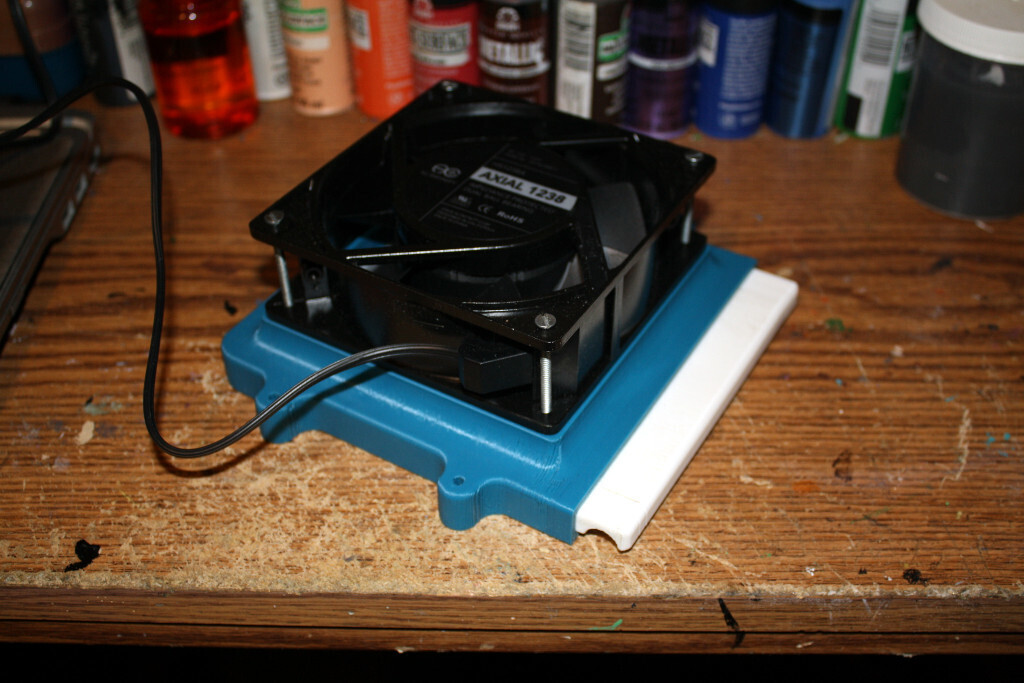

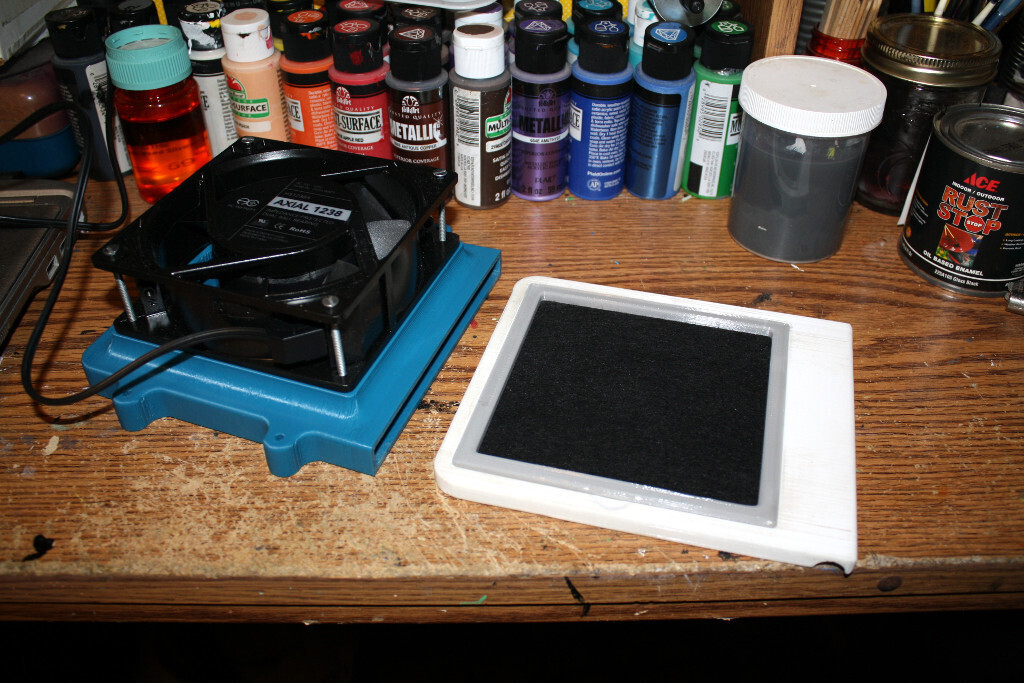

Enter Airbrush Spray Booth Air Filter version 2. This one utilizes an AC Infinity AXIAL 1238W, 120vAC, 120mm x 38mm Muffin Fan, model #HS1238A. For the filter, I used a carbon filter that I trimmed to fit the tray. Same basic design as the first version - fan mounts on the carrier; that bolts to the cardboard box (I think I'll mount it on the rear wall this time); the filter lays in the tray; the insert holds the filter in place; and the tray slides in to the carrier. I especially like the looks and feel of this one. With the size and shape, it's like pulling a negative plate out of a large format camera :) Anyway... this one does have enough power to do what it's supposed to do.

As usual, print in the orientation presented for best results.

  • 3D file format: STL
