3D Printed Galileo Escapement Clock with Hands

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 11 likes
  • 99 downloads

3D model description

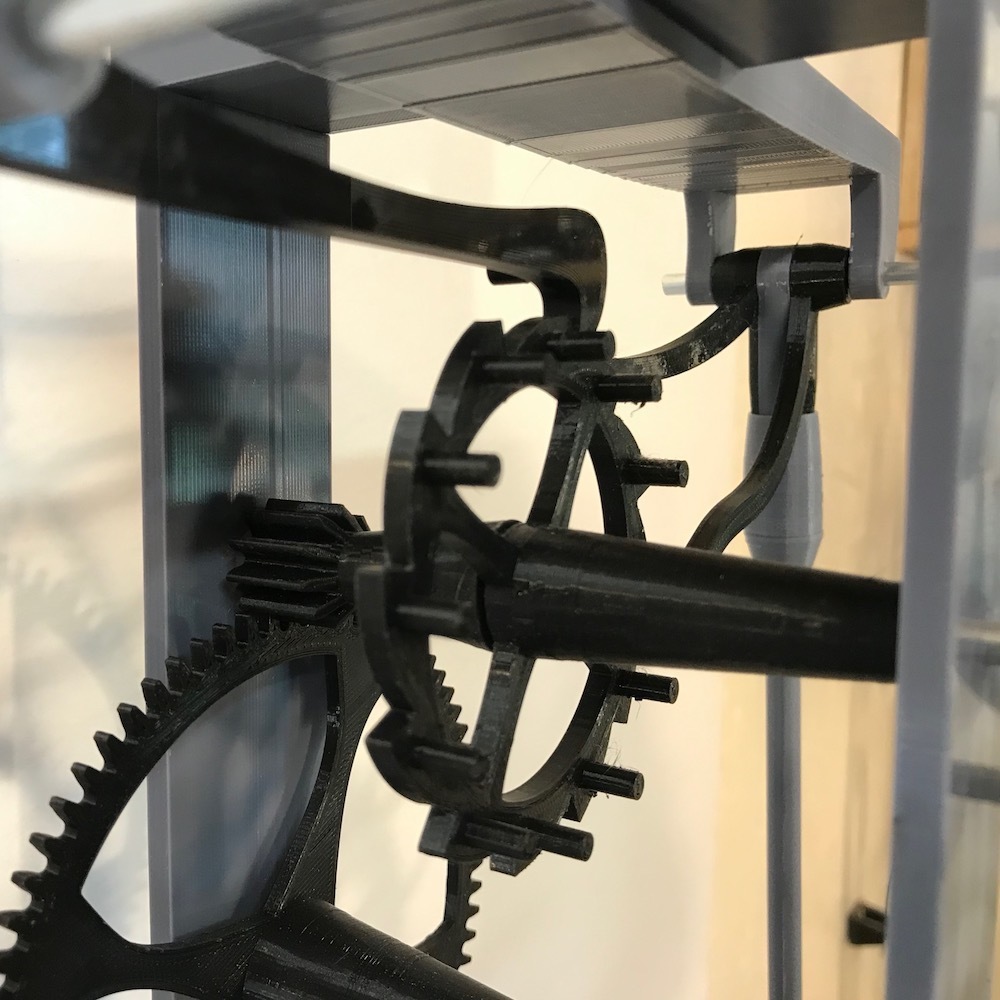

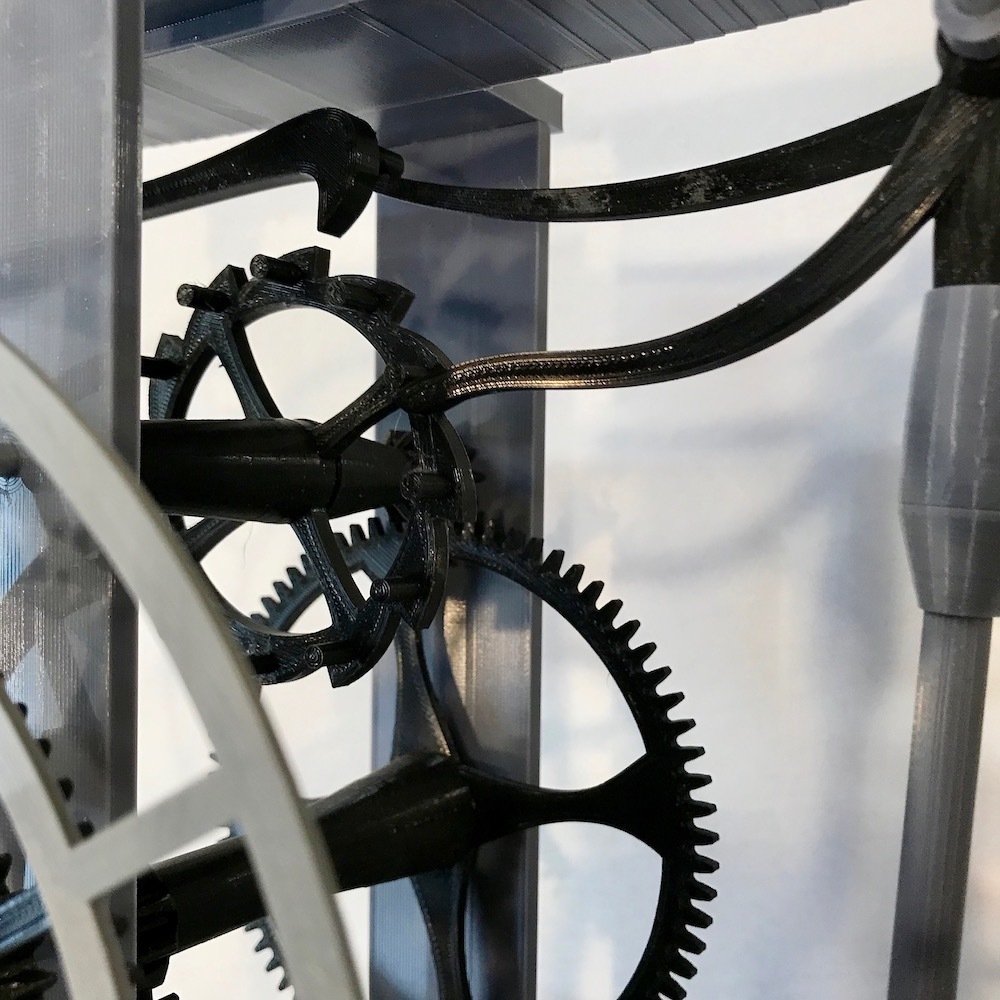

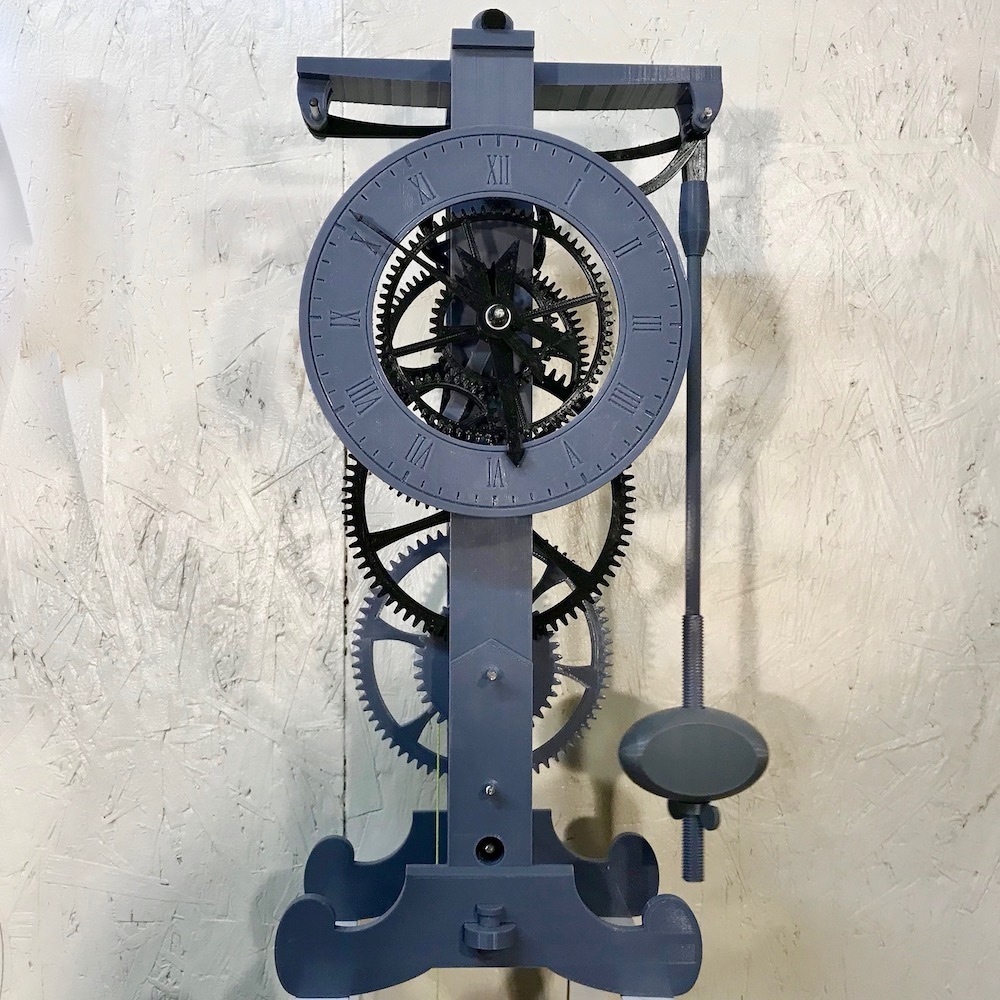

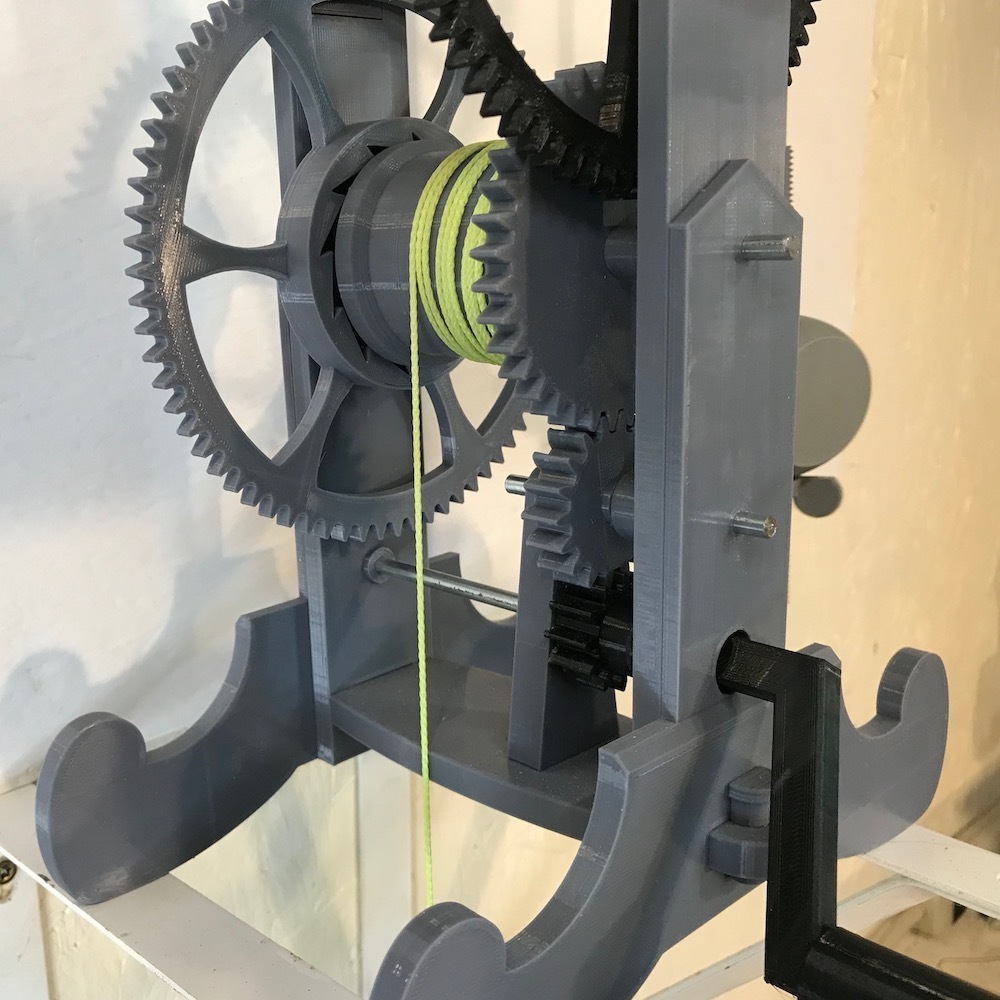

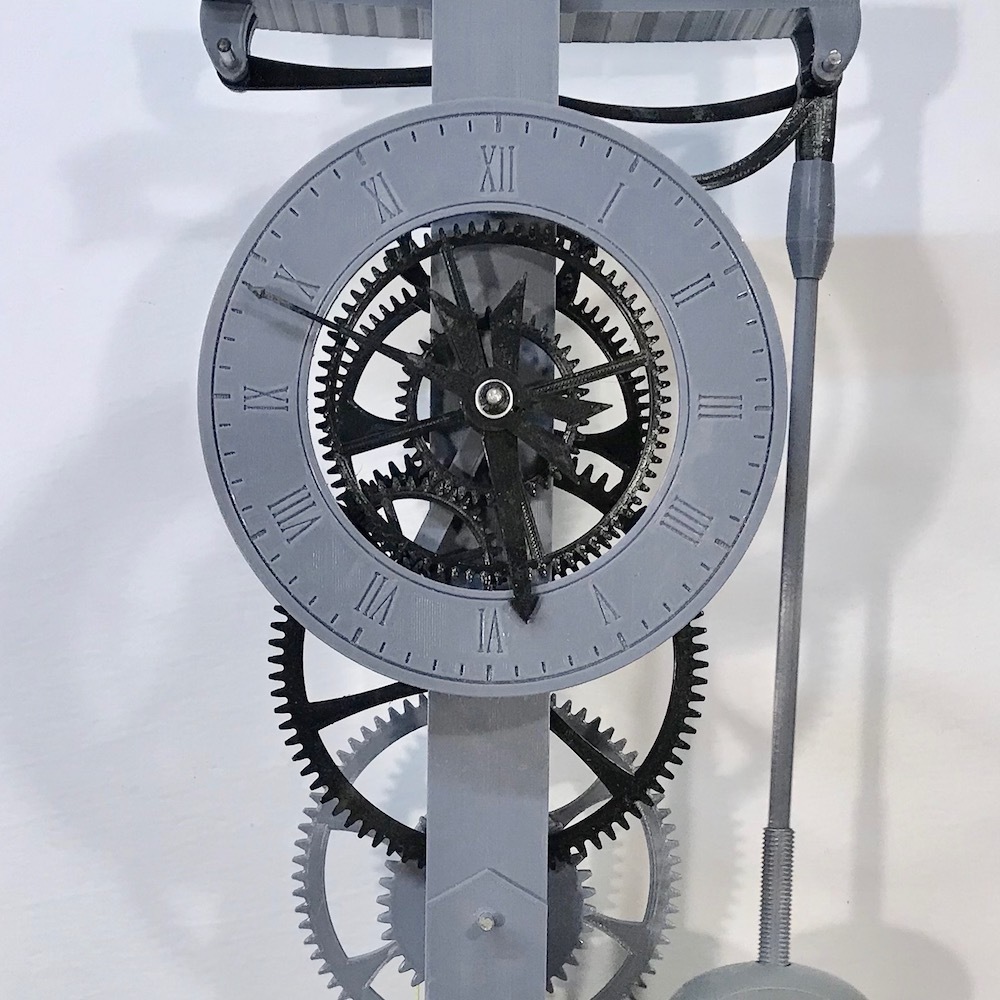

Here is my next version of a 3D printed Galileo escapement weight driven clock

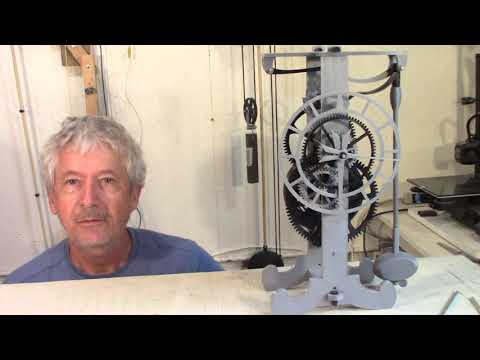

See it here:
https://youtu.be/1_RTch_tNSI
This clock was inspired by a picture of a historical clock that I have found
Link to the pictures of the clock:
https://catalogue.museogalileo.it/object/ModelApplicationPendulumToClock.html
"Courtesy of Museo Galileo"

this a follow up on clocks that I have already made:
https://youtu.be/8zhmghJZEnQ
https://youtu.be/P4vbKGWxwiM
https://youtu.be/xLEfIOTuGaw
https://youtu.be/PlH8aDwL1bE

Only hardware needed is steel rods, 3/16 or 5 mm
1 piece 160 mm
2 pieces 120 mm
2 pieces 135 mm
1 piece 60 mm
1 piece 50 mm
1 piece 40 mm
1 piece 28 mm
4 pieces 20 mm
String
4 kg or 9 LBS weight

3D printing settings

PLA +
0.2 mm
215/60

  • 3D file format: STL
  • Last update: 2020/11/24 at 23:24
  • Publication date: 2020/11/16 at 12:54

Tags

Creator

License

CC BY NC SA
