TMNT Sewer Lair Teenage Mutant Ninja Turtles

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

*** UPDATE *** I added the .stl files for the pink long couch, blue sofa seat, and the coffee table, print settings suggestions below.
FOR PERSONAL USE ONLY, NOT FOR COMMERCIAL USE.

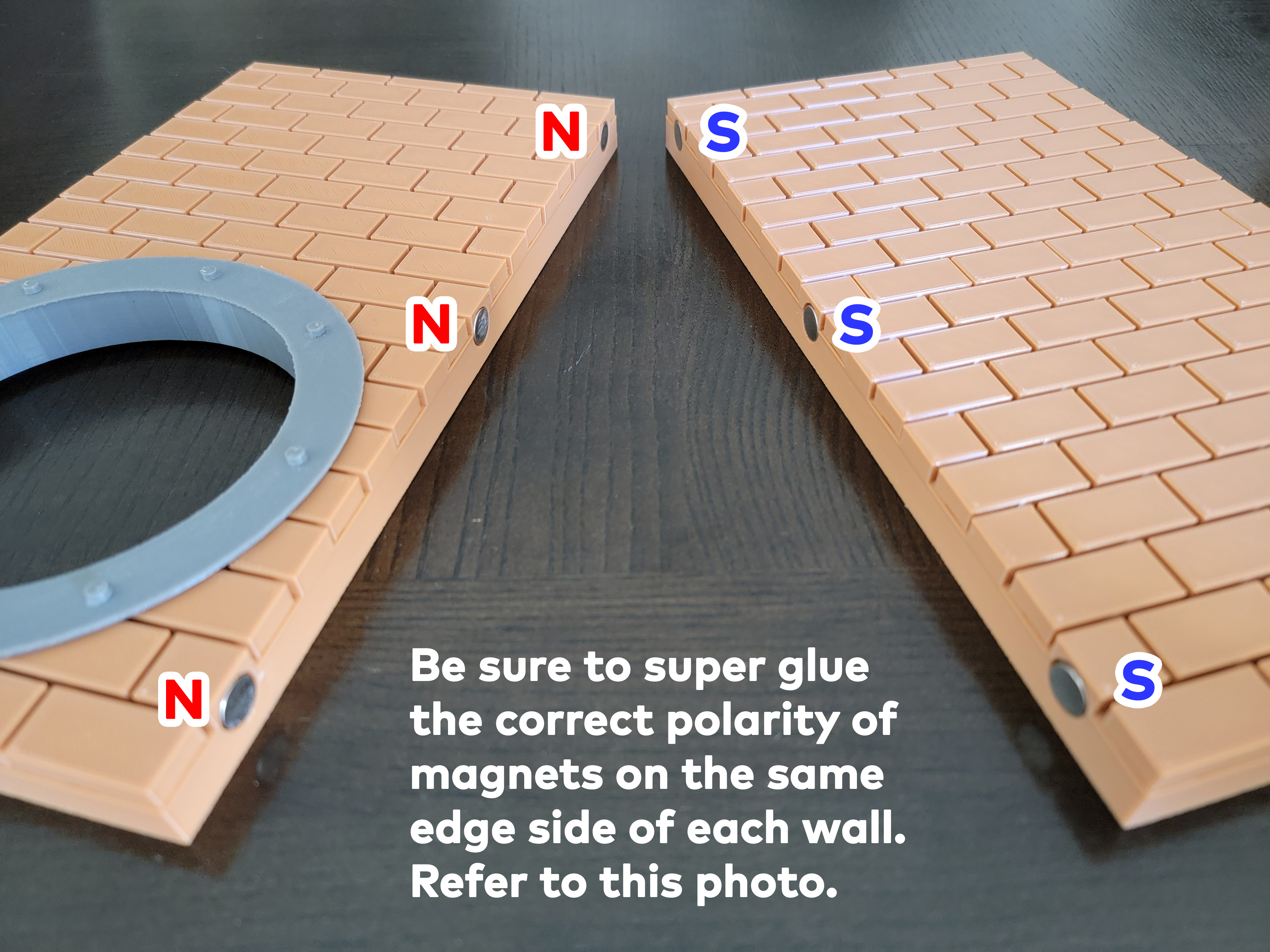

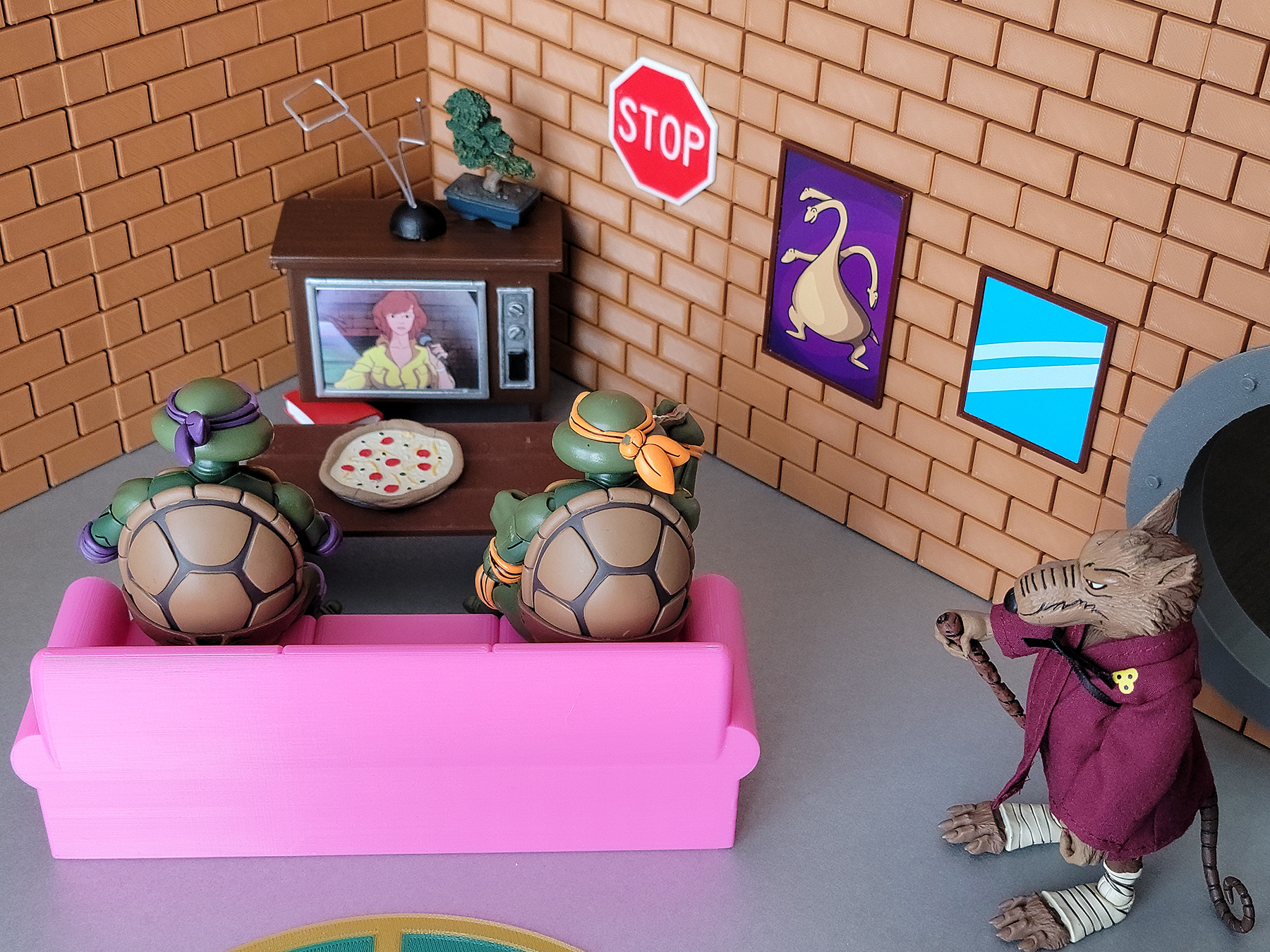

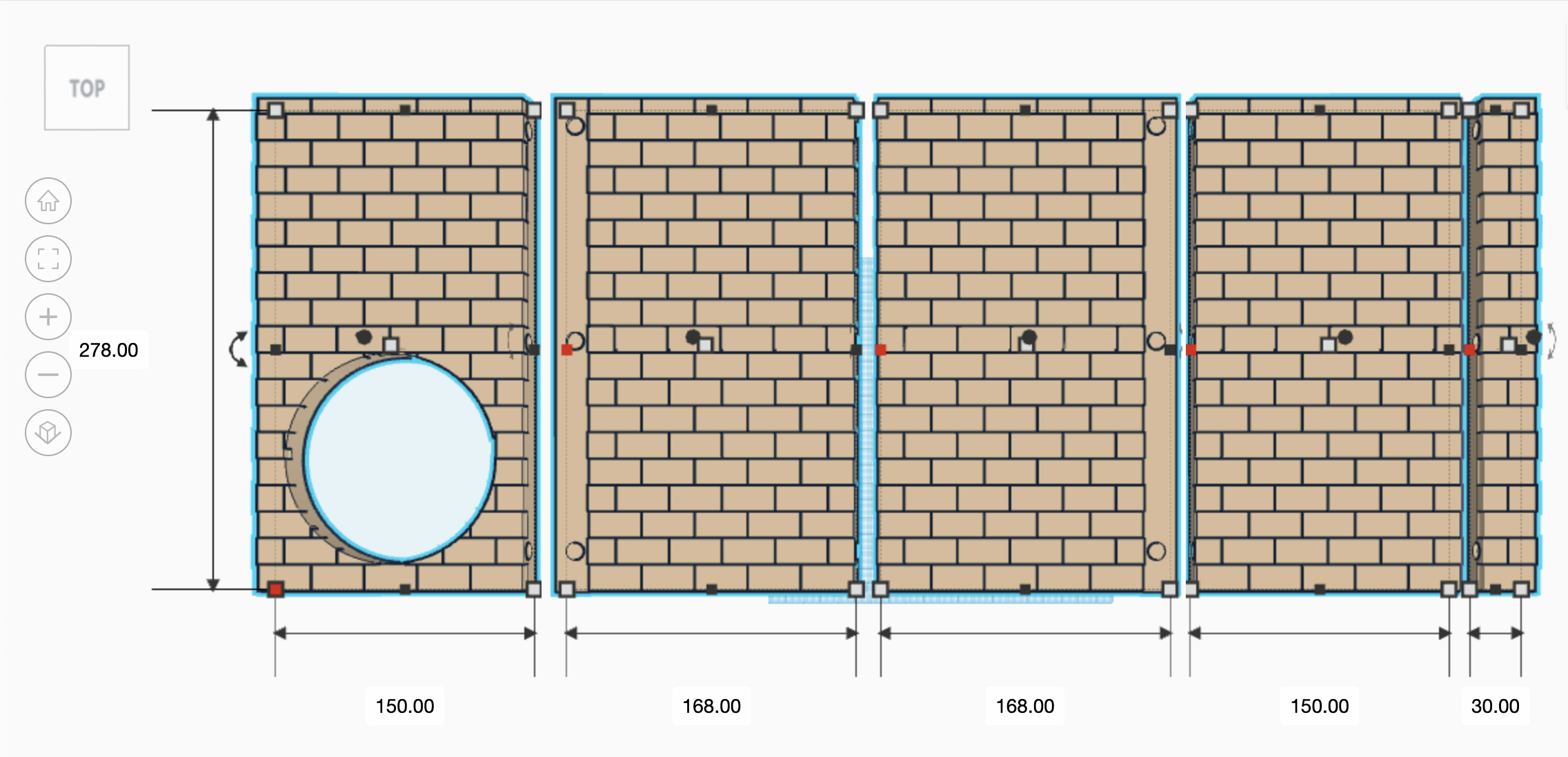

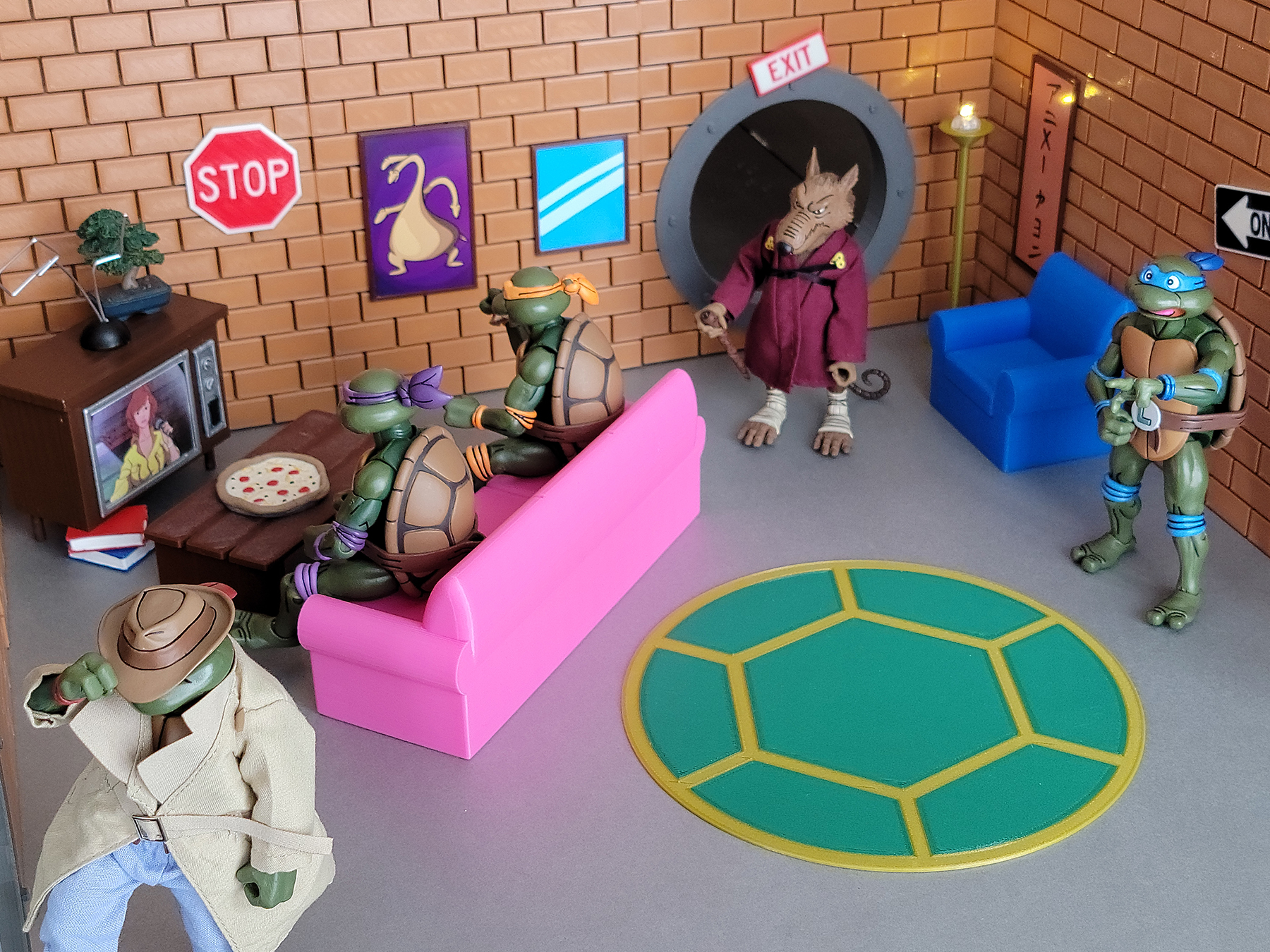

I wanted to design and create a diorama for my NECA TMNT cartoon action figures from my action figure collection, but I also wanted it to be able to be quickly and easily set up and tear down so I designed it in a modular style along with magnets. This is a 3-walled diorama that consists of 9 sections of walls connected to each other with the use of magnets. Be sure your printer’s print bed volume is large enough to print the walls before purchasing these .stl files. Please read all the instructions carefully. The longest dimension is 278mm. Dimensions of complete TMNT Sewer Lair is 486mm or 19.13” in length, 468mm or 18.42” in depth, 278mm or 10.94” in height.

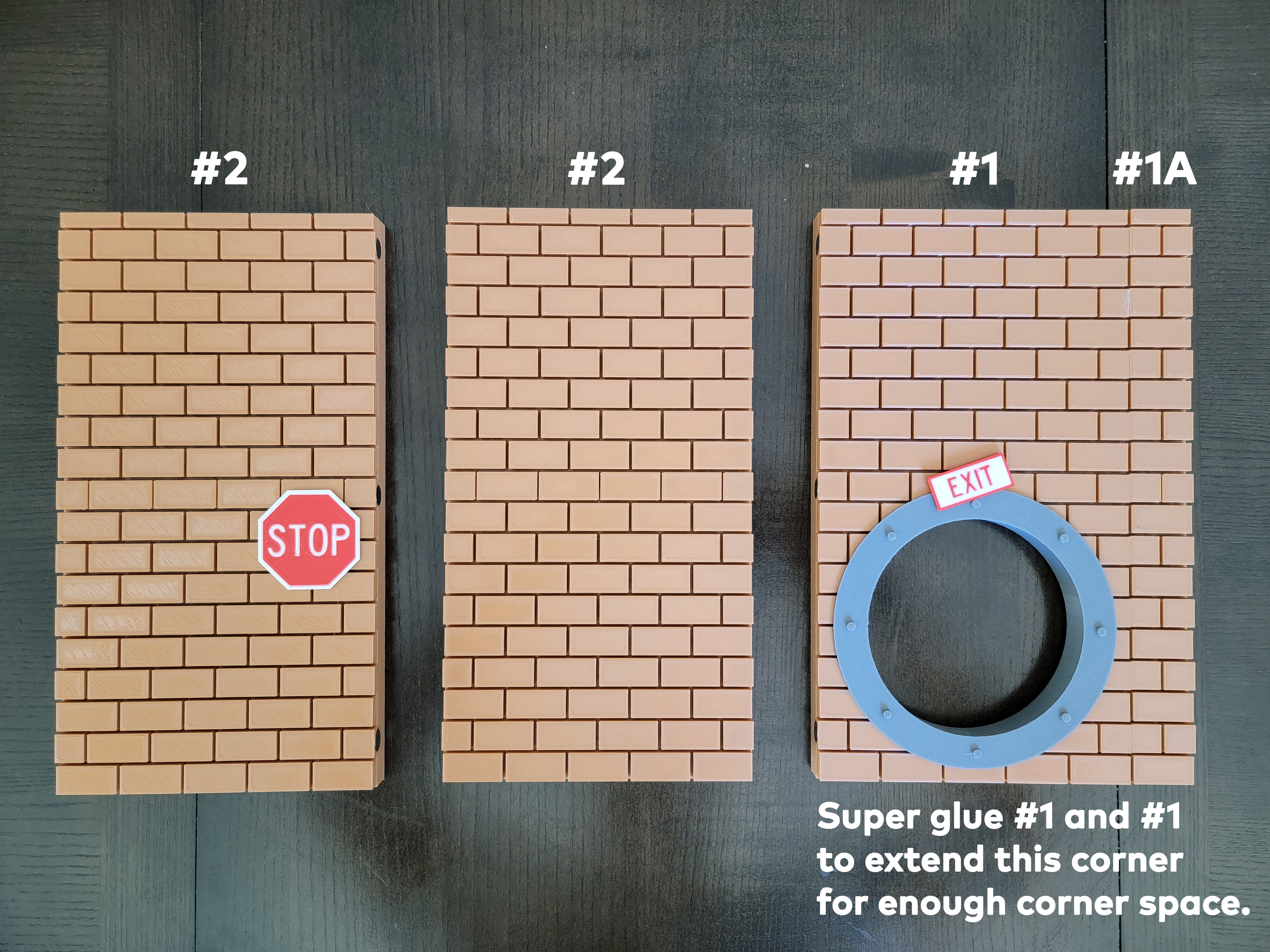

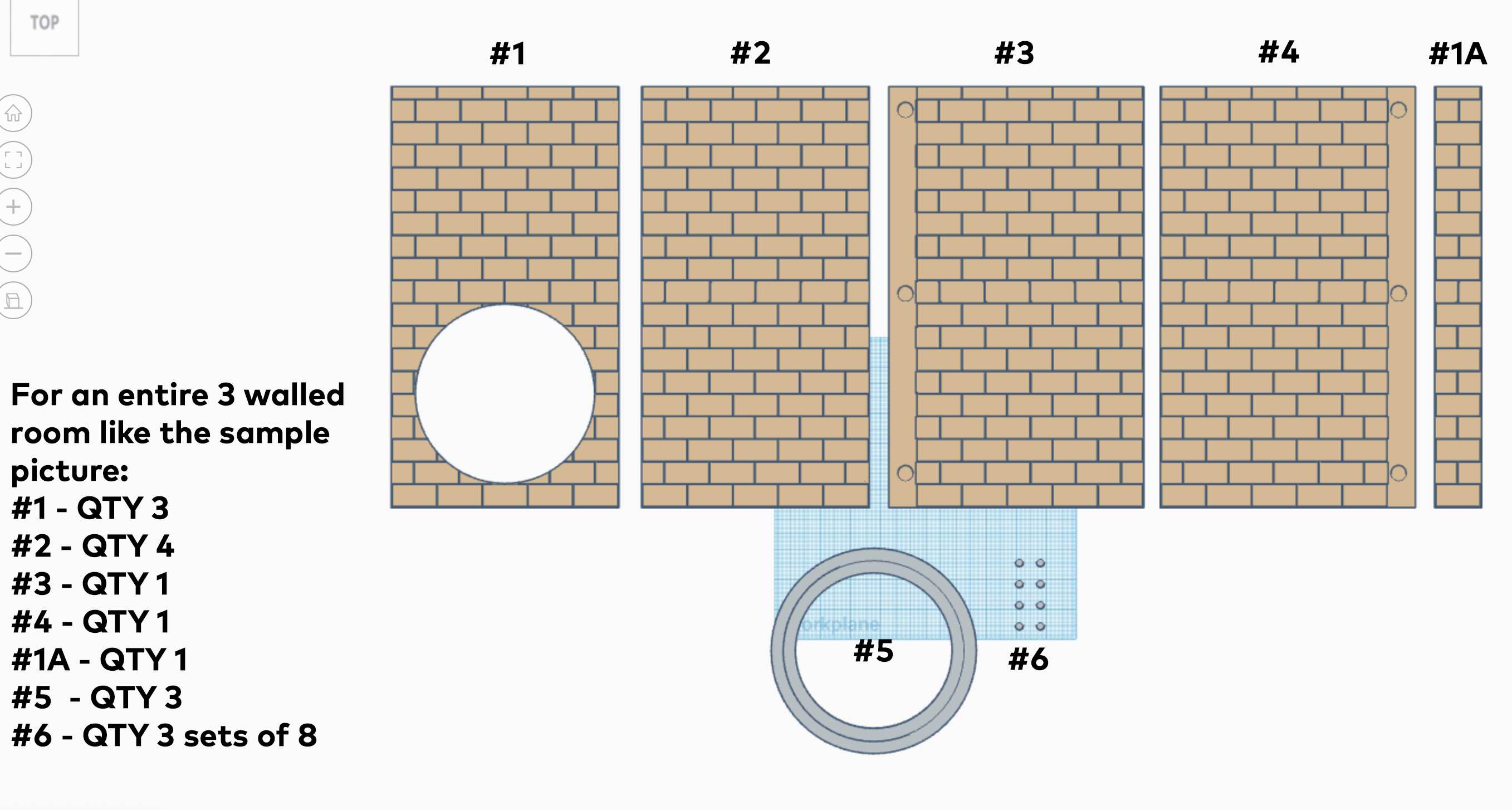

- Print Wall #1 three times.
- Print Wall #2 four times.
- Print Wall #3 once.
- Print Wall #4 once.
- Print Wall #1A once.

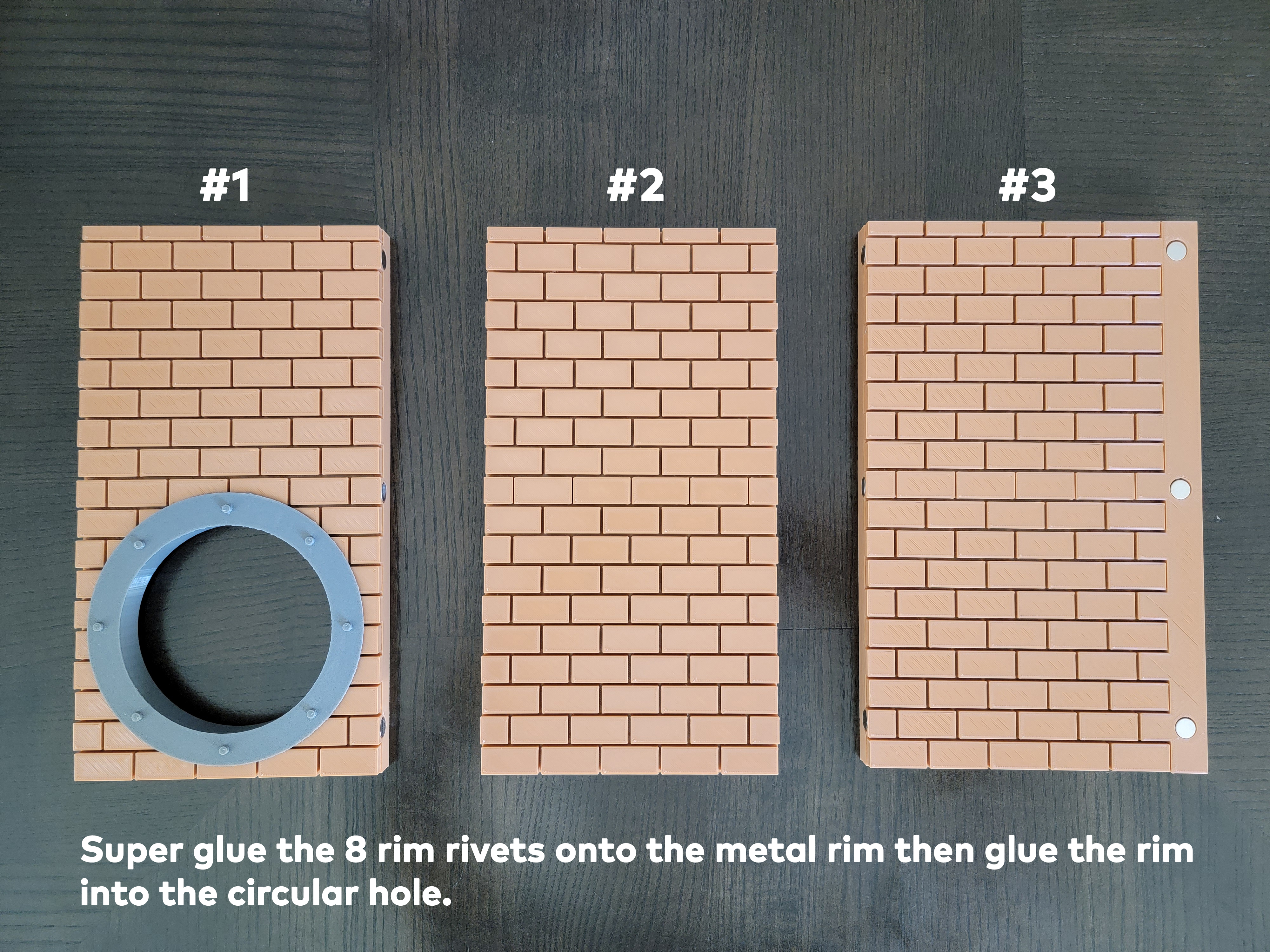

- Print the sewer metal hole rim or #5 three times
- Print a set of 8 rim rivets three times (total of 24 rivets)
- Total print time is around 203 hours (8.5 days), give or take.
- Total amount of filament with the following suggested slicer settings is 1,752 grams.
- If you want to use the same color filament used to print the walls as in the example, here is the Amazon link for it, https://amzn.to/3h38yEl
- If you want to use the same color filament used to print the sewer hole metal rim & rivets, here is the Amazon link for it, https://amzn.to/3JEor07
- A total of 54 magnets is used. The magnets used for this diorama can be purchased using this Amazon link, https://amzn.to/3BBmX4b


3D printing settings

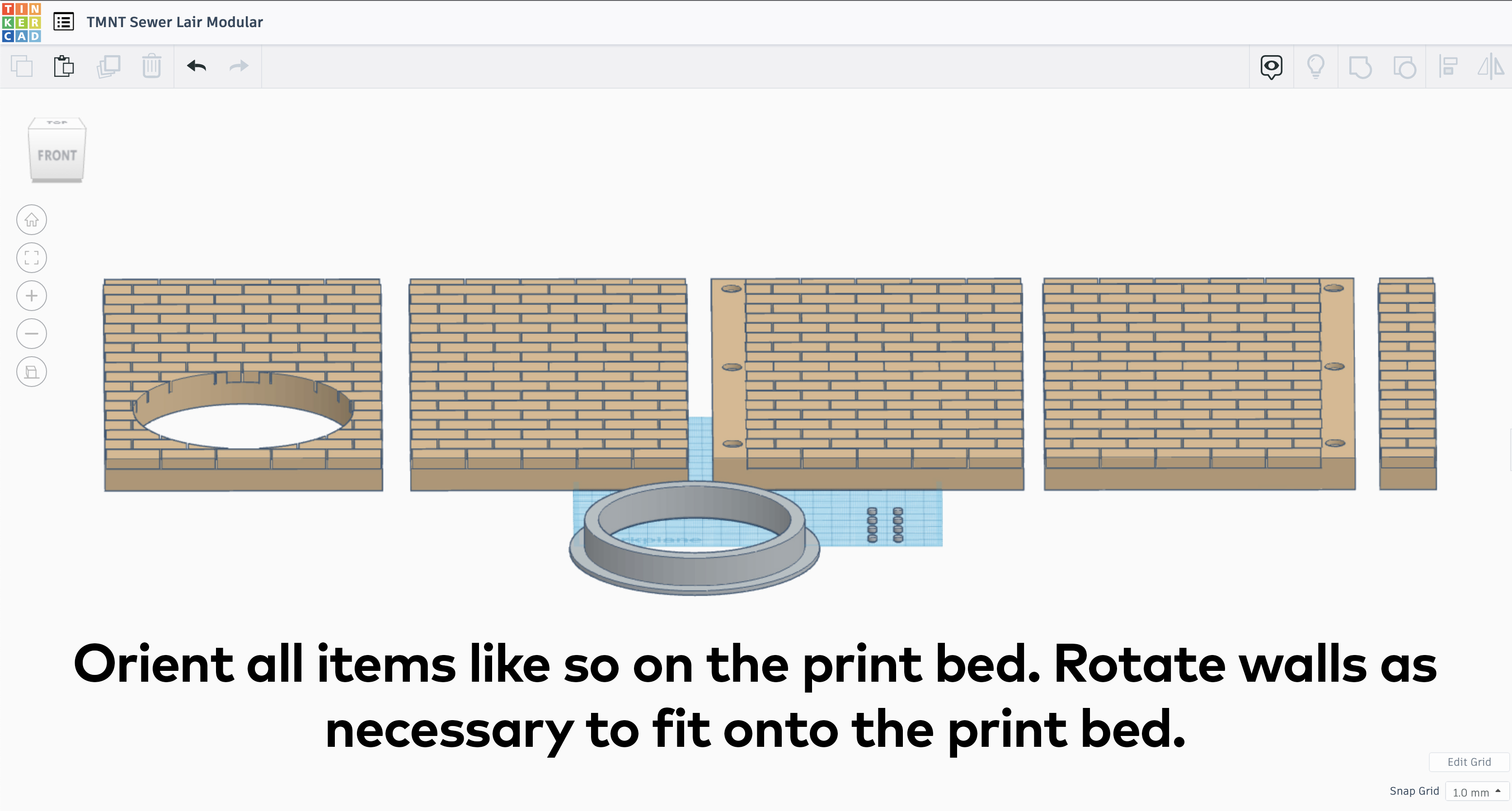

Orient the walls on the print bed to lay flat on it’s back with the bricks facing up.

The following are the suggested slicer settings in Cura for the walls:
- Layer Height: 0.3mm
- Initial Layer Height: 0.3mm
- Monotonic Top/Bottom Order: ✅
- Infill Density: 7.5%
- Printing Temp: 215C
- Bed Temp: 60C
- Print Speed: 50mm/s
- NO SUPPORTS NEEDED
- Build Plate Adhesion Type: Skirt

Orient the sewer hole metal rim to sit face down.

The following are the suggested slicer settings in Cura for the sewer hole metal rim:
- Layer Height: 0.2mm
- Initial Layer Height: 0.3mm
- Monotonic Top/Bottom Order: unchecked
- Infill Density: 20%
- Printing Temp: 215C
- Bed Temp: 60C
- Print Speed: 50mm/s
- NO SUPPORTS NEEDED
- Build Plate Adhesion Type: Skirt

Orient the rivets laying flat:

The following are the suggested slicer settings in Cura for the sewer hole metal rim:
- Layer Height: 0.2mm
- Initial Layer Height: 0.3mm
- Monotonic Top/Bottom Order: ✅
- Infill Density: 100%
- Printing Temp: 215C
- Bed Temp: 60C
- Print Speed: 50mm/s
- NO SUPPORTS NEEDED
- Build Plate Adhesion Type: Raft

The following are the suggested slicer settings in Cura for the long couch:
- Orient right-side up
- Layer Height: 0.2mm
- Initial Layer Height: 0.3mm
- Monotonic Top/Bottom Order: ✅
- Infill Density: 10%
- Printing Temp: 215C
- Bed Temp: 60C
- Print Speed: 50mm/s
- NO SUPPORTS NEEDED
- Build Plate Adhesion Type: None

The following are the suggested slicer settings in Cura for the sofa seat:
- Orient right-side up
- Layer Height: 0.2mm
- Initial Layer Height: 0.3mm
- Monotonic Top/Bottom Order: ✅
- Infill Density: 10%
- Printing Temp: 215C
- Bed Temp: 60C
- Print Speed: 50mm/s
- NO SUPPORTS NEEDED
- Build Plate Adhesion Type: None

The following are the suggested slicer settings in Cura for the coffee table:
- Orient upside-down
- Layer Height: 0.2mm
- Initial Layer Height: 0.3mm
- Infill Density: 20%
- Printing Temp: 215C
- Bed Temp: 60C
- Print Speed: 50mm/s
- NO SUPPORTS NEEDED
- Build Plate Adhesion Type: None

3D printer file information

  • 3D design format: STL Folder details Close
    • Rim Rivets.stl
    • Sewer Hole Metal Rim.stl
    • WALL 1.stl
    • WALL 1A.stl
    • WALL 2.stl
    • WALL 3.stl
    • WALL 4.stl
    • coffee table.stl
    • long couch.stl
    • sofa seat.stl

    Learn more about the formats

  • Last update: 2022-04-03 at 08:19
  • Publication date: 2022-02-21 at 00:49
