PREMIUM N Scale Building #8

3D model description

This building is one of a set of buildings that I have created as an urban setting for any N-Scale model railroad or diorama. The 9 building set is a real life replica of buildings located on the east and weat sides of Osborne Street Village located in Winnipeg, Canada (my home town). Note: This was formerly a 5 building set but 4 more buildings from the west side of the street have since been added.

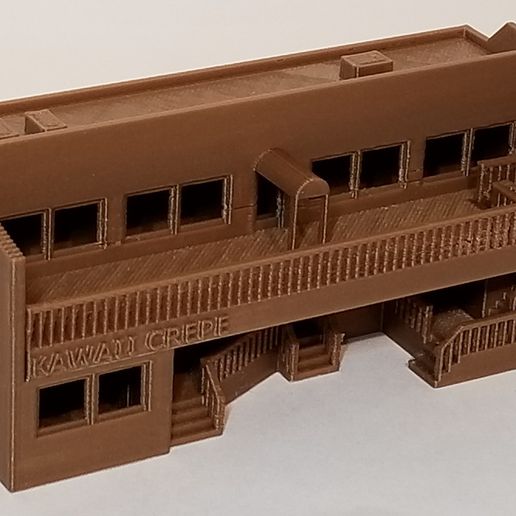

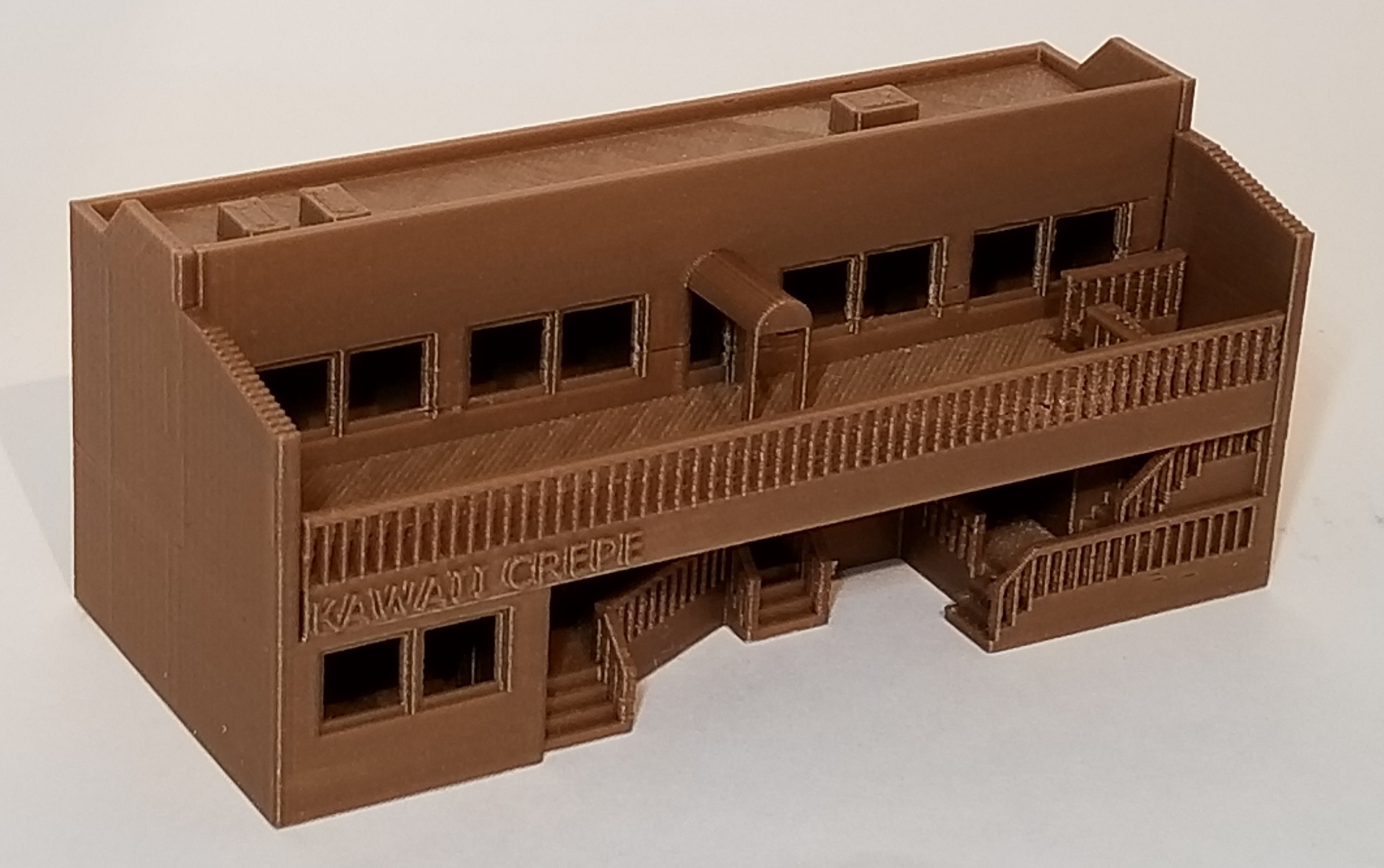

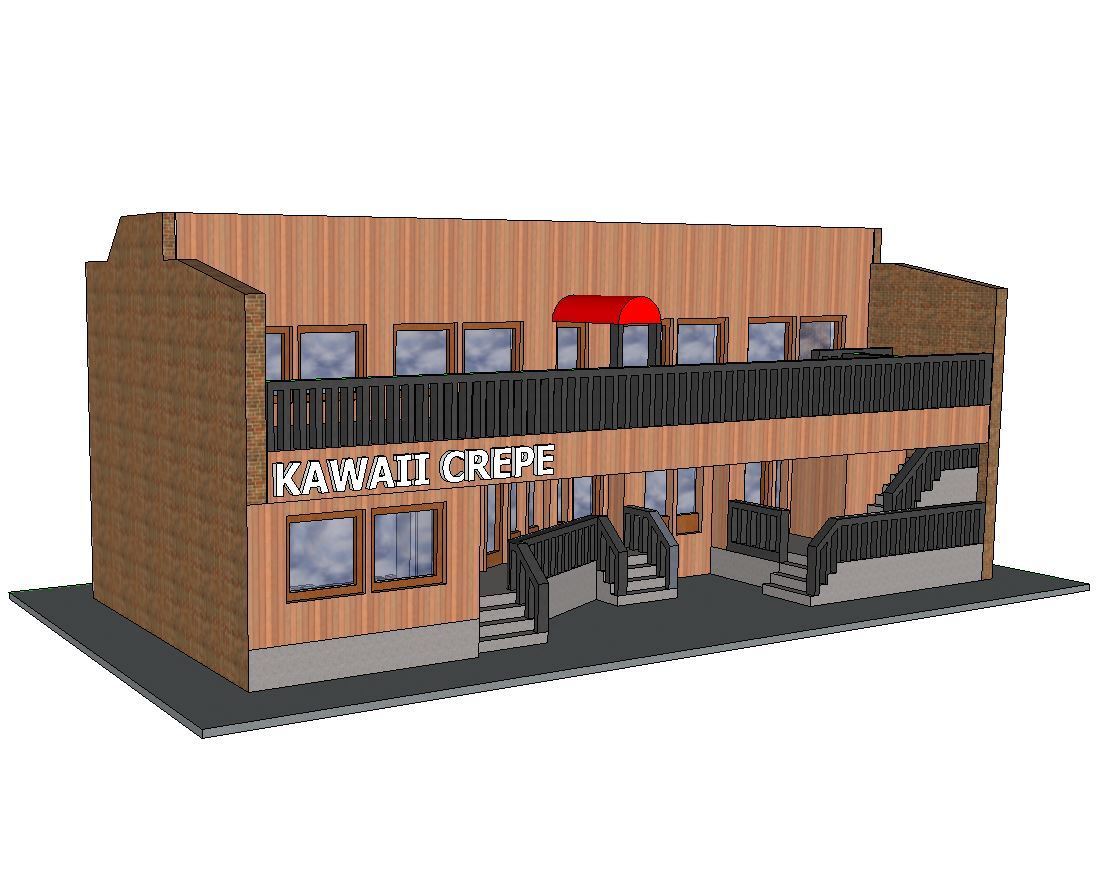

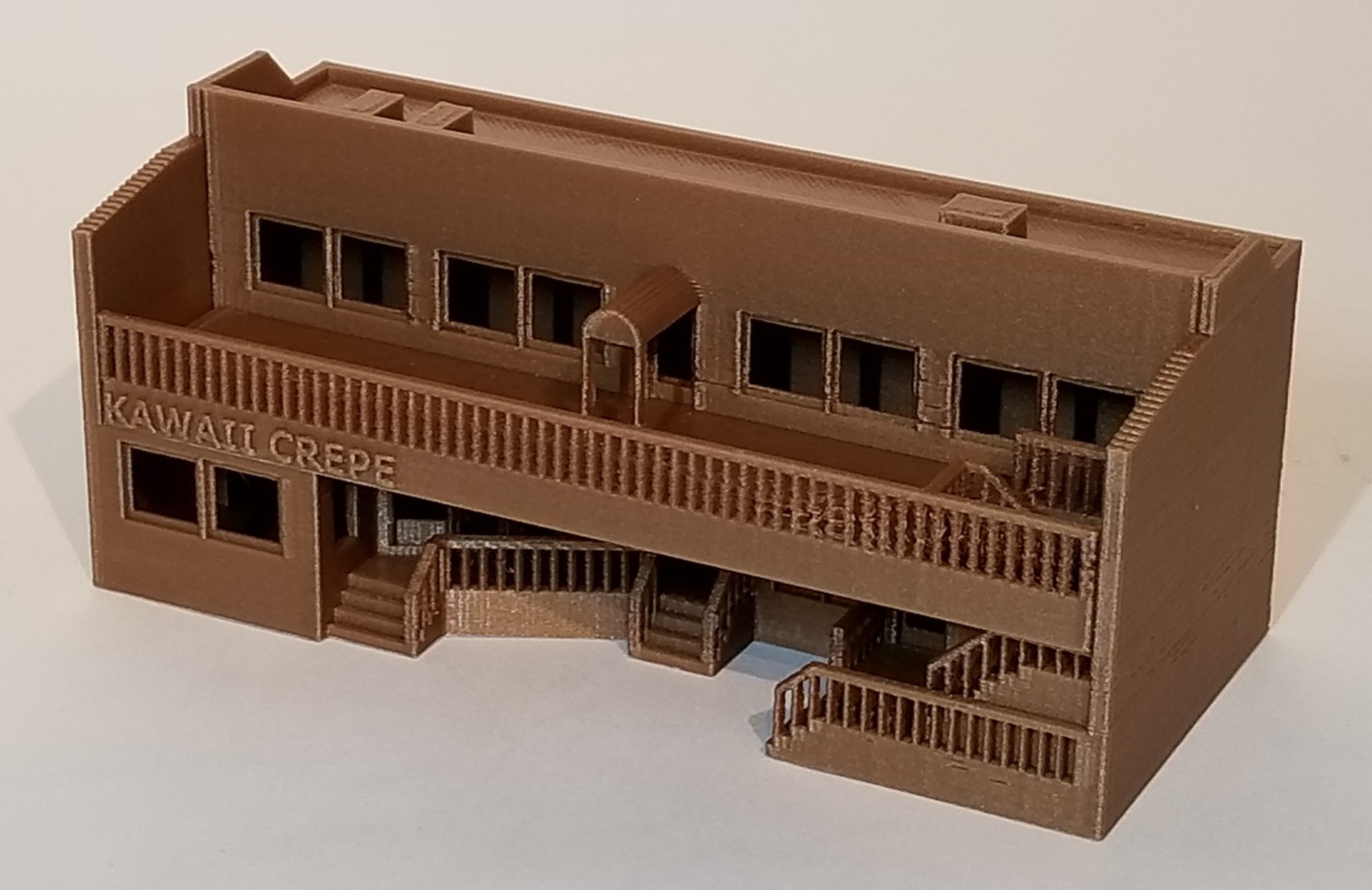

Building #8 is a unique building with many stores and a great upper deck. It houses the Kawaii Crepe which serves the best breakfasts in town. It sits on the west side of Osborne Street between River Avenue and Stradbrook Ave.
Google Street View: https://www.google.com/maps/@49.8787465,-97.1461822,3a,75y,236.26h,97.77t/data=!3m6!1e1!3m4!1sthqjvg8luGN7qhlJ5L_FEw!2e0!7i13312!8i6656

Premium features:

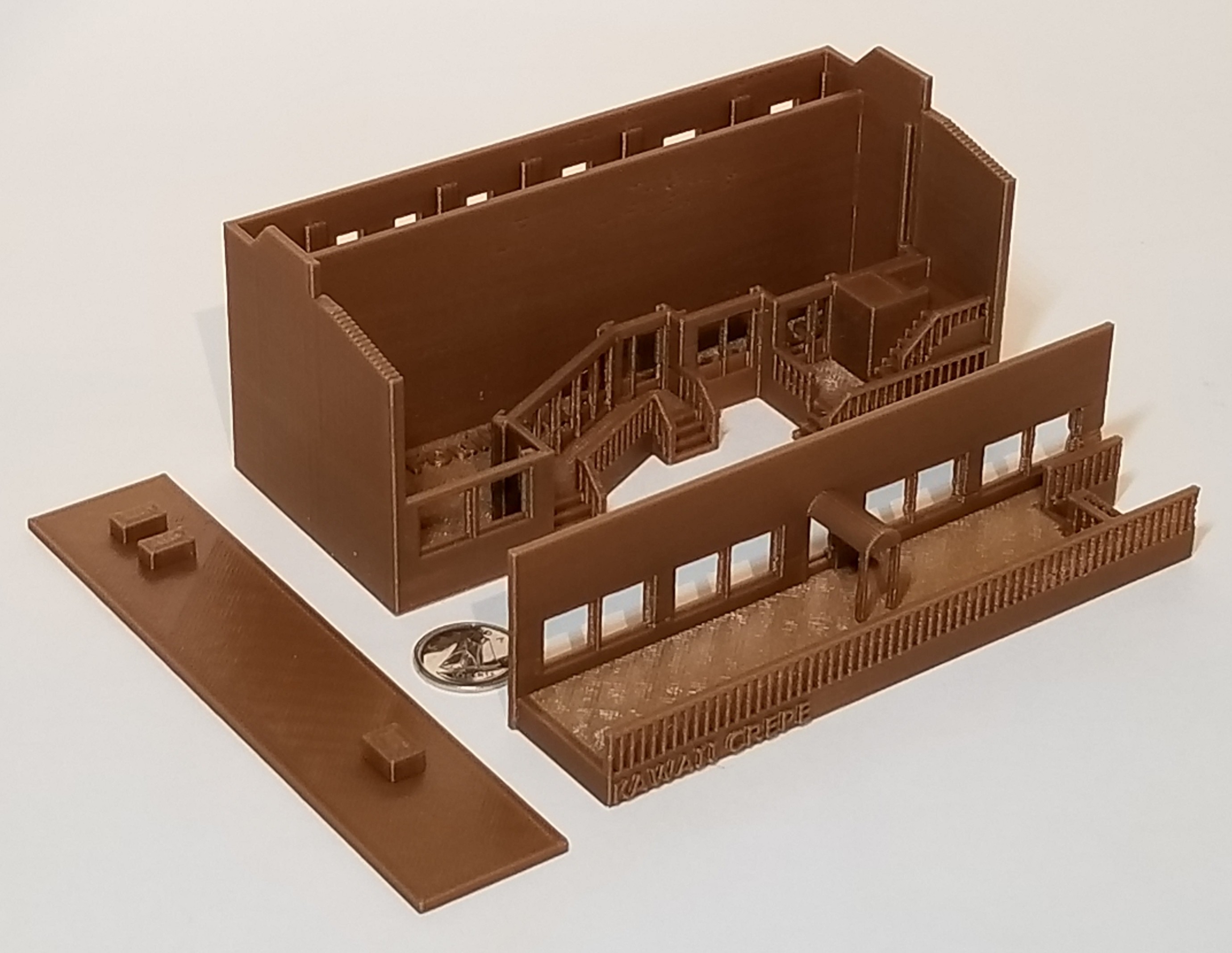

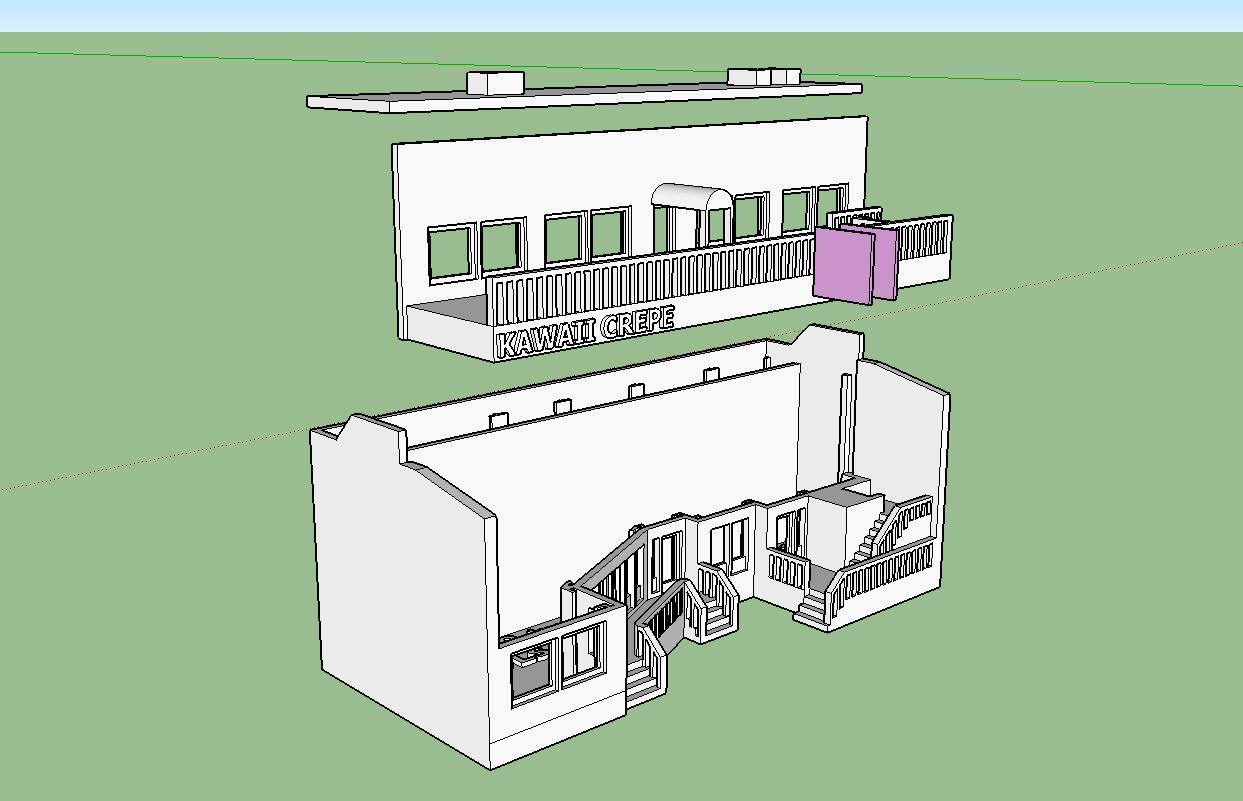

- Removable roof structures that facilitate internal finishing
- Precision interior slots for installing clear windows

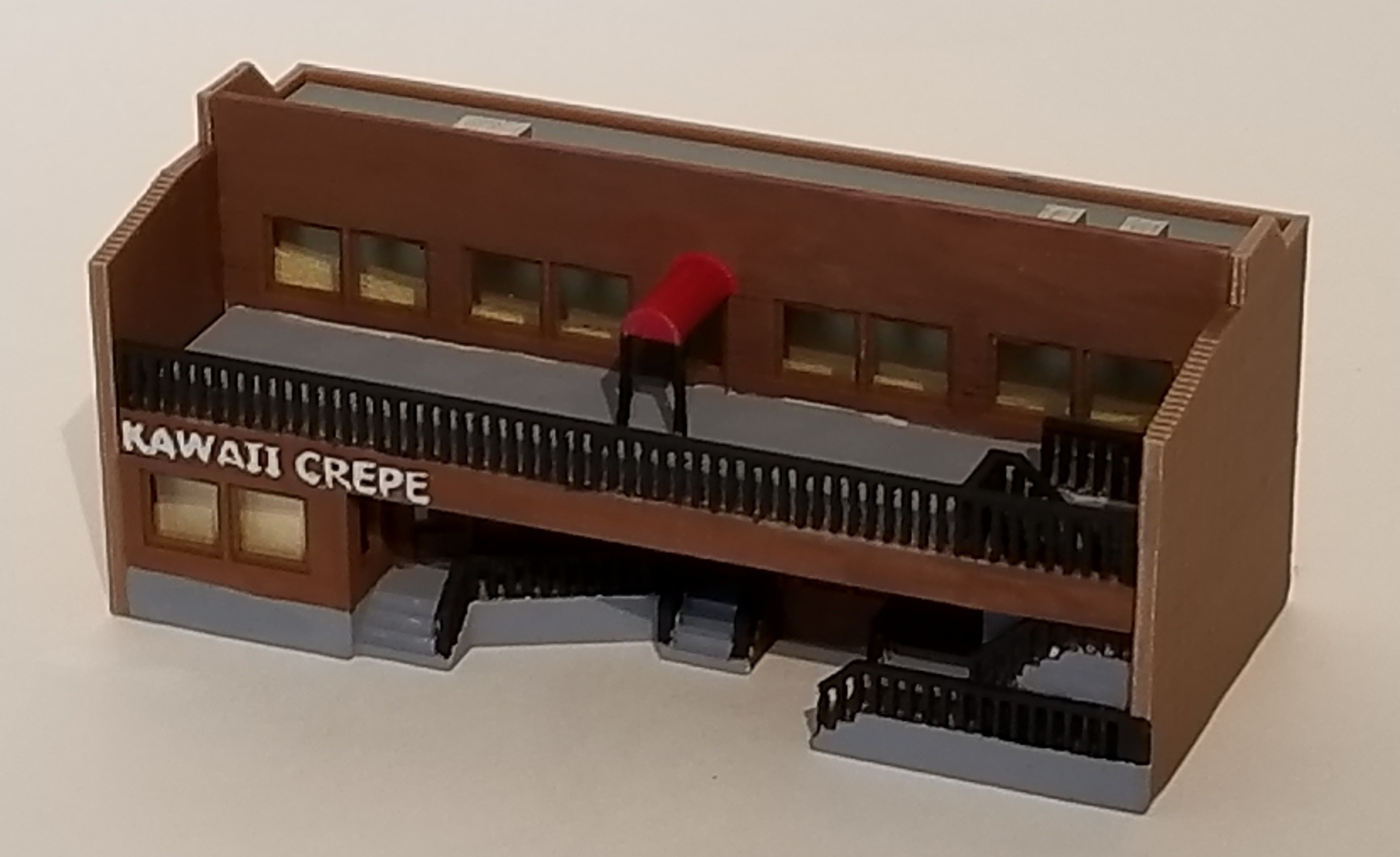

- Accessible interior walls for applying paint or wallpaper
- Can accommodate interior lighting with just a few drilled holes
- Each model is meticulously designed to scale (1:160)

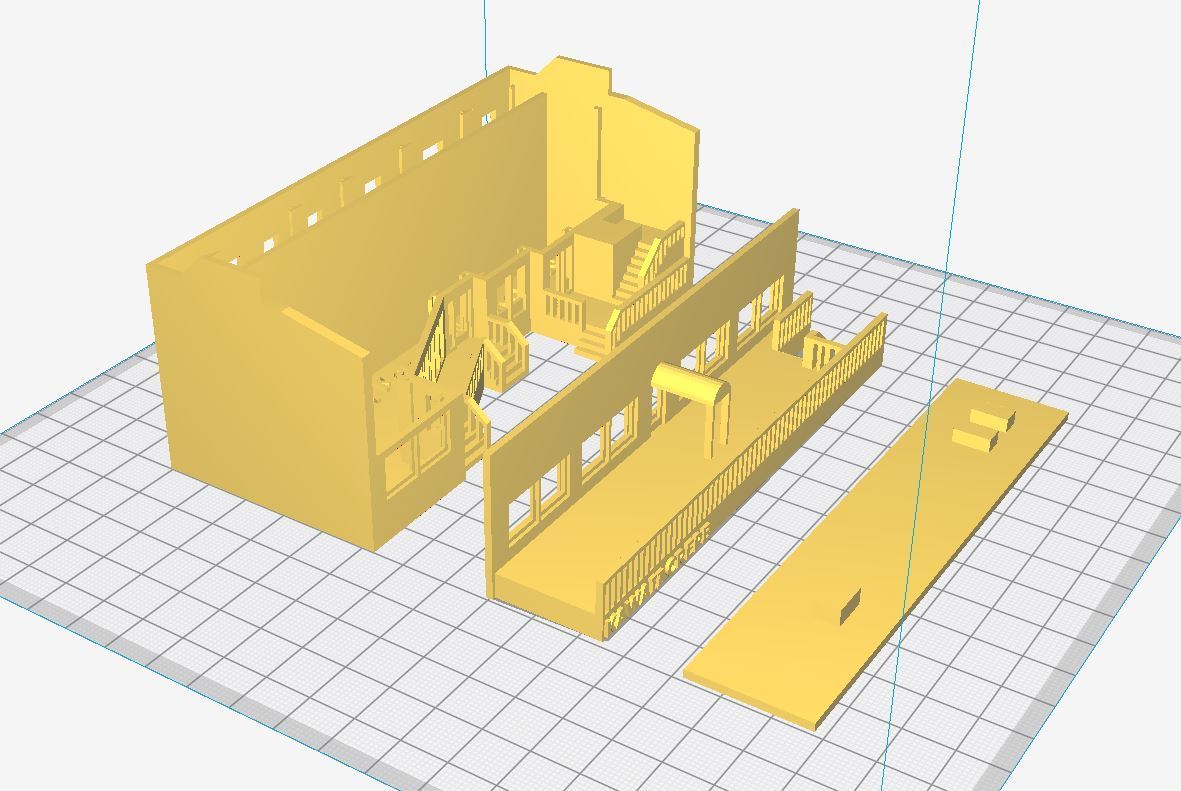

- STL files are provided with and without overhang support structures

Links to other buildings in set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-1-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-2-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-3-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-4-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-5-set
https://cults3d.com/en/3d-model/architecture/n-scale-building-6-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-7-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-8-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-9-set

All my creations:
https://cults3d.com/en/users/MFouillard

(c) 2018 All rights reserved

3D printing settings

SLICER SETTINGS for FDM 3D PRINTING

STL files are provided with and without designed-in support structures. I prefer using the designed-in supports but you can use slicer supports if you prefer.

The delicate window frames and signage required well tuned slicer settings for best results. Here are the Cura slicer settings I used on my 3D printer with exceptional results:

My FDM Printer

Prusa i3 Clone
0.4mm nozzle
Direct drive extruder

Key Settings - Important for my printer

Retraction (4.5mm)
Retract Speed (45mm/s)
Jerk (8mm/s)
Acceleration (1000mm/s2)
Combing (All)
Coasting (On)

General Settings - Can be tweaked for your printer

Material (1.75mm PLA)
Layer Height (0.24mm)
Walls (0.8mm)
Top/Bottom Layer (0.72mm)
Infill (10%)
Tool Temp (200C)
Bed Temp (60C)
Print Speed (60mm/s)
Wall Speed (30mm/s)
Adhesion (Skirt, Brim on larger buildings)
Support (Optional)

  • 3D model format: STL

Tags

Creator

Followers Followings 0
Downloads 1435
Sales $59

Retired electronics engineer, designer, model railroader. My specialty is creating 3D replicas, in N-Scale (1:160), of houses, buildings, and structures found anywhere on the 'Google Street View' planet.

Ingénieur en électronique retraité, concepteur, modéliste ferroviaire. Ma spécialité est la création de répliques 3D, en échelle N (1: 160), de maisons, de bâtiments et de structures trouvés n'importe où sur la planète «Google Street View».

Ingeniero electrónico retirado, diseñador, ferroviario modelo. Mi especialidad es crear réplicas 3D, en N-Scale (1: 160), de casas, edificios y estructuras que se encuentran en cualquier parte del planeta 'Google Street View'.

For a custom design contact me: CreateMy3D@shaw.ca
