PREMIUM N Scale Building #7
- 1.7k views
- 6 likes
- 7 downloads
3D model description
This building is one of a set of buildings that I have created as an urban setting for any N-Scale model railroad or diorama. The 9 building set is a real life replica of buildings located on the east and weat sides of Osborne Street Village located in Winnipeg, Canada (my home town). Note: This was formerly a 5 building set but 4 more buildings from the west side of the street have since been added.

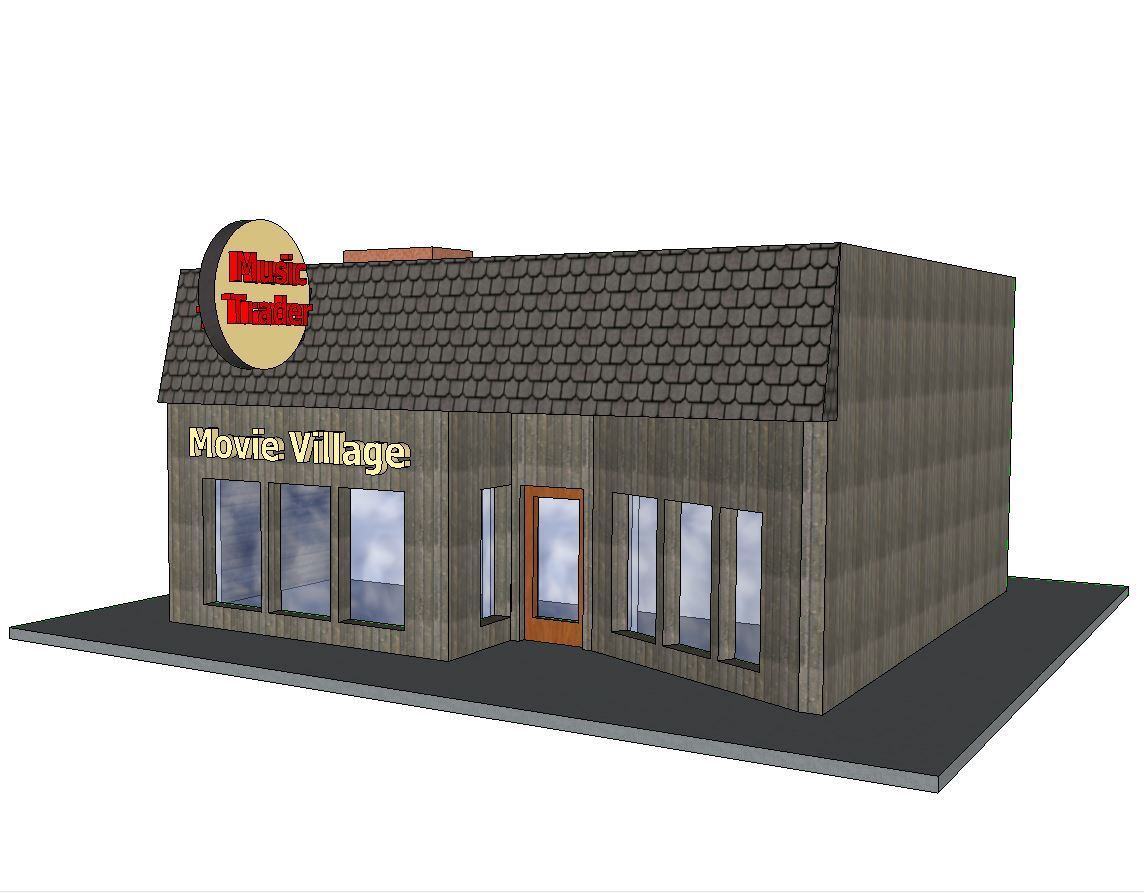

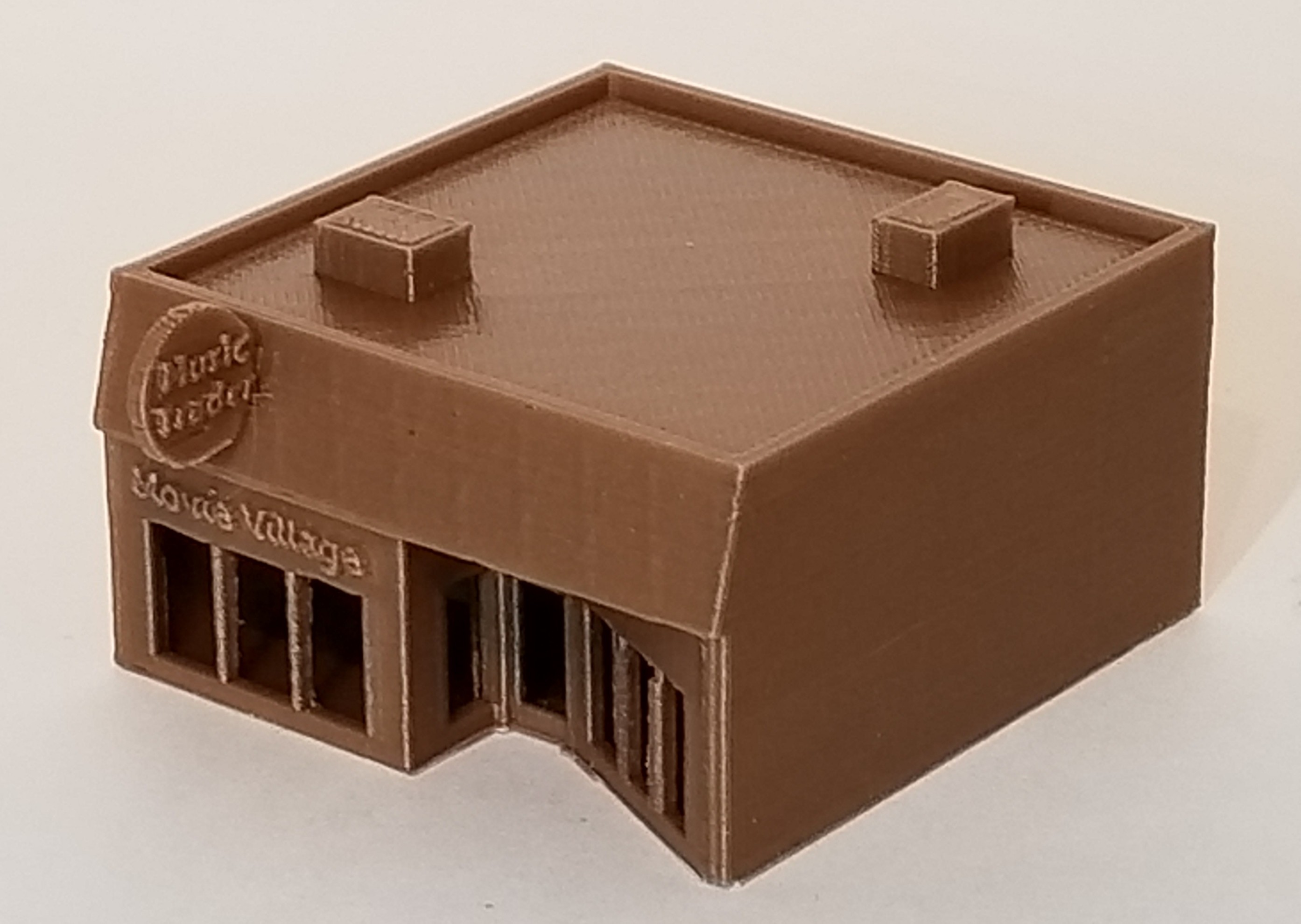

Building #7 is the Movie Village building which sits on the west side of Osborne Street between River Avenue and Stradbrook Ave. It houses the Music Trader which has a huge collectoon of classic vinyl. It is actually physically part of building #6 but has been finished with its own facade which makes it look like a separate building.
Google Street View: https://firstname.lastname@example.org,-97.1463112,3a,75y,212.63h,88.29t/data=!3m6!1e1!3m4!1sMUEYXVcfHnAZKzpeue2lzg!2e0!7i13312!8i6656

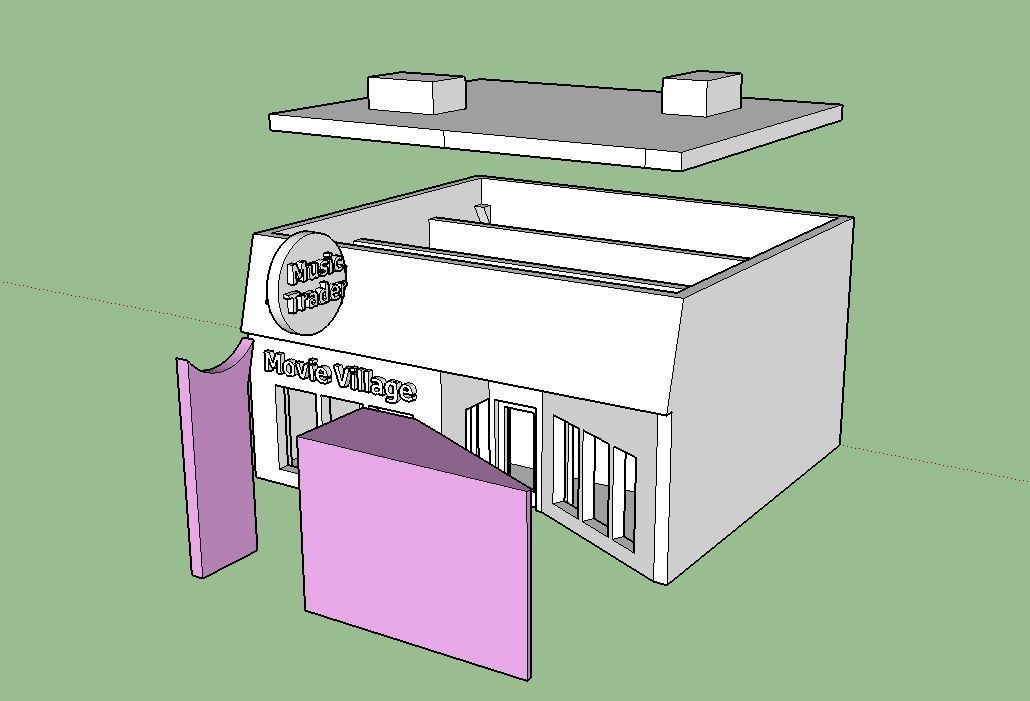

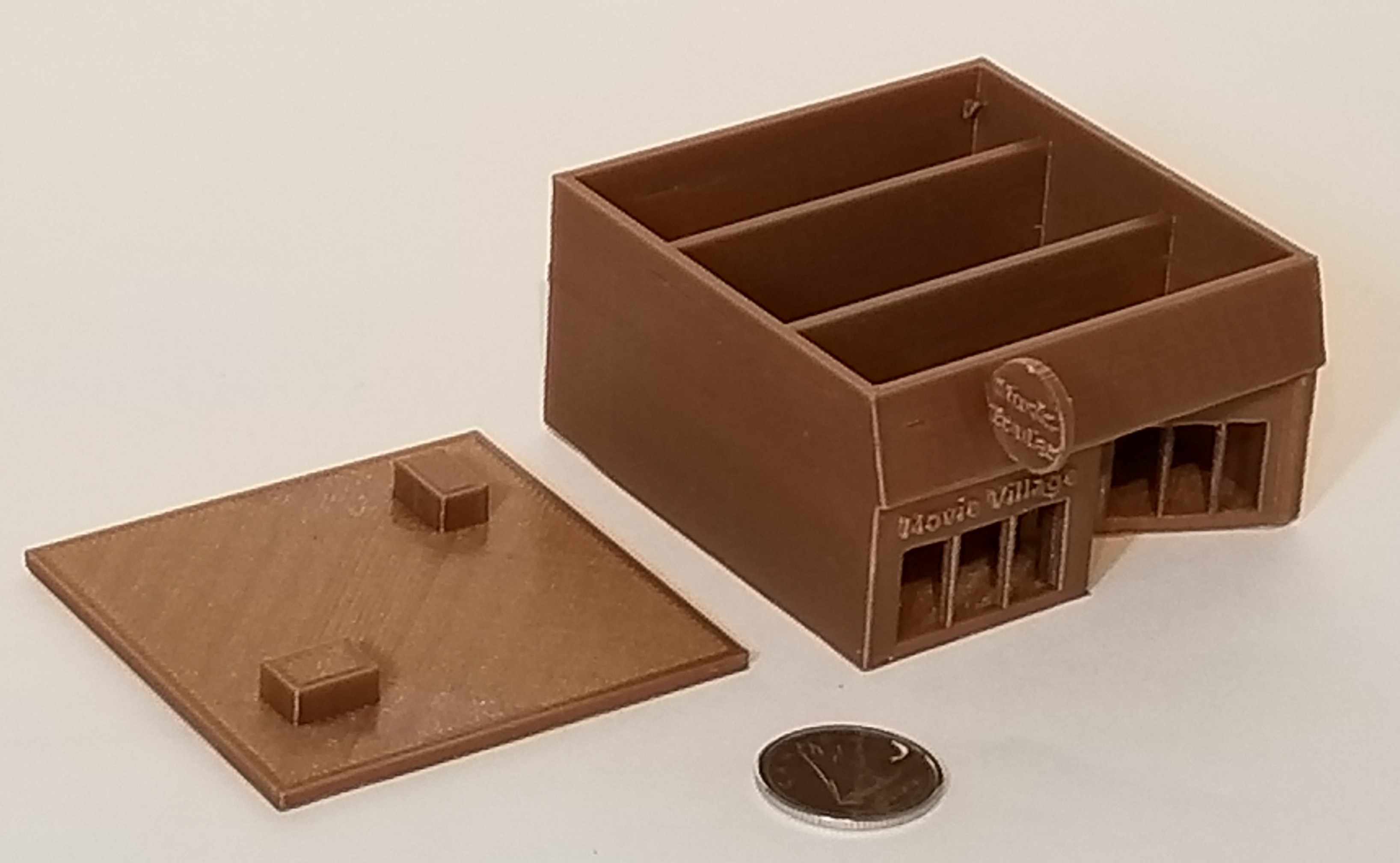

- Removable roof structures that facilitate internal finishing
- Precision interior slots for installing clear windows
- Accessible interior walls for applying paint or wallpaper
- Can accommodate interior lighting with just a few drilled holes
- Each model is meticulously designed to scale (1:160)

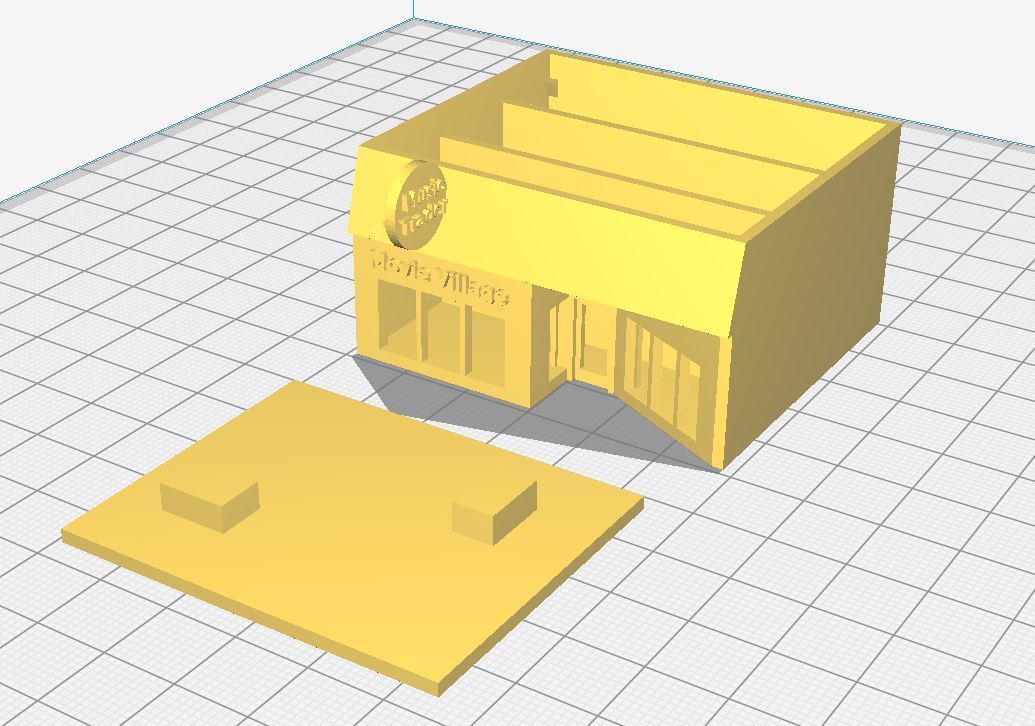

- STL files are provided with and without overhang support structures
Links to other buildings in set
All my creations:
(c) 2018 All rights reserved
3D printing settings
SLICER SETTINGS for FDM 3D PRINTING
STL files are provided with and without designed-in support structures. I prefer using the designed-in supports but you can use slicer supports if you prefer.
The delicate window frames and signage required well tuned slicer settings for best results. Here are the Cura slicer settings I used on my 3D printer with exceptional results:
My FDM Printer
Prusa i3 Clone
Direct drive extruder
Key Settings - Important for my printer
Retract Speed (45mm/s)
General Settings - Can be tweaked for your printer
Material (1.75mm PLA)
Layer Height (0.24mm)
Top/Bottom Layer (0.72mm)
Tool Temp (200C)
Bed Temp (60C)
Print Speed (60mm/s)
Wall Speed (30mm/s)
Adhesion (Skirt, Brim on larger buildings)
3D printer file information
3D design format: STL Folder details Close
- Movie Village Roof Ver 2.stl
- Movie Village Shell Ver 2 (with supports).stl
- Movie Village Shell Ver 2.stl
- Last update: 2019-04-15 at 05:40
- Publication date: 2019-02-09 at 18:23
Retired electronics engineer, designer, model railroader. My specialty is creating 3D replicas, in N-Scale (1:160), of houses, buildings, and structures found anywhere on the 'Google Street View' planet.
Ingénieur en électronique retraité, concepteur, modéliste ferroviaire. Ma spécialité est la création de répliques 3D, en échelle N (1: 160), de maisons, de bâtiments et de structures trouvés n'importe où sur la planète «Google Street View».
Ingeniero electrónico retirado, diseñador, ferroviario modelo. Mi especialidad es crear réplicas 3D, en N-Scale (1: 160), de casas, edificios y estructuras que se encuentran en cualquier parte del planeta 'Google Street View'.
For a custom design contact me: CreateMy3D@shaw.ca
