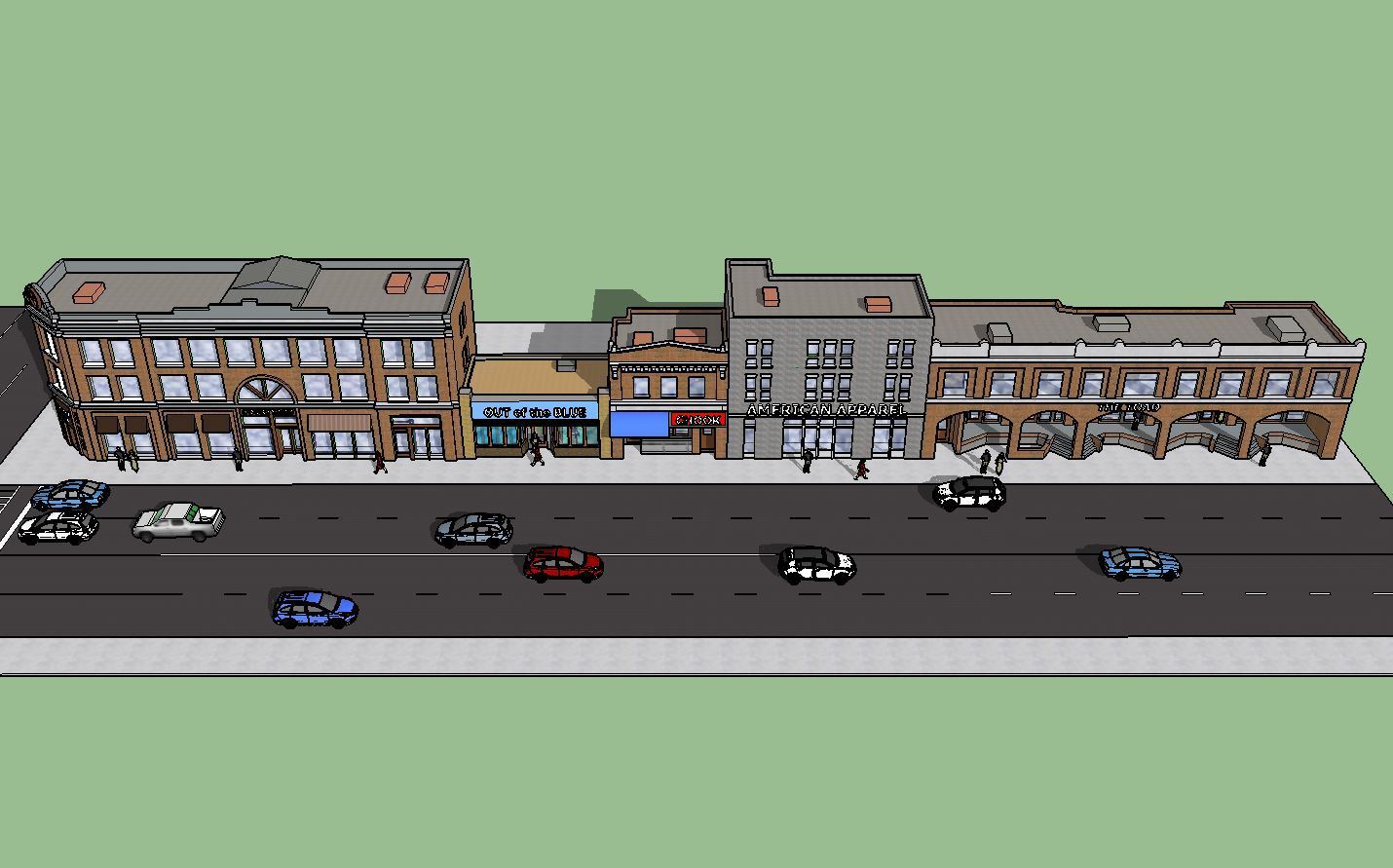

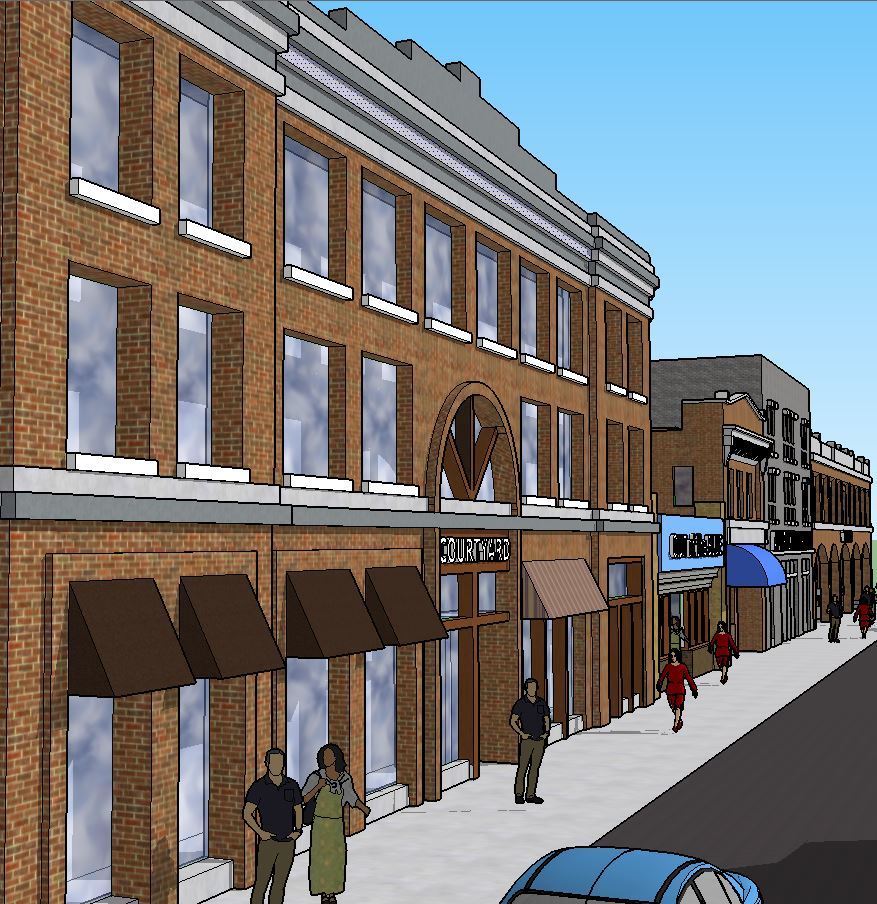

This building is one of a set of buildings that I have created as an urban setting for any N-Scale model railroad or diorama. The 5 building set is a real life replica of buildings located on the east side of Osborne Street Village located in Winnipeg, Canada (my home town). I am currently developing models of 5 additional buildings on the west side of the same street. Stay tuned!
Building #5

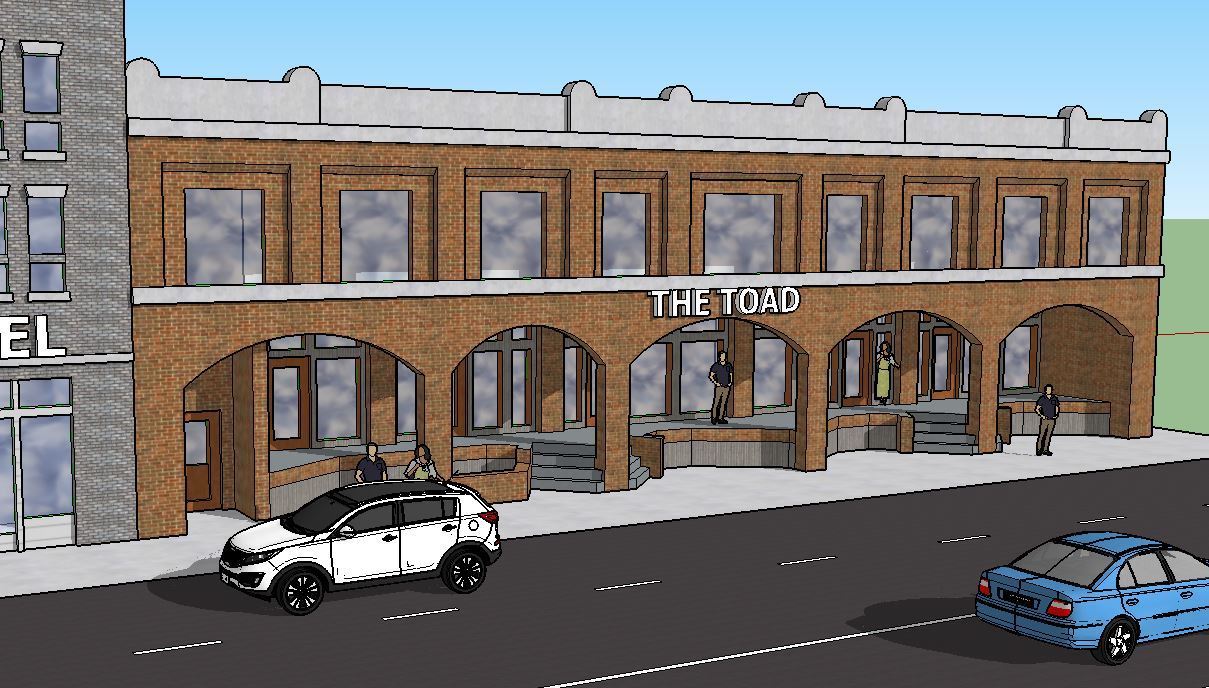

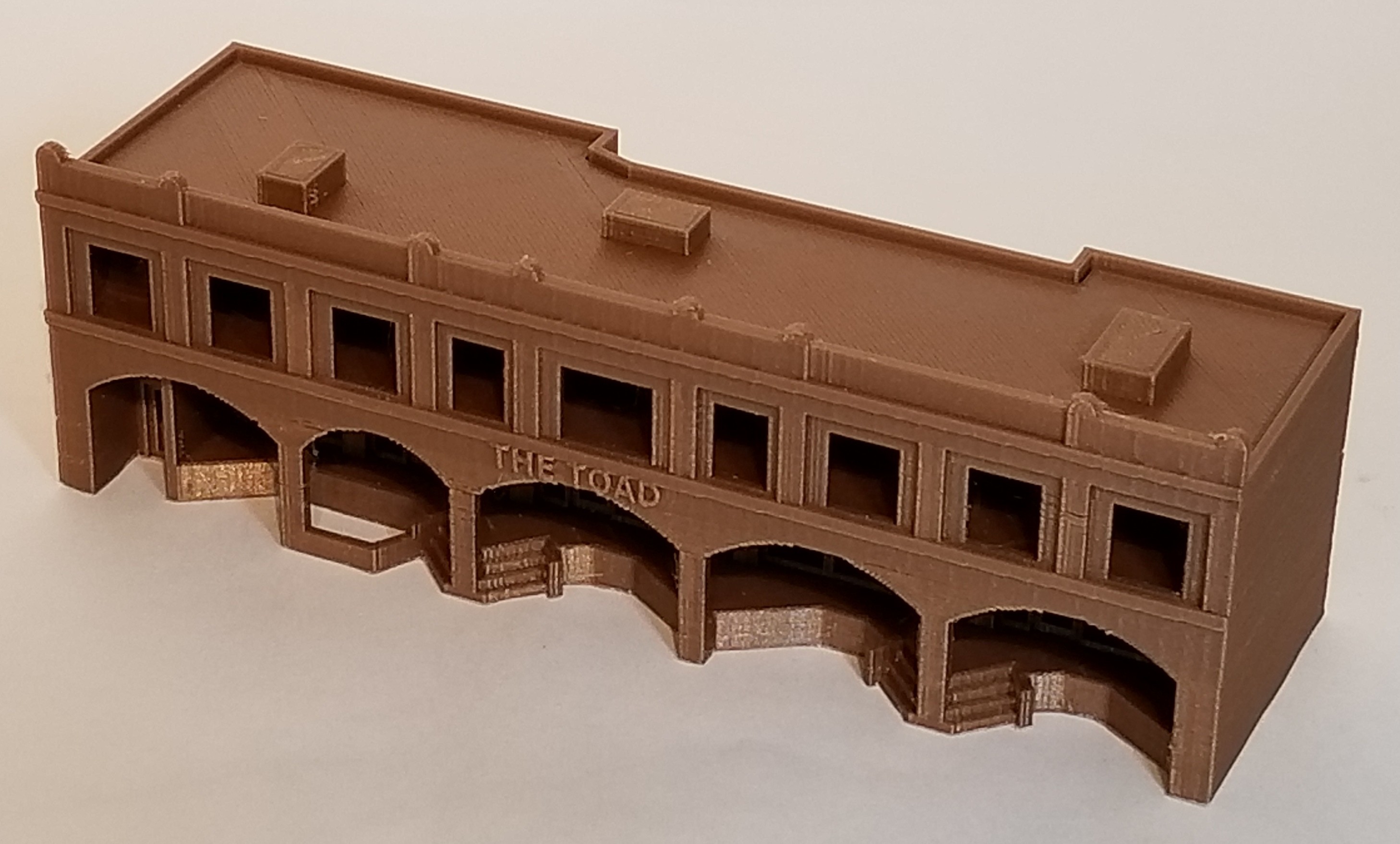

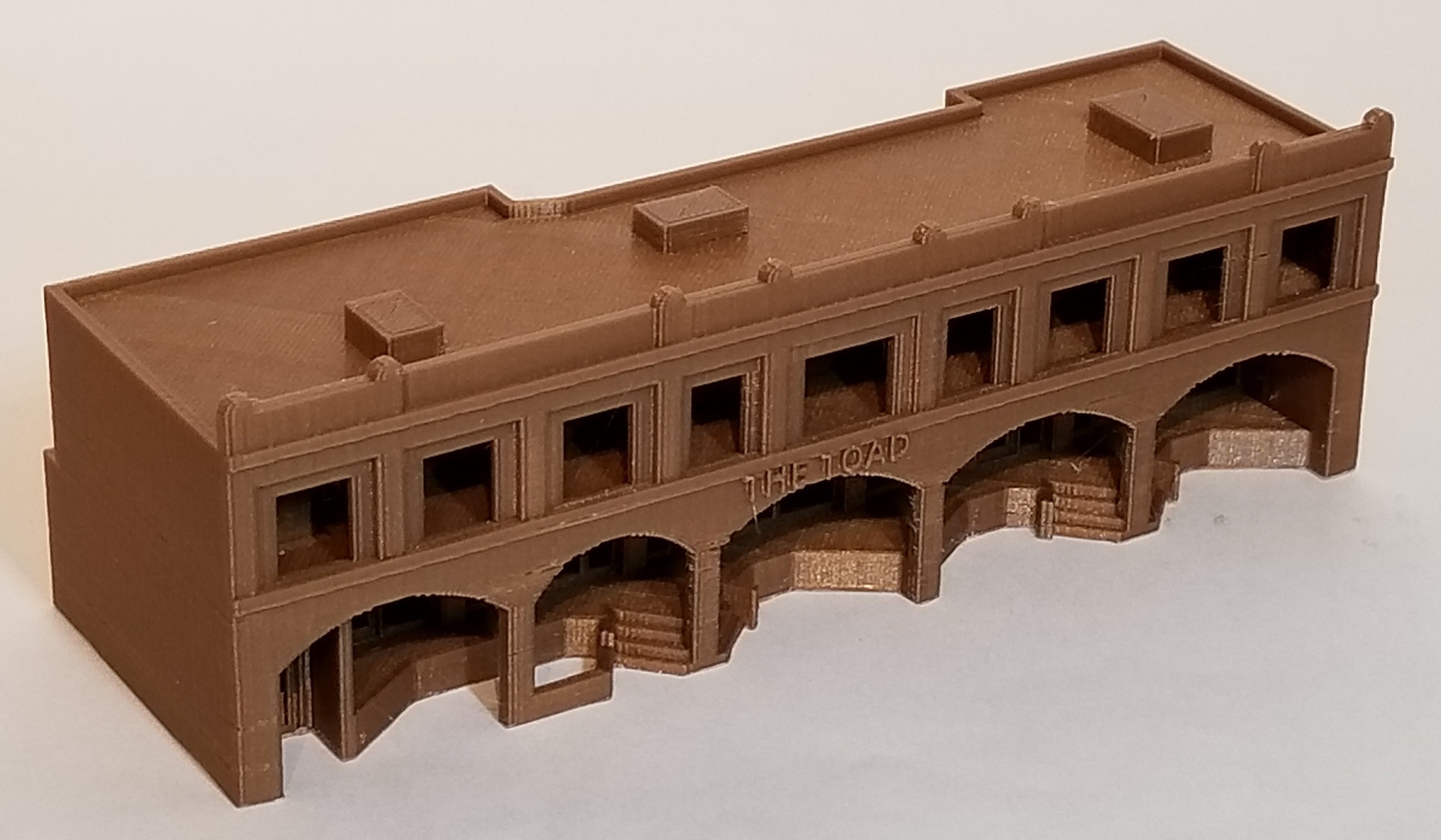

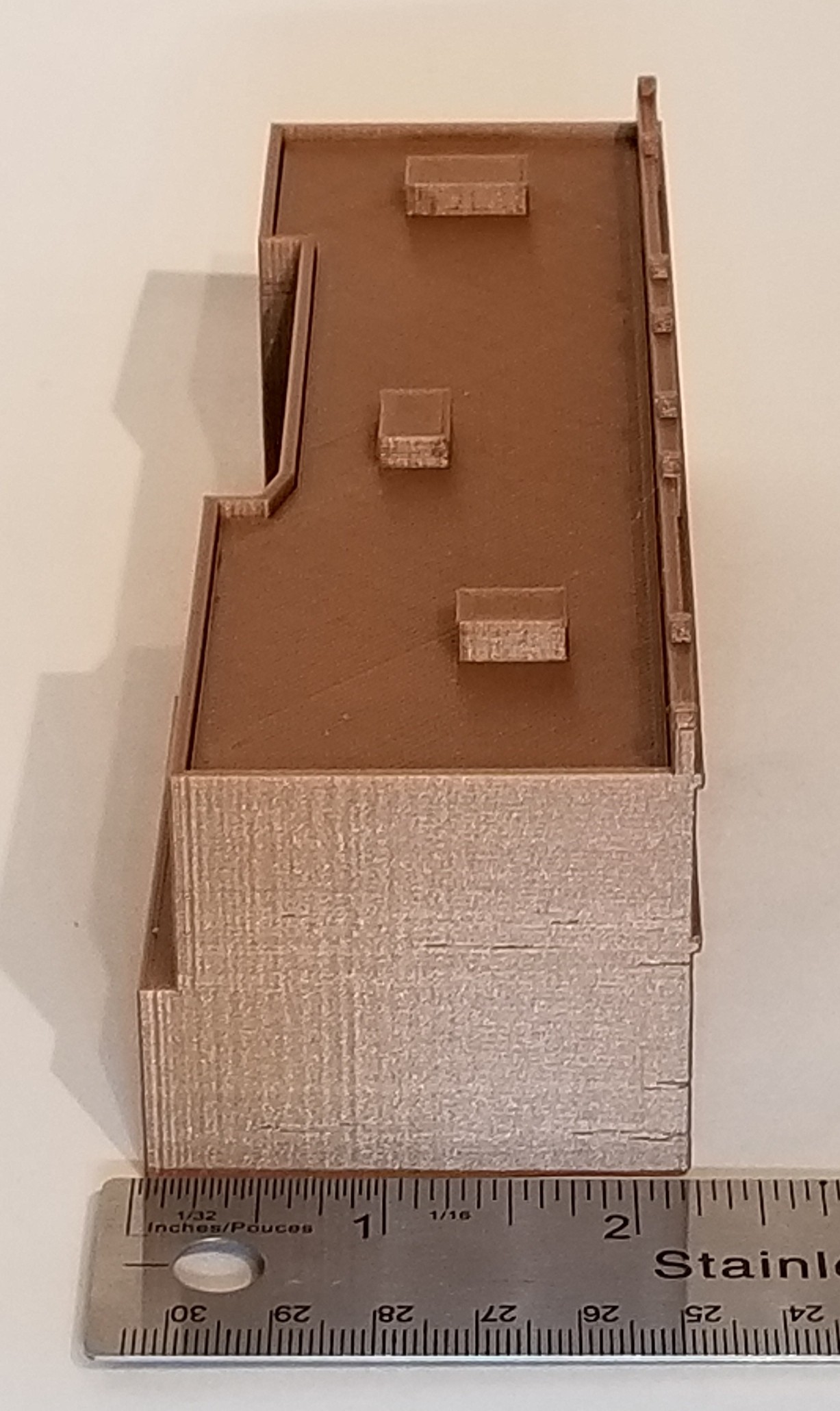

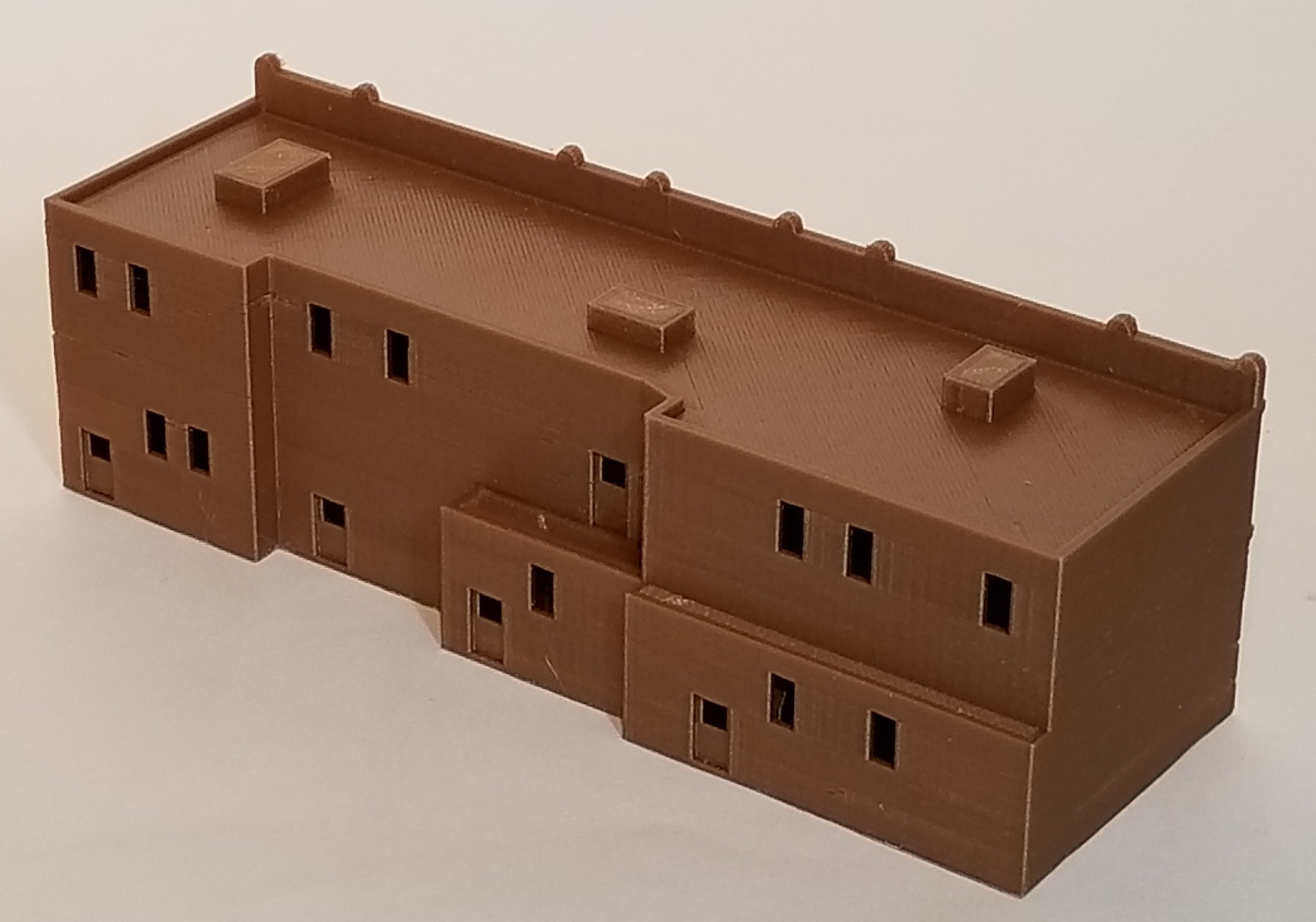

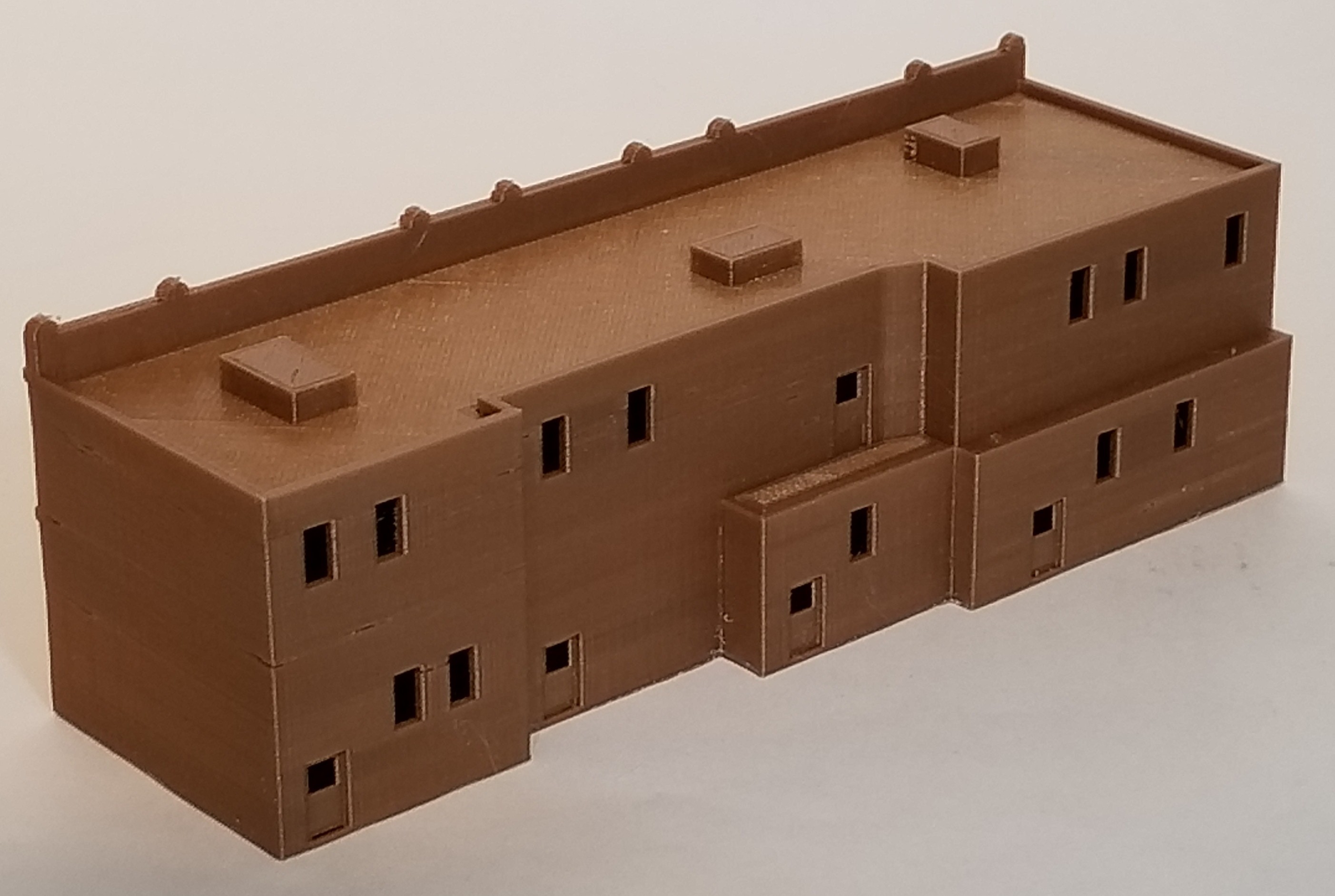

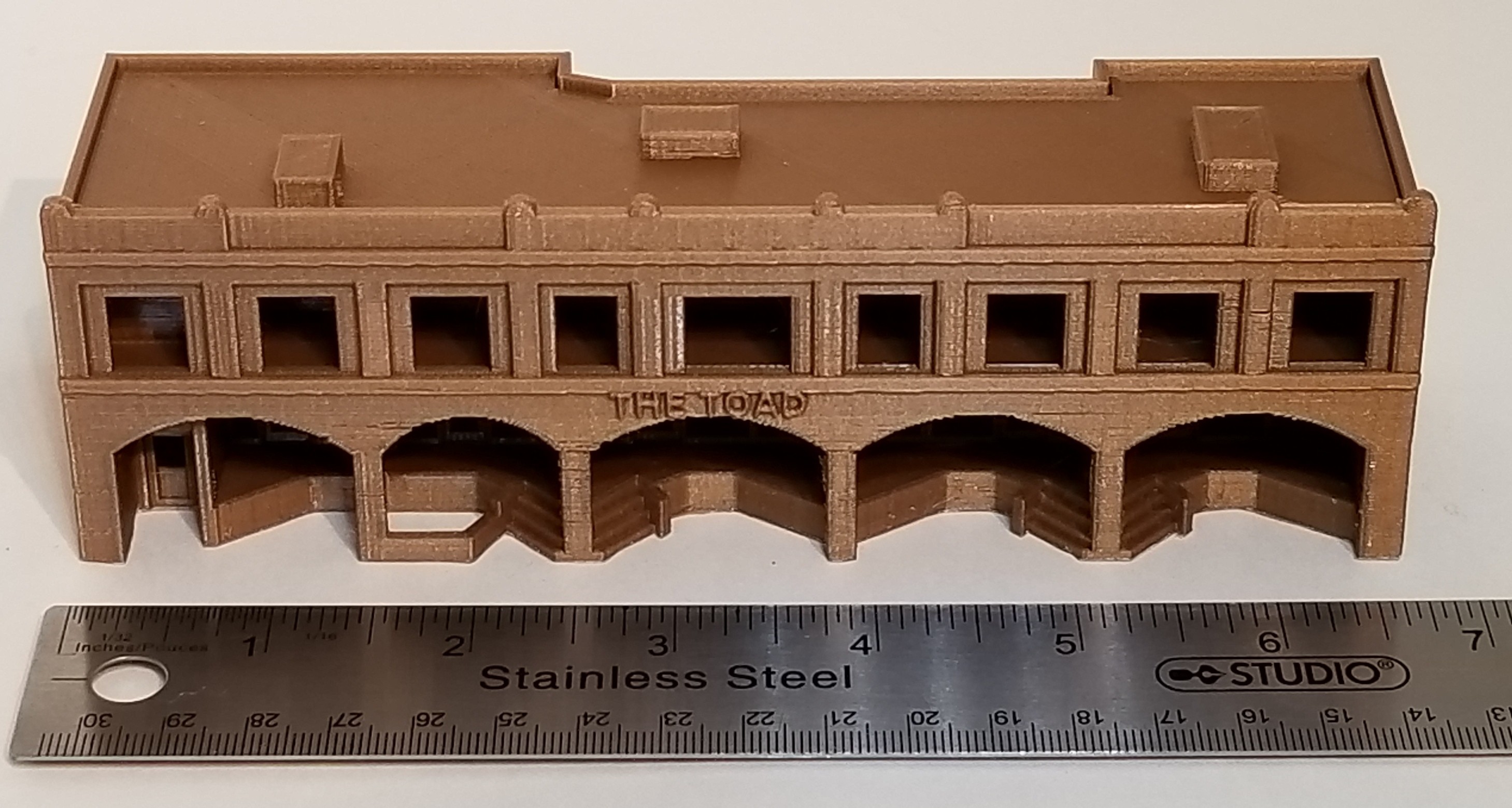

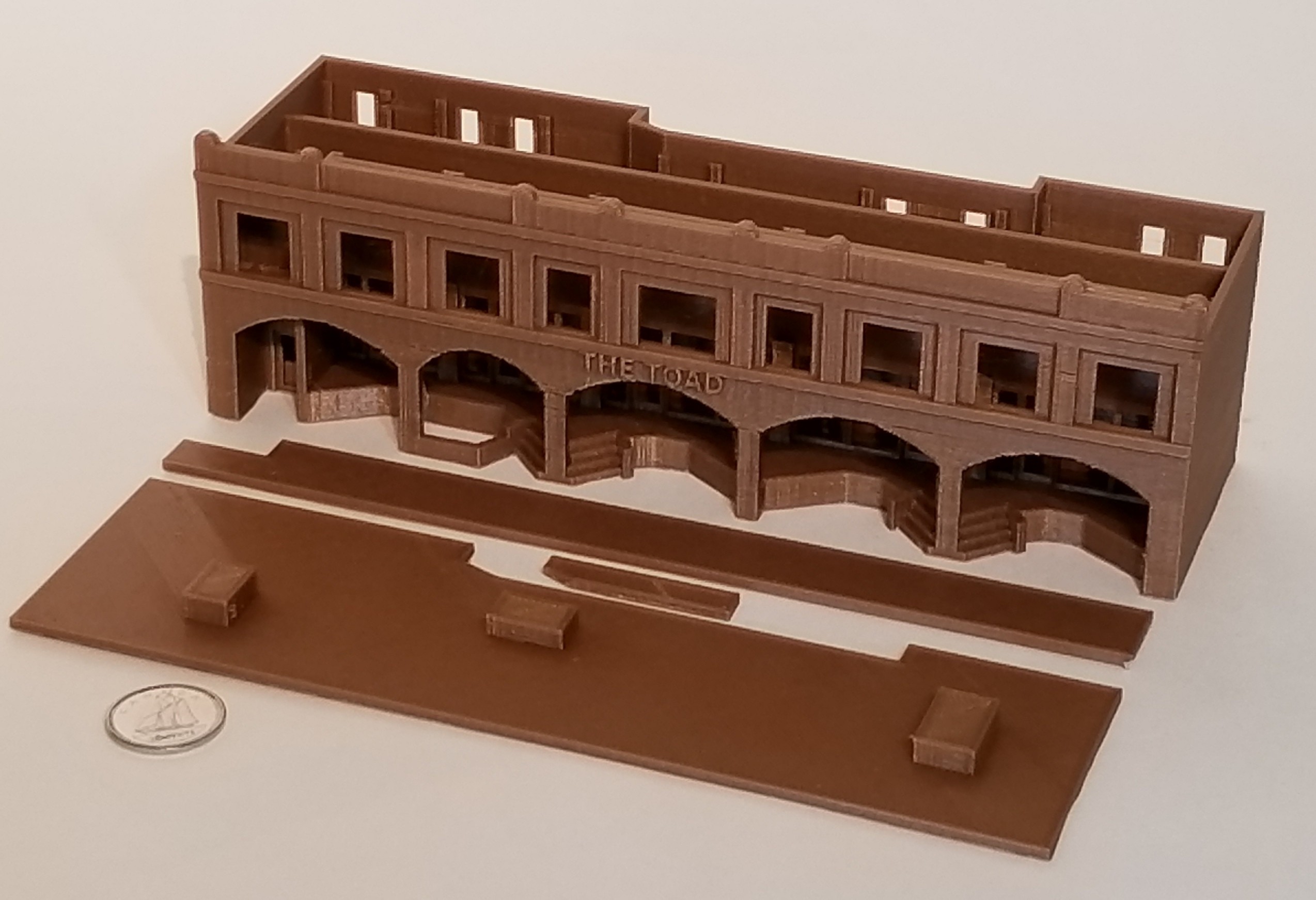

is the Toad Building which sits on the east side of Osborne Street between River Avenue and Stradbrook. This is one of my favorite buildings both in print and in real life.
Google Street View: https://www.google.ca/maps/@49.8784395,-97.1459341,3a,75y,40.36h,90.53t/data=!3m6!1e1!3m4!1sGRvkXMSbzIqwQf0V4SYchw!2e0!7i13312!8i6656
Premium features:

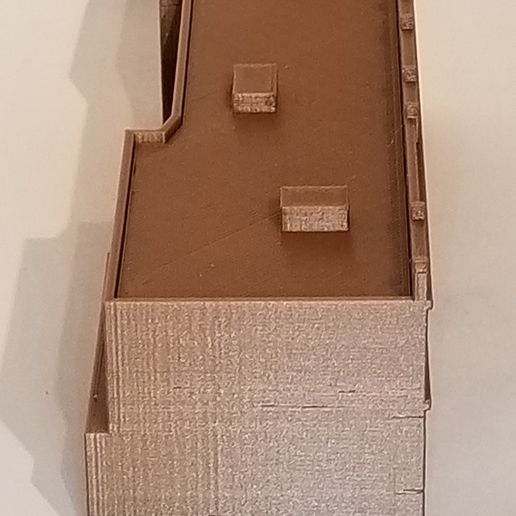

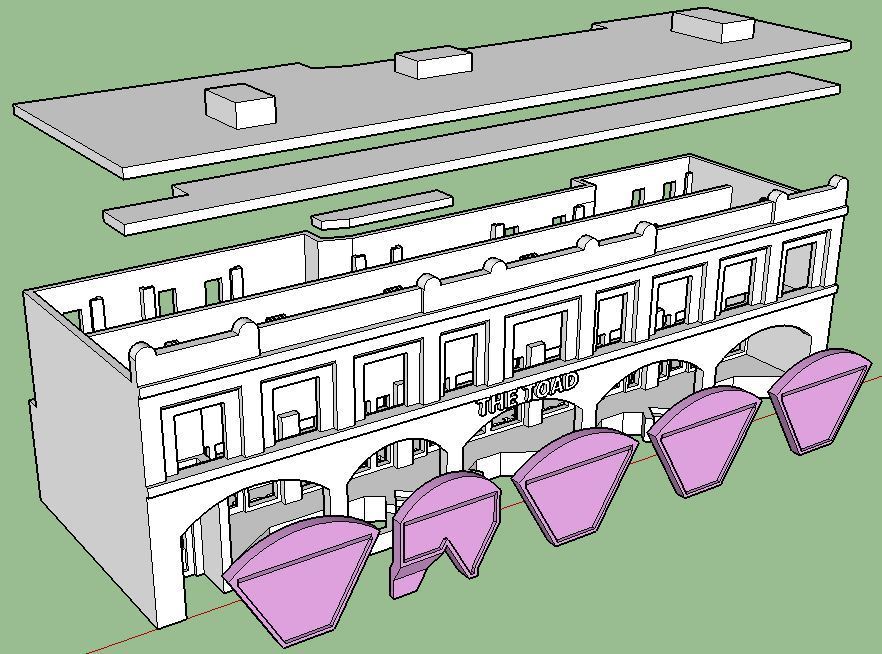

- Removable roof structures that facilitate internal finishing

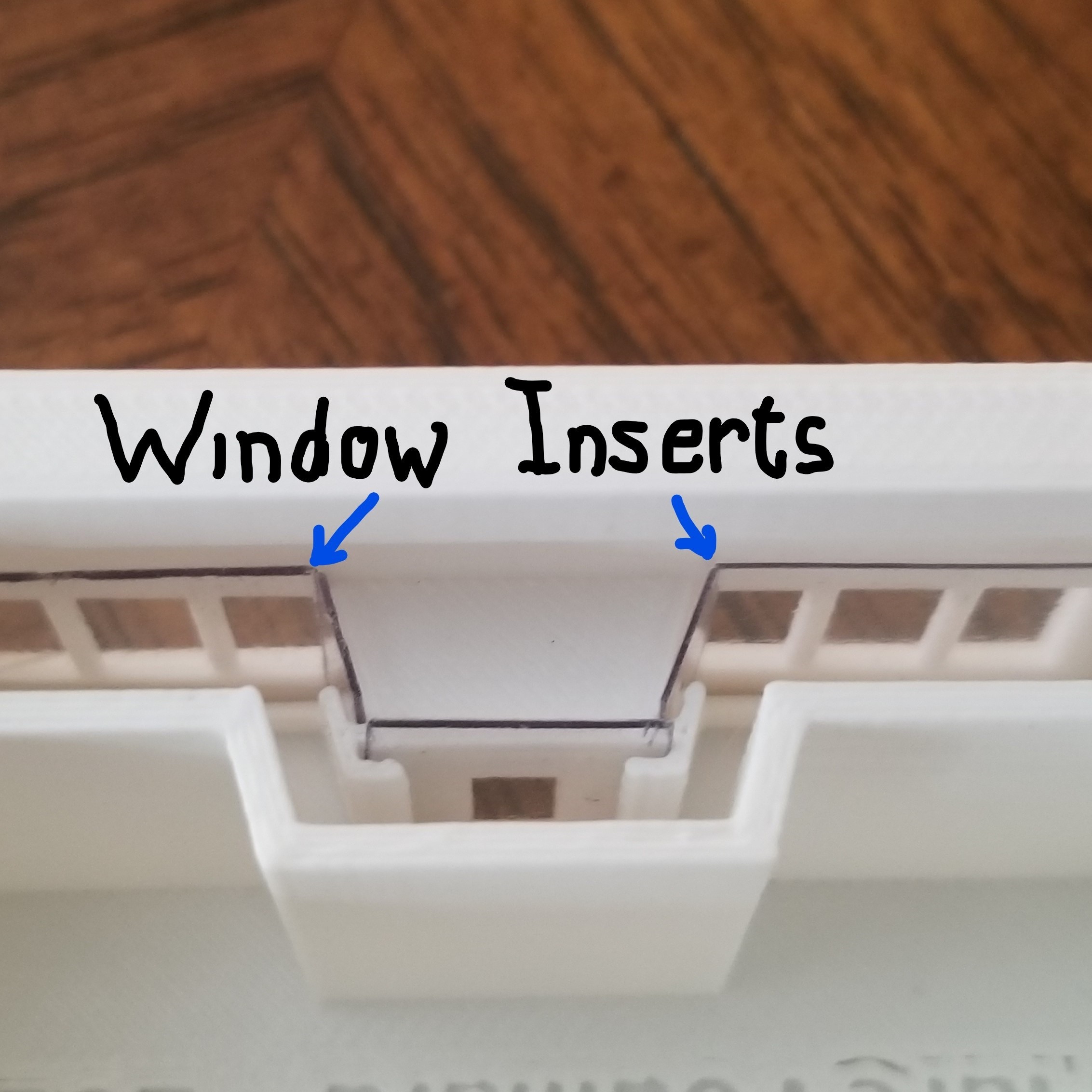

- Precision interior slots for installing clear windows
- Accessible interior walls for applying paint or wallpaper
- Can accommodate interior lighting with just a few drilled holes
- Each model is meticulously designed to scale (1:160)

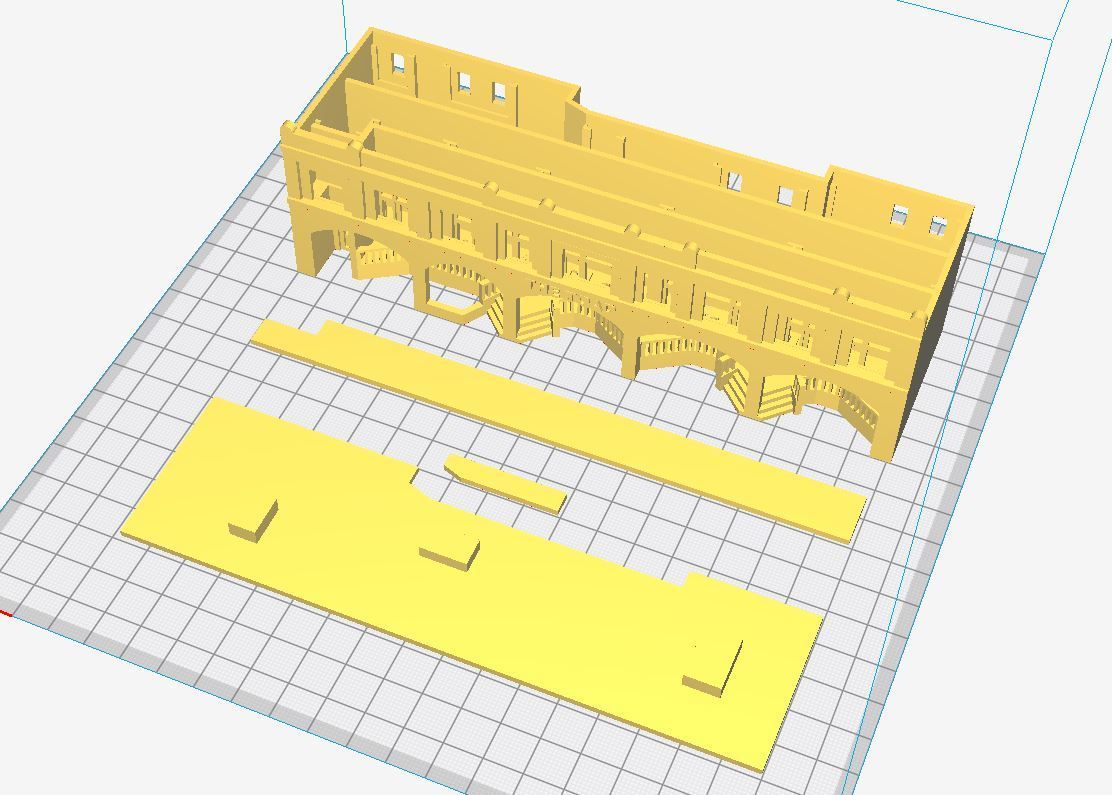

- STL files are provided with and without overhang support structures
A FREE non-premium version of this building is available at https://cults3d.com/en/3d-model/architecture/n-scale-building-5-set
Links to other buildings in set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-1-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-2-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-3-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-4-set
https://cults3d.com/en/3d-model/architecture/premium-n-scale-building-5-set
All my creations:
https://cults3d.com/en/users/MFouillard
STL files are provided with and without designed-in support structures. I prefer using the designed-in supports but you can use slicer supports if you prefer.
The delicate window frames and signage required well tuned slicer settings for best results. Here are the Cura slicer settings I used on my Anet A8 printer with exceptional results:
Material (1.75mm PLA)
Layer Height (0.24mm)
Walls (1.6mm)
Top/Bottom Layer (0.72mm)
Infill (10%)
Tool Temp (200C)
Bed Temo (60C)
Retraction (4.5mm)
Retract Speed (45mm/s)
Print Speed (60mm/s)
Wall Speed (30mm/s)
Jerk (8mm/s)
Acceleration (1000mm/s2)
Combing (All)
Adhesion (Brim)
Support (None)
Coasting (On)
Retired electronics engineer, designer, model railroader. My specialty is creating 3D replicas, in N-Scale (1:160), of houses, buildings, and structures found anywhere on the 'Google Street View' planet.
Ingénieur en électronique retraité, concepteur, modéliste ferroviaire. Ma spécialité est la création de répliques 3D, en échelle N (1: 160), de maisons, de bâtiments et de structures trouvés n'importe où sur la planète «Google Street View».
Ingeniero electrónico retirado, diseñador, ferroviario modelo. Mi especialidad es crear réplicas 3D, en N-Scale (1: 160), de casas, edificios y estructuras que se encuentran en cualquier parte del planeta 'Google Street View'.
For a custom design contact me: CreateMy3D@shaw.ca
