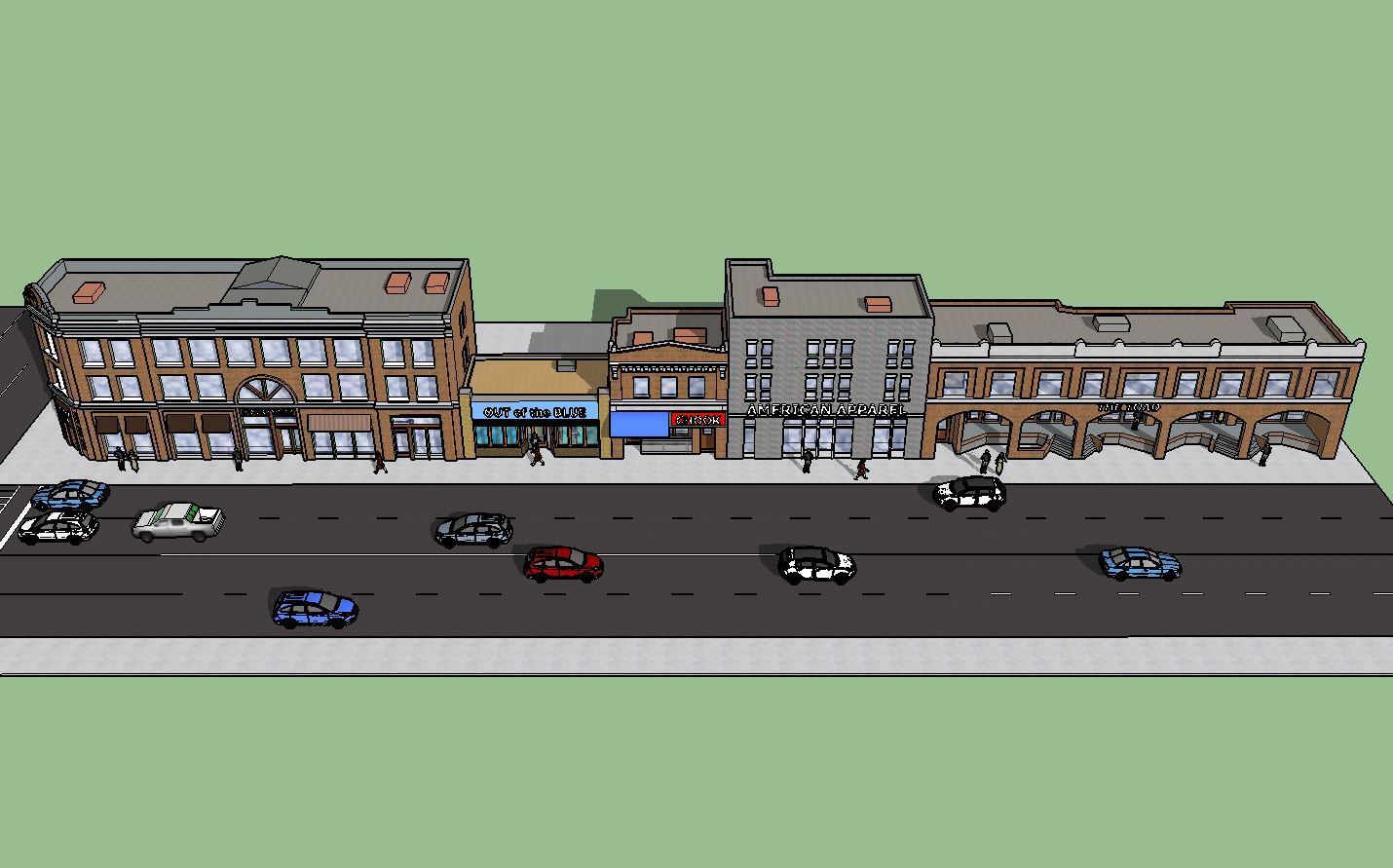

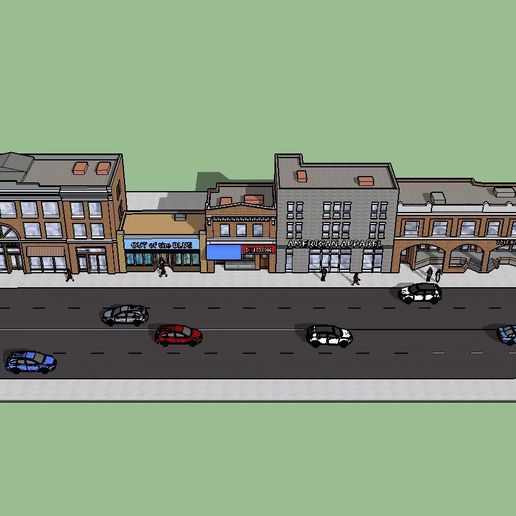

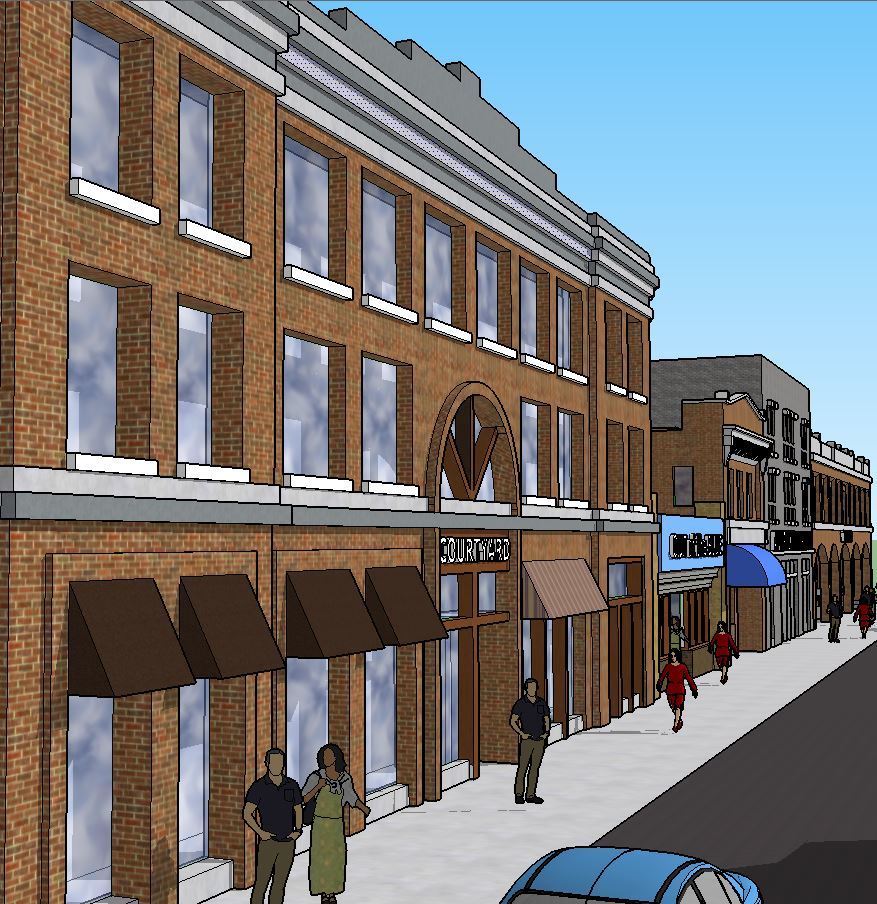

This building is one of a set of buildings that I have created as an urban setting for any N-Scale model railroad or diorama. The 5 building set is a real life replica of buildings located on the east side of Osborne Street Village located in Winnipeg, Canada (my home town). I am currently developing models of 5 additional buildings on the west side of the same street. Stay tuned!

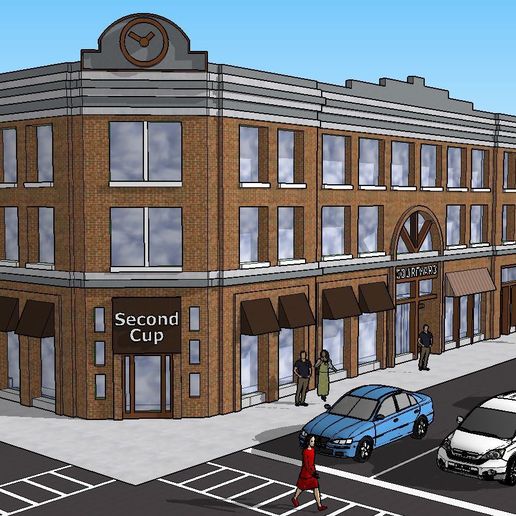

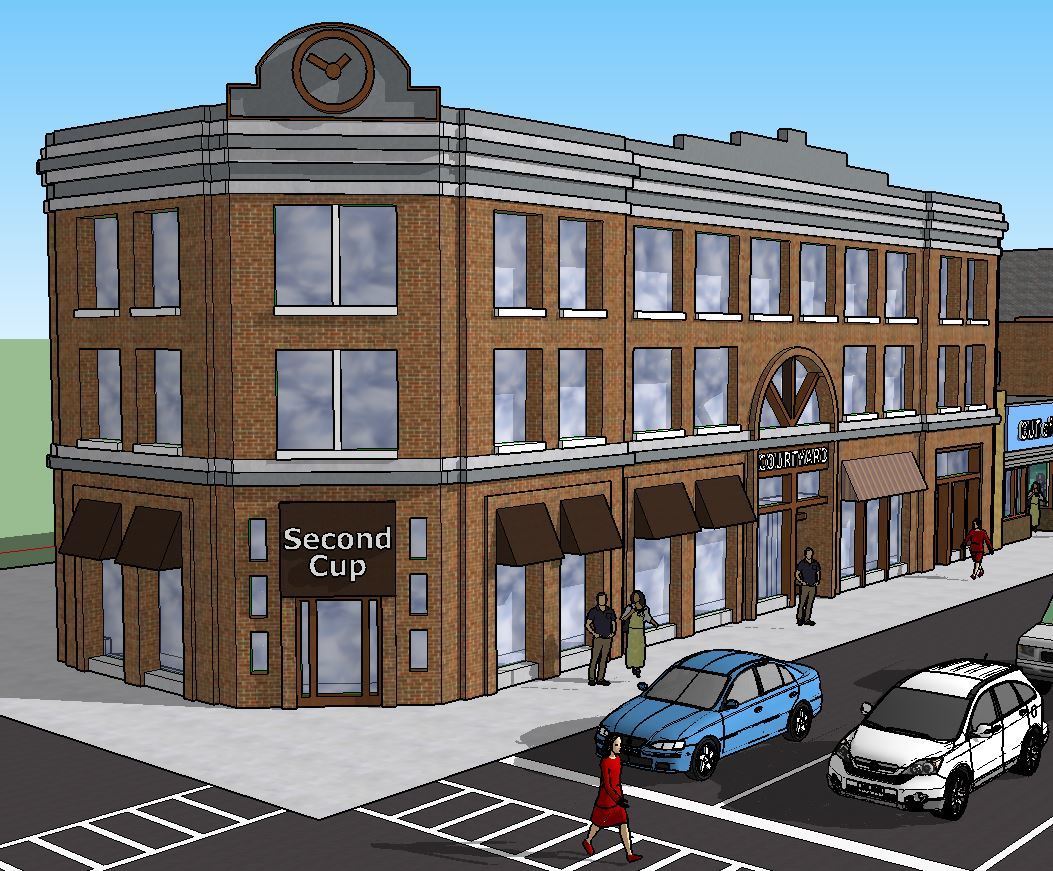

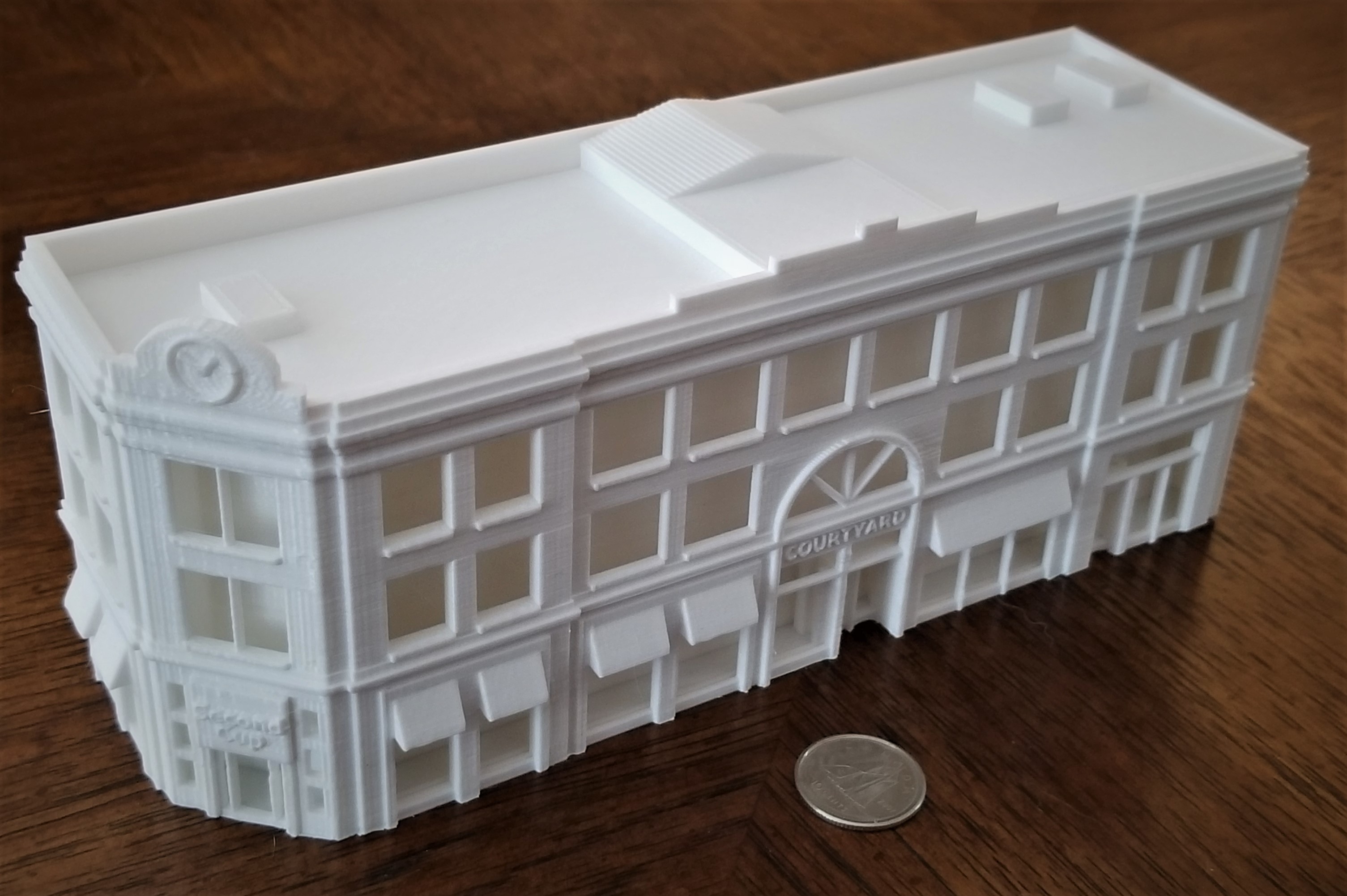

is the Courtyard Building which sits at the corner of Osborne Street and River Avenue. It is a keystone building of the village. Notice the clock up on it's peak.

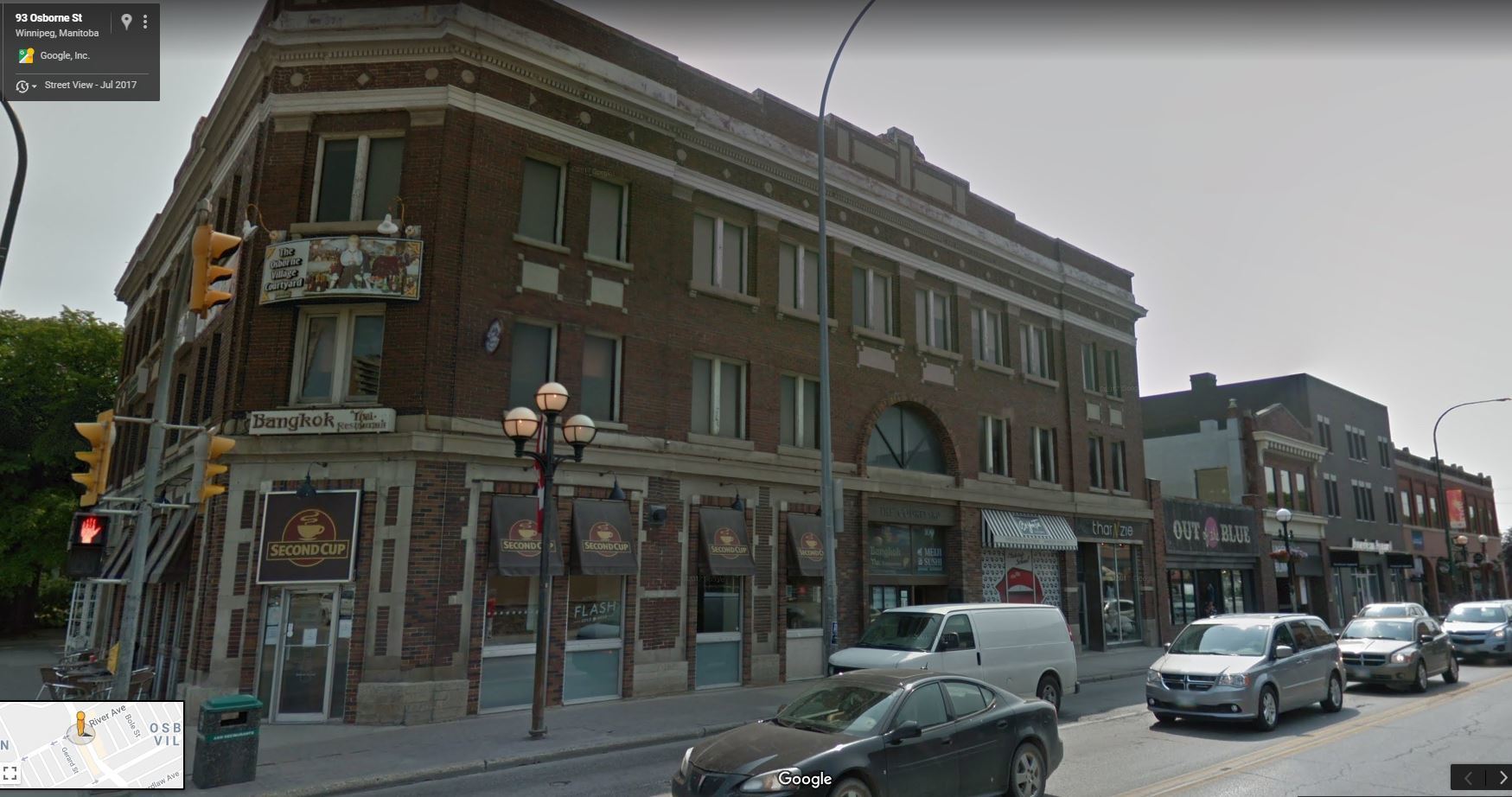

Google Street View: https://firstname.lastname@example.org,-97.1464366,3a,43.2y,95.48h,100.94t/data=!3m6!1e1!3m4!1sK4pVPpb-xPQVWYLWLIO5Kw!2e0!7i13312!8i6656

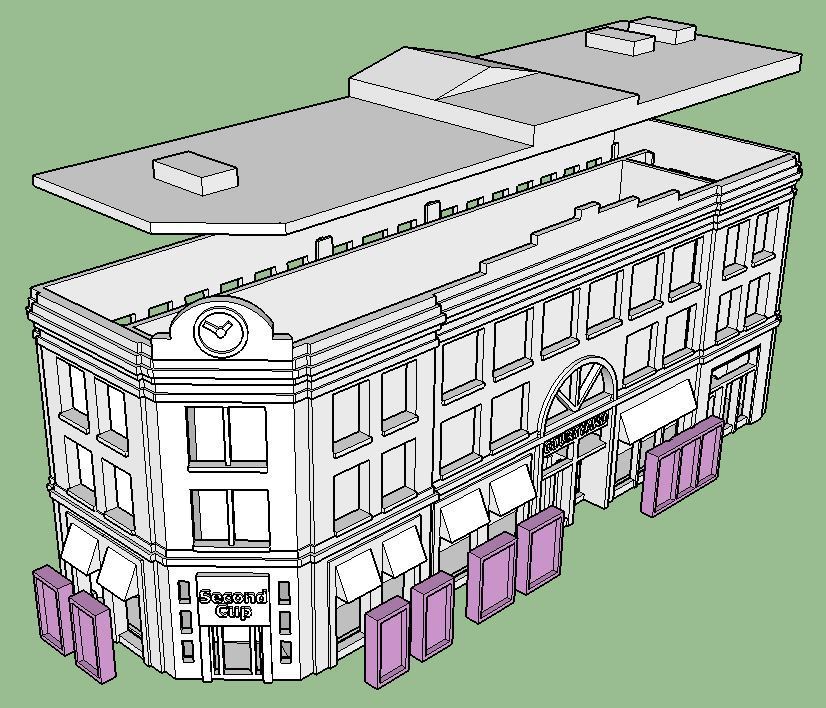

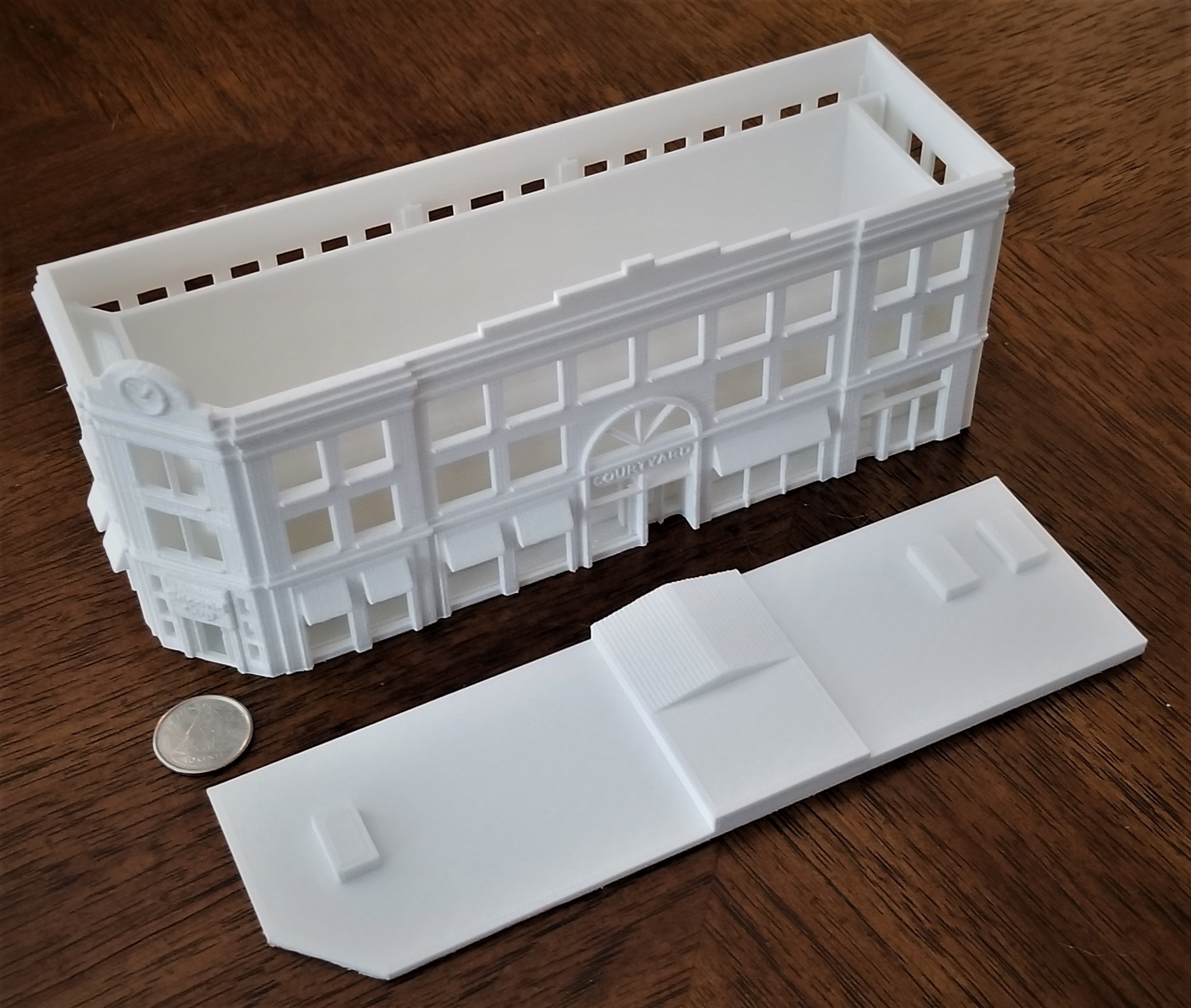

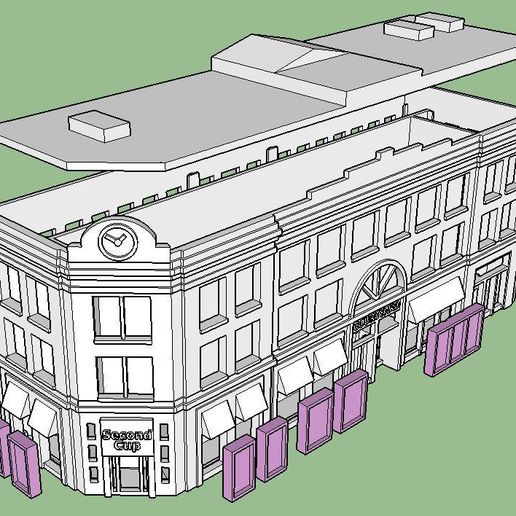

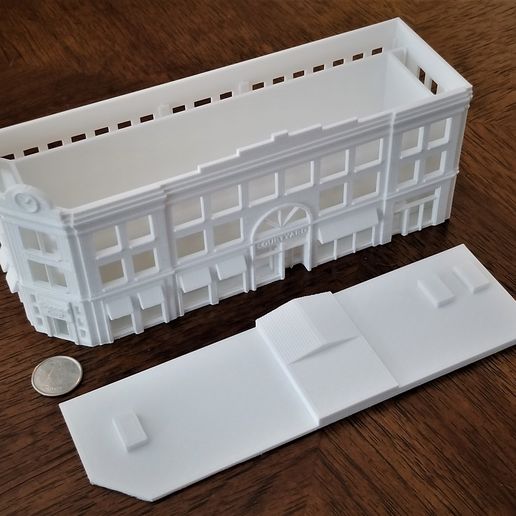

- Removable roof structures that facilitate internal finishing

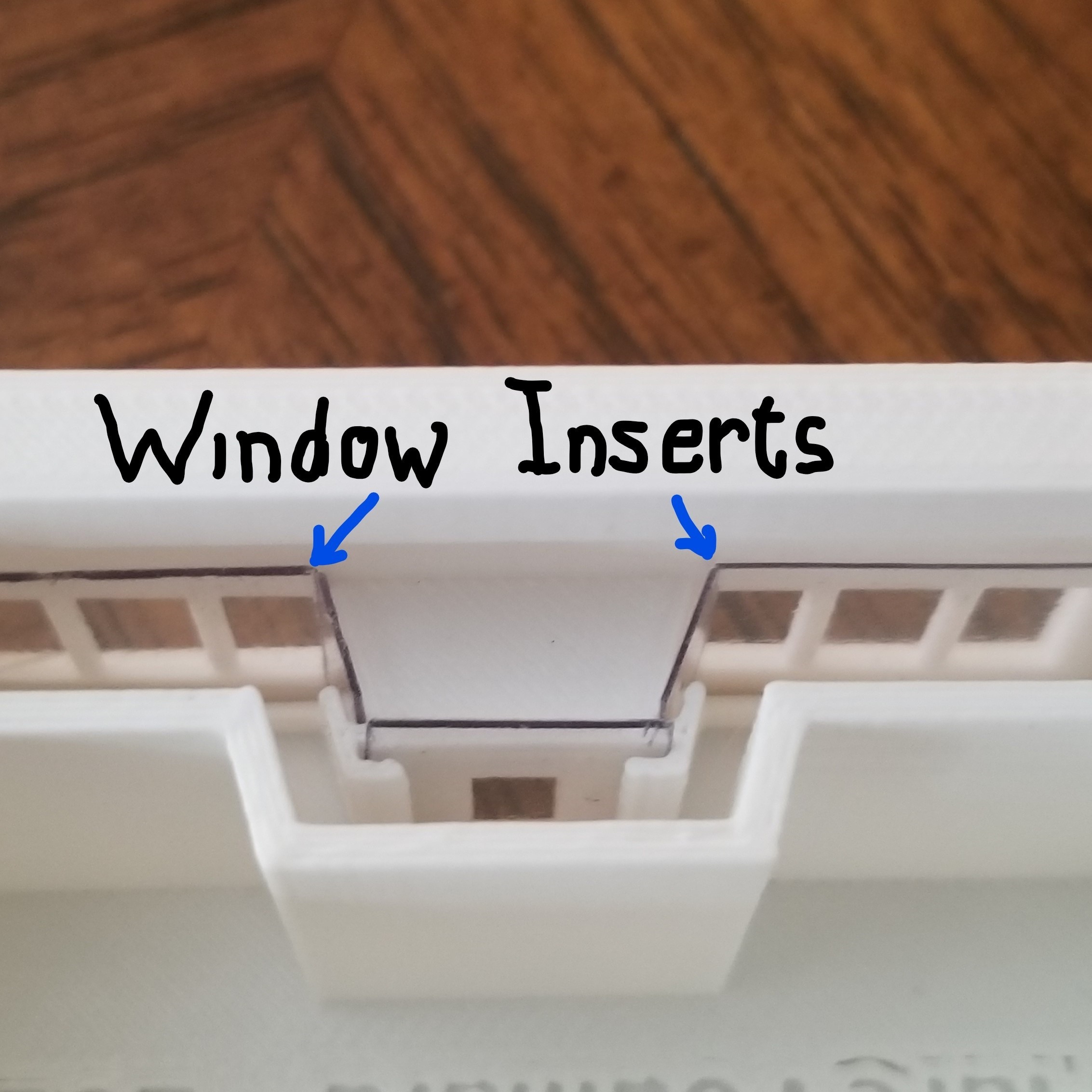

- Precision interior slots for installing clear windows
- Accessible interior walls for applying paint or wallpaper
- Can accommodate interior lighting with just a few drilled holes
- Each model is meticulously designed to scale (1:160)

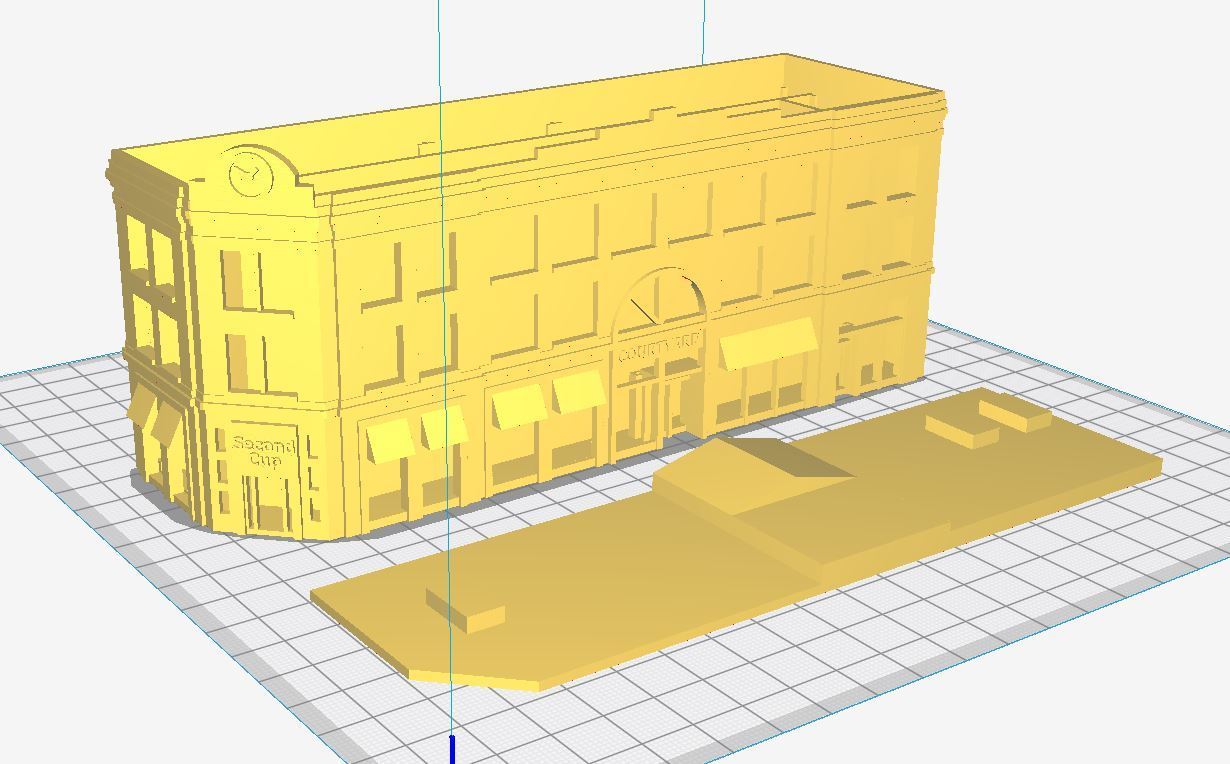

- STL files are provided with and without overhang support structures
A FREE non-premium version of this building is available at https://cults3d.com/en/3d-model/architecture/n-scale-building-2-set
Links to other buildings in set
All my creations:
(c) 2018 All rights reserved
SLICER SETTINGS for FDM 3D PRINTING
STL files are provided with and without designed-in support structures. I prefer using the designed-in supports but you can use slicer supports if you prefer.
The delicate window frames and signage required well tuned slicer settings for best results. Here are the Cura slicer settings I used on my 3D printer with exceptional results:
Prusa i3 Clone
Direct drive extruder
Retract Speed (45mm/s)
Material (1.75mm PLA)
Layer Height (0.24mm)
Top/Bottom Layer (0.72mm)
Tool Temp (200C)
Bed Temp (60C)
Print Speed (60mm/s)
Wall Speed (30mm/s)
Adhesion (Skirt, Brim on larger buildings)
Retired electronics engineer, designer, model railroader. My specialty is creating 3D replicas, in N-Scale (1:160), of houses, buildings, and structures found anywhere on the 'Google Street View' planet.
Ingénieur en électronique retraité, concepteur, modéliste ferroviaire. Ma spécialité est la création de répliques 3D, en échelle N (1: 160), de maisons, de bâtiments et de structures trouvés n'importe où sur la planète «Google Street View».
Ingeniero electrónico retirado, diseñador, ferroviario modelo. Mi especialidad es crear réplicas 3D, en N-Scale (1: 160), de casas, edificios y estructuras que se encuentran en cualquier parte del planeta 'Google Street View'.
For a custom design contact me: CreateMy3D@shaw.ca
