Semi-detached house

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

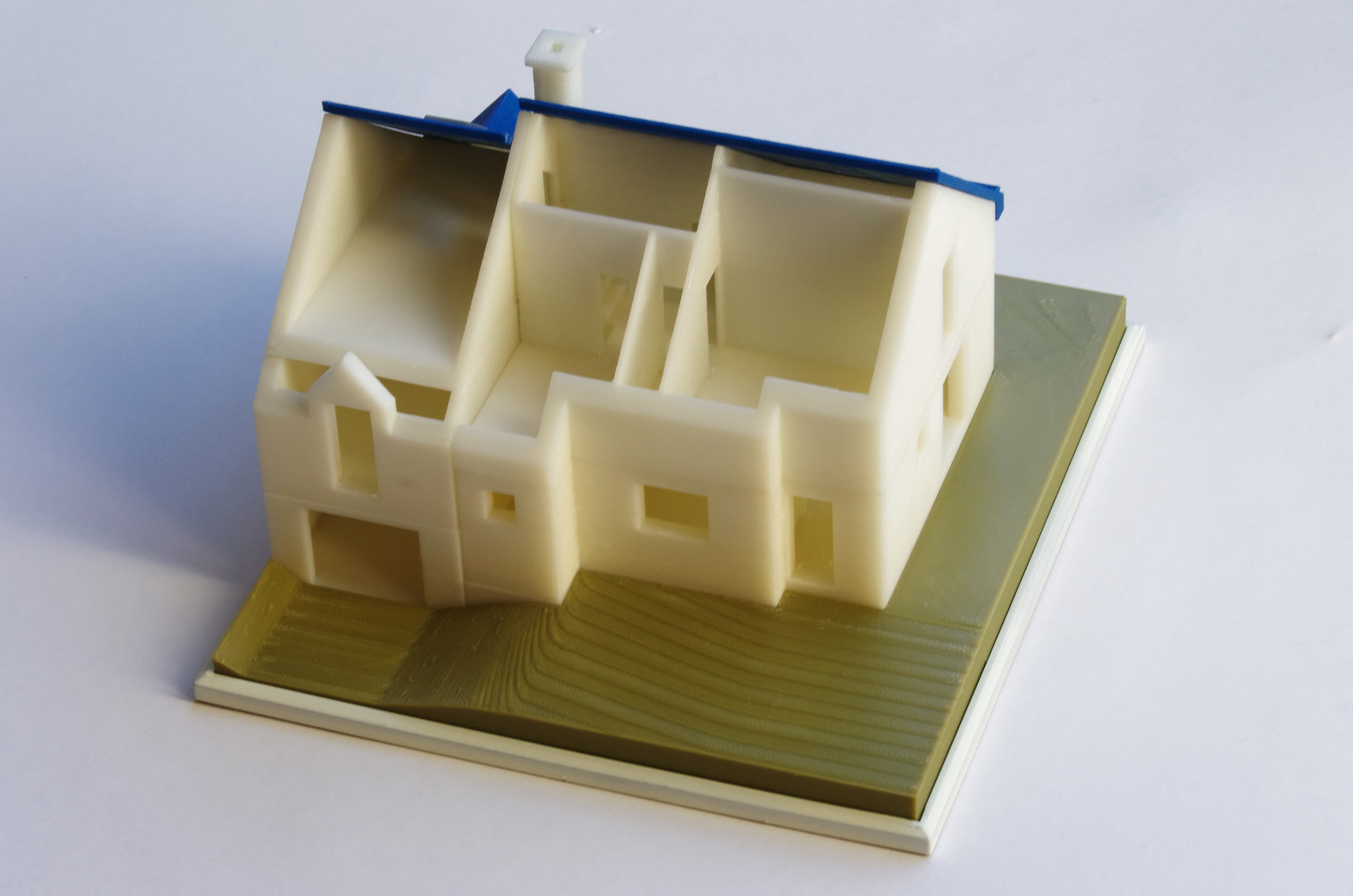

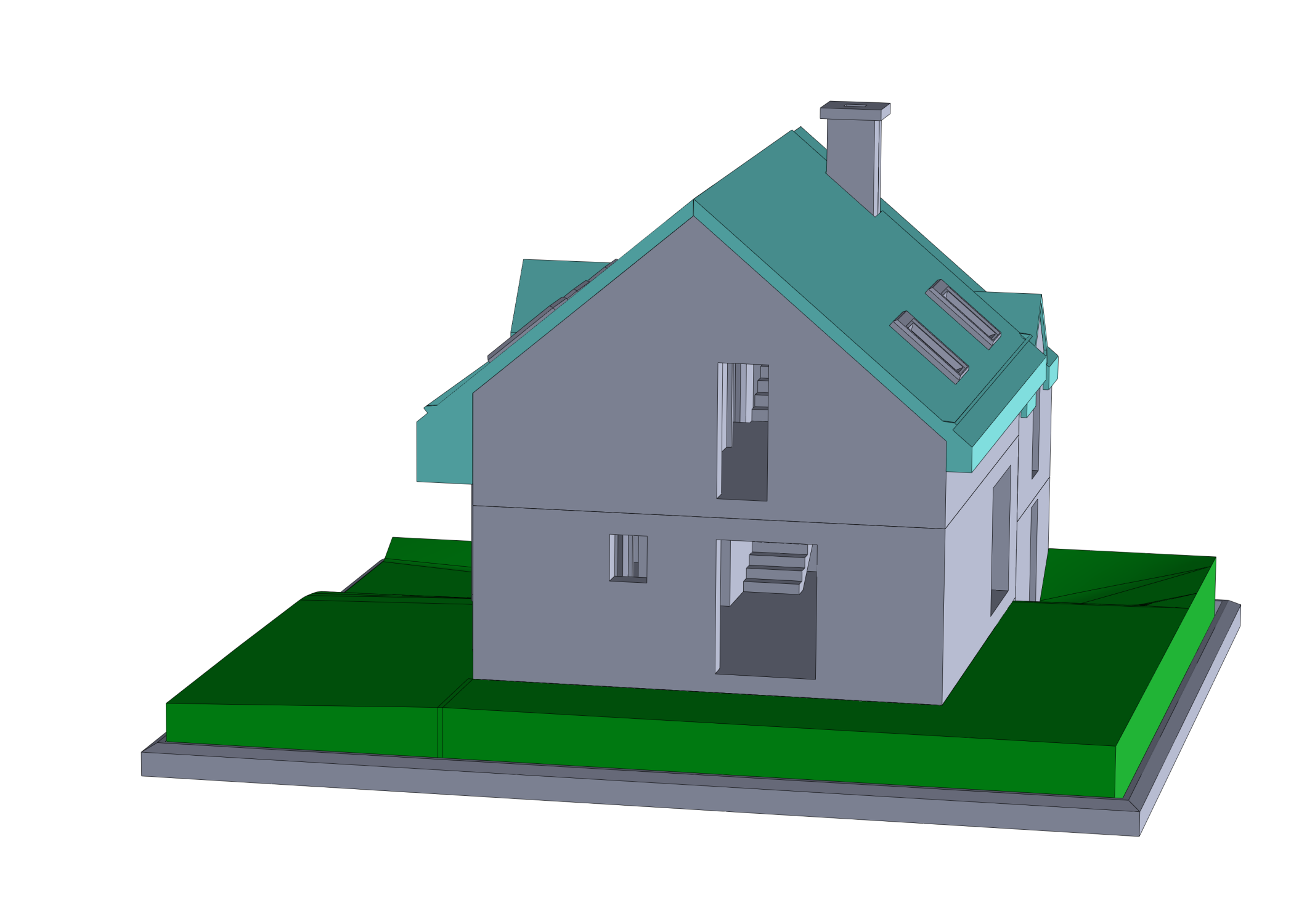

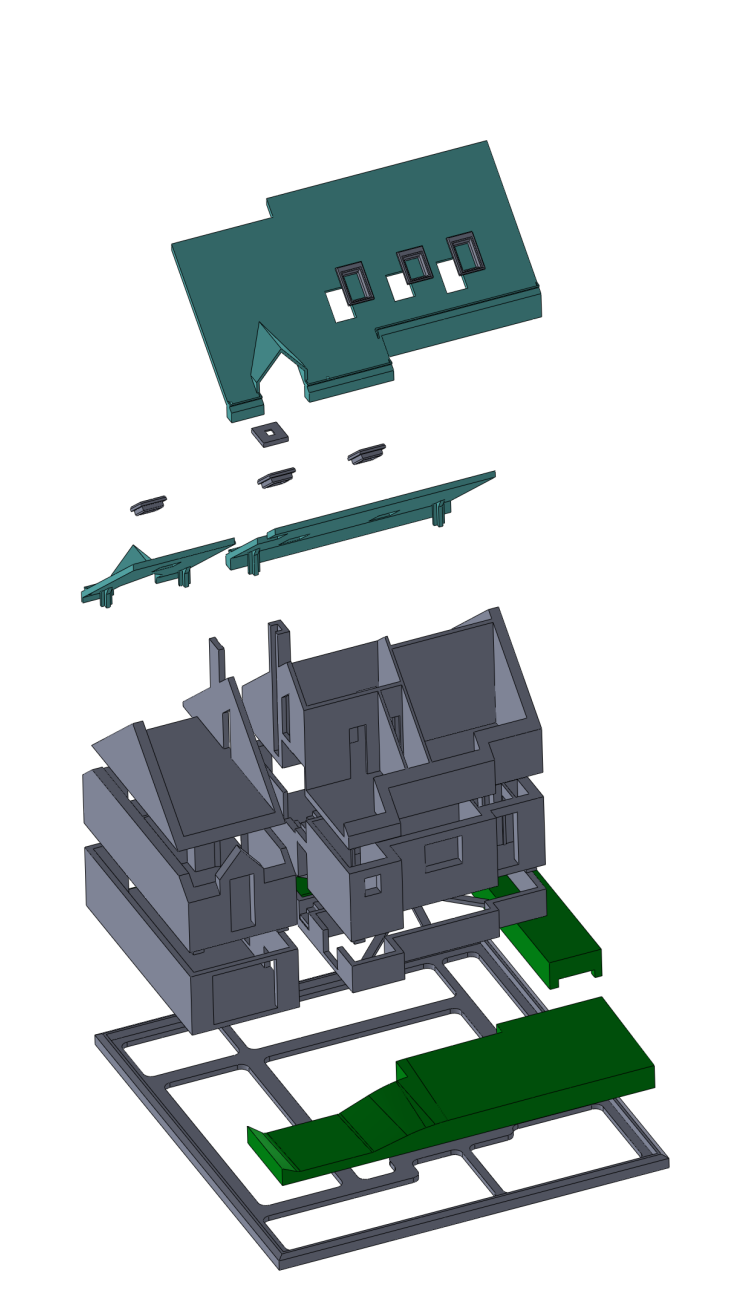

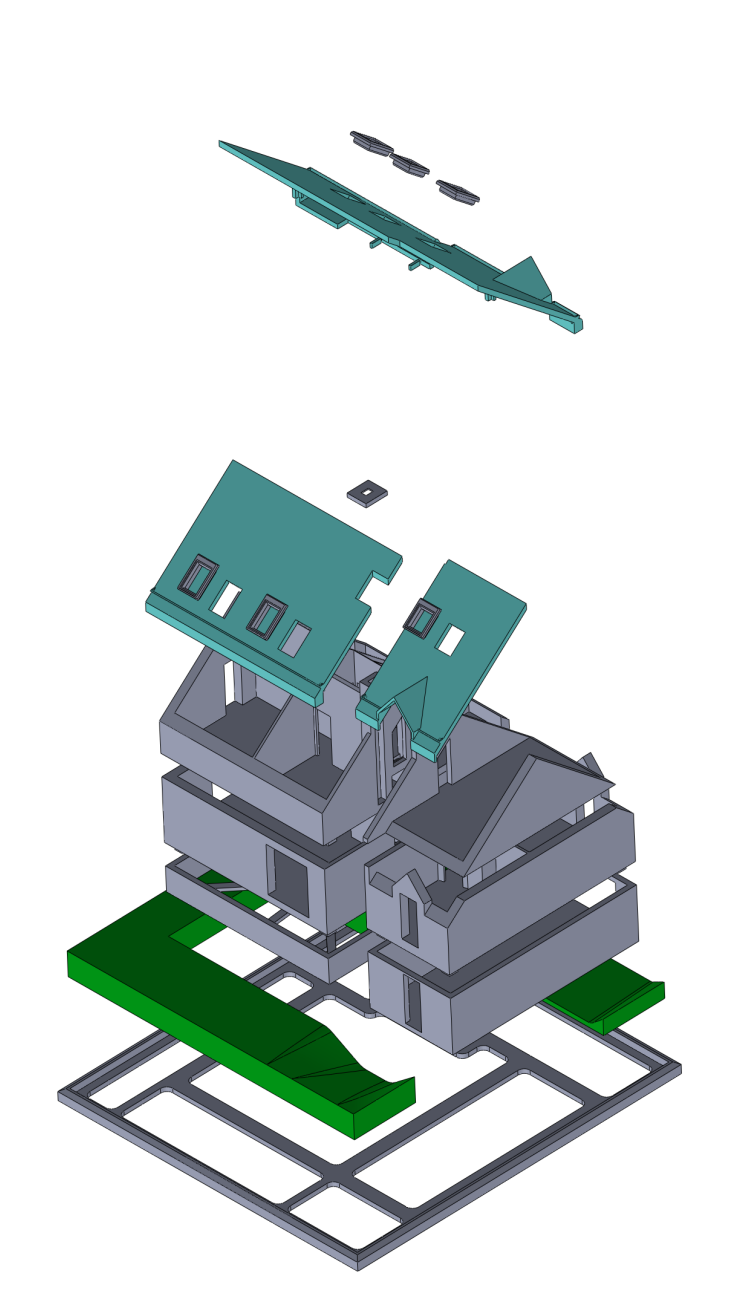

It is a half-level house with a central staircase connecting the 5 levels.

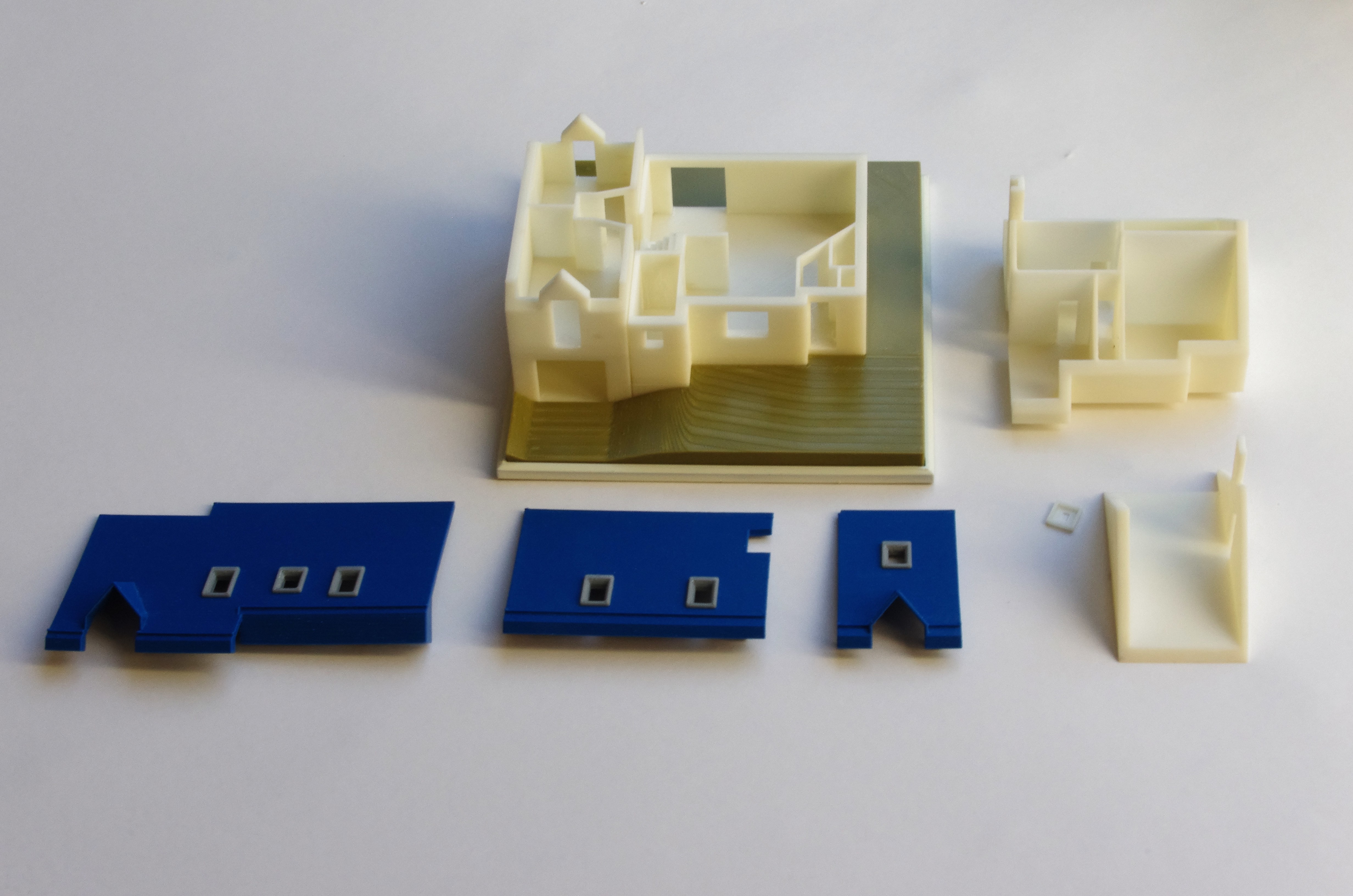

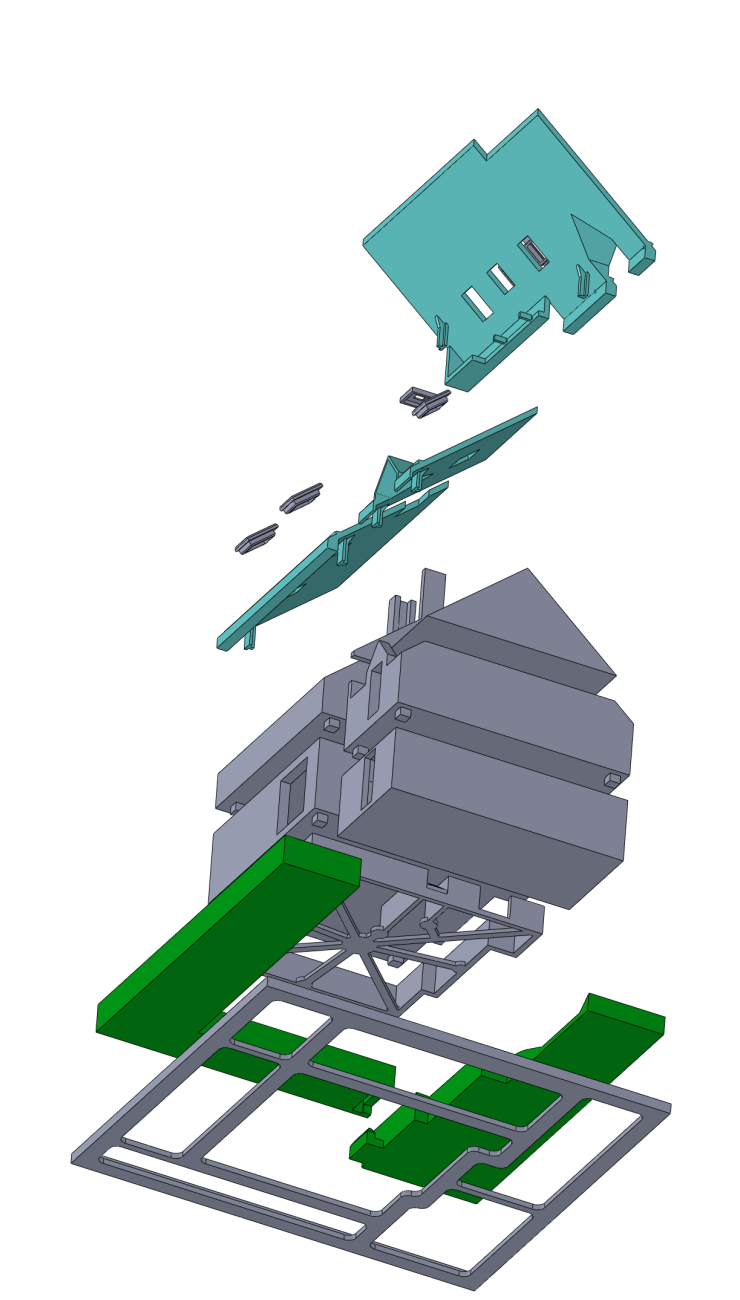

The 5 levels of this house are demountable.

This conception is part of the educational project of a primary school whose objective is the discovery of architecture.


3D printing settings

This object was printed on a Zortrax M200 printer.

Technical informations :
Scale: 1/100
Dimensions without the ground (W x W x H) in mm: 121 x 98 x 94
Dimensions with the ground: 156 x 146 x 96

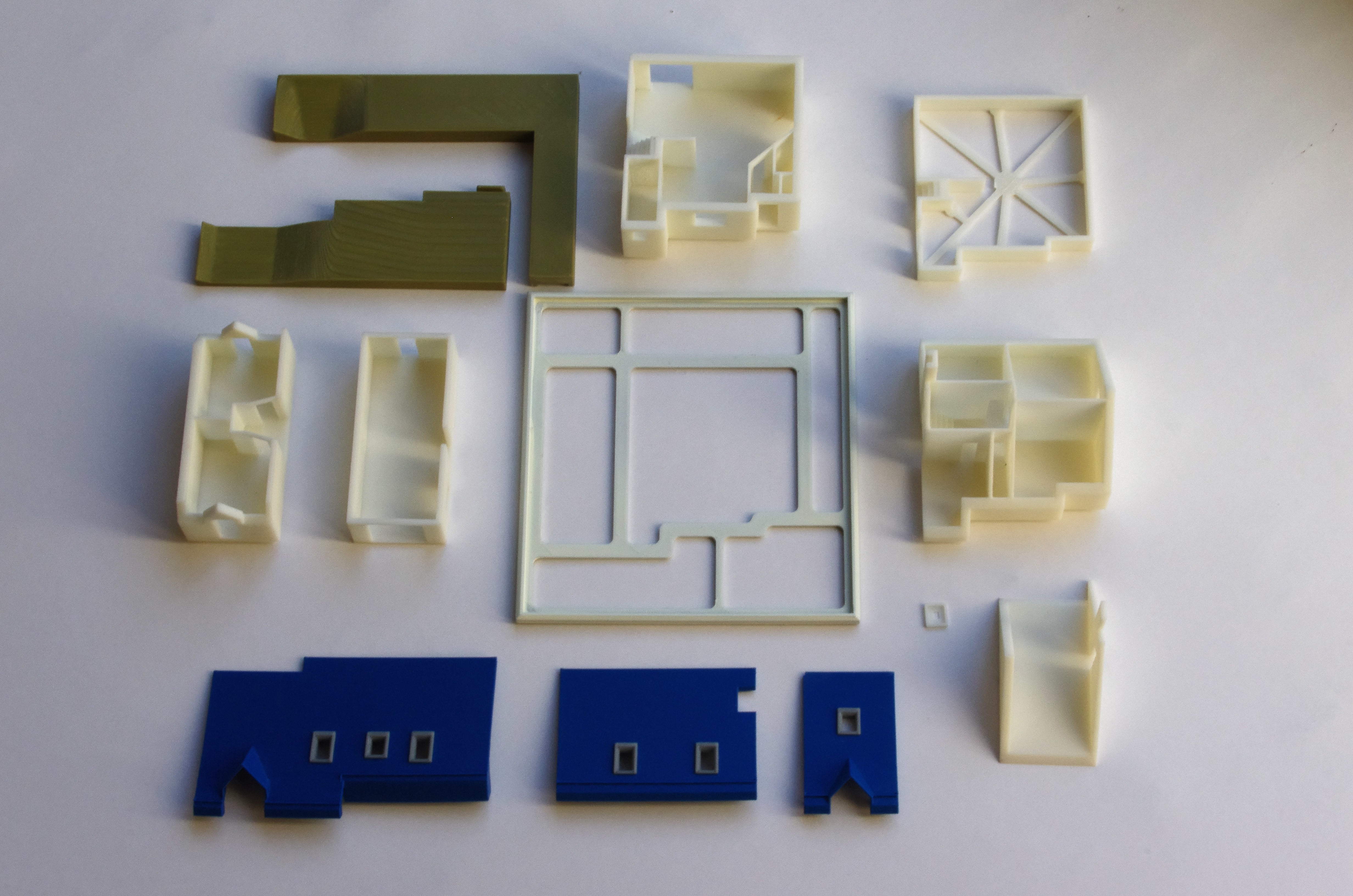

Number of pieces: 19
Roof slope: 40 ° (to tilt the roof windows)
Minimum Thickness of Partitions 1mm
Note: Roof supports are designed to be broken after printing.

Printing parameters:
Material used: Z-ULTRAT (diameter 1,75mm)
Layer Thickness: 0.14
Quality: high
Infill: medium
Seam: random
Smart bridge: enabled
Support:
Angle: 10 °
Support light: enabled.

Total printing time: 45h08
Length of filament used: 127.15 m
Cost of material: 19.32 €

3D printer file information

  • 3D design format: STL Folder details Close
    • assemblage_maison_montee - cheminee-1.STL
    • assemblage_maison_montee - murs_niveau_0-1.STL
    • assemblage_maison_montee - murs_niveau_1-1.STL
    • assemblage_maison_montee - murs_niveau_2-1.STL
    • assemblage_maison_montee - murs_niveau_3-1.STL
    • assemblage_maison_montee - murs_niveau_garage-1.STL
    • assemblage_maison_montee - murs_niveau_vide_sanitaire-1.STL
    • assemblage_maison_montee - support_sol-1.STL
    • assemblage_maison_montee - terrain_arriere-1.STL
    • assemblage_maison_montee - terrain_avant-1.STL
    • assemblage_maison_montee - toit_arriere-1.STL
    • assemblage_maison_montee - toit_arriere_petit-1.STL
    • assemblage_maison_montee - toit_avant-1.STL
    • assemblage_maison_montee - velux_7.6_11.5-1.STL
    • assemblage_maison_montee - velux_7.6_11.5-2.STL
    • assemblage_maison_montee - velux_7.6_11.5-3.STL
    • assemblage_maison_montee - velux_7.6_11.5-4.STL
    • assemblage_maison_montee - velux_7.6_9.37-1.STL
    • assemblage_maison_montee - velux_7.6_9.37-2.STL

    Learn more about the formats

  • Last update: 2017-04-12 at 18:19
  • Publication date: 2017-04-11 at 09:02
