Create a kiosk running a raspberry pi, touchscreen, and articulating camera.
(Update 2) Additional STLs without the camera mount by popular demand. All snap-in fan mount sizes included.

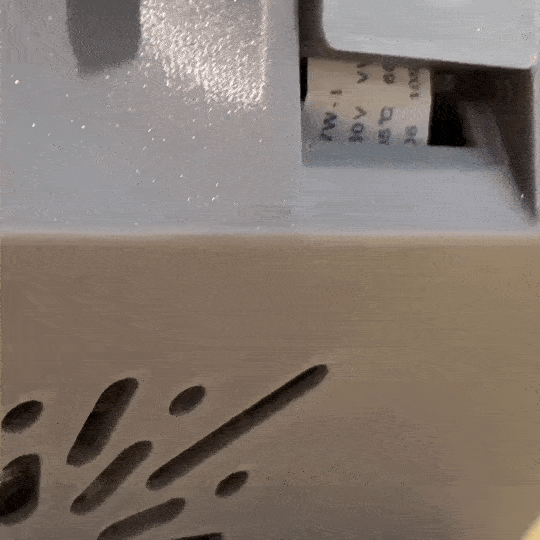

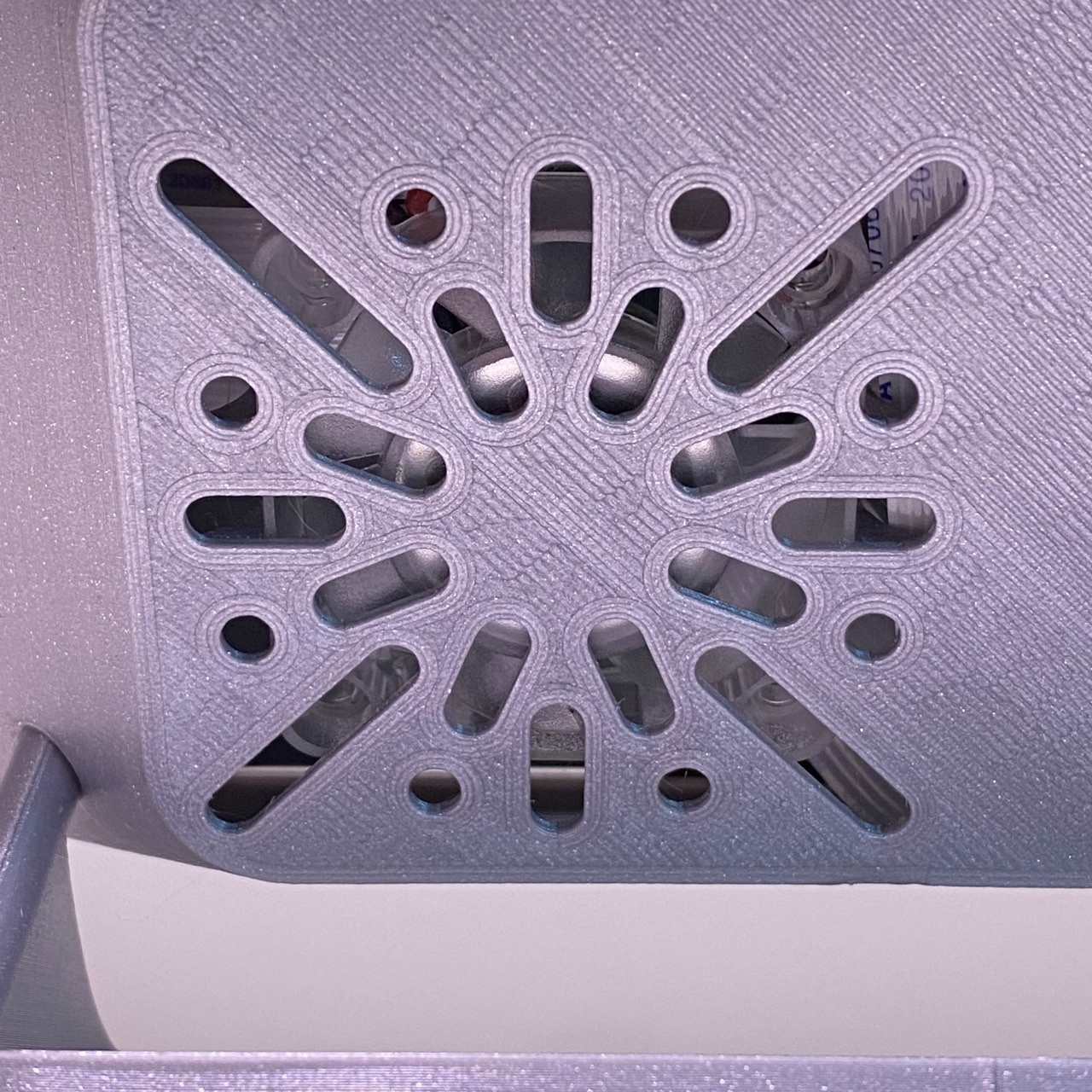

(Update 1) Now with snap-in fan mounts to keep your pi cool and other improvements.

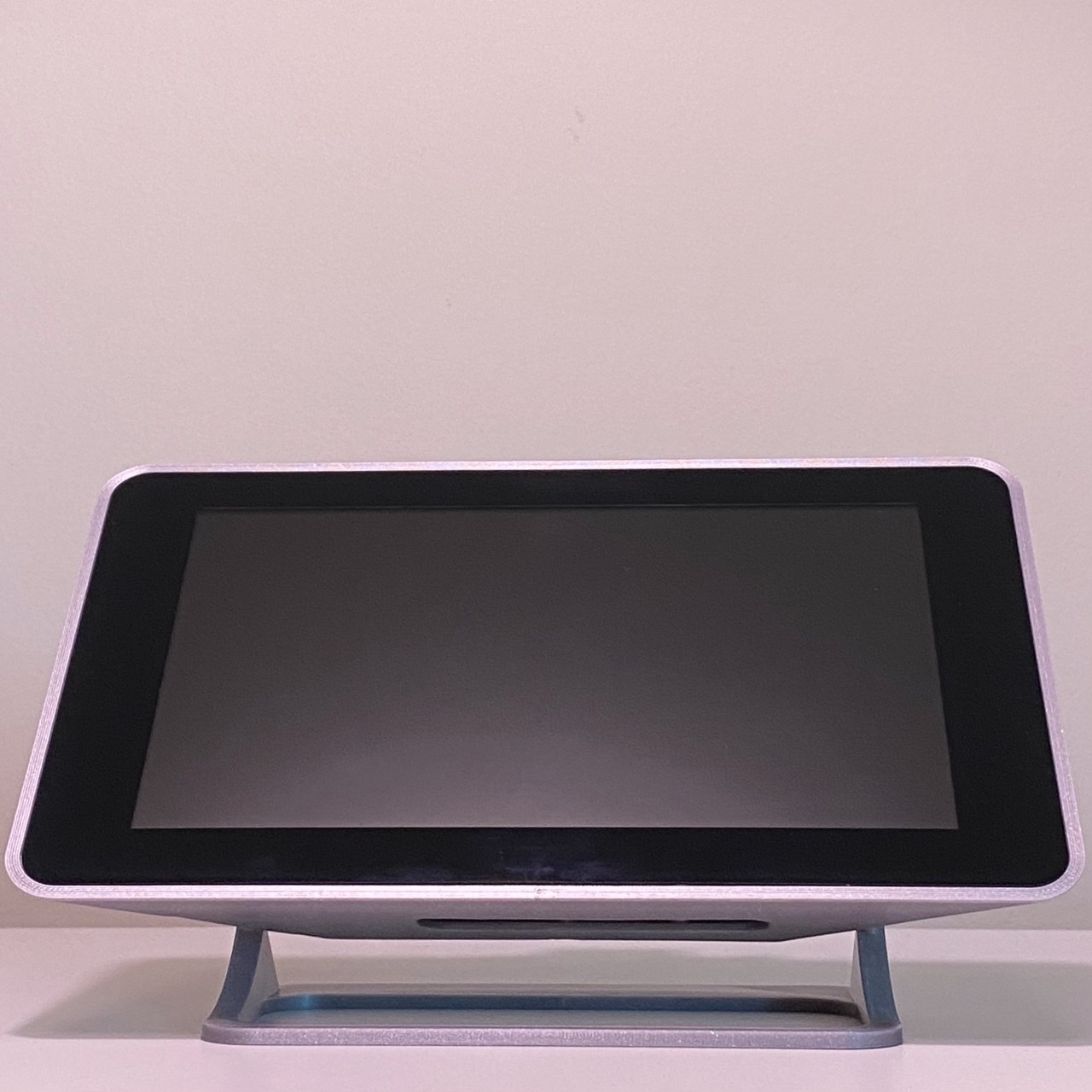

After failing to find a well-designed, simple (low part count) kit to run Octopi, that didn't also require a bunch of different screws, I designed the Pi Touch Case. Bring your electronics and 4 M3x10mm screws for the touchscreen’s factory mount and you can be up and running after a single print (considering Prusa i3 Mk3 build size).
Assembly Video:
https://youtu.be/XXRW2bx6Oh0

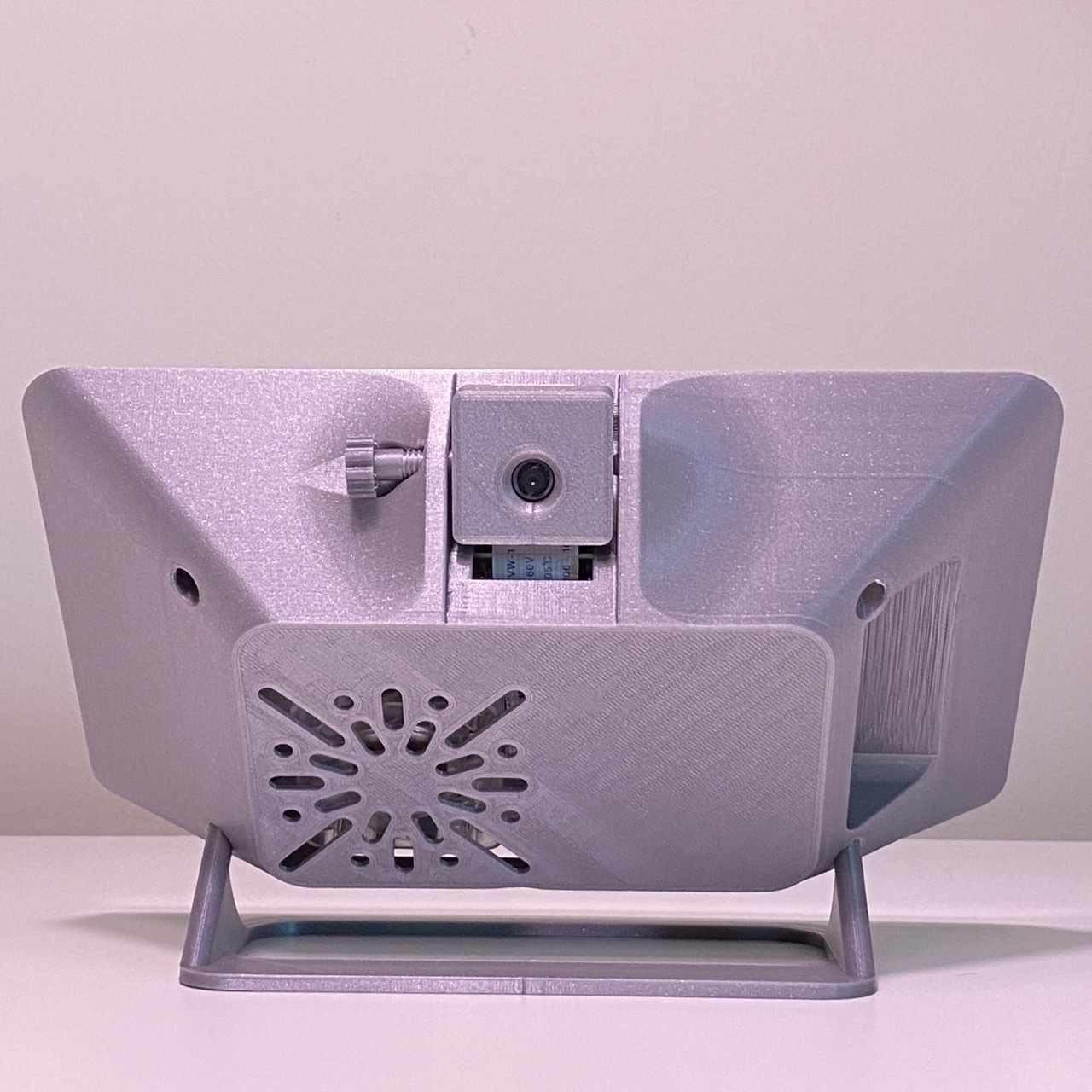

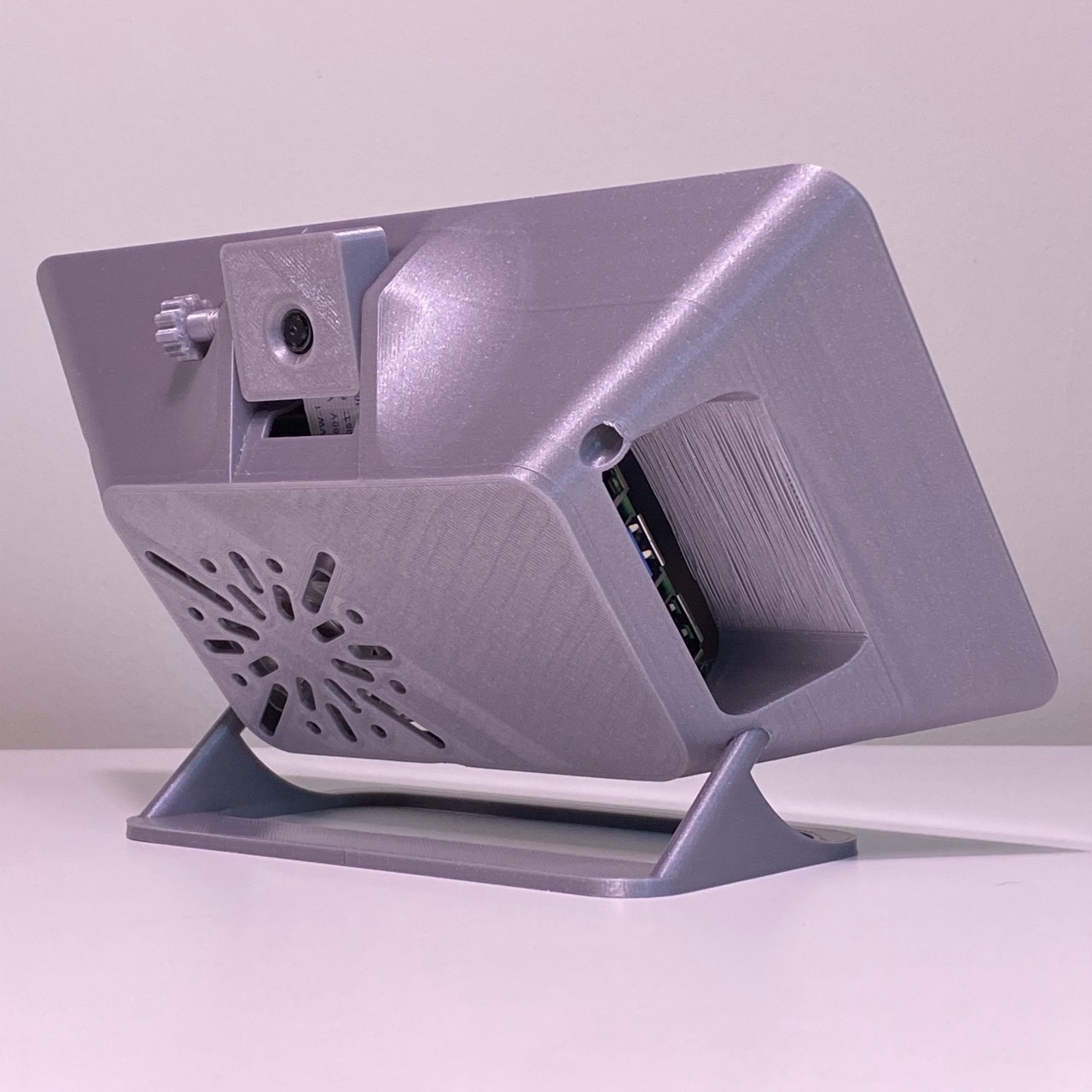

Printed Components:
- Case
- Stand
- Camera Housing
- Camera Sliding Back
- Camera Mounting Bolt
You Bring:
- Standard 7" Raspberry Pi Touchscreen - https://amzn.to/2BiQGU9
- Compatible Raspberry Pi - https://amzn.to/36Q2hG4
- Pi Camera v2.1 - https://amzn.to/2zHWLcE
- (Optional) Compatible Pi Fan: 30x30x10mm, 40x40x10mm, 50x50x10mm - https://amzn.to/2BgHzDW
- M3x10 Socket Head Screws (4x) - https://amzn.to/2XnCYrJ
3D-Druckeinstellungen
Case Size (Largest Part): 198.97 x 116.79 x 47mm

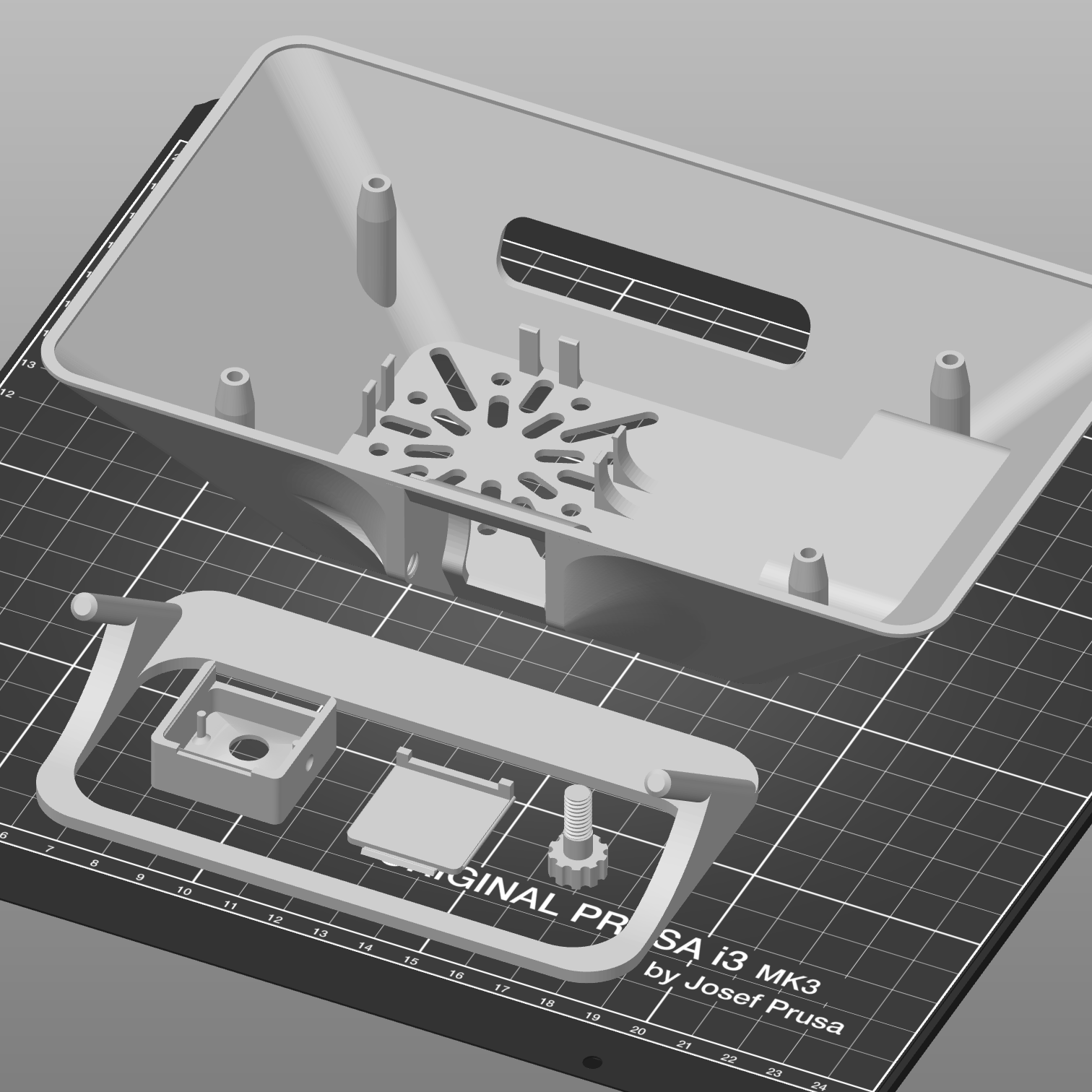

Build Size of Full Kit (Print Layout Image): 198.97 x 190.52 x 47mm
Layer Height: 0.15mm
Infill: 15%
Perimeters: 3
Bridging: Required
Thin Walls: Required
Supports: None
Brim: None
Informationen zur 3D-Druckerdatei
- Designnummer: 154610
-
Format der Gestaltung 3D: 3MF und STL Datei-Details Schließen
- camera back.stl
- camera bolt.stl
- camera housing.stl
- camera parts.3mf
- case (no camera mount) - 30mm screwless fan mount.stl
- case (no camera mount) - 40mm screwless fan mount.stl
- case (no camera mount) - 50mm screwless fan mount.stl
- case (no camera mount) - universal fan mount (screw slots).stl
- case - 30mm screwless fan mount.stl
- case - 40mm screwless fan mount.stl
- case - 50mm screwless fan mount.stl
- case - universal fan mount (screw slots).stl
- case and stand - 30mm screwless fan mount.3mf
- case and stand - 40mm screwless fan mount.3mf
- case and stand - 50mm screwless fan mount.3mf
- case and stand - universal fan mount (screw slots).3mf
- stand.stl
- Letzte Aktualisierung: 2020-09-22 23:50
